3 INSTALLATION

Connecting a Standard-Definition TV (SDTV)

1. Connect the stereo audio cable to the AUDIO L and R connectors on the DCX set-
top and the AUDIO L and AUDIO R connectors on the Stereo TV (SDTV).
2. Connect a video cable to the VIDEO OUT connector on the DCX set-top and the
INPUT VIDEO on the TV or an S-video cable to the S-VIDEO connectors on the DCX
set-top and the TV.
Note: These video connection methods do not support HD video. If you have an HDTV,
see Connecting HDTV — Separate Video/Audio

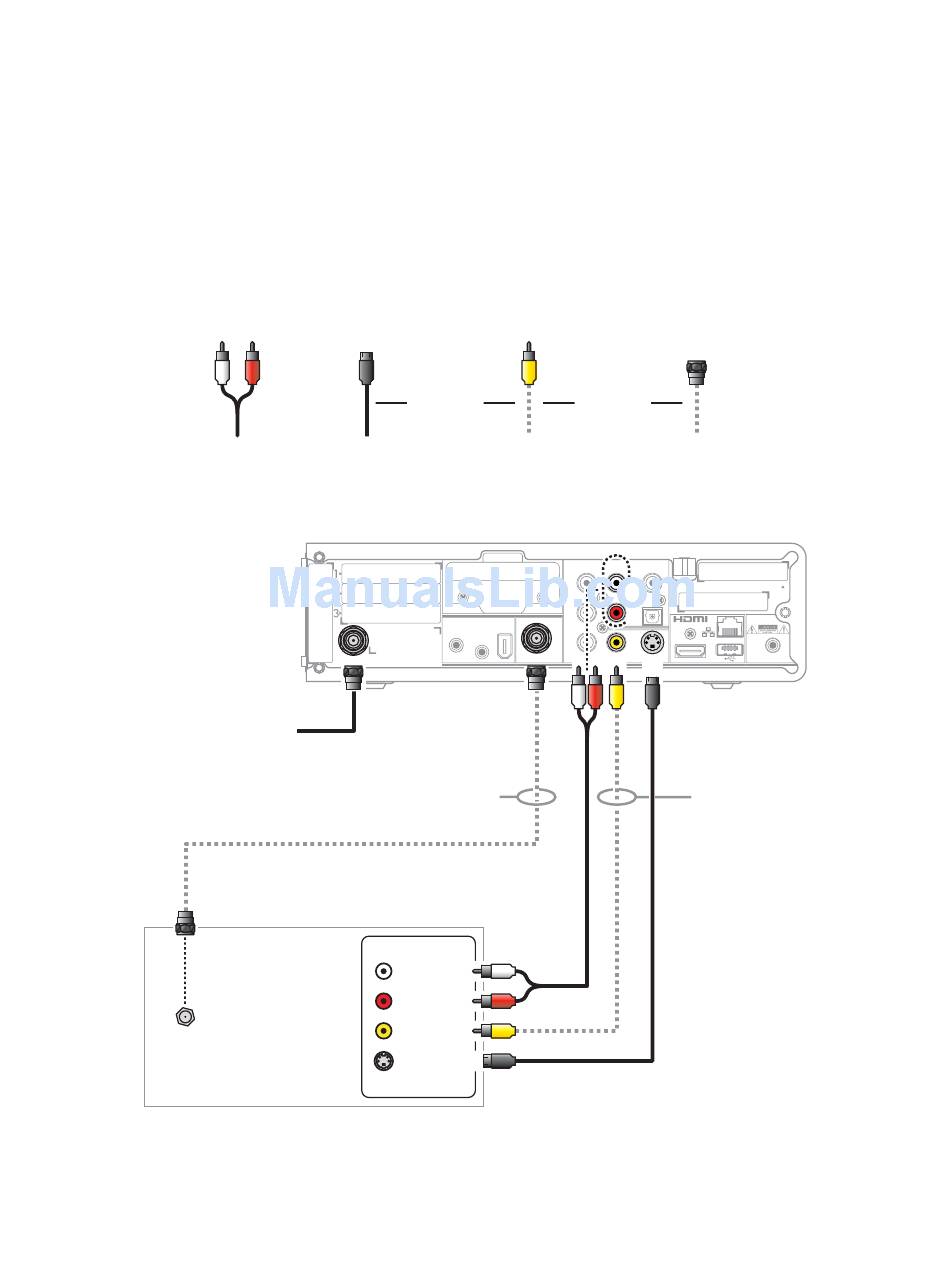

Figure 3-4 Connecting a Standard-Definition TV (SDTV)

L/R audio
Cable in
Standard-Definition TV
CABLE/
ANTENNA IN
Choose
one
S-Video Video
(composite)
M-card TM DEVICE ONLY
IEEE
EXT IR 1394
IN
SERIAL
CABLE IN
Alternate
INPUT
AUDIO LEFT
AUDIO RIGHT
VIDEO
S-VIDEO
16
Connections.
Choose
one
RF audio/video
(coax)
DCX3200
AUDIO DIGITAL
OUT AUDIO
5
Y L
Pb R
Pr
RF OUT VIDEO OUT VIDEO S-VIDEO
Alternate
4
POWER
+12 VDC
