2 OVERVIEW

Front Panel

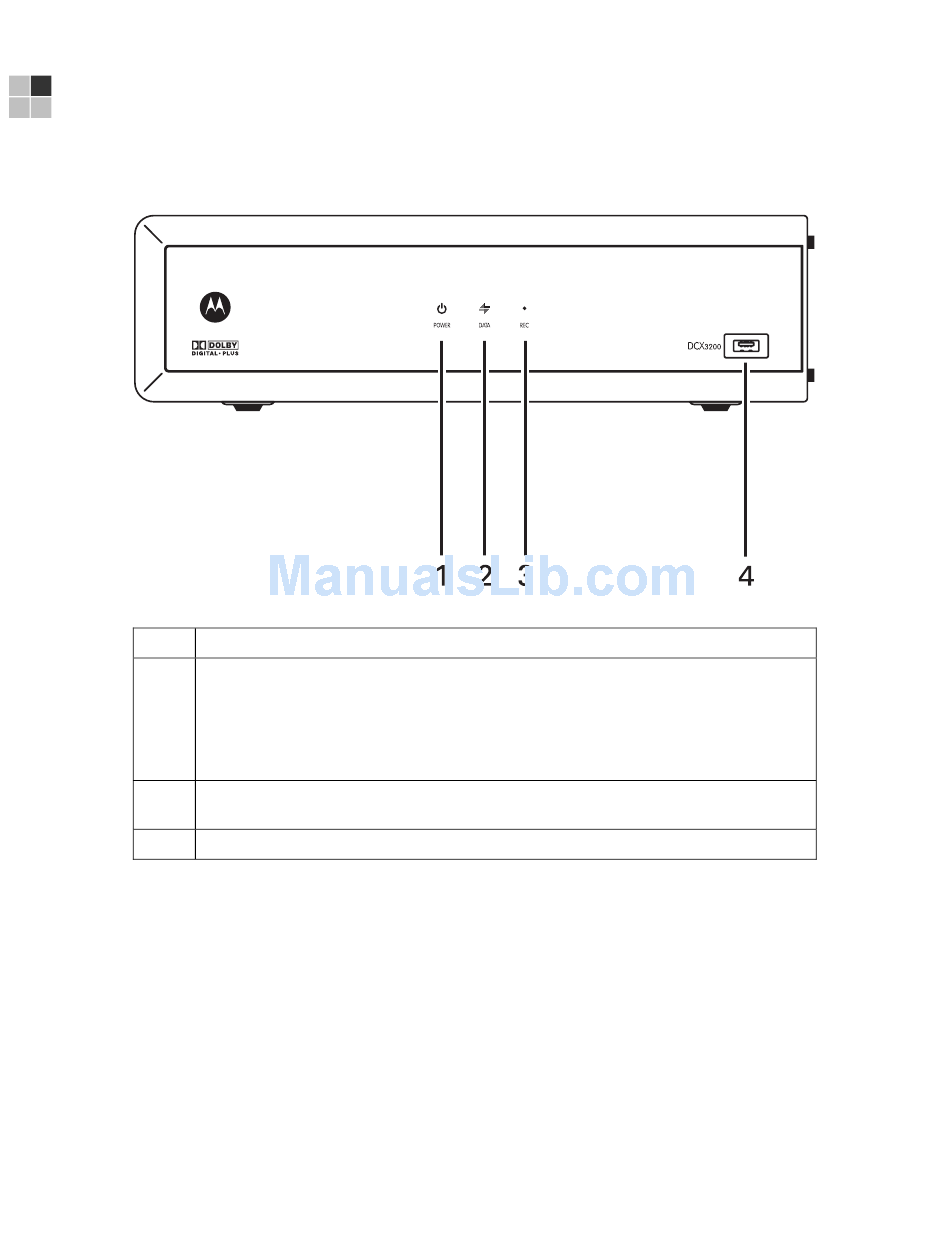

Figure 2-1 Front panel

Table 2-1 Front panel

1 Power — turns the set-top on and off (standby)
2 Data — Dual function LED
•
Flashes twice per second to indicate unit is booting
•
Flashes once per second to indicate unit is provisioning
•
Illuminates to indicate one or more set-top boxes and or DVR devices are
detected on the home network
3 Rec — Unit is in record mode on a home network device (only available on DCX3200-M
model) with MoCA option
4 USB connector*
*The availability of certain features is dependent upon application support.

Rear Panel

The rear panel contains connectors for video, audio, and RF cabling; data output; and
modem and data interface connectors. Some connectors are not enabled and require
the support of application software.
