4 DIAGNOSTICS

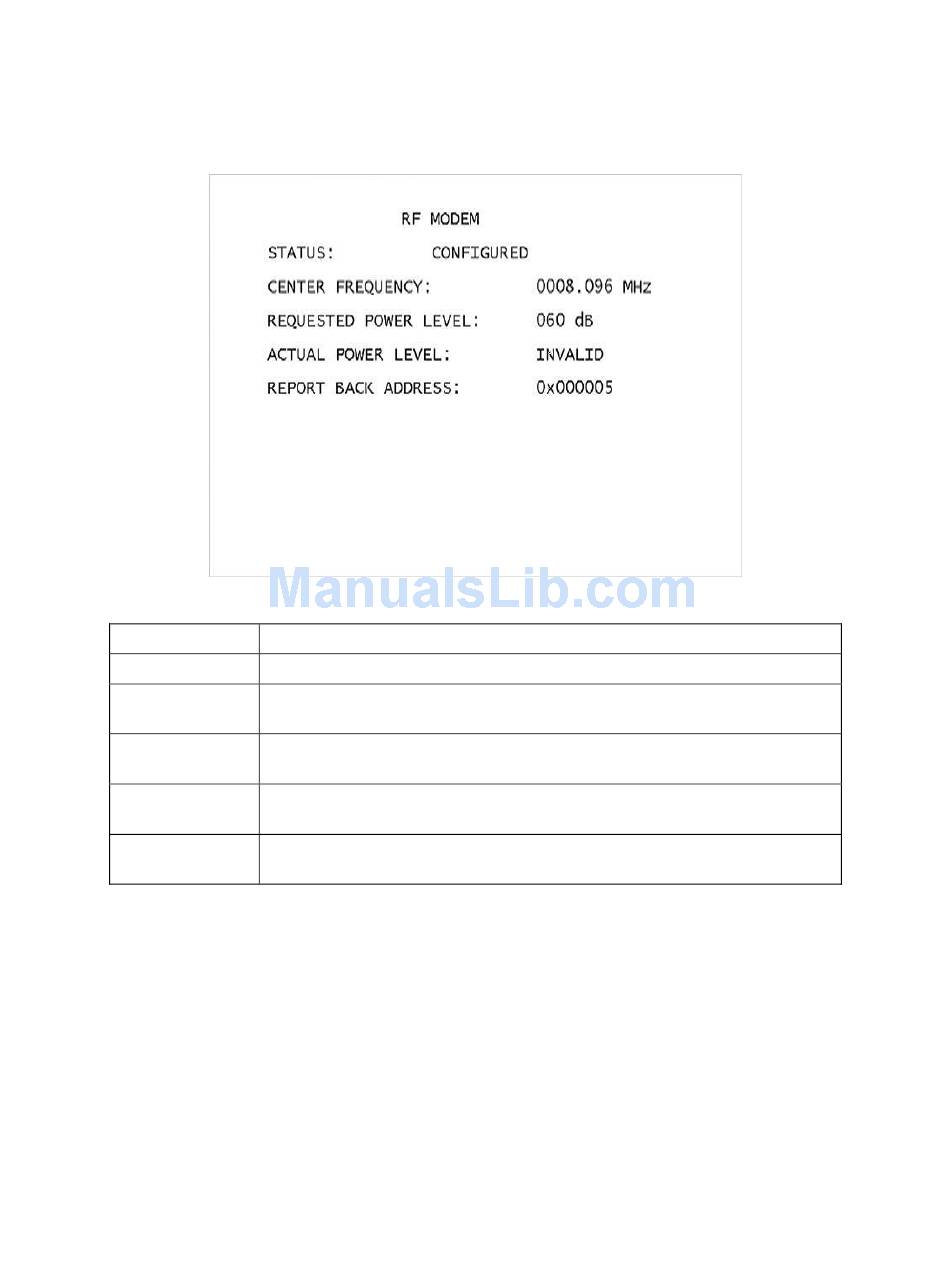

RF Modem (Upstream)

This diagnostic displays the RF modem status, if an RF modem is installed in the
DCX3200. The information is updated each time this diagnostic is displayed.
The RF Modem fields are:
Field
Status
Center
Frequency
Requested
Power Level
Actual Power
Level
Report Back
Address

Code Modules

This diagnostic includes information about the firmware loaded in flash memory and all
non-volatile code versions are installed on the DCX3200. When the native suite is
running, the diagnostics of the application operating system and all associated objects
should be accessible.
Description
CONFIGURED or NOT CONFIGURED.
The RF modem center frequency is displayed on the OSD in MHz.
The value in dB assigned to the DCX3200 during RF leveling (blank if it is
not configured).
The power level is displayed in dB on the OSD or is blank if the power level
has not been set.
Displayed in 4-byte hexadecimal format, if configured.
46
