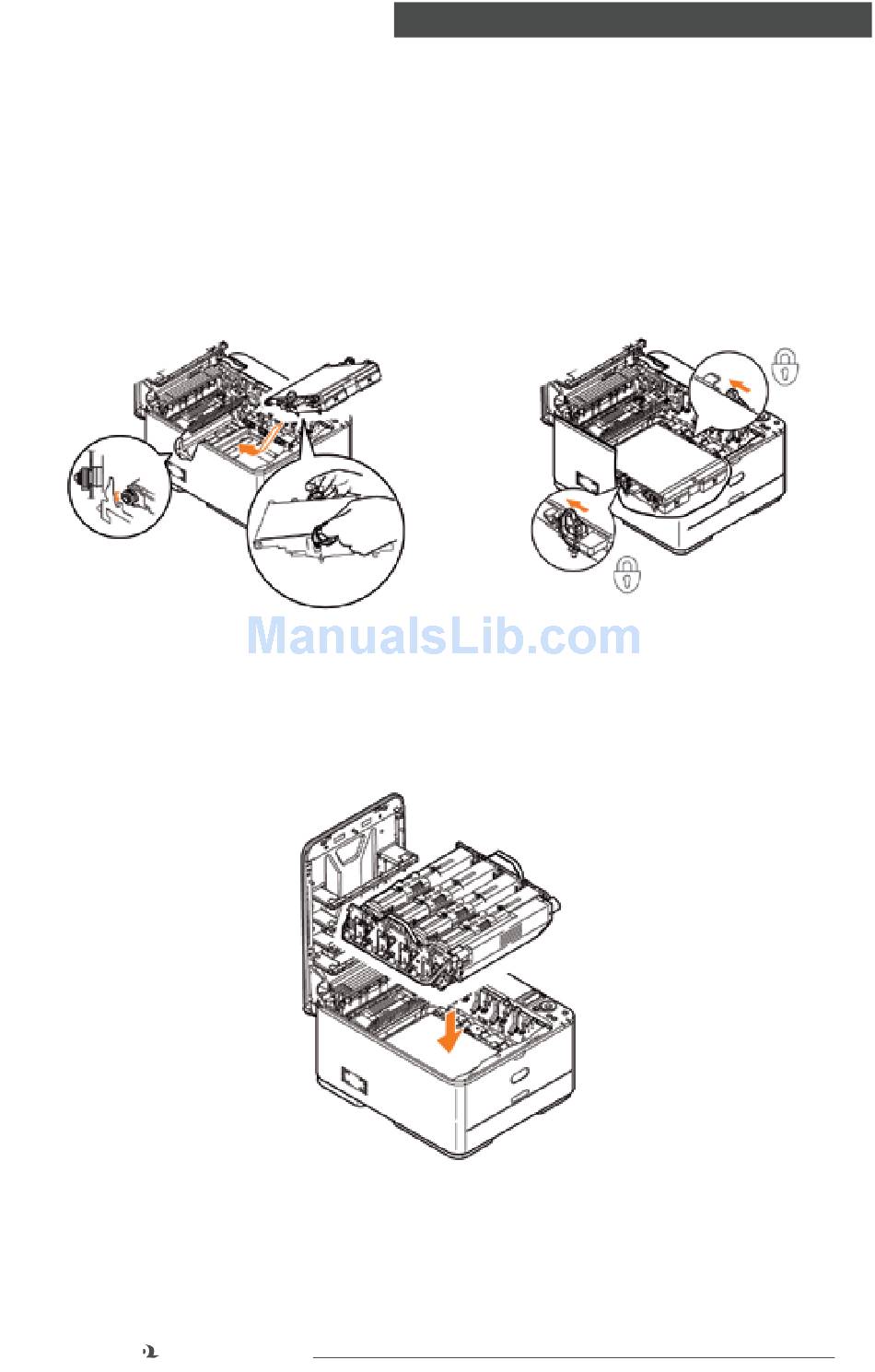

b. Using the locking levers (a), lift the belt (b) upwards and withdraw from the
machine.
c. Look into the printer to check whether any sheets of paper are visible on any
part of the paper path. Pull out any sheets found in this area.
d. Lower the belt unit into place, with the drive gear towards the rear of the
printer. Locate the drive gear into the gear inside the printer by the rear right
corner of the unit, and lower the belt unit flat inside the printer.
e. Push the locking levers towards the rear of the machine. This will secure the
belt unit in place.
7. Holding the image drum assembly by its handles, lower it into place in the
machine, locating the pegs at the sides into their slots in the sides of the printer
cavity.
Lower the top cover but do not press down to latch it closed yet. This will
8.
protect the drum from excessive exposure to room lighting while you check the
remaining areas for jammed sheets.
