4. Install Squat pulley frame

parts:
• Left Squat Pulley Frame (5)
• Right Squat Pulley Frame (6)
• Main Assembly
• 2 Slider Pulleys w/o Decal (8)
• Squat Platform (7)
Hardware:
• 1 Button Head Screw 3/8" X 5" (H)
• 5 Nylock Nut 3/8" (O)
• 2 Button Head Screws 3/8" X 3/4" (I)
• 12 Washers 3/8" (B)
• 4 Button Head Screws 3/8" X 2 3/4" (Q)
Tools:
7/32" Hex Wrench, Adjustable
or Socket Wrench

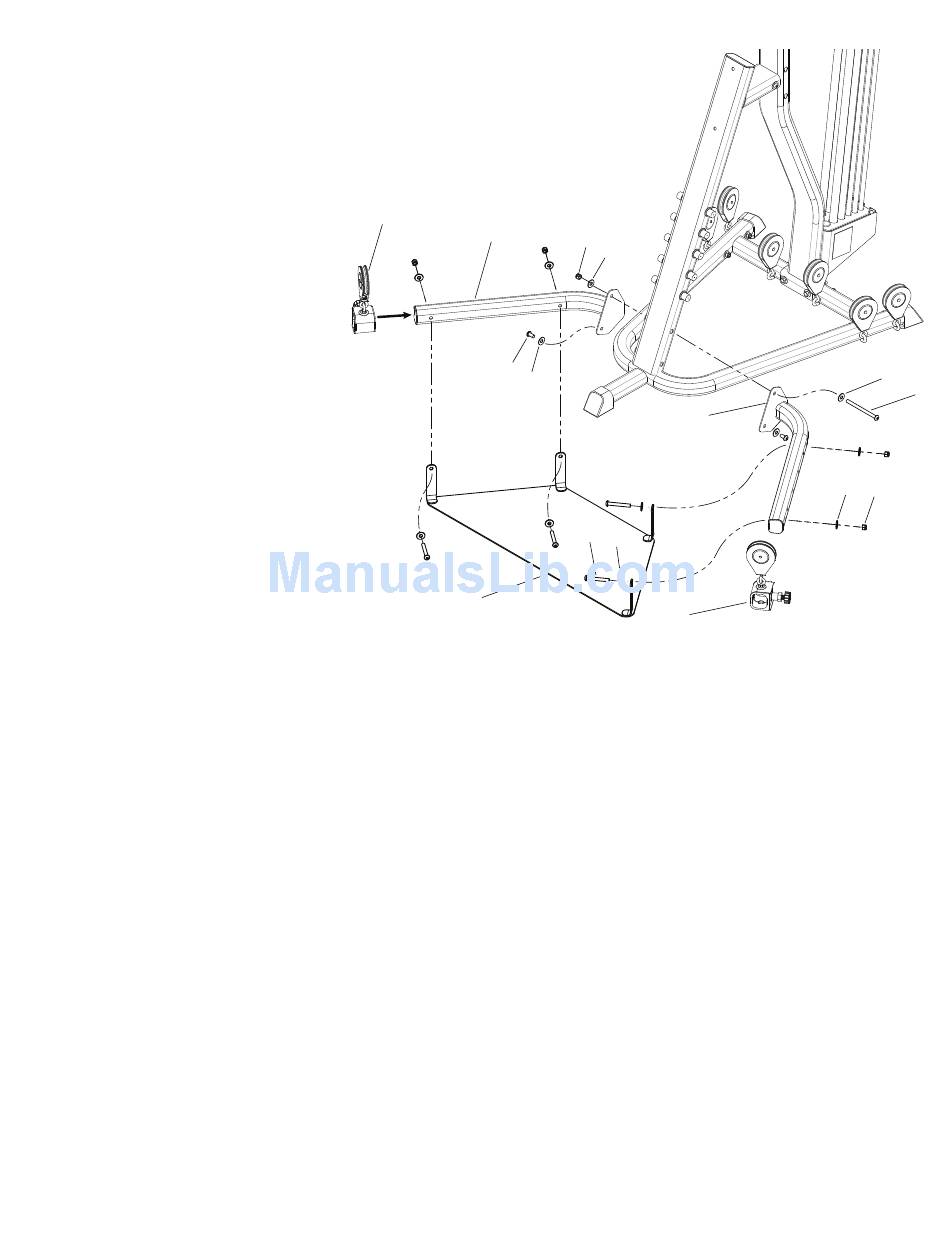

4-1 Place one Squat Pulley Frame on each side
of the Seat Support Rail as shown, and align
the top screw holes. Secure using a 3/8" X
5" screw, washer and nut in the top hole as
shown.
4-2
Install screws and washers through the bottom
holes of each Squat Pulley Frame into the
Support Rail as shown.
4-3 Put the Squat Platform in position under the
front foot of the Base Frame Assembly. Align
the screw holes in the Squat Platform brackets
with the screw holes on the inner side of each
Squat Pulley Frame.
4-4
Slide one Slider Pulley onto the free end of the
Left Squat Pulley Frame as shown.
Note: Be sure the Slider Pulley knob points
away from the Squat Platform.
Lock the pulley in position near the Seat
Support Rail.
4-5
Install the hardware to attach the Squat
Platform to the Left Squat Pulley Frame.
4-6 Repeat Steps 4-3 through 4-5 for the Right
Squat Pulley Frame.
8
6
I
B
7
9
Assembly Manual
O
B
5
Q B
8
B
H
B O
