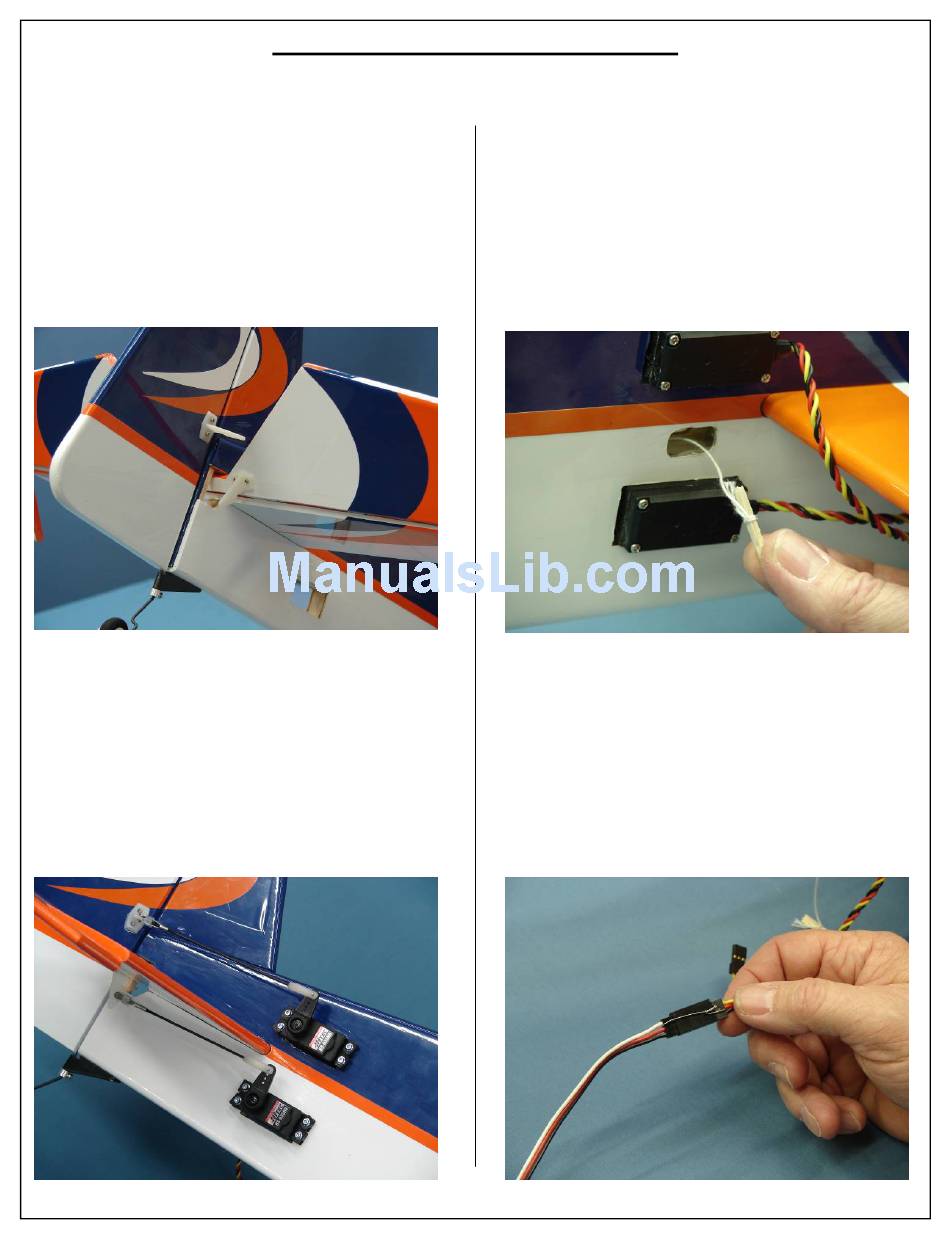

1. Locate the pre drilled mounting holes and install
the rudder and elevator control horns using the
same method used on the wing. Both horns
should be on the same side of the fuse as shown.
2. Install the servos using the servo screws pro-
vided with the servo.
3. Install the pushrods using the same installation
method as shown for the wings.
Note: 46-60 and 60-90 pushrod hardware will differ.
46-60 hardware shown below
Elevator/Rudder Servo Installation
46-60
Hardware Shown
4. Remove the stick holding the pull string from
inside the fuse as shown.
5. Attach the extension to the servo lead and secure
with safety wire. Ensure the connectors will not
come apart from vibration or light tension.
26
