NetVanta 5305 Hardware Installation Guide
A different service provider can be used on each interface. Each interface has an
independent clock.
Clock Source
•
Network
•
Internal
Diagnostics
•
Network Loopbacks: Line, payload, remote
•
Test Pattern Generation and Detection: QRSS, 2
Compliance
•
EMC - see
Electromagnetic Compatibility (EMC) Table on page
•
AS/ACIF S016
•
ETSI TBR 12/TBR 13
•
ACTA/FCC Part 68
•
IC CS-03
•
UL/CUL 60950
•
EN 60950
•
IEC 60950
•
AS/NZS 60950
•
RoHS Compliant (Telecommunications exemption)
Environmental
•
Operating Temperature: 0°C to 50°C
•
Storage Temperature: -20°C to 70°C
•
Relative Humidity: Up to 95 percent, noncondensing
Physical
•
5.63-inch W x 8.63-inch D
No external CSU/DSU is needed with the T1/FT1 interface.

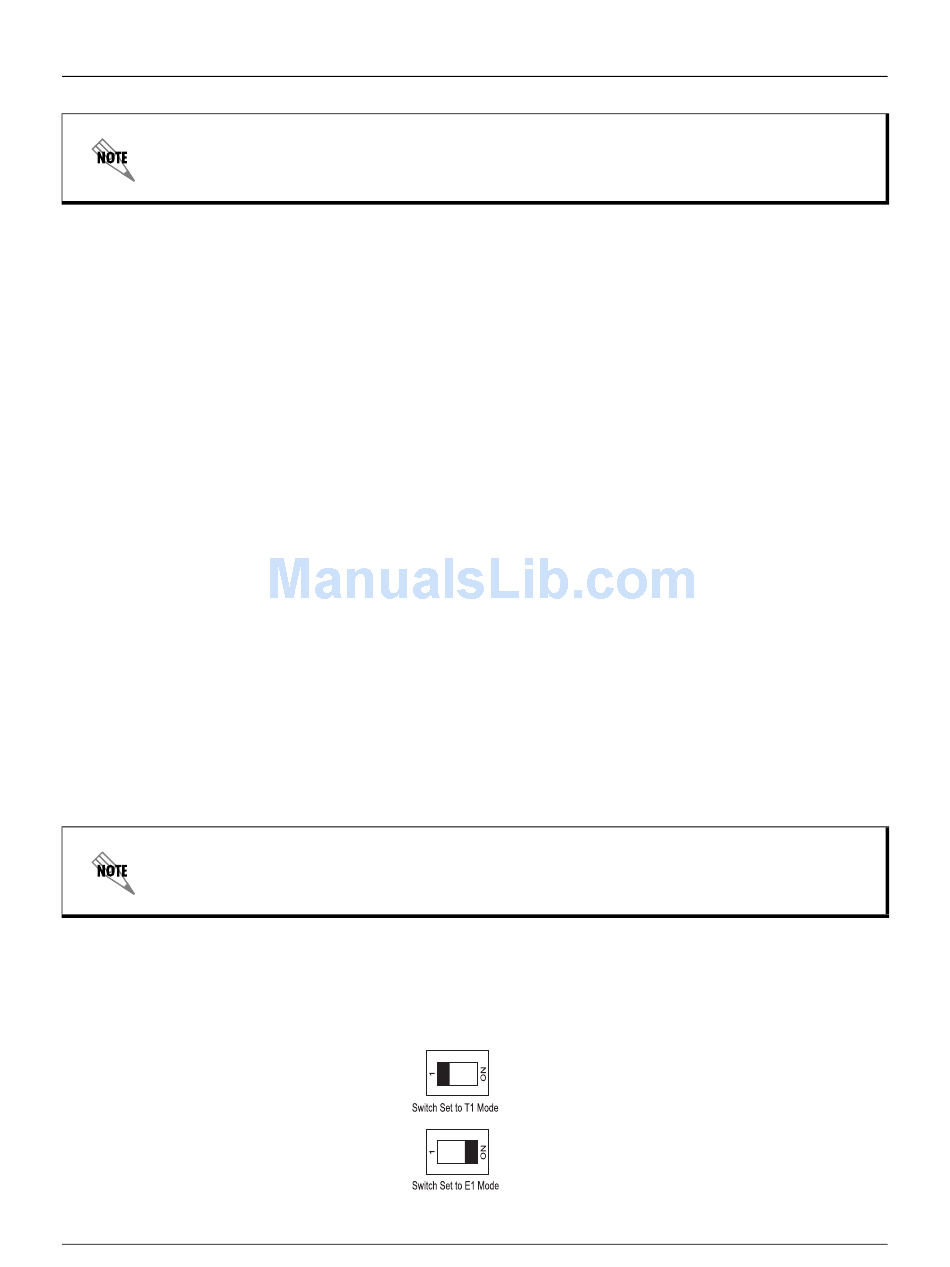

T1/E1 Mode Switch
The Octal T1/E1 Wide Module is shipped with the T1/E1 mode switch (located on the circuit board) set to
T1. If you require E1 functionality, use your thumbnail to slide the E1 mode switch to the
shown in the figure below).
61200990L1-34N
15
- 1, 2
Copyright © 2010 ADTRAN, Inc.
20
- 1, all ones, all zeros
6.
Option Modules
ON
position (as
25
