NetVanta HSSI Wide Module (P/N 1200934L1)

The NetVanta HSSI Wide Module (shown in
to two HSSI Wide Modules may be used simultaneously in the NetVanta 5305 chassis. The HSSI Wide
Module may be installed in any slot (1 through 6).
Features and Specifications
Interface
• 50-pin SCSI-II female connector
• Line Rate: 0 to 52 Mbps
• Signal Type: Electrically balanced with non-return-to-zero (NRZ) encoding
Compliance
• EMC - see Electromagnetic Compatibility (EMC) Table on page
• UL/CUL 60950
• EN 60950
• IEC 60950
• AS/NZS 60950
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent, noncondensing
Physical
• 5.63-inch W x 8.63-inch D
61200990L1-34N
Figure 6) provides an HSSI interface for the NetVanta 5305. Up
Table A-4 on page 34

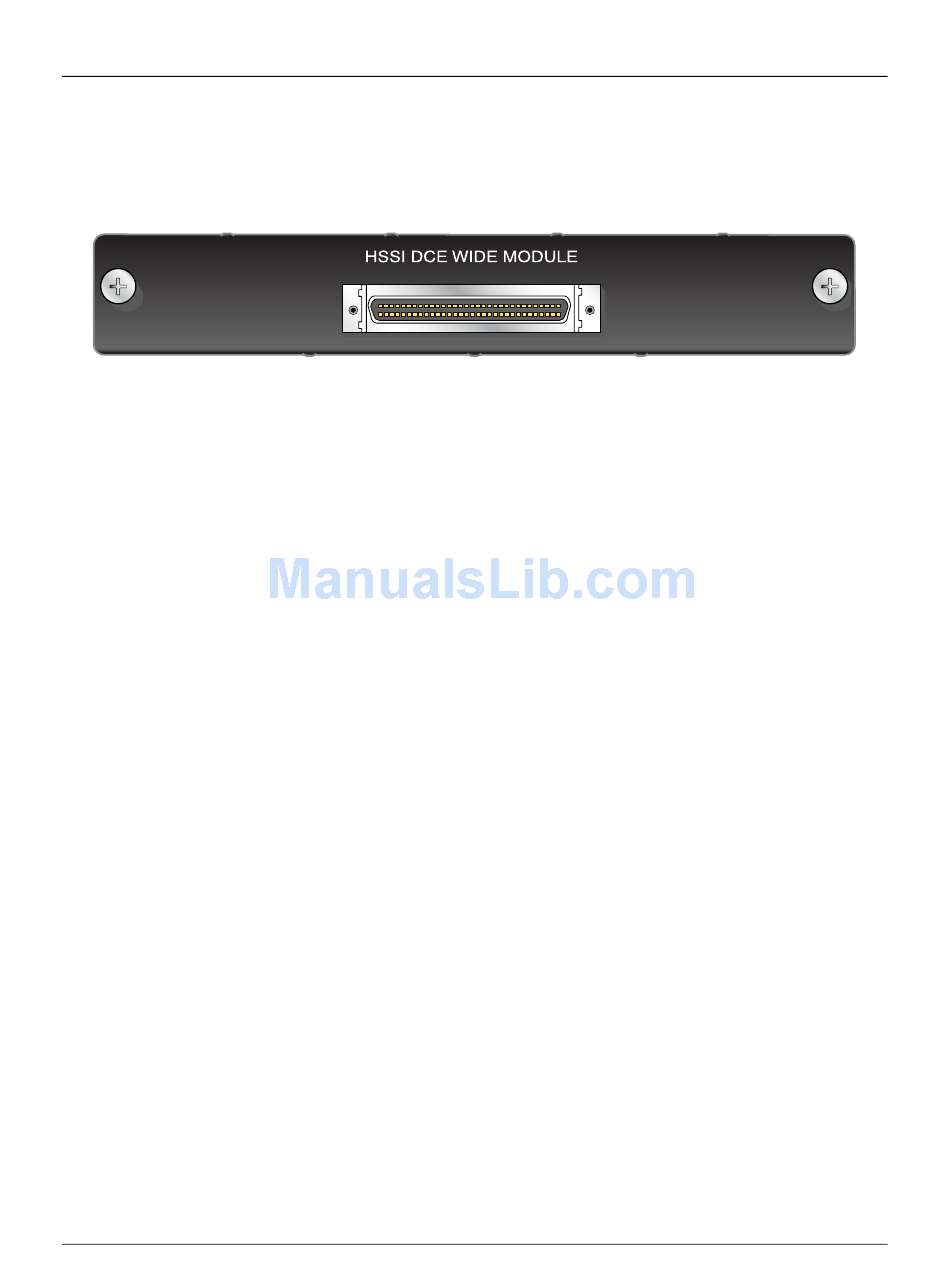

Figure 6. NetVanta HSSI Wide Module
