4200990L1

4200990G1#120

4200990G1#240

4200995L1

4200995G1

4200990L2

4200368L3

1200831L1

1200831G1

1200832L1

1200934L1

1202843E1

1200840L1

1200840G1

1200841L1

1200841G1

61200990L1-34N

December 2010

NetVanta 5305

Hardware Installation Guide

NetVanta 5305 AC Chassis

NetVanta 5305 AC Chassis (RoHS Compliant) with 120 VDC Power Supply

NetVanta 5305 AC Chassis (RoHS Compliant) with 240 VDC Power Supply

NetVanta 5305 DC Chassis

NetVanta 5305 DC Chassis (RoHS Compliant)

NetVanta 5305 Chassis with Enhanced Feature Pack

Enhanced Feature Pack (Hardware and Software) for IPsec VPN Upgrade

NetVanta 5305 System Controller Module

NetVanta 5305 System Controller Module (RoHS Compliant)

NetVanta T3 Wide Module

NetVanta HSSI Wide Module

NetVanta Octal T1/E1 Wide Module

NetVanta 5305 AC Power Supply

NetVanta 5305 AC Power Supply (RoHS Compliant)

NetVanta 5305 DC Power Supply

NetVanta 5305 DC Power Supply (RoHS Compliant)

Table of Contents

Need help?

Do you have a question about the NetVanta 5305 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADTRAN NetVanta 5305

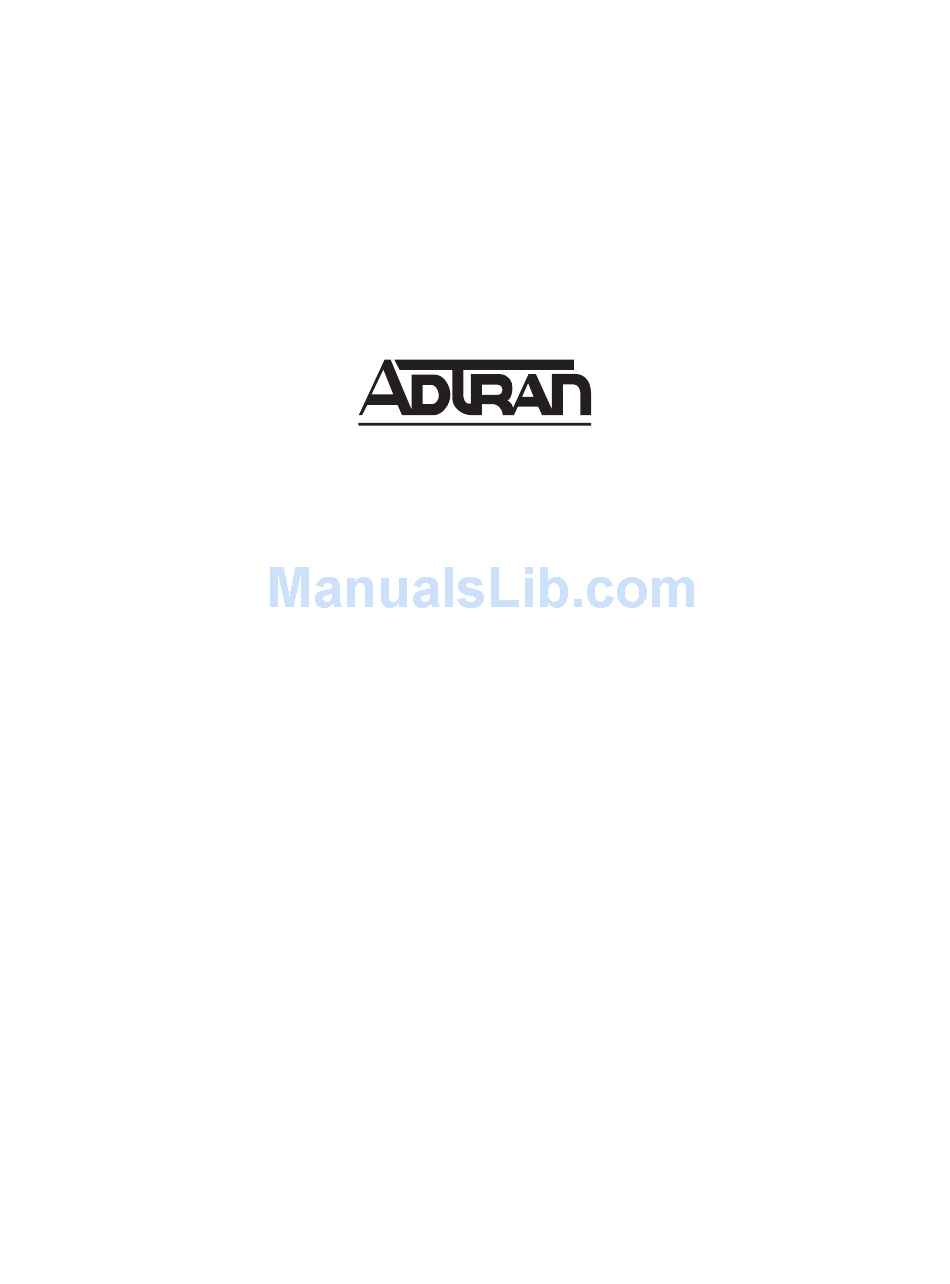

Page 1 NetVanta 5305 Hardware Installation Guide 4200990L1 NetVanta 5305 AC Chassis 4200990G1#120 NetVanta 5305 AC Chassis (RoHS Compliant) with 120 VDC Power Supply 4200990G1#240 NetVanta 5305 AC Chassis (RoHS Compliant) with 240 VDC Power Supply 4200995L1 NetVanta 5305 DC Chassis 4200995G1...
Page 2 To the Holder of this Manual The contents of this manual are current as of the date of publication. ADTRAN reserves the right to change the contents without prior notice. In no event will ADTRAN be liable for any special, incidental, or consequential damages or for commercial losses even if ADTRAN has been advised thereof as a result of issue of this publication.
Page 3 NetVanta 5305 Hardware Installation Guide Conventions Conventions Notes provide additional useful information. Cautions signify information that could prevent service interruption or damage to equipment. Warnings provide information that could prevent injury or endangerment to human life. 61200990L1-34N Copyright © 2010 ADTRAN, Inc.
Page 4 Safety Instructions NetVanta 5305 Hardware Installation Guide Safety Instructions When using your communications equipment, please follow these basic safety precautions to reduce the risk of fire, electrical shock, or personal injury: 1. Do not use this product near water, such as a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
Page 5 Advance notification and the opportunity to maintain uninterrupted service are given. 4. If experiencing difficulty with this equipment, please contact ADTRAN for repair and warranty information. The telephone company may require this equipment to be disconnected from the network until the problem is corrected, or it is certain the equipment is not malfunctioning.
Page 6 FCC Radio Frequency Interference Statement NetVanta 5305 Hardware Installation Guide FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 7 Class A prescrites dans la norme sur le materiel brouilleur: “Appareils Numériques,” NMB-003 edictee par le ministre des Communications. Service and Warranty For information on the service and warranty of ADTRAN products, visit the ADTRAN website at http://www.adtran.com/support. 61200990L1-34N...
Page 9: Table Of Contents
Option Modules ..............21 NetVanta 5305 System Controller Module (P/N 1200831L1) ....... 21 NetVanta T3 Wide Module (P/N 1200832L1) .
Page 11 Figure 1. NetVanta 5305 (AC and DC versions) Front Panel Layout ......17 Figure 2.
Page 13: List Of Tables
NetVanta 5305 LEDs ........
Page 15: Introduction
INTRODUCTION The NetVanta 5305 is a modular multiservice access router designed for corporate office connectivity over Frame Relay or Point-to-Point Protocol (PPP) networks. The NetVanta 5305 has six modular slots for customizing solutions and runs with the ADTRAN Operating System (AOS).
Page 16: Unpack And Inspect The System
NetVanta 5305 Hardware Installation Guide Unpack and Inspect the System Each NetVanta 5305 unit is shipped in its own cardboard shipping carton. Open the carton carefully, and avoid deep penetration into the carton with sharp objects. After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in transit, immediately file a claim with the carrier and contact ADTRAN Customer Service (refer to the Repair and Replacement section of the Support page on the ADTRAN website at http://www.adtran.com/support).
Page 17: Product Overview
Option modules are intended to be serviced by qualified service personnel only. PRODUCT OVERVIEW Reviewing the Front Panel Design Figure 1 shows the NetVanta 5305 front panel. Figure 1. NetVanta 5305 (AC and DC versions) Front Panel Layout 61200990L1-34N Copyright © 2010 ADTRAN, Inc.
Page 18: Front Panel Leds
Product Overview NetVanta 5305 Hardware Installation Guide Front Panel LEDs Table 1 describes the front panel LEDs in order as located on the chassis from left to right. Table 1. NetVanta 5305 LEDs Color Indication STATUS Green (flashing) Unit is powering up.
Page 19: Reviewing The Rear Panel Design
DB-9 interface located on the rear panel, connects to a computer or modem and ONSOLE provides the following functions: • Accepts electrical EIA-232 input from a PC or modem for controlling the NetVanta 5305. • Operates at rates ranging from 9.6 kbps to 115.2 kbps. •...
Page 20 NetVanta 5305 Hardware Installation Guide LAN Interfaces (ETH 0/1, ETH 0/2) The NetVanta 5305 provides two RJ-48C connectors on the rear panel system controller module for routing data traffic and for local management access. See Table A-1 on page 33 for the 10/100Base-T Ethernet interface pinouts.
Page 21: Option Modules
NetVanta 5305 System Controller Module (P/N 1200831L1) The NetVanta 5305 uses a central system controller module to provide configuration for the system using the AOS. The NetVanta 5305 System Controller module (shown in Figure 4) provides control interfaces for the NetVanta 5305 system including a port (DB-9) and two Ethernet interfaces (RJ-48).
Page 22: Netvanta T3 Wide Module (P/N 1200832L1)
5) provides a T3 interface with a dual BNC for the NetVanta 5305. The T3 connection provides a full unchannelized T3 interface that provides a connection to the wide area network (WAN). Up to two T3 Wide Modules may be used simultaneously in the NetVanta 5305 chassis.
Page 23: Netvanta Hssi Wide Module (P/N 1200934L1)
Figure 6) provides an HSSI interface for the NetVanta 5305. Up to two HSSI Wide Modules may be used simultaneously in the NetVanta 5305 chassis. The HSSI Wide Module may be installed in any slot (1 through 6). Table A-4 on page 34 gives the pinouts for this module.
Page 24: Netvanta Octal T1/E1 Wide Module (P/N 1202843E1)
These interfaces can be used independently or as aggregate bandwidth using Multilink Point-to-Point Protocol (MLPPP). Up to six T1/E1 Wide Modules may be used simultaneously in the NetVanta 5305 chassis. The NetVanta Octal T1/E1 Wide Module may be installed in any slot (1 through 6).
Page 25: T1/E1 Mode Switch
NetVanta 5305 Hardware Installation Guide Option Modules A different service provider can be used on each interface. Each interface has an independent clock. Clock Source • Network • Internal Diagnostics • Network Loopbacks: Line, payload, remote • Test Pattern Generation and Detection: QRSS, 2...
Page 26: Unit Installation
Phillips-head screwdriver • AMP P/N 59250 crimping tool or equivalent To access the CLI of the NetVanta 5305, you will also need a VT100 terminal or PC with terminal emulation software and a port cable. Instructions on how to access the...
Page 27: Mounting Options
Figure 8. Rack Mounting the NetVanta 5305 Rack Mounting NetVanta 5305 The NetVanta 5305 can be rack mounted in a 19-inch equipment rack using the mounting kit included with the shipment. Rackmount adapter kits (P/N 1200775L1) can be purchased separately for installation in a standard 23-inch rack.
Page 28: Installing Modules
(e.g., use of power strips). Installing Modules The following table lists the installation steps for inserting modules into the NetVanta 5305 chassis. For NetVanta modules with outside plant connections, ensure that all cables are removed from the module before installing or removing it from the NetVanta chassis.
Page 29: Supplying Power To The Unit
Supplying Power to the Unit As shipped, NetVanta 5305 is set to factory default conditions. After installing the chassis and any option modules, the system is ready for power up. To power the system, ensure that the unit is properly connected to an appropriate power source (as outlined in the sections which follow).
Page 30: Netvanta 5305 (Dc)
The DC-powered NetVanta 5305 connects to a centralized DC power source via the four-position power connector on the rear of the chassis. The nominal input of the NetVanta 5305 is -48 VDC. Power and ground connections require copper conductors and a ring lug.
Page 31: Installing The Netvanta Vpn Accelerator Card (Included In P/N 4200368L1)
The optional NetVanta VPN Accelerator card plugs into a 32-bit PCI slot and is designed to be used in the NetVanta 5305 to provide encryption/decryption and security acceleration services for the host processor. The card is a 1U-high PC card with gold fingers to interface to a 3.3 V keyed PCI connector. It provides the following security services to the host processor: DES, 3DES, AES, SHA-1, MD5, and random number generation.
Page 32: Figure 9. Netvanta Vpn Accelerator Card Installation
Unit Installation NetVanta 5305 Hardware Installation Guide Figure 9. NetVanta VPN Accelerator Card Installation Copyright © 2010 ADTRAN, Inc. 61200990L1-34N...
Page 33: Appendix A. Pin Assignments
APPENDIX A. PIN ASSIGNMENTS The following tables provide the pin assignments for the NetVanta 5305 System controller and option modules. Controller Module Pinouts Table A-1. 10/100Base-T Ethernet Port Pinouts Name Description Transmit Positive Transmit Negative Receive Positive 4, 5 —...
Page 34: Option Module Pinouts
Appendix A NetVanta 5305 Hardware Installation Guide Option Module Pinouts Table A-3. T3 Wide Module/T3 Interface (BNC) Name Description RX IN Receive data from the network TX OUT Transmit data toward the network Table A-4. HSSI Wide Module Pinouts PIN# (+ side)
Page 35: Table A-5. Octal T1/E1 Wide Module Pinouts (For Either T1 Or E1 Mode)
NetVanta 5305 Hardware Installation Guide Appendix A Table A-5. Octal T1/E1 Wide Module Pinouts (for either T1 or E1 Mode) Name Description Receive data from the network - Ring 1 Receive data from the network - Tip 1 — Unused...
Page 37: Index
T3 wide 22 mounting options 27 chassis front panel 17 CLI 26 command line interface 26 CONSOLE port 19 NetVanta 5305 (AC) 29 pinouts 33 NetVanta 5305 (DC) 30 contents of shipment 16 controller 21 controller module octal T1/E1 wide option module 24...
Page 38 NetVanta 5305 Hardware Installation Guide installation 31 VT100 26 unit installation 26 unpacking the system 16 warranty 7 VPN accelerator card 15 Copyright © 2008 ADTRAN, Inc. 61200990L1-34N...
