NETVANTA 5305 (SYSTEM)
Quick Start Guide
C C
ONNECT THE ONSOLE
Before connecting to the NetVanta 5305 CONSOLE interface you will need
the following items: VT100 terminal or PC (with VT100 terminal emulation
software) and a straight through serial cable with a DB-9 (male) connector on
one end and the appropriate interface for your terminal (or PC) on the other.
1. Connect the DB-9 (male) connector of your serial cable to the
CONSOLE port on the rear panel of the unit.
2. Connect the loose end of the serial cable to the VT100 terminal or PC
(with terminal emulation software).
3. Open a VT100 terminal session to the NetVanta 5305 using the following
settings: 9600 baud, 8 data bits, no parity bits, and 1 stop bit. Press
<Enter> to activate the ADTRAN Command Line Interface.
4. Enter enable at the > prompt.
5. Enter the password when prompted. The default password is password.
Quick Start Guide, 64200990L1-13A, March 2004
N V 5305
ET ANTA
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at

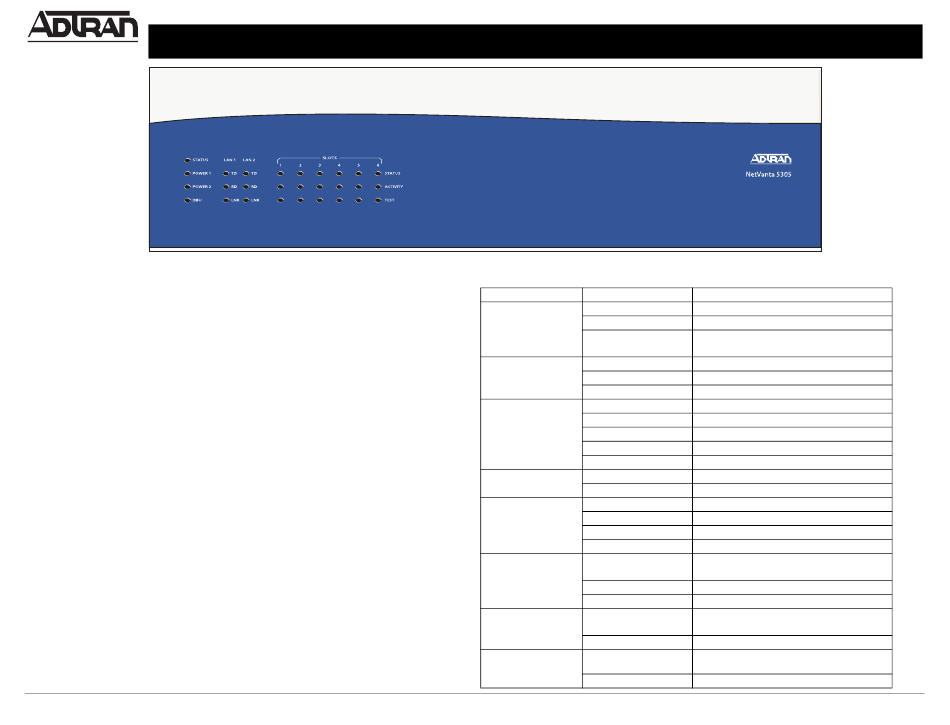

LED D
ESCRIPTIONS
For these LEDs... This activity...
Status Green (blinking)
Green (solid)
Red (solid)
Power 1/2 Green
Red
Off
DBU Off
Green (solid)
Green (blinking)
Red (solid)
Yellow (solid)
TD/RD Green (blinking)
Off
LNK Green (solid)
Yellow (solid)
Red
Off
Status
Off
(slots 1-6)
Green (solid)
Red (solid)
Activity Green (blinking)
(slots 1-6)
Off
Test Off
(slots 1-6)
Yellow (solid)
www.adtran.com
P/N 4200990L1
Indicates that...
Power up process
Power on passed self test
Self test failed or boot mode code could
not be loaded
Power supply is okay
Power supply failure
No power supply present
No dial backup Modules installed
Dial backup module is ready for use
The unit is in dial backup
Dial backup alarm condition
Unit is in test
Activity on the ethernet port
No activity on the ethernet port
10BaseT link is up
100BaseT link is up
Link is down
Administratively down
Empty slot or the interface is
administratively down
Link is up
Alarm condition is present on the module
Data present on the module (i.e. for the
T3 module, this indicated TD/RD data)
No activity on the module
No test running
Module in test
© 2004 ADTRAN, All Rights Reserved
