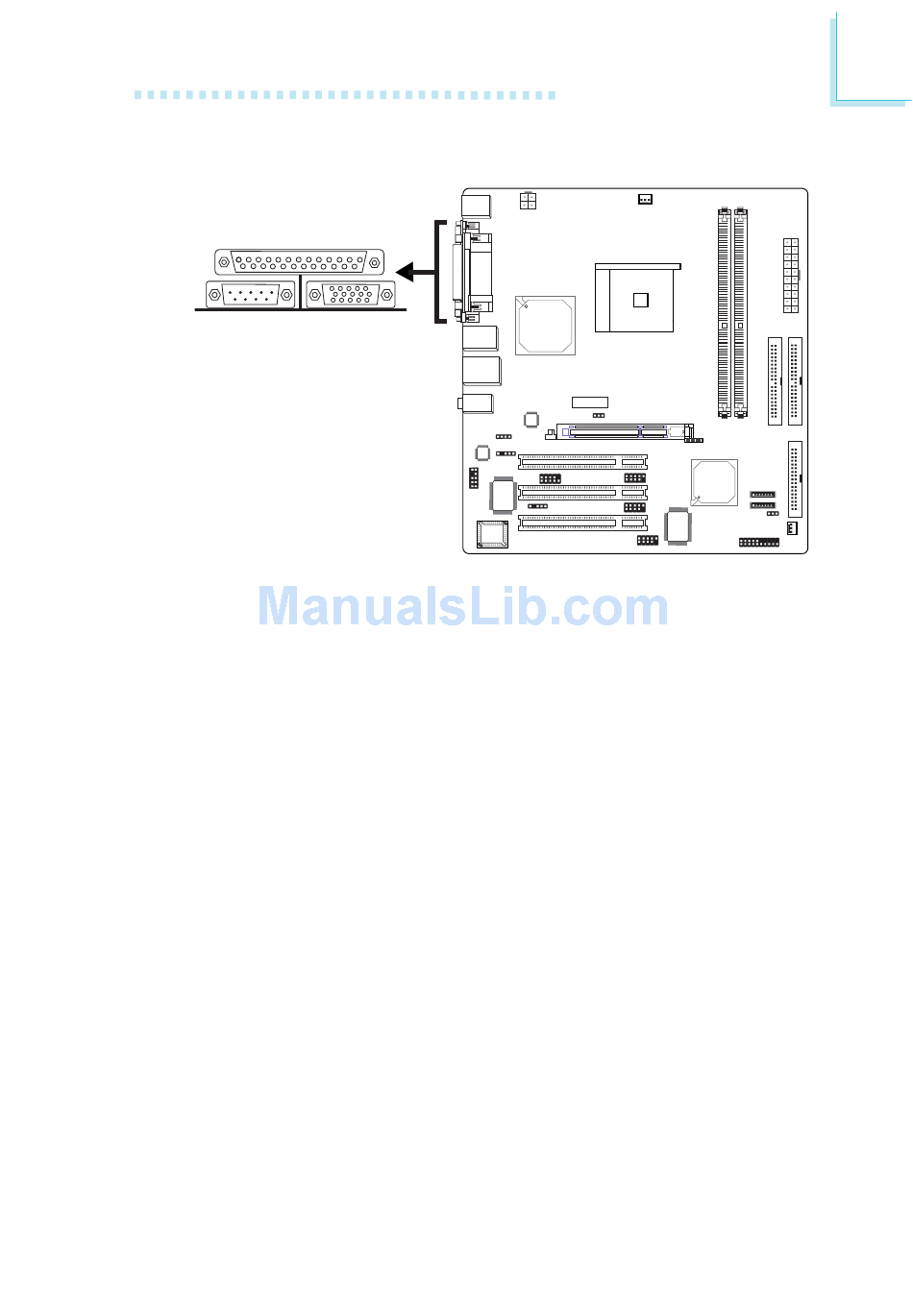

2.5.4 VGA Port
VGA
The system board can only be used with an analog video monitor.
Connect the monitor's 15-pin D-shell cable connector to the VGA
port (Blue) at location CN2. If your monitor supports analog video
but does not have a 15-pin D-shell connector, see your monitor
dealer for the adapter or optional cable. After you plug the monitor
cable into the VGA port, gently tighten the cable screws to hold the
connector in place. Some monitors have a switch that chooses
between analog and TTL (or digital) operation. If your monitor has
such a switch, set it for analog.
BIOS Setting
Configure the onboard VGA in the Advanced Chipset Features
submenu ("AGP and P2P Bridge Control" section) of the BIOS. Re-
fer to chapter 3 for more information.
Driver Installation
Install the "VGA Drivers". Refer to chapter 4 for more information.
