2.6.7 Cooling Fan Connectors

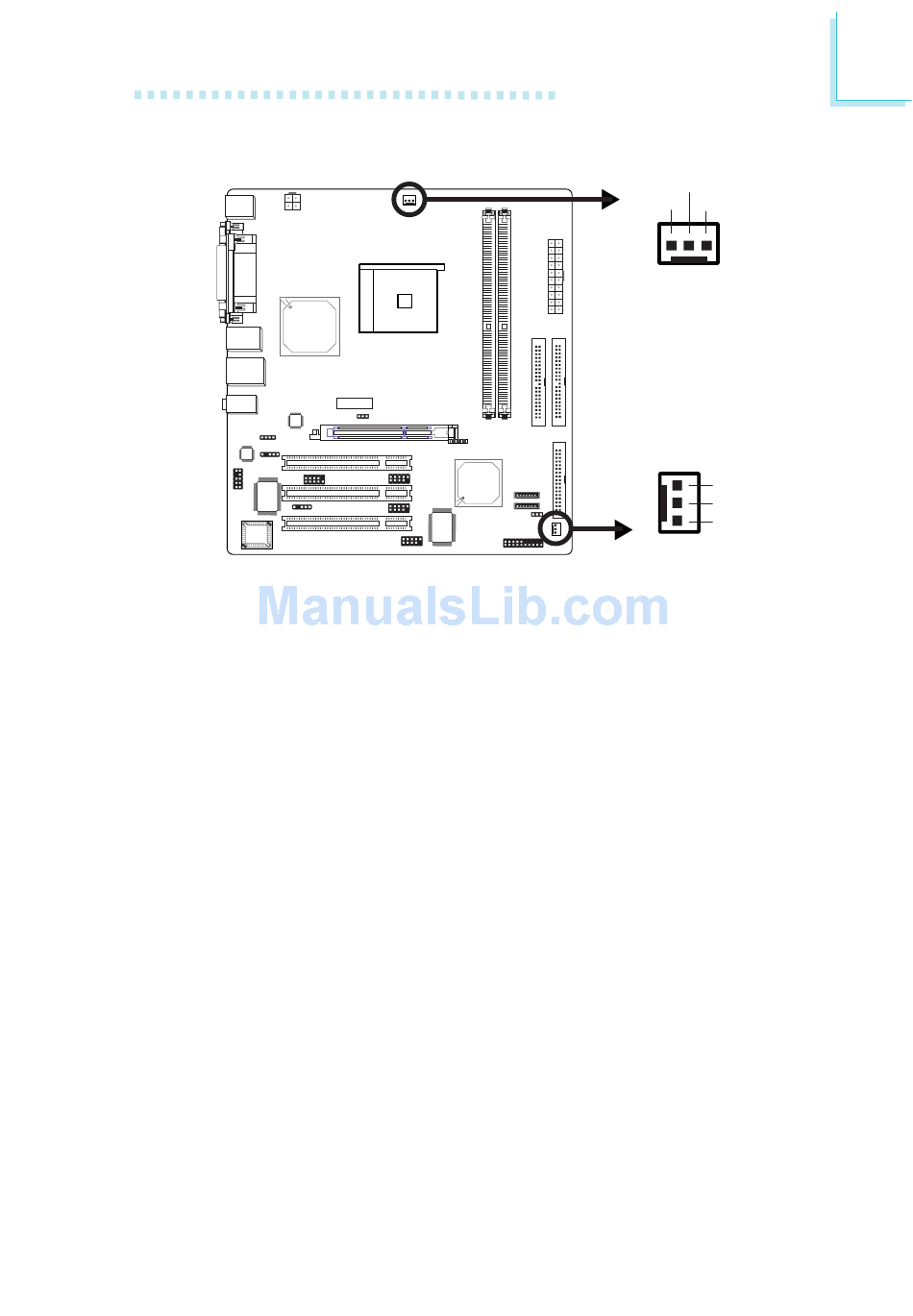

Connect the CPU fan's cable connector to the CPU fan connector
(J20) on the system board. The chassis fan connector (J10) is used
to connect an additional cooling fan. The cooling fans will provide
adequate airflow throughout the chassis to prevent overheating the
CPU and system board components.
BIOS Setting
The "PC Health Status" submenu of the BIOS will display the current
speed of the CPU fan. Refer to chapter 3 for more information.
Hardware Installation
Power
Ground
Sense
1 3
CPU fan
Ground
1
Power
3 N. C.
Chassis fan
2
47
