2.5 Rear Panel I/O Ports

PS/2
Mouse
PS/2 K/B

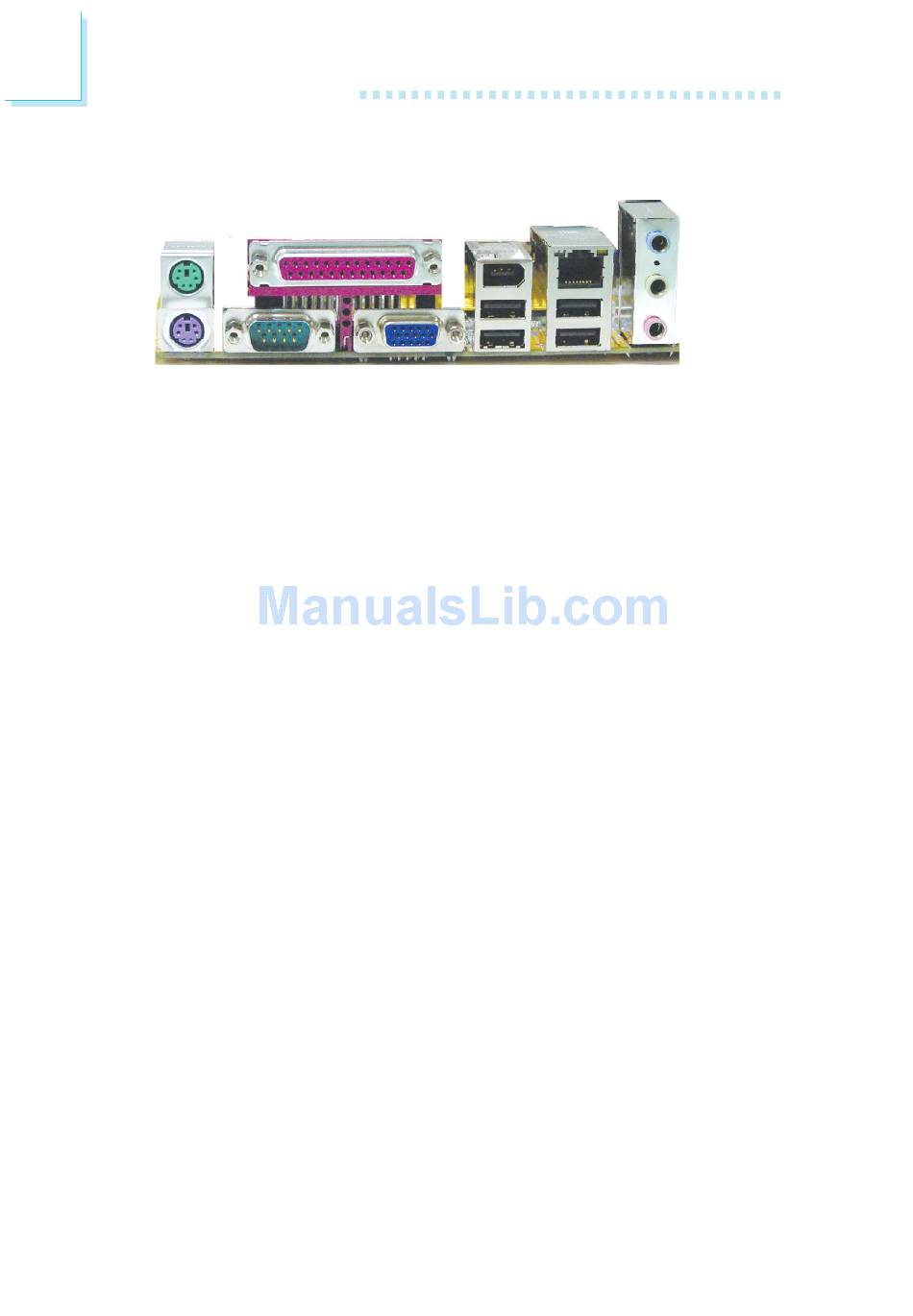

The rear panel I/O ports consist of the following:
• PS/2 mouse port
• PS/2 keyboard port
• Parallel port
• COM 1 port
• VGA port
• IEEE 1394_1 port
• USB ports
• LAN port
• Line-in jack
• Line-out jack
• Mic-in jack
28
Parallel
COM 1 VGA
LAN
1394_1
USB 1-2 USB 3-4
Line-in
Line-out
Mic-in
