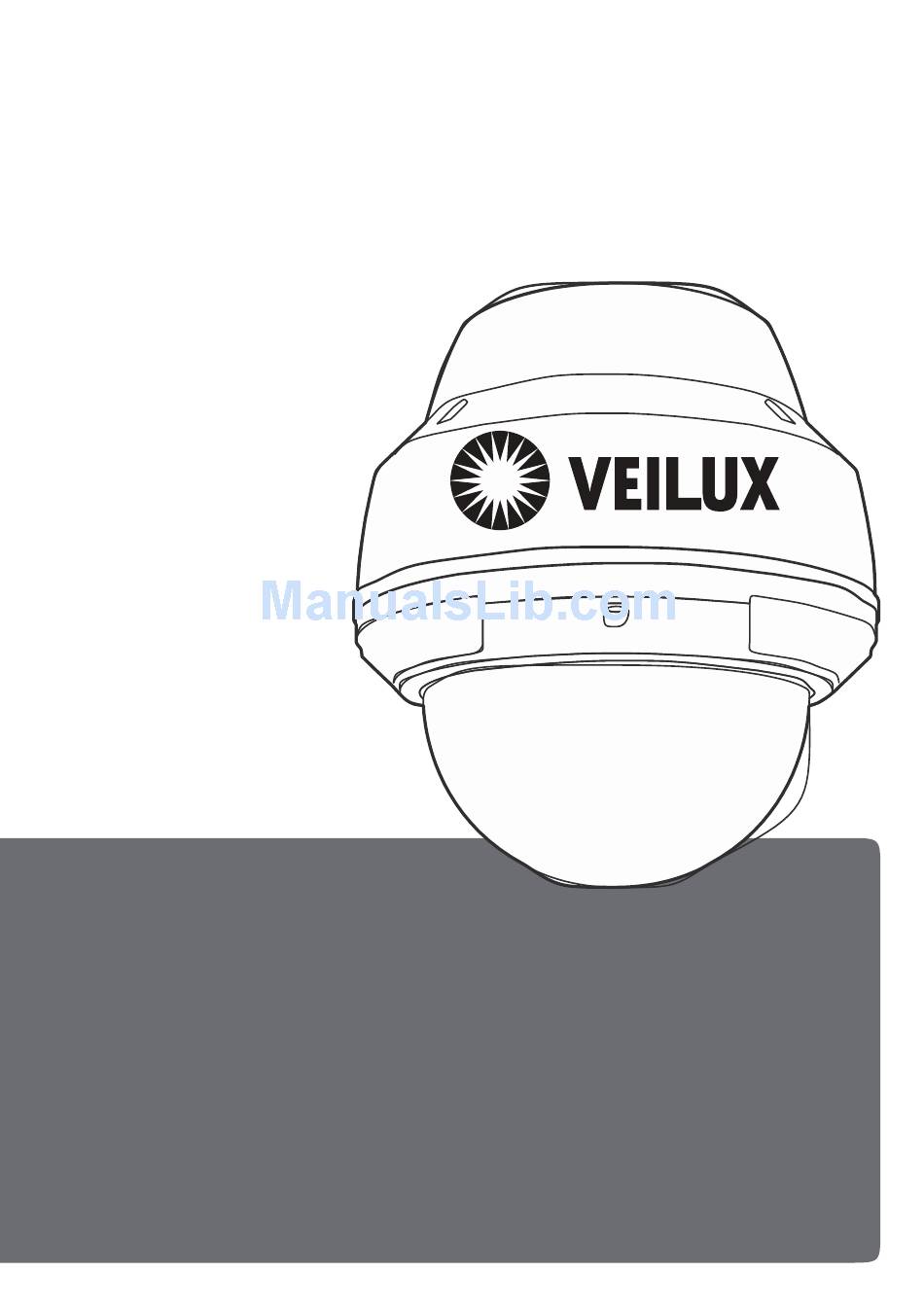

Page 1: Ptz Camera
WE DO FUTURE Veilux IR PTZ VP-60IR Series User Manual ® The Art of Surveillance Ver. 1.2 PTZ CAMERA 0.009º Dome System Accuracy / 220 CALL Position / External Firmware Upgrade (RS-485) / Home Position & Recover / Slip Ring For Long Life Time / Proportion PTZ Control... -
Page 2: Table Of Contents
Contents PTZ CAMERA CONTENTS ··················································································································································· ································· COMPONENTS ············································································································································································· WARNINGS & CAUTIONS ························································································································································· GENERAL FEATURES ·································································································································································· PART NAMES ········································································································································································ ········ A. Basic Parts ··········································································································································································· B. Additional Accessories ················································································································································· INSTALLATION ············································································································································································· QUICK OPERATING KEYS ························································································································································· DIAGNOSTIC ····························································································································· ··················································· 11 OSD MENU SETTING ································································································································································· 12 A. -
Page 3: Components
Components PTZ CAMERA PTZ Camera BOTTOM CASE ® The Art of Surveillance ® The Art of Surveillance CAMERA IR LED TOP CASE BUBBLE DIP Switch DIP Switch Cover Accessories L-WRENCH - 1EA SCREW M4×18 - 4EA WALL MOUNT BRAKET - 1EA SET ANCHOR BOLT W5/16 - 4EA... -
Page 4: Warnings & Cautions
Warnings & Cautions PTZ CAMERA If you fail to read this information and handle the product incorrectly, death or serious injury may occur. The unit should be installed by trained personnel. Switch off immediately if the product emits smoke or abnormal heat. Never install the product in an area with exposed oil or gas. -
Page 5: General Features
General Features IR PTZ CAMERA INDOOR / OUTDOOR APPLICATIONS The domes small size and construction to IP 66 ingress protection rating make it ideal for internal or external applications. 0.009º DOME SYSTEM ACCURACY WITH 1/16 MICRO STEP With 0.009º technical accuracy, camera provides excellent sensitive and delicate controlling on CALL mode by adapting 1/16 micro step and twin gear system. -
Page 6: General Features
General Features PTZ CAMERA VARIOUS SURVEILLANCE FUNCTIONS Auto Scan repeats pan and tilt between two CALL positions with different speed and dwell time. 8 Group Tour up to 8 Programmable Group tours available and each group is consisting up to 60 CALLs step with different speed and dwell time with 16 characters. -
Page 7: Installation
Installation IR PTZ CAMERA Remove the protection of cover attached each component after picking the product out from box. Remove the protection of film from Top case. Take the protection of film of Camera Lens out from Bottom Case. Remove the protection of cushion from Bottom Case... - Page 8 Installation PTZ CAMERA Unite both Top Case and Bottom Case using + driver. (Screw Locking Torque : 8.0 kgf.cm) Set up the bracket which is packed with product as option on the wall. Make a decision the place for Camera angle in order not to be bothered.
- Page 9 Installation IR PTZ CAMERA Get wiring through to the back side of wall pushing to hole inside of bracket. Unite with product using screw M4×18 from top of bracket. (Screw Locking Torque : 10.0 kgf.cm) Make the setting over after double - check both horizon and position of product.
-
Page 10: Quick Operating Keys
Quick Operating Keys PTZ CAMERA The dome supports Pelco-D/P, SAMSUNG and VICON i3DVR(SAE) protocols. The dome may be used with any controller or DVR etc that supports the Pelco D and Pelco P protocols. The default setting of the dome is Pelco D / P (auto detection) with 2400 bps (baud rate). - Page 11 Quick Operating Keys IR PTZ CAMERA 65+ CALL : "CALL Status" is displayed, to remove this screen, press Focus Near button. 70 + CALL : This feature provides picture stabilization image. 92 + CALL : This feature freezes the current live image during tour, auto scan or pattern operation.
-
Page 12: Diagnostic
Diagnostic PTZ CAMERA Whenever the dome is powered on, a standard diagnostic is operated. CAMERA ID : 001 PAN ORIGIN TEST OK BAUD RATE : 2400BPS TILT ORIGIN TEST OK TX CONNECTION TEST OK WAITING.... CAMERA COMM TEST OK A. Pan Origin Test Zero point of Pan is located during the Panning test. -
Page 13: Osd Menu Setting
OSD Menu Setting PTZ CAMERA To enter OSD Menu, press the button 95+CALL than OSD Main Menu is displayed MAIN MENU [NEXT PAGE] CAMERA ID : CAM1 HOME POS : OFF SYSTEM LOCK : OFF MANUAL SPEED : 150º/S [PASS WORD] AUTO FLIP : OFF [OSD DISPLAY]... -
Page 14: Main Menu
OSD Menu Setting IR PTZ CAMERA A. MAIN MENU To enter OSD Menu, press the button 95+CALL then OSD Main Menu is displayed. MAIN MENU DOME SETUP CAMERA SET CALL AUTO SCAN TOUR PRIVACY PATTERN ALARM SECTOR EXIT B. DOME SET It can be possible to enter into Main Menu by using Menu Key or 95+CALL of controller. - Page 15 OSD Menu Setting PTZ CAMERA B-2. HOME POS This is ability of HOME POSITION, basically include RECOVER. If you have it ON, Number and relevant ability would be showed up. Time is for Number, relevant ability is for operation. Possible to set up the time by using Left/Right of Joystick, if you press the Focus Far Key, would be showed up on the left side of Menu, and "[ ]"...
- Page 16 OSD Menu Setting IR PTZ CAMERA B-7. LANGUAGE This is for setting the language of OSD MENU and basically include ENGLISH / ITALIAN / POLISH. Change into Left / Right of Joystick. B-8. NEXT PAGE You can get into the Next Page by using Left / Right of Joystick. B-9.
- Page 17 OSD Menu Setting PTZ CAMERA Password should be inputted 2 times using number, CALL key. In case of same thing with PASSWORD input of 2 times, "CONFIRMED" will be showed up and back to the Menu after 4 second. Basic value of PASSWORD : 99 C-3.
-
Page 18: Camera Set
OSD Menu Setting IR PTZ CAMERA C-5. INITIALIZATION This is for removing the information’s of CALL/TOUR/SECTOR/PRIVACY/ PATTERN saved in Memory, on choice for LOAD OPTIMIZED DEFAULT, all of value should be initialized to FACTORY DEFAULT. INITIALIZATION [TOUR CLEAR] [CALL CLEAR] [SECTOR CLEAR] [PRIVACY CLEAR] [PATTERN CLEAR]... - Page 19 OSD Menu Setting PTZ CAMERA CAMERA SET MENU #1 CAMERA SET SHUTTER FULL AUTO MIRROR APERTURE D ZOOM WB MODE ATW MODE OFF[BLC] D/N MODE AUTO MODE [SLOW] [NEXT PAGE] EXIT CAMERA SET MENU #2 [NEXT PAGE] CAMERA SET SENSE UP AGC MODE MIDDLE SSNR MODE...
- Page 20 OSD Menu Setting IR PTZ CAMERA D-2. MIRROR Possible to set up ON/OFF, image should be left side to right. D-3. APERTURE Sharpness can be controlled. - The value for Default is 16, possible to adjust 00~31, higher the number, clear the Sharpness.
- Page 21 OSD Menu Setting PTZ CAMERA D-6-2. HLC MODE (High Light Compensation) BLC SET BLC MODE LEVEL SET HIGH MASK COLOR EXIT LEVEL SET : Possible to set up into HIGH/LOW. MASK COLOR : Higher the number, closer to black and feasible to set up 01~16 D-6-3.
- Page 22 OSD Menu Setting IR PTZ CAMERA D-8. SENSE UP You can set up the Digital Slow Shutter, not doing anything directly. In case on ON sense up, Shutter Speed should be adjusted according to amount of lights. Then Slow Shutter is not working that the section set to Sense up would be Limited.
- Page 23 OSD Menu Setting PTZ CAMERA E. CALL SET You can insert to CALL menu using Left/Right of Joystick after choice CALL SET. CALL SET CALL NO : 001 CALL ID : CALL001 PAN : 123.2 TILT : 89.2 FREEZE MODE : OFF FREEZE ALL : OFF...
-
Page 24: F. Autoscan
OSD Menu Setting IR PTZ CAMERA E-3. PAN/TILT If you press the Focus Far Key after place Cursor to Menu, sign would be showed up on the left and can set up the position, zoom you want. And then get out of there pressing the Focus Far Key after completing setting. - Page 25 OSD Menu Setting PTZ CAMERA F-1. START / END ANGLE Possible to set up the position of beginning and end of Auto Scan. - You can control the only position of PAN from each menu of START ANGLE/ END ANGLE in basic screen. - In case you change the position of TILT or ZOOM, it'd be possible only with status changed mode by pressing FOCUS FAR.
-
Page 26: Call
OSD Menu Setting IR PTZ CAMERA G. TOUR You can use this function using Left/Right of Joystick after choice the TOUR in the Main Menu. TOUR SET TOUR NO. : 01 TOUR TITLE : TOUR01 TOUR STEP : 01 CALL NO. : 001 DWELL TIME : 03... -
Page 27: Privacy
OSD Menu Setting PTZ CAMERA G-6. SPEED Possible to set up the time moving to relevant CALL. - The v alue for setting is 10º/S~400º/S, can input it direc tly using [1-40]+CALL. (On inserting Direct, you should input the value of shared into 10 from relevant Speed value.) F-3. -
Page 28: Pattern
OSD Menu Setting IR PTZ CAMERA H-3. ACTION This is for set up the position, size of PRIVACY MASK, you can control with 2 ADJUST MODE in order to set the MOVE MODE and size for set the position. - Possible for setting MOVE/ADJUST using Left/Right of Joystick in ACTION MENU. -
Page 29: Alarm
OSD Menu Setting PTZ CAMERA I-2. PATT TITLE On working PATTERN, the function for inputting the characters for title if showed up on the screen. - Default is for "PATTERN01 " - The changing of character can be set up using the Left/Right/Up or Zoom In/Out of joystick. - Page 30 OSD Menu Setting IR PTZ CAMERA J-2. ALARM INPUT Set up the sensing way of ALARM or Using ARARM. - [OFF/NO/NC] can be set up. - NO's meaning is Normal Open and handle the CLOSE to NORMAL of OPEN. - NC's meaning is Normal Close and handle the OPEN to NORMAL of CLOSE. - It should be controlled by using LEFT/RIGHT of Joystick.
-
Page 31: Sector
OSD Menu Setting PTZ CAMERA K. SECTOR This is for sign the TITLE on the screen on sprecial section to get in using LEFT/ RIGHT of JOYSTICK after choose the SECTOR in the Main Menu. SECTOR SET SECTOR NO. : 01 SECTOR ID : SECTOR1 SECTOR START... -
Page 32: Dip Switching Setting
DIP Switch Setting PTZ CAMERA A. ID SETTING The camera has camera ID to be controlled by Controller or DVR. After opening, set ID using DIP SW1. Factory default : Camera ID = 1 SW1-#1 SW1-#2 SW1-#3 SW1-#4 SW1-#5 SW1-#6 SW1-#7 SW1-#8... -
Page 33: Dip Switch Setting
DIP Switch Setting PTZ CAMERA SW1-#1 SW1-#2 SW1-#3 SW1-#4 SW1-#5 SW1-#6 SW1-#7 SW1-#8... - Page 34 DIP Switch Setting PTZ CAMERA SW1-#1 SW1-#2 SW1-#3 SW1-#4 SW1-#5 SW1-#6 SW1-#7 SW1-#8...
- Page 35 DIP Switch Setting PTZ CAMERA SW1-#1 SW1-#2 SW1-#3 SW1-#4 SW1-#5 SW1-#6 SW1-#7 SW1-#8...
- Page 36 DIP Switch Setting PTZ CAMERA SW1-#1 SW1-#2 SW1-#3 SW1-#4 SW1-#5 SW1-#6 SW1-#7 SW1-#8...
- Page 37 DIP Switch Setting PTZ CAMERA SW1-#1 SW1-#2 SW1-#3 SW1-#4 SW1-#5 SW1-#6 SW1-#7 SW1-#8...
-
Page 38: 485 Termination
DIP Switch Setting PTZ CAMERA B. 485 TERMINATION The 1st of DIP SW2 is used for 100Ω termination. Set ON DIP SW2 -1st of only the last looped camera from the controller. Even in case of only one camera, set ON DIP SW2 -1st of the camera. TERMINATION SW1-ON CAM 1... -
Page 39: Troubleshooting
Trouble Shooting PTZ CAMERA If you have trouble operating in your camera, refer to the following. NO OPERATING Check if the power supply is AC24V Check if RS-485 communication cable is connected correctly. Check camera ID setting. Check the termination. NO PICTURE Check if all the cables are connected correctly. -
Page 40: Specification
Specification (With IR) PTZ CAMERA Model VP-IR6027X VP-IR6033X VP-IR6037X VP-IR3036X PAN/TILT Pan Rotation Angle 360º Endless Pan Speed Manual : 0.5º ~ 200º /sec (64step) / CALL : Max 400º/sec Tilt Rotation Angle -2º ~ 90º Tilt Speed Manual : 0.5º ~ 150º/sec (64step) / CALL : Max 350º/sec System Accuracy 0.009º... - Page 41 129.4 03.0...
