Veilux VP-ATDNC27X Specifications

Surface In-Ceiling
SPECIFICATIONS
ITEM
Mounting Type Surface, In-Ceiling, Wall, Pole
Signal System NTSC
Scanning System 2:1 Interface
Scanning Freq(H) 15.734 KHz
Scanning Freq(V) 59.94 Hz
Image Sensor 1/4" VEILUX Super HAD CCD
Sync. Sensor Internal
Total Pixels No. 811 (H) x 508 (V) 410K
Effective Pixels 768 (H) x 494 (V) 380K
Hor. Resolution More than 480 TV Lines
Video Output
1.0 Vp-p (75Ω, Composite)
Level
Pan: 0.05°~400°/sec;
Pan / Tilt Speed
Tilt: 0.03°~240°/sec
S/N Ratio More than 48dB (AGC Off)
Digital Zoom 10x
27x Zoom Video AF
Lens
(F1.6 (W), F3.2 (T) f=3.6~97.2mm)
Panning Range Pan: 0°~360° Continuous; Tilt: 0°~90°
Track Speed 0°~100°/sec
Day Mode 1Lux (30IRE), Night Mode
Min. Illumination 0.5Lux (30IRE), DSS 0.001Lux
(128FLD, 30IRE)
Day & Night IR Cut FIlter & Digital Slow Shutter
3015 Eagle Drive, Suite 100, Grand Prairie, Texas 75052
Local Number: (214) 635-4855 / Fax: (928) 437-6270
sales@veilux.net
www.veilux.net
Outdoor
VP-ATDNC27X
PAL
OBJECT AUTO-TRACKING
DAY/NIGHT CAMERA
VP-ATDNC27X
Auto Gain
AGC
Control
OFF ON
Auto White
AWB
Balance
Back Light
BLC
Compensation
OFF ON
D&N
NIGHT DAY
OPTICAL/
DIGITAL
ZOOM
FEATURES
•1/4" VEILUX Super HAD CCD / High Resolution: 480 TV Line
•Stabilized Images by Reducing Flickering
•Motion Auto Tracking, Intelligent Surveillance with Alarm Function
•Preset, Auto Cruise & Pattern Scan Function
•Multi Communication Protocol Supported, Baud Rate Programmable
•360° Continuous Pan
•0° to 9° Tilt From Horizontal Plane Auto Flip 180°
•Iris & Focus, White Balance, Backlight Compensation - Auto / Manual
•Weatherproof (IP-66) - (Outdoor Only)
•Built-in Auto Focus / Auto Iris
•27x Optical Power Zoom Lens / 10x Digital Zoom (Max. 270x)
•TDN (ICR) / On-Screen Menu Control (OSD)
•Nine Backlight Compensation (BLC) Zones
•Video Transmission Distance Adjustable (3 Step)
•RS-232C TTL Interface / Electronic Sensitivity-up (DSS)
•12VDC
MODEL NUMBERS
VP-ATDNC27XI
VP-ATDNC27XO
VP-ATDNC27XS
0.001
LUX
FLICKERLESS
12DC
VOLTAGE
24AC
480
TV LINES
PAN/TILT/ZOOM
CONTROLLER

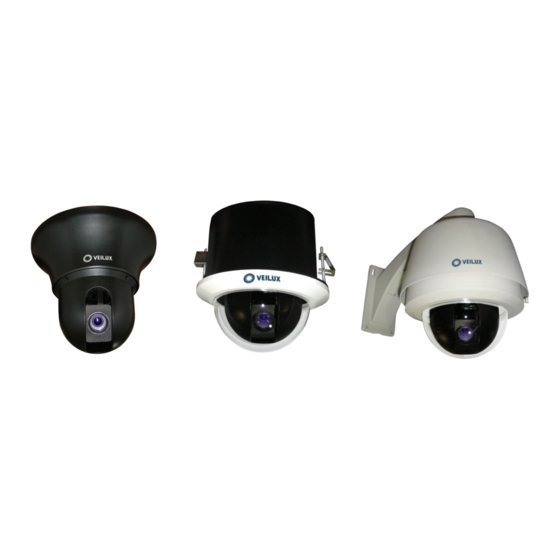

In-Ceilling
Outdoor
Surface Mount
