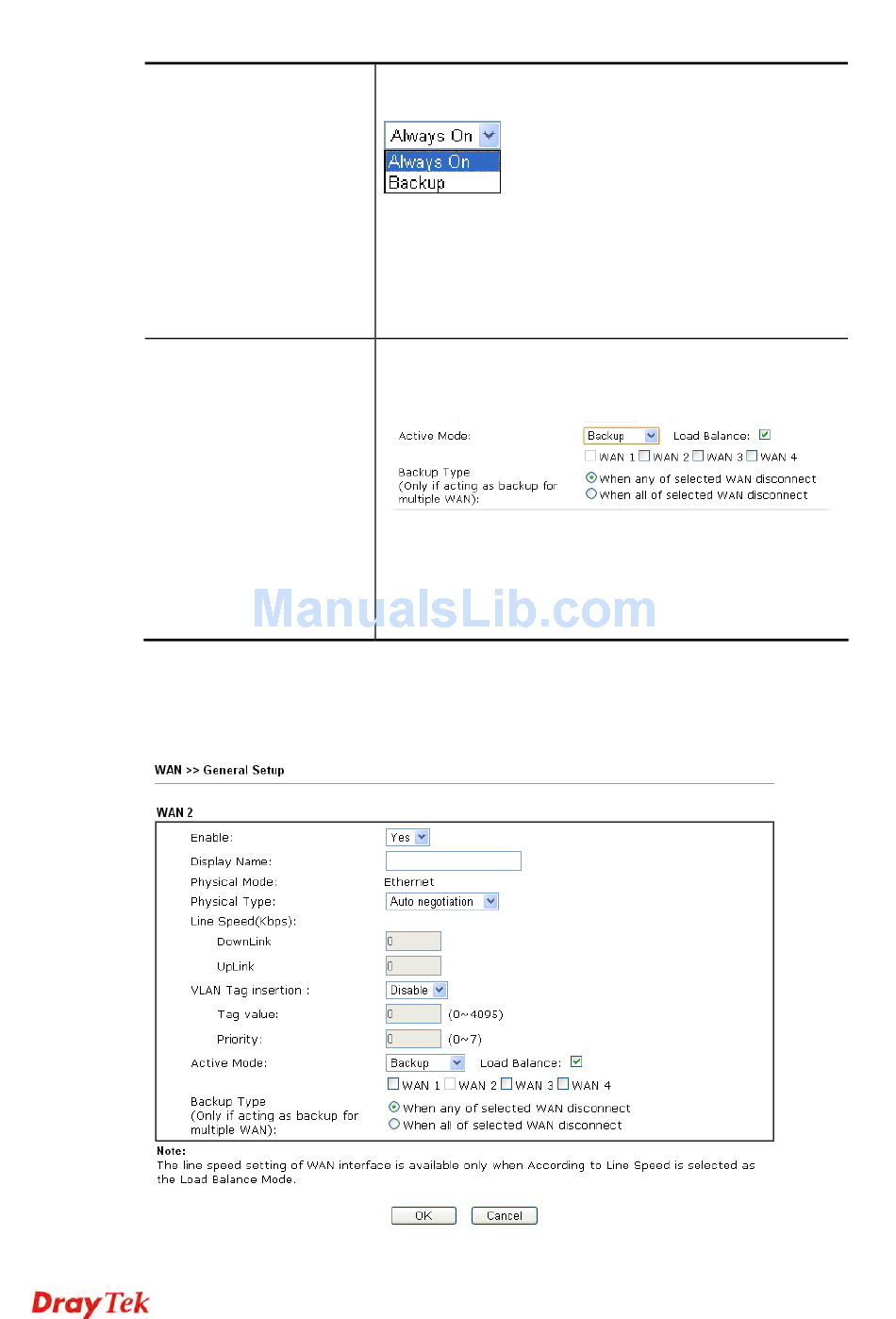

Active Mode
Backup Type
After finished the above settings, click OK to save the settings.
W A N 2 w i t h E t h e r n
W A N 2 w i t h E t h e r n
WAN2 is fixed with physical mode of Ethernet.
Choose Always On to make the WAN1 connection being
activated always.
Load Balance: Check this box to enable auto load balance
function for such WAN interface.
When the data traffic is large, the WAN interface with the
function enabled will balance the data transmission
automatically among all of the WAN interfaces in
connection status.
If you choose Backup as the Active Mode, Backup Type
will appear. Please specify which WAN will be the Backup
interface.
When any of WAN disconnect – Such backup WAN will
be activated when any master WAN interface disconnects.
When all of selected WAN disconnect – Such backup
WAN will be activated only when all master WAN
interfaces disconnect.
e t
e t
