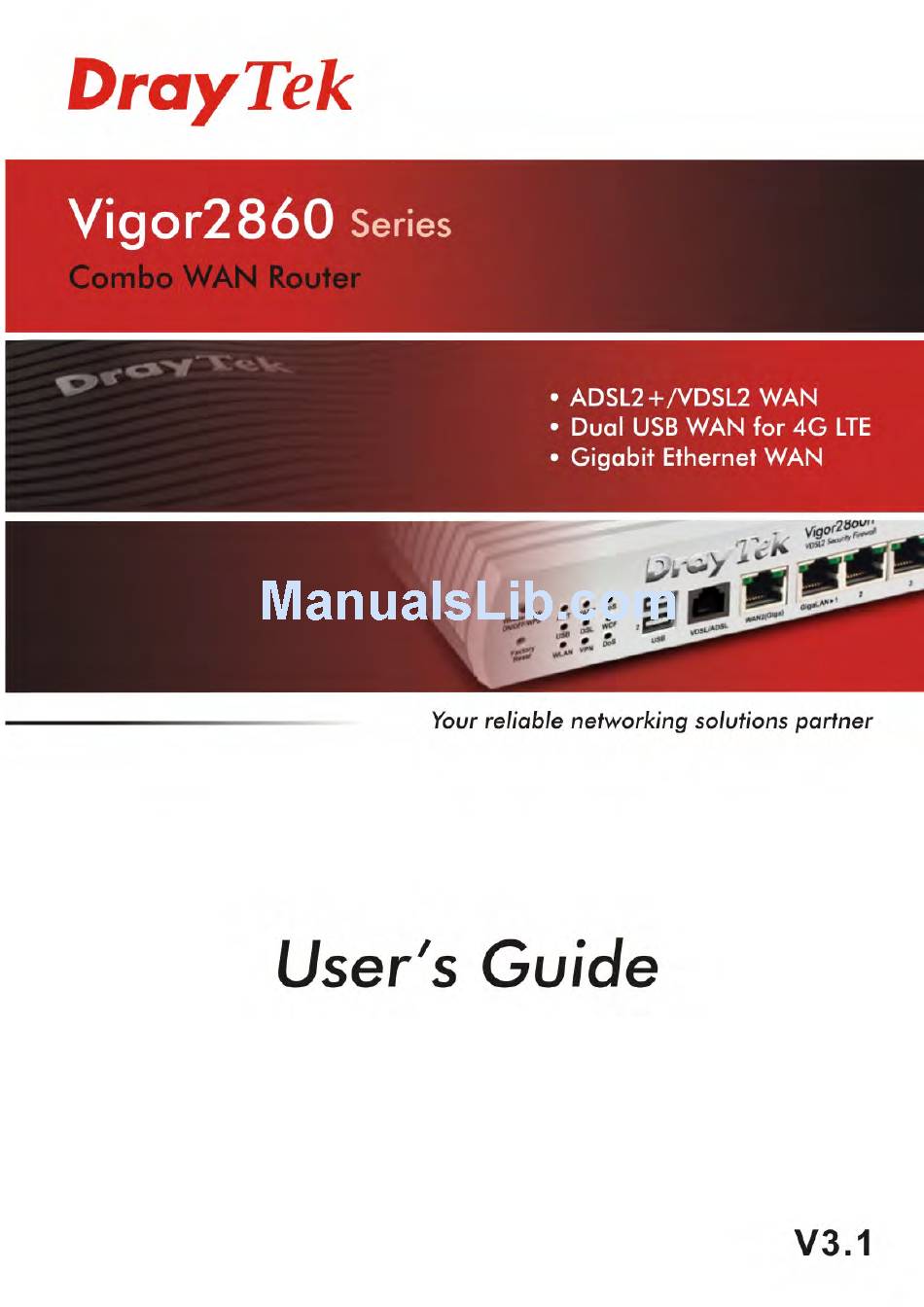

Draytek Vigor2860 Series User Manual

Hide thumbs Also See for Vigor2860 Series:
1
2
3
4
Table Of Contents
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vigor2860 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Draytek Vigor2860 Series

Summary of Contents for Draytek Vigor2860 Series

  • Page 2 Vigor2860 Series VDSL2 Security Firewall User’s Guide Version: 3.1 Firmware Version: V3.7.8.2 (For future update, please visit DrayTek web site) Date: May 14, 2015 Vigor2860 Series User’s Guide...
  • Page 3 Web registration is preferred. You can register your Vigor router via Owner http://www.draydek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

  • Page 4: European Community Declarations

    Product: Vigor2860 Series Router DrayTek Corp. declares that Vigor2860 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.

  • Page 5: Table Of Contents

    2.1.3 For WAN3/WAN4 (USB)....................51 2.2 Service Activation Wizard...................... 53 2.3 VPN Client Wizard ........................ 56 2.4 VPN Server Wizard ....................... 62 2.5 Wireless Wizard ........................67 2.6 VoIP Wizard........................... 71 2.7 Registering Vigor Router....................... 73 Vigor2860 Series User’s Guide...
  • Page 6 3.7.10 SMS/Mail Service Object .................... 220 3.7.11 Notification Object....................... 225 3.8 CSM Profile ......................... 227 3.8.1 APP Enforcement Profile ....................228 3.8.2 APPE Signature Upgrade ..................... 232 3.8.3 URL Content Filter Profile..................... 234 3.8.4 Web Content Filter Profile..................... 238 Vigor2860 Series User’s Guide...
  • Page 7 3.15 VoIP........................... 346 3.15.1 DialPlan ........................348 3.15.2 SIP Accounts ......................357 3.15.3 Phone Settings ......................362 3.15.4 Status.......................... 367 3.16 Wireless LAN(2.4GHz/5GHz) ................... 369 3.16.1 Basic Concepts......................369 3.16.2 General Setup......................372 3.16.3 Security ........................374 Vigor2860 Series User’s Guide...
  • Page 8 3.20.9 Data Flow Monitor....................... 445 3.20.10 Traffic Graph......................447 3.20.11 Trace Route ......................448 3.20.12 Syslog Explorer......................449 3.20.13 TSPC Status ......................450 3.20.14 DSL Status........................ 451 3.21 External Devices ....................... 452 3.21.1 All Devices ........................452 Vigor2860 Series User’s Guide viii...
  • Page 9 4.13 How to use AP Management function (in Vigor2860) to check AP status and deploy WLAN profile............................517 4.14 CVM Application - How to manage the CPE (router) through Vigor2860 series? .... 520 4.15 CVM Application - How to build the VPN between remote devices and Vigor2860 series? ..............................
  • Page 10 Telnet Command: ip6 addr ....................609 Telnet Command: ip6 dhcp req_opt ..................610 Telnet Command: ip6 dhcp client ..................611 Telnet Command: ip6 dhcp server ..................612 Telnet Command: ip6 internet ....................614 Telnet Command: ip6 neigh....................615 Vigor2860 Series User’s Guide...
  • Page 11 Telnet Command: portmaptime ..................... 673 Telnet Command: prn ......................674 Telnet Command: qos setup....................675 Telnet Command: qos class ....................678 Telnet Command: qos type....................680 Telnet Command: quit ......................681 Telnet Command: show lan ....................681 Vigor2860 Series User’s Guide...
  • Page 12 Telnet Command: sys tftpd....................714 Telnet Command: sys cc ....................... 714 Telnet Command: sys version ....................715 Telnet Command: sys qrybuf....................715 Telnet Command: sys pollbuf ....................716 Telnet Command: sys britask ....................716 Telnet Command: sys tr069....................717 Vigor2860 Series User’s Guide...
  • Page 13 Telnet Command: wl wmm ....................764 Telnet Command: wl ht......................766 Telnet Command: wl restart....................767 Telnet Command: wl btnctl ....................768 Telnet Command: wl iwpriv & wl wlanconfig................768 Telnet Command: wl efuse ....................768 Vigor2860 Series User’s Guide xiii...
  • Page 14 Telnet Command: nand bad /nand usage ................774 Telnet Command: apm show /clear/discover/query .............. 774 Telnet Command: apm profile ....................775 Telnet Command: apm cache....................776 Telnet Command: apm lbcfg....................777 Telnet Command: apm napdetect ..................779 Vigor2860 Series User’s Guide...

  • Page 15: Introduction

    Vigor2860 series is a VDSL2 router. It integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES, the router increases the performance of VPN greatly, and offers several protocols (such as IPsec/PPTP/L2TP) with up to 32 VPN tunnels.

  • Page 16: Web Configuration Buttons Explanation

    Add new settings for specified item. Edit the settings for the selected item. Delete the selected item with the corresponding settings. Note: For the other buttons shown on the web pages, please refer to Chapter 3, 4 for detailed explanation. Vigor2860 Series User’s Guide...

  • Page 17: Led Indicators And Connectors

    The port is connected with 1000Mbps. The port is connected with 10/100Mbps Left The port is connected. GigaLAN The port is disconnected. Blinking The data is transmitting. Right The port is connected with 1000Mbps. The port is connected with 10/100Mbps Vigor2860 Series User’s Guide...
  • Page 18 Connecter for a USB device (for 3G/4G USB Modem or printer). VDSL/ADSL Connecter for accessing the Internet. WAN2 Connecter for local network devices or modem for accessing Internet. GigaLAN (1-6) Connecters for local network devices. Connecter for a power adapter. Power Switch. ON/OFF Vigor2860 Series User’s Guide...

  • Page 19: For Vigor2860Ac / Vigor2860N-Plus / Vigor2860N

    Traffic is passing through VPN tunnel. The DoS function is active. Blinking It will blink while detecting an attack. LED on Connector Left The port is connected. WAN2 The port is disconnected. (Giga) Blinking The data is transmitting. Vigor2860 Series User’s Guide...
  • Page 20 Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, Vigor2860 Series User’s Guide...
  • Page 21 Connecter for a USB device (for 3G/4G USB Modem or printer). VDSL/ADSL Connecter for accessing the Internet. WAN2 (Giga) Connecter for local network devices or modem for accessing Internet. GigaLAN (1-6) Connecters for local network devices. Connecter for a power adapter. ON/OFF Power Switch. Vigor2860 Series User’s Guide...

  • Page 22: For Vigor2860Vac / Vigor2860Vn-Plus

    The port is connected with 1000Mbps. The port is connected with 10/100Mbps Left The port is connected. GigaLAN The port is disconnected. Blinking The data is transmitting. Right The port is connected with 1000Mbps. The port is connected with 10/100Mbps Vigor2860 Series User’s Guide...
  • Page 23 Connecter for local network devices or modem for accessing Internet. GigaLAN (1-6) Connecters for local network devices. Phone 1/2 Connecter for analog phone(s). Line Connector for PSTN life line. Connecter for a power adapter. ON/OFF Power Switch. Vigor2860 Series User’s Guide...

  • Page 24: Hardware Installation

    Power on the device by pressing down the power switch on the rear panel. The system starts to initiate. After completing the system test, the ACT LED will light up and start blinking. Vigor2860 Series User’s Guide...

  • Page 25: Possible Installation For Vigor2860Vac

    Note: Due to the US Patent No. 7,127,048, the DSL and VoIP applications on Vigor2860Vn plus and Vigor2860Vac can not be allowed to promote and to sell in the USA. Vigor2860 Series User’s Guide...

  • Page 26: Possible Installation For Vigor2860Vn-Plus

    Note: Due to the US Patent No. 7,127,048, the DSL and VoIP applications on Vigor2860Vn plus and Vigor2860Vac can not be allowed to promote and to sell in the USA. Vigor2860 Series User’s Guide...

  • Page 27: Printer Installation

    You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows 7. For other Windows system, please visit www.DrayTek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients).
  • Page 28 A dialog will appear. Click Add a local printer and click Next. In this dialog, choose Create a new port. In the field of Type of port, use the drop down list to select Standard TCP/IP Port. Then, click Next. Vigor2860 Series User’s Guide...
  • Page 29 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Hostname or IP Address and type 192.168.1.1 as the Port name. Then, click Next. Click Standard and choose Generic Network Card. Vigor2860 Series User’s Guide...
  • Page 30 Now, your system will ask you to choose right name of the printer that you installed onto the router. Such step can make correct driver loaded onto your PC. When you finish the selection, click Next. Type a name for the chosen printer. Click Next. Vigor2860 Series User’s Guide...
  • Page 31 10. Choose Do not share this printer and click Next. 11. Then, in the following dialog, click Finish. Vigor2860 Series User’s Guide...
  • Page 32 12. The new printer has been added and displayed under Printers and Faxes. Click the new printer icon and click Printer server properties. 13. Edit the property of the new printer you have added by clicking Configure Port. Vigor2860 Series User’s Guide...
  • Page 33 Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ/Application Notes; find out the link of USB>>Printer Server and click it.
  • Page 34 Then, click the What types of printers are compatible with Vigor router? link. Note 2: Vigor router supports printing request from computers via LAN ports but not WAN port. Vigor2860 Series User’s Guide...

  • Page 35: Accessing Web Page

    Please type “admin/admin” as the Username/Password and click Login. Notice: If you fail to access to the web configuration, please go to “Trouble Shooting” for detecting and solving your problem. Vigor2860 Series User’s Guide...

  • Page 36: Changing Password

    Open a web browser on your PC and type http://192.168.1.1. A pop-up window will open to ask for username and password. Please type “admin/admin” as Username/Password for accessing into the web user interface with admin mode. Go to System Maintenance page and choose Administrator Password. Vigor2860 Series User’s Guide...
  • Page 37 Now, the password has been changed. Next time, use the new password to access the Web user interface for this router. Note: Even the password is changed, the Username for logging onto the web user interface is still “admin”. Vigor2860 Series User’s Guide...

  • Page 38: Introducing Dashboard

    LEDs (except ACT), USB ports, VDSL/ADSL, WAN2, or LAN1 – LAN6, related web setting page will be open for you to configure if required. For detailed information about the LED display, refer to 1.2 LED Indicators and Connectors. Vigor2860 Series User’s Guide...

  • Page 39: Name With A Link

    In addition, quick access for VPN security settings such as Remote Dial-in User and LAN to LAN are located on the bottom of this page. Scroll down the page to find them and use them if required. Vigor2860 Series User’s Guide...
  • Page 40 All of the hosts (including wireless clients) displayed with Host ID, IP Address and MAC address indicates that the traffic would be transmitted through LAN port(s) and then the WAN port. The purpose is to perform the traffic monitor of the host(s). Vigor2860 Series User’s Guide...

  • Page 41: Gui Map

    All the functions the router supports are listed with table clearly in this page. Users can click the function link to access into the setting page of the function for detailed configuration. Click the icon on the top of the main screen to display all the functions. Vigor2860 Series User’s Guide...

  • Page 42: Web Console

    The functions/settings modified under Web Console also can be reviewed on the web user interface. Click the Web Console icon on the top of the main screen to open the following screen. Vigor2860 Series User’s Guide...

  • Page 43: Config Backup

    Simply click the icon on the top of the main screen and a pop up dialog will appear. Click Save to store the setting. Click this icon to exit the web user interface. Such page displays the physical connection status such as LAN connection status, WAN connection status, ADSL information, and so on. Vigor2860 Series User’s Guide...
  • Page 44 Vigor2860 Series User’s Guide...
  • Page 45 RX Bytes - Displays the speed of received octets at the LAN interface. WAN IPv6 Status Enable – No in red means such interface is available but not enabled. Yes in green means such interface is enabled. No in red means such interface is not available. Vigor2860 Series User’s Guide...

  • Page 46: Virtual Wan

    Each time you click OK on the web page for saving the configuration, you can find messages showing the system interaction with you. Ready indicates the system is ready for you to input settings. Settings Saved means your settings are saved once you click Finish or OK button. Vigor2860 Series User’s Guide...
  • Page 47 This page is left blank. Vigor2860 Series User’s Guide...

  • Page 48: Quick Setup

    VoIP Wizard – used for establishing VoIP profile. Quick Start Wizard can help you to deploy and use the router easily and quickly. The first screen of Quick Start Wizard is entering login password. After typing the password, please click Next. Vigor2860 Series User’s Guide...
  • Page 49 WAN1; if Ethernet interface is used, please choose WAN2; if 3G USB modem is used, please choose WAN3 or WAN4. Then click Next for next step. WAN1, WAN2, WAN3 and WAN4 will bring up different configuration page. Refer to the following sections for detailed information. Vigor2860 Series User’s Guide...

  • Page 50: For Wan1 (Adsl/Vdsl2)

    ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. In addition, the field of For ADSL Only will be available only when ADSL is detected. Then click Next for next step. Vigor2860 Series User’s Guide...
  • Page 51 Type the IP address if Fixed IP is enabled. Subnet Mask Type the subnet mask. Default Gateway Type the IP address as the default gateway. Primary DNS Type in the primary IP address for the router. Vigor2860 Series User’s Guide...
  • Page 52 Note: The maximum length of the password you can set is 62 characters. Confirm Password Retype the password. Back Click it to return to previous setting page. Click it to get into the next setting page. Next Cancel Click it to give up the quick start wizard. Vigor2860 Series User’s Guide...
  • Page 53 After finished the above settings, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2860 Series User’s Guide...
  • Page 54 VPI and VCI. Or, click Auto detect to find out the best values. Fixed IP Click Yes to enable Fixed IP feature. Type the IP address if Fixed IP is enabled. IP Address Subnet Mask Type the subnet mask. Vigor2860 Series User’s Guide...
  • Page 55 Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2860 Series User’s Guide...

  • Page 56: For Wan2 (Ethernet)

    On the next page as shown below, please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step. Vigor2860 Series User’s Guide...
  • Page 57 Assign a specific valid user name provided by the ISP. Note: The maximum length of the user name you can set is 63 characters. Password Assign a valid password provided by the ISP. Note: The maximum length of the password you can set is 62 Vigor2860 Series User’s Guide...
  • Page 58 Please manually enter the Username/Password provided by your ISP. Click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2860 Series User’s Guide...
  • Page 59 Description User Name Assign a specific valid user name provided by the ISP. Note: The maximum length of the user name you can set is 63 characters. Password Assign a valid password provided by the ISP. Vigor2860 Series User’s Guide...
  • Page 60 Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2860 Series User’s Guide...
  • Page 61 Type the IP address of gateway. Primary DNS Type in the primary IP address for the router. Secondary DNS Type in secondary IP address for necessity in the future. Back Click it to return to previous setting page. Vigor2860 Series User’s Guide...
  • Page 62 Now, you can enjoy surfing on the Internet. Choose WAN2 as WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Vigor2860 Series User’s Guide...
  • Page 63 Click it to return to previous setting page. Next Click it to get into the next setting page. Cancel Click it to give up the quick start wizard. After finished the settings above, click Next for viewing summary of such connection. Vigor2860 Series User’s Guide...
  • Page 64 Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2860 Series User’s Guide...

  • Page 65: For Wan3/Wan4 (Usb)

    Internet. The maximum length of the pin code (PPP mode) you can set is 15 characters. Modem Initial String – Such value is used to initialize USB modem. Please use the default value. If you have any Vigor2860 Series User’s Guide...
  • Page 66 Then, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2860 Series User’s Guide...

  • Page 67: Service Activation Wizard

    Service Activation Wizard is a tool which allows you to use trial version of WCF directly without accessing into the server (MyVigor) located on http://myvigor.draytek.com. For using Web Content Filter Profile, please refer to later section Web Content Filter Profile for detailed information.
  • Page 68 When you finish the selection, please click Next. Commtouch is the web content filter based on Commtouch operated in the worldwide. There is a 30-day trial period. After trial, you can purchase DrayTek's prepared Commtouch GlobalView WCF package from retailing outlets. In addition,...
  • Page 69 The valid time for the free trial of these services is one month. When all the trial editions for various web content filters had been enabled, the configuration page of Service Activation Wizard will be invalid as shown below. Vigor2860 Series User’s Guide...

  • Page 70: Vpn Client Wizard

    Route Mode/NAT Mode – If the remote network only allows you to dial in with single IP, please choose NAT mode, otherwise please choose Route Mode. Please choose a There are 32 VPN profiles for users to set. LAN-to-LAN Profile Vigor2860 Series User’s Guide...
  • Page 71 In this page, you have to select suitable VPN type for the VPN client profile. There are six types provided here. Different type will lead to different configuration page. After making the choices for the client profile, please click Next. You will see different configurations based on the selection(s) you made. Vigor2860 Series User’s Guide...
  • Page 72 When you choose PPTP (None Encryption) or PPTP (Encryption), you will see the following graphic:  When you choose IPsec, you will see the following graphic:  When you choose L2TP, you will see the following graphic: Vigor2860 Series User’s Guide...
  • Page 73 When you choose L2TP over IPsec (Nice to Have) or L2TP over IPsec (Must), you will see the following graphic: Available settings are explained as follows: Item Description Profile Name Type a name for such profile. The length of the file is limited to 10 characters. Vigor2860 Series User’s Guide...
  • Page 74 Certificate Management >> Local Certificate. Otherwise, the setting you choose here will not be effective. IPsec Security Medium - Authentication Header (AH) means data will be Method authenticated, but not be encrypted. By default, this option Vigor2860 Series User’s Guide...
  • Page 75 Click this radio button to set another profile of VPN Server Do another VPN through VPN Server Wizard. Server Wizard Setup View more detailed Click this radio button to access VPN and Remote configuration Access>>LAN to LAN for viewing detailed configuration. Vigor2860 Series User’s Guide...

  • Page 76: Vpn Server Wizard

    VPN connection. Please choose a This item is available when you choose Site to Site VPN LAN-to-LAN Profile (LAN-to-LAN) as VPN server mode. There are 32 VPN profiles for users to set. Vigor2860 Series User’s Guide...
  • Page 77 2. After making the choices for the server profile, please click Next. You will see different configurations based on the selection you made. Here we take the examples of choosing Site-to-Site VPN as the VPN Server Mode. Vigor2860 Series User’s Guide...
  • Page 78 When you check PPTP, you will see the following graphic:  When you check PPTP & IPsec & L2TP (three types) or PPTP & IPsec (two types) or L2TP with Policy (Nice to Have/Must), you will see the following graphic: Vigor2860 Series User’s Guide...
  • Page 79 Peer IP/VPN Client Type the WAN IP address or VPN client IP address for the remote client. Peer ID Type the ID name for the remote client. The length of the name is limited to 47 characters. Vigor2860 Series User’s Guide...
  • Page 80 Click this radio button to set another profile of VPN Server Server Wizard Setup through VPN Server Wizard. View more detailed Click this radio button to access VPN and Remote configuration Access>>LAN to LAN for viewing detailed configuration. Vigor2860 Series User’s Guide...

  • Page 81: Wireless Wizard

    Description Wireless 2.4GHz Settings Name Type the SSID name of this router for wireless 2.4GHz. The default name is defined with DrayTek. Change the name if required. Mode At present, the router can connect to 11n Only, 11g Only, Mixed (11b+11g), Mixed (11a+11n), Mixed (11g+11n), and Mixed (11b+11g+11n) stations simultaneously.
  • Page 82 Exit the wireless wizard without saving any changes. 3. After typing the required information, click Next. The settings in the page limit the wireless station (guest) accessing into Internet but not being allowed to share the LAN network and VPN connection. Vigor2860 Series User’s Guide...
  • Page 83 Click it to enable or disable settings in this page. Use the same SSID Check the box to use the same settings configured above. and Security Key as above SSID Type the SSID name of this router. (SSID2) Vigor2860 Series User’s Guide...
  • Page 84 Exit the wireless wizard without saving any changes. 4. After typing the required information, click Next. 5. The following page will display the configuration summary for wireless setting. 6. Click Finish to complete the wireless settings configuration. Vigor2860 Series User’s Guide...

  • Page 85: Voip Wizard

    Password – Type the password for the account registered to your ISP. Use the same Account as phone 1 – If you don’t need to configure Phone 2 settings, simply check this box. Click it to get into the next setting page. Next Vigor2860 Series User’s Guide...
  • Page 86 Cancel Click it to give up the VoIP wizard. 3. After finished the settings above, click Next for viewing summary of such connection. 4. Click Finish. A page of VoIP Wizard Setup OK!!! will appear. Vigor2860 Series User’s Guide...

  • Page 87: Registering Vigor Router

    Please login the web configuration interface of Vigor router by typing “admin/admin” as User Name / Password. Click Support Area>>Production Registration from the home page. A Login page will be shown on the screen. Please type the account and password that you created previously. And click Login. Vigor2860 Series User’s Guide...
  • Page 88 When the following page appears, please type in Nickname (for the router) and choose the right registration date from the popup calendar (it appears when you click on the box of Registration Date). After adding the basic information for the router, please click Submit. Vigor2860 Series User’s Guide...
  • Page 89 When the following page appears, your router information has been added to the database. After clicking OK, you will see the following page. Your router has been registered to myvigor website successfully. Vigor2860 Series User’s Guide...

  • Page 90: Advanced Configuration

    These are known as private IP addresses, and are listed in the following ranges: From 10.0.0.0 to 10.255.255.255 From 172.16.0.0 to 172.31.255.255 From 192.168.0.0 to 192.168.255.255 Vigor2860 Series User’s Guide...
  • Page 91 Besides, 3G/4G USB Modem in WAN3/WAN4 also can be used as backup device. Therefore, when WAN1 and WAN2 are not available, the router will use 3.5G for supporting automatically. The supported 3G/4G USB Modem will be listed on DrayTek web site. Please visit www.draytek.com for more detailed information.

  • Page 92: General Setup

    According to Line Speed. Otherwise, please choose Auto Weight to let the router reach the best load balance. Click the WAN interface link under Index to access into the Index WAN configuration page. Vigor2860 Series User’s Guide...
  • Page 93 ADSL and VDSL2 respectively. Available settings are explained as follows: Item Description Enable Choose Yes to invoke the settings for this WAN interface. Choose No to disable the settings for this WAN interface. Vigor2860 Series User’s Guide...
  • Page 94 Disable – Disable the function of VLAN with tag. Tag value – Type the value as the VLAN ID number. The range is form 0 to 4095. Priority – Type the packet priority number for such VLAN. The range is from 0 to 7. Vigor2860 Series User’s Guide...
  • Page 95 When all of selected WAN disconnect – Such backup WAN will be activated only when all master WAN interfaces disconnect. After finished the above settings, click OK to save the settings. WAN2 is fixed with physical mode of Ethernet. Vigor2860 Series User’s Guide...
  • Page 96 Load Balance: Check this box to enable auto load balance function for such WAN interface. When the data traffic is large, the WAN interface with the function enabled will balance the data transmission automatically among all of the WAN interfaces in connection status. Vigor2860 Series User’s Guide...
  • Page 97 Display the physical mode of such WAN interface. Line Speed If your choose According to Line Speed as the Load Balance Mode, please type the line speed for downloading and uploading for such WAN interface. The unit is kbps. Vigor2860 Series User’s Guide...
  • Page 98 WAN will be activated when any master WAN interface disconnects. When all of selected WAN disconnect – Such backup WAN will be activated only when all master WAN interfaces disconnect. After finished the above settings, click OK to save the settings. Vigor2860 Series User’s Guide...

  • Page 99: Internet Access

    Available settings are explained as follows: Item Description Index Display the WAN interface. Display Name It shows the name of the WAN1/WAN2/WAN3/WAN4 that entered in general setup. Physical Mode It shows the physical connection for WAN1(ADSL/VDSL2) /WAN2 (Ethernet) /WAN3/WAN4 Vigor2860 Series User’s Guide...
  • Page 100 WAN5 ~ WAN7 can be located under WAN>>Multi-PVC/VLAN. Option Number – Type a number for such function. Note If you choose to configure option 61 here, the detailed settings in WAN>>Interface Access will be Vigor2860 Series User’s Guide...
  • Page 101 ISP via the Vigor router. When PPPoA protocol is selected, the PPPoE package transmitted by PC will be transformed into PPPoA package and sent to WAN server. Thus, the PC can access Internet through such direction. Vigor2860 Series User’s Guide...
  • Page 102 WAN IP Alias - If you have multiple public IP addresses and would like to utilize them on the WAN interface, please use WAN IP Alias. You can set up to 8 public IP addresses other than the current one you are using. Vigor2860 Series User’s Guide...
  • Page 103 Index (1-15) in Schedule Setup - You can type in four sets of time schedule for your request. All the schedules can be set previously in Applications >> Schedule web page and you can use the number that you have set in that web page. Vigor2860 Series User’s Guide...
  • Page 104 WAN detection. Ping IP – If you choose Ping Detect as detection mode, you have to type IP address in this field for pinging. TTL (Time to Live) – Displays value for your reference. Vigor2860 Series User’s Guide...
  • Page 105 Username: Type a name as username. The maximum length of the user name you can set is 63 characters.  Password: Type a password. The maximum length of the password you can set is 62 characters. Vigor2860 Series User’s Guide...
  • Page 106 After finishing all the settings here, please click OK to activate them. Available settings are explained as follows: Item Description Enable/Disable Click Enable for activating this function. If you click Disable, this function will be closed and all the settings that Vigor2860 Series User’s Guide...
  • Page 107 LAN. That’s, the router will offer PPPoA dial-up connection. Such function allows you to verify whether network WAN Connection Detection connection is alive or not through ARP Detect or Ping Detect. Mode – Choose ARP Detect or Ping Detect for the system Vigor2860 Series User’s Guide...
  • Page 108 WAN IP Alias - If you have multiple public IP addresses and would like to utilize them on the WAN interface, please use WAN IP Alias. You can set up to 8 public IP addresses other than the current one you are using. Vigor2860 Series User’s Guide...
  • Page 109 LANs to send packets to each other via an ATM backbone. To use MPoA/Static or Dynamic IP as the accessing protocol of the Internet, select MPoA /Static or Dynamic IP from the WAN>>Internet Access >>WAN1 page. The following web page will appear. Vigor2860 Series User’s Guide...
  • Page 110 WAN detection. Ping IP – If you choose Ping Detect as detection mode, you have to type IP address in this field for pinging. TTL (Time to Live) – Displays value for your reference. Vigor2860 Series User’s Guide...
  • Page 111 Domain Name – Type in the domain name that you have assigned. DHCP Client Identifier for some ISP -  Enable: Check the box to specify username and password as the DHCP client identifier for some ISP. Vigor2860 Series User’s Guide...
  • Page 112 Available settings are explained as follows: Item Description Enable/Disable Click Enable for activating this function. If you click Disable, this function will be closed and all the settings that you adjusted in this page will be invalid. Vigor2860 Series User’s Guide...
  • Page 113 Default MAC Address – You can use Default MAC Address or specify another MAC address by typing on the boxes of MAC Address for the router. Specify a MAC Address – Type the MAC address for the Vigor2860 Series User’s Guide...
  • Page 114 Enable PING to keep alive box to activate this function. PING to the IP - If you enable the PING function, please specify the IP address for the system to PING it for keeping alive. PING Interval - Enter the interval for the system to Vigor2860 Series User’s Guide...
  • Page 115 Gateway IP Address: Type the gateway IP address. Default MAC Address: Click this radio button to use default MAC address for the router. Specify a MAC Address: Some Cable service providers specify a specific MAC address for access authentication. Vigor2860 Series User’s Guide...
  • Page 116 ISP Access Setup field. The maximum length of the user name you can set is 63 characters. Password -Type in the password provided by ISP in this field. The maximum length of the password you can set is Vigor2860 Series User’s Guide...
  • Page 117 Specify an IP address – Click this radio button to specify some data.  IP Address – Type the IP address.  Subnet Mask – Type the subnet mask. After finishing all the settings here, please click OK to activate them. Vigor2860 Series User’s Guide...
  • Page 118 Modem Initial String Such value is used to initialize USB modem. Please use the default value. If you have any question, please contact to your ISP. The maximum length of the string you can set is 47 characters. Vigor2860 Series User’s Guide...
  • Page 119 IP address in this field for pinging. TTL (Time to Live) – Displays value for your reference. TTL value is set by telnet command. After finishing all the settings here, please click OK to activate them. Vigor2860 Series User’s Guide...
  • Page 120 APN means Access Point Name which is provided and required by some ISPs. Type the name and click Apply. The maximum length of the name you can set is 47 characters. It means Max Transmit Unit for packet. Vigor2860 Series User’s Guide...
  • Page 121 PCs under LAN also can have the public IPv6 address for Internet access by means of the generated prefix. No need to type any other information for PPP mode. Below shows an example for successful IPv6 connection based on PPP mode. Vigor2860 Series User’s Guide...
  • Page 122 After getting the IPv6 prefix and starting router advertisement daemon (RADVD), the PC behind this router can directly connect to IPv6 the Internet. Available settings are explained as follows: Vigor2860 Series User’s Guide...
  • Page 123 The maximum length of the name you can set is 19 characters. Password Type the password assigned with the user name. The maximum length of the password you can set is 19 characters. Confirm Password Type the password again to make the confirmation. Vigor2860 Series User’s Guide...
  • Page 124 Available settings are explained as follows: Item Description Identify Association Choose Prefix Delegation or Non-temporary Address as the identify association. IAID Type a number as IAID. After finished the above settings, click OK to save the settings. Vigor2860 Series User’s Guide...
  • Page 125 Delete – Click it to remove an existed entry. Current IPv6 Address Display current interface IPv6 address. Table Static IPv6 Gateway IPv6 Gateway Address - Type your IPv6 gateway address Configuration here. After finished the above settings, click OK to save the settings. Vigor2860 Series User’s Guide...
  • Page 126 Type the static IPv6 address for LAN routing with the value for prefix length. Type the number for the data lifetime in tunnel. Tunnel TTL After finished the above settings, click OK to save the settings. Vigor2860 Series User’s Guide...
  • Page 127 Type the IPv4 addresses of the 6rd Border Relay for a given 6rd domain. IPv4 Mask Length Type a number of high-order bits that are identical across all CE IPv4 addresses within a given 6rd domain. It may be any value between 0 and 32. Vigor2860 Series User’s Guide...
  • Page 128 Type the IPv6 prefix length for the 6rd IPv6 prefix in number of bits. After finished the above settings, click OK to save the settings. Below shows an example for successful IPv6 connection based on 6rd mode. Vigor2860 Series User’s Guide...

  • Page 129: Multi-Pvc/Vlan

    WAN type may not configure the same VLAN tag value. Enable - Check this box to enable the port-based bridge function on this channel. P1 ~ P6 – Check the box(es) to build bridge connection on LAN. Vigor2860 Series User’s Guide...
  • Page 130 VCI - Type in the value provided by your ISP. Protocol - Select a proper protocol for this channel. Encapsulation - Choose a proper type for this channel. The types will be different according to the protocol setting that you choose. Vigor2860 Series User’s Guide...
  • Page 131 WAN links for Channel 5, 6 and 7 are provided for router-borne application such as TR-069. The settings must be applied and obtained from your ISP. For your special request, please contact with your ISP and then click WAN link of Channel 5, 6 or 7 to configure your router. Vigor2860 Series User’s Guide...
  • Page 132 WAN type to be built upon. In the Multi-PVC application, only the Ethernet WAN type is available. The user will be able to select the physical WAN interface the channel shall use here. Vigor2860 Series User’s Guide...
  • Page 133 IGMP packets to IPTV servers. WAN Connection Such function allows you to verify whether network Detection connection is alive or not through ARP Detect or Ping Detect. Mode – Choose ARP Detect or Ping Detect for the system Vigor2860 Series User’s Guide...
  • Page 134 After finished the above settings, click OK to save the settings and return to previous page. Such configuration is applied to upstream packets. Such information will be provided by ISP. Please contact with your ISP for detailed information. Vigor2860 Series User’s Guide...
  • Page 135 It allows the enabled PVC channel to use the same ADSL connection settings of another PVC channel. Please choose the PVC channel via the drop down list. After finished the above settings, click OK to save the settings. Vigor2860 Series User’s Guide...

  • Page 136: Wan Budget

    Shutdown WAN interface – All the outgoing traffic through such WAN interface will be terminated. Send Mail Alert to Administrator – The system will send out a warning message to the administrator when the quota Vigor2860 Series User’s Guide...
  • Page 137  Current day in cycle – Specify the day in the billing cycle as the starting point which Vigor router will reset the traffic record. For example, 3 means the third day of the billing cycle. Vigor2860 Series User’s Guide...
  • Page 138 Send Mail Alert to Administrator is selected. Or, the system will send out SMS message to the administrator if Send SMS messages to Administrator is selected. Vigor2860 Series User’s Guide...

  • Page 139: Lan

    IP address. As a part of the public subnet, the Vigor router will serve for IP routing to help hosts in the public subnet to communicate with other public hosts or servers outside. Therefore, the router should be set as the gateway for public hosts. Vigor2860 Series User’s Guide...
  • Page 140 You can group local hosts by physical ports and create up to 8 virtual LANs. To manage the communication between different groups, please set up rules in Virtual LAN (VLAN) function and the rate of each. Vigor2860 Series User’s Guide...

  • Page 141: General Setup

    DHCP box for each LAN. IP Address - Display the IP address for each LAN item. Such information is set in default and you can not modify it. Details Page - Click it to access into the setting page. Each Vigor2860 Series User’s Guide...
  • Page 142 Internet Access server (PPPoE, PPTP, L2TP or DHCP server). Inter-LAN Routing Check the box to link two or more different subnets (LAN and LAN). When you finish the configuration, please click OK to save and exit this page. Vigor2860 Series User’s Guide...
  • Page 143 LAN. Disable Server – Let you manually assign IP address to every host in the LAN. Enable Relay Agent –Specify which subnet that DHCP server is located the relay agent should redirect the DHCP Vigor2860 Series User’s Guide...
  • Page 144 DNS Server. If your ISP does not provide it, the router will automatically apply default secondary DNS Server IP address: 194.98.0.1 to this field. The default DNS Server IP address can be found via Online Status: Vigor2860 Series User’s Guide...
  • Page 145 IPv4) and IPv6 Setup. Click the tab for each type and refer to the following explanations for detailed information. Below shows the settings page for IPv6. It provides 2 daemons for LAN side IPv6 address configuration. One is RADVD(stateless) and the other is DHCPv6 Server (Stateful). Available settings are explained as follows: Vigor2860 Series User’s Guide...
  • Page 146 Add – Click it to add a new entry. Delete – Click it to remove an existed entry. Current IPv6 Address Display current used IPv6 addresses. Table When you finish the configuration, please click OK to save and exit this page. Vigor2860 Series User’s Guide...
  • Page 147 DHCP Server IP Address – It is available when Enable Relay Agent is checked. Set the IP address of the DHCP server you are going to use so the Relay Agent can help to forward the DHCP request to the DHCP server. Vigor2860 Series User’s Guide...
  • Page 148 The default DNS Server IP address can be found via Online Status: If both the Primary IP and Secondary IP Address fields are left empty, the router will assign its own IP address to local users as a DNS proxy server and maintain a DNS cache. Vigor2860 Series User’s Guide...
  • Page 149 IP settings to any local user configured as a DHCP client. It is highly recommended that you leave the router enabled as a DHCP server if you do not have a DHCP server for your network. Vigor2860 Series User’s Guide...
  • Page 150 Edit – Click it to edit the selected MAC address. Cancel – Click it to cancel the job of adding, deleting and editing. When you finish the configuration, please click OK to save and exit this page. Vigor2860 Series User’s Guide...

  • Page 151: Static Route

    Displays the destination address of the static route. Status Displays the status of the static route. Set to Factory Default Clear all of the settings and return to factory default settings. Viewing Routing Table Displays the routing table for your reference. Vigor2860 Series User’s Guide...
  • Page 152 1st subnet (192.168.1.0/24). The second is that those hosts on the internal private subnets (ex. 192.168.10.0/24) can access the Internet via the router, and continuously exchange of IP routing information with different subnets. Vigor2860 Series User’s Guide...
  • Page 153 Use the drop down list to specify an interface for such static route. Return to Static Route Setup page. Click on another Index Number to add another static route as show below, which regulates all packets destined to 211.100.88.0 will be forwarded to 192.168.1.3. Click OK. Vigor2860 Series User’s Guide...
  • Page 154 Set to Factory Default Clear all of the settings and return to factory default settings. Viewing IPv6 Routing Displays the routing table for your reference. Table Click any underline of index number to get the following page. Vigor2860 Series User’s Guide...
  • Page 155 Type the gateway address for this entry. Network Interface Use the drop down list to specify an interface for this static route. When you finish the configuration, please click OK to save and exit this page. Vigor2860 Series User’s Guide...

  • Page 156: Vlan

    The multi-subnet can let a small businesses have much better isolation for multi-occupancy applications. Go to LAN page and select VLAN. The following page will appear. Click Enable to invoke VLAN function. Below is an example page in Vigor2860n: Vigor2860 Series User’s Guide...
  • Page 157 Choose one of them to make the selected VLAN mapping to the specified subnet only. For example, LAN1 is specified for VLAN0. It means that PCs grouped under VLAN0 can get the IP address(es) that specified by the subnet. Vigor2860 Series User’s Guide...
  • Page 158 Note: Leave one VLAN untagged at least to prevent from not connecting to Vigor router due to unexpected error. Vigor2860 series features a hugely flexible VLAN system. In its simplest form, each of the Gigabit LAN ports can be isolated from each other, for example to feed different companies or departments but keeping their local traffic completely separated.
  • Page 159 (isolated) or common (able to communicate with each other). This is ideal for departmental or multi-occupancy applications. Note: As for the VLAN applications, refer to “Appendix I: VLAN Application on Vigor Router” for more detailed information. Vigor2860 Series User’s Guide...

  • Page 160: Bind Ip To Mac

    Each pair of IP and MAC address listed in ARP table can be selected and added to IP Bind List by clicking Add below Click this link to select all the items in the ARP table. Select All Sort Reorder the table based on the IP address. Vigor2860 Series User’s Guide...
  • Page 161 Note: Before you select Strict Bind, you have to bind one set of IP/MAC address for one PC. If not, no one of the PCs can access into Internet. And the web user interface of the router might not be accessed. When you finish the configuration, click OK to save the settings. Vigor2860 Series User’s Guide...

  • Page 162: Lan Port Mirror

    Select which ports are necessary to be mirrored for transmitting the packets. Mirrored Rx Port Select which ports are necessary to be mirrored for receiving the packets. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 163: Wired 802.1X

    Check the box to enable LAN 802.1x function. Enable 802.1x ports After enabling the function, simply specify the LAN port(s) to apply such function. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 164: Web Portal Setup

    Display the content (Disable, URL Redirect or Message) of the profile. Interface Display the applied interface of the profile. Preview Open a preview window according to the configured settings. To configure the profile, click any index number link to open the following page. Vigor2860 Series User’s Guide...
  • Page 165 Check the box(es) representing different interfaces to be applied by such profile. The advantage is that each SSID (1/2/3/4) for wireless network can be applied with different web portal separately. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 166: Load-Balance /Route Policy

    (Failback), the packets will be returned to it immediately.  Other routing. Specify routing policy to determine the direction of the data transmission. Note: For more detailed information about using policy route, refer to Support >>FAQ/Application Notes on www.draytek.com. Vigor2860 Series User’s Guide...
  • Page 167 Allows to configure frequently used settings of route policy via three setting pages Advance Mode Allows to configure detailed settings of route policy. To use Wizard Mode, simple do the following steps: 1. Click the Wizard Mode radio button. Vigor2860 Series User’s Guide...
  • Page 168 Available settings are explained as follows: Item Description Interface Use the drop down list to choose a WAN or LAN interface or VPN profile. Packets match with the above criteria will be transferred to the interface chosen here. Vigor2860 Series User’s Guide...
  • Page 169 It determines which mechanism that the router will use to Routing forward the packet to WAN. 5. After choosing the mechanism, click Next to get the summary page for reference. 6. If there is no error, click Finish to complete wizard setting. Vigor2860 Series User’s Guide...
  • Page 170 2. Click Index 1 to access into the following page. Available settings are explained as follows: Item Description Enable Check this box to enable this policy. Protocol Use the drop-down menu to choose a proper protocol for the WAN interface. Vigor2860 Series User’s Guide...
  • Page 171  VPN – Use the drop down list to choose a VPN tunnel as a failover tunnel.  Route Policy – Use the drop down list to choose an existed route policy profile. Vigor2860 Series User’s Guide...
  • Page 172 Note: The web user interface will be revised later. Example 1: In the following figure, a LAN to LAN VPN tunnel is built between DrayTek VPN router (e.g., Vigor2860 series) and the remote router. Firewall Router can receive all of the traffic coming from remote PC which wants to access into Internet;...
  • Page 173 Table are fixed as “150”. You can adjust the value for such route policy with lower value, e.g., 100 to ensure it will be applied to packets transmission with the highest priority. After finished the above settings, click OK to save the configuration. Vigor2860 Series User’s Guide...
  • Page 174 To route the packets coming from the Firewall Router back to the remote router, access into the web user interface of the Firewall Router. Then, set “192.168.1.1/24” as the gateway IP address and set “172.16.3.0/24” as the destination IP address. Vigor2860 Series User’s Guide...
  • Page 175 Click any index number (e.g., #1 in this case). In the following web page, check Enable; type “192.168.1.10” as Src IP Range; type “213.57.89.100” as the Destination IP for the remote VPN server; and choose VPN as the Interface setting. Vigor2860 Series User’s Guide...

  • Page 176: Nat

    IP addresses, the NAT function can protect the internal network. Note: On NAT page, you will see the private IP address defined in RFC-1918. Usually we use the 192.168.1.0/24 subnet for the router. As stated before, the NAT facility can map one Vigor2860 Series User’s Guide...

  • Page 177: Port Redirection

    The port redirection can only apply to incoming traffic. To use this function, please go to NAT page and choose Port Redirection web page. The Port Redirection Table provides 40 port-mapping entries for the internal hosts. Vigor2860 Series User’s Guide...
  • Page 178 Display the IP address of the internal host providing the service. Status Display if the profile is enabled (v) or not (x). Press any number under Index to access into next page for configuring port redirection. Vigor2860 Series User’s Guide...
  • Page 179 80 to avoid conflict, such as 8080. This can be set in the System Maintenance >>Management Setup. You then will access the admin screen of by suffixing the IP address with 8080, e.g., http://192.168.1.1:8080 instead of port 80. Vigor2860 Series User’s Guide...
  • Page 180 Vigor2860 Series User’s Guide...

  • Page 181: Dmz Host

    Click DMZ Host to open the following page. You can set different DMZ host for each WAN interface. Click the WAN tab to switch into the configuration page for that WAN. Available settings are explained as follows: Vigor2860 Series User’s Guide...
  • Page 182 IP address will be shown on the following screen. Click OK to save the setting. DMZ Host for WAN2, WAN3 or WAN4 is slightly different with WAN1. Active True IP selection is available for WAN1 only. See the following figure. Vigor2860 Series User’s Guide...
  • Page 183 When you have selected one private IP from the above dialog, the IP address will be shown on the screen. Click OK to save the setting. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 184: Open Ports

    Inactive or Active state. To add or edit port settings, click one index number on the page. The index entry setup page will pop up. In each index entry, you can specify 10 port ranges for diverse services. Vigor2860 Series User’s Guide...
  • Page 185 Specify the transport layer protocol. It could be TCP, UDP, or ----- (none) for selection. Start Port Specify the starting port number of the service offered by the local host. End Port Specify the ending port number of the service offered by the local host. Vigor2860 Series User’s Guide...

  • Page 186: Port Triggering

    TCP: 86400 sec. UDP: 180 sec. IGMP: 10 sec. TCP WWW: 60 sec. TCP SYN: 60 sec. Available settings are explained as follows: Item Description Comment Display the text which memorizes the application of this rule. Vigor2860 Series User’s Guide...
  • Page 187 Check to enable this entry. Service Choose the predefined service to apply for such trigger profile. Comment Type the text to memorize the application of this rule. Triggering Protocol Select the protocol (TCP, UDP or TCP/UDP) for such triggering profile. Vigor2860 Series User’s Guide...
  • Page 188 (TCP, UDP or TCP/UDP) for the incoming data of such triggering profile. Incoming Port Type the port or port range for the incoming packets. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 189: Firewall

    It will check packets according to the filter rules. If legal, the packet will pass the router. The following illustrations are flow charts explaining how router will treat incoming traffic and outgoing traffic respectively. Vigor2860 Series User’s Guide...
  • Page 190 4. Port Scan attack 12. Tear drop attack 5. IP options 13. Ping of Death attack 6. Land attack 14. ICMP fragment 7. Smurf attack 15. Unassigned Numbers 8. Trace route Below shows the menu items for Firewall. Vigor2860 Series User’s Guide...

  • Page 191: General Setup

    Check Enable to activate the Call Filter function. Assign a start filter set for the Call Filter. Data Filter Check Enable to activate the Data Filter function. Assign a start filter set for the Data Filter. Vigor2860 Series User’s Guide...
  • Page 192 IPv4 - To prevent remote client accessing into the PCs on LAN, check the box to make the incoming packets via IPv4 being blocked by such router. It is effective only for the packets routed but not for packets translated by NAT. Vigor2860 Series User’s Guide...
  • Page 193 Quality of Service Choose one of the QoS rules to be applied as firewall rule. For detailed information of setting QoS, please refer to the related section later. Load-Balance Policy Choose the WAN interface for applying Load-Balance Policy. Vigor2860 Series User’s Guide...
  • Page 194 Log box. It will be sent to Syslog server. Please refer to section Syslog/Mail Alert for more detailed information. DNS Filter Select one of the DNS Filter profile settings (created in CSM>>DNS Filter) for applying with this router. Please set Vigor2860 Series User’s Guide...
  • Page 195 However, if the network is not stable, small value will be proper. Session timeout – Setting timeout for sessions can make the best utilization of network resources. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 196: Filter Setup

    Set the link to the next filter set to be executed after the current filter run. Do not make a loop with many filter sets. To edit Filter Rule, click the Filter Rule index button to enter the Filter Rule setup page. Vigor2860 Series User’s Guide...
  • Page 197 ON schedule profiles are applied. Direction Set the direction of packet flow. It is for Data Filter only. For the Call Filter, this setting is not available since Call Filter is only applied to outgoing traffic. Vigor2860 Series User’s Guide...
  • Page 198 From the IP Group drop down list, choose the one that you want to apply. Or use the IP Object drop down list to choose the object that you want. Service Type Click Edit to access into the following dialog to choose a suitable service type. Vigor2860 Series User’s Guide...
  • Page 199 Filter Specifies the action to be taken when packets match the rule. Block Immediately - Packets matching the rule will be dropped immediately. Pass Immediately - Packets matching the rule will be Vigor2860 Series User’s Guide...
  • Page 200 [Create New] from the drop down list in this page to create a new profile. All the hosts in LAN must follow the standard configured in the APP Enforcement profile selected here. For detailed information, refer to the Vigor2860 Series User’s Guide...
  • Page 201 I. If you do not choose any codepage, no decoding job of URL will be processed. Please use the drop-down list to choose a codepage. If you do not have any idea of choosing suitable codepage, Vigor2860 Series User’s Guide...
  • Page 202 TCP protocol only; session timeout is configured for the data flow which matched with the firewall rule. DrayTek Banner – Please uncheck this box and the following screen will not be shown for the unreachable web page. The default setting is Enabled.
  • Page 203 Vigor2860 Series User’s Guide...

  • Page 204: Dos Defense

    Check the box to activate the UDP flood defense function. Once detecting the Threshold of the UDP packets from the Internet has exceeded the defined value, the Vigor router will start to randomly discard the subsequent UDP packets for a period defined in Timeout. Vigor2860 Series User’s Guide...
  • Page 205 The Vigor router will drop any packets having SYN flag and more fragment bit set. Block Fraggle Attack Check the box to activate the Block fraggle Attack function. Any broadcast UDP packets received from the Internet is blocked. Vigor2860 Series User’s Guide...
  • Page 206 All the warning messages related to DoS Defense will be sent to user and user can review it through Syslog daemon. Look for the keyword DoS in the message, followed by a name to indicate what kind of attacks is detected. Vigor2860 Series User’s Guide...
  • Page 207 Vigor2860 Series User’s Guide...

  • Page 208: User Management

    Note: Filter rules configured under Firewall usually are applied to the host (the one that the router installed) only. With user management, the rules can be applied to every user connected to the router with customized profiles. Vigor2860 Series User’s Guide...

  • Page 209: General Setup

    (the size no mare than 524 × 352 pixel) to have an image of enterprise or have the effect of advertisement. Login Page Greeting - Such link allows you to access into Vigor2860 Series User’s Guide...
  • Page 210 Landing Page Type the information to be displayed on the first web page when the LAN user accessing into Internet via such router. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 211: User Profile

    To set the user profile, please click any index number link to open the following page. Notice that profile 1 (admin) and profile 2 (Dial-In User) are factory default settings. Profile 2 is reserved for future use. Vigor2860 Series User’s Guide...
  • Page 212 Firewall can be adopted for such user profile. Create New Policy – If you choose such item, the following page will be popped up for you to define another filter rule as a new policy. Vigor2860 Series User’s Guide...
  • Page 213 If succeed, a Welcome Message (configured in User Management >> General Setup) will be displayed. After authentication, the destination URL (if requested by the user) will be guided Vigor2860 Series User’s Guide...
  • Page 214 Next, the user can access Internet through any browser on Windows. Note that Alert Tool can be downloaded from DrayTek web site. Telnet – If it is selected, the user can use Telnet command to perform the authentication job.
  • Page 215 Default Time Quota – Type the value for the time manually. Default Data Quota – Type the value for the data manually. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 216: User Group

    All the available user objects that you have created will be shown in this box. Notice that user object, Admin and Dial-In User are factory settings. User defined profiles will be numbered with 3, 4, 5 and so Vigor2860 Series User’s Guide...

  • Page 217: User Online Status

    Last Login Time Display the login time that such user connects to the router last time. Expired Time Display the expired time of the network connection for the user. Data Quota Display the quota for data transmission. Vigor2860 Series User’s Guide...

  • Page 218: Objects Settings

    IPs in the same department can be defined with an IP object (a range of IP address). You can set up to 192 sets of IP Objects with different conditions. Available settings are explained as follows: Item Description Clear all profiles. Set to Factory Default Vigor2860 Series User’s Guide...
  • Page 219 Select Range Address if this object contains several IPs within a range. Select Subnet Address if this object contains one subnet for IP address. Select Any Address if this object contains any IP address. Select Mac Address if this object contains Mac address. Vigor2860 Series User’s Guide...
  • Page 220 If it is checked, all the IP addresses except the ones listed above will be applied later while it is chosen. After finishing all the settings here, please click OK to save the configuration. Below is an example of IP objects settings. Vigor2860 Series User’s Guide...

  • Page 221: Ip Group

    Display the name of the group profile. To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Vigor2860 Series User’s Guide...

  • Page 222: Ipv6 Object

    You can set up to 64 sets of IPv6 Objects with different conditions. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Name Display the name of the object profile. Vigor2860 Series User’s Guide...
  • Page 223 Prefix Length Type the number (e.g., 64) for the prefix length of IPv6 address. Invert Selection If it is checked, all the IPv6 addresses except the ones listed above will be applied later while it is chosen. Vigor2860 Series User’s Guide...

  • Page 224: Ipv6 Group

    Display the name of the group profile. To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Vigor2860 Series User’s Guide...

  • Page 225: Service Type Object

    You can set up to 96 sets of Service Type Objects with different conditions. Available settings are explained as follows: Item Description Clear all profiles. Set to Factory Default Index Display the profile number that you can configure. Name Display the name of the object profile. Vigor2860 Series User’s Guide...
  • Page 226 (>) – the port number greater than this value is available. (<) – the port number less than this value is available for this profile. Vigor2860 Series User’s Guide...

  • Page 227: Service Type Group

    This page allows you to bind several service types into one group. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Display the name of the group profile. Name Vigor2860 Series User’s Guide...
  • Page 228 Objects Setting>>Service Type Object will be shown in this box. Selected Service Type Click >> button to add the selected IP objects in this box. Objects After finishing all the settings, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 229: Keyword Object

    Web Content Filter Profile. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Display the profile number that you can configure. Index Name Display the name of the object profile. Vigor2860 Series User’s Guide...
  • Page 230 Contents. When you browse the webpage, the page with gambling information will be watched out and be passed/blocked based on the configuration on Firewall settings. After finishing all the settings, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 231: Keyword Group

    Display the name of the group profile. To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Vigor2860 Series User’s Guide...

  • Page 232: File Extension Object

    Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Name Display the name of the object profile. Vigor2860 Series User’s Guide...
  • Page 233 Type a name for this profile. The maximum length of the name you can set is 7 characters. Type a name for such profile and check all the items of file extension that will be processed in the router. Finally, click OK to save this profile. Vigor2860 Series User’s Guide...

  • Page 234: Sms/Mail Service Object

    Display the service provider which offers SMS service. To set a new profile, please do the steps listed below: 1. Click the SMS Provider tab, and click the number (e.g., #1) under Index column for configuration in details. Vigor2860 Series User’s Guide...
  • Page 235 Note that one credit equals to one SMS text message on the standard route. Sending Interval To avoid quota being exhausted soon, type time interval for sending the SMS. 3. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...
  • Page 236 Display the name of this profile. It cannot be modified. Service Provider Type the website of the service provider. Type the URL string in the box under the filed of Service Provider. You have to contact your SMS provider to obtain the exact URL string. Vigor2860 Series User’s Guide...
  • Page 237 Each item is explained as follows: Item Description Set to Factory Default Clear all of the settings and return to factory default settings. Index Display the profile number that you can configure. Profile Display the name for such mail server profile. Vigor2860 Series User’s Guide...
  • Page 238 Check the box to enable the function. Username – Type a name for authentication. The maximum length of the name you can set is 31 characters. Vigor2860 Series User’s Guide...

  • Page 239: Notification Object

    You can set an object with different monitoring situation. To set a new profile, please do the steps listed below: 1. Open Object Setting>>Notification Object, and click the number (e.g., #1) under Index column for configuration in details. Vigor2860 Series User’s Guide...
  • Page 240 Display the types that will be monitored. Status Display the status for the category. You can check the box you want to be monitored. 3. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 241: Csm Profile

    Please note that this action will not introduce any delay in your Web surfing because each of multiple load balanced database servers can handle millions of requests for categorization. Note: The priority of URL Content Filter is higher than Web Content Filter. Vigor2860 Series User’s Guide...

  • Page 242: App Enforcement Profile

    Click the number under Index column for settings in detail. There are four tabs IM, P2P, Protocol and Others displayed on this page. Each tab will bring out different items with supported versions that you can choose to disallow people using. Vigor2860 Series User’s Guide...
  • Page 243 A button under Enable check box allows you to open a pop up window to specify activity for that APP. The profiles configured here can be applied in the Firewall>>General Setup and Firewall>>Filter Setup pages as the standard for the host(s) to follow. Vigor2860 Series User’s Guide...
  • Page 244 Below shows the items which are categorized under Protocol. The items categorized under P2P ----- Vigor2860 Series User’s Guide...
  • Page 245 The items categorized under OTHERS----- Vigor2860 Series User’s Guide...

  • Page 246: Appe Signature Upgrade

    The APPE Enforcement Profile adopted by Vigor router will be treated as the APPE signature. DrayTek will periodically upgrade versions for all of the APPs supported by Vigor router. However, it might be inconvenient for users to upgrade the APP version one by one. This feature is specially designed to offer a quick method to execute APP version upgrade.
  • Page 247 Upgrade Automatically Scheduled Update - Check the box to make Vigor router upgrading the APPE signature based on the schedule configured here. After finishing all the settings, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 248: Url Content Filter Profile

    Each item is explained as follows: Item Description Set to Factory Default Clear all profiles. Profile Display the number of the profile which allows you to click to set different policy. Name Display the name of the URL Content Filter Profile. Vigor2860 Series User’s Guide...
  • Page 249 For this one, the router will process the packages with the conditions set below for URL first, then Web feature second. Either: Web Feature First –When all the packages Vigor2860 Series User’s Guide...
  • Page 250 If the web pages do not match with the keyword set here, it will be processed with reverse action. Group/Object Selections – The Vigor router provides several frames for users to define keywords and each frame supports multiple keywords. The keyword could be a noun, Vigor2860 Series User’s Guide...
  • Page 251 Upload – Check the box to block the file upload by way of web page. File Extension Profile – Choose one of the profiles that you configured in Object Setting>> File Extension Objects previously for passing or blocking the file downloading. Vigor2860 Series User’s Guide...

  • Page 252: Web Content Filter Profile

    Please refer to section of creating MyVigor account. WCF adopts the mechanism developed and offered by certain service provider (e.g., DrayTek). No matter activating WCF feature or getting a new license for web content filter, you have to click Activate to satisfy your request.
  • Page 253 Setup Test Server It is recommended for you to use the default setting, auto-selected. Click it to open http://myvigor.draytek.com for searching Find more another qualified and suitable server. Test a site to verify Click this link to do the verification.
  • Page 254 If you have and activate another web content filter license, the items will be changed simultaneously. All of the configuration made for web content filter will be deleted automatically. Therefore, please backup your data before you change the web content filter license. Vigor2860 Series User’s Guide...
  • Page 255 Block – Only the log about Block will be recorded in Syslog. All – All the actions (Pass and Block) will be recorded in Syslog. After finishing all the settings, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 256: Dns Filter Profile

    It displays a list of different DNS filter profiles (with specified WCF and UCF). Click the profile link to open the following page. Then, type the name of the profile and specify WCF/UCF based on your requirement. Vigor2860 Series User’s Guide...
  • Page 257 Administration Message Type the words or sentences which will be displayed when a web page is blocked by Vigor router. After finishing all the settings, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 258: Bandwidth Management

    To activate the function of limit session, simply click Enable and set the default session limit. Available settings are explained as follows: Item Description Enable - Click this button to activate the function of limit Session Limit session. Disable - Click this button to close the function of limit Vigor2860 Series User’s Guide...
  • Page 259 All the schedules can be set previously in Application >> Schedule web page and you can use the number that you have set in that web page. After finishing all the settings, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 260: Bandwidth Limit

    Disable - Click this button to close the function of limit bandwidth. Default TX limit - Define the default speed of the upstream for each computer in LAN. Default RX limit - Define the default speed of the Vigor2860 Series User’s Guide...
  • Page 261 Index (1-15) in Schedule Setup - You can type in four sets of time schedule for your request. All the schedules can be set previously in Application >> Schedule web page and you can use the number that you have set in that web page. Vigor2860 Series User’s Guide...

  • Page 262: Quality Of Service

    The core routers in the backbone will do the same checking before executing treatments in order to ensure service-level consistency throughout the whole QoS-enabled network. Vigor2860 Series User’s Guide...
  • Page 263 Index – Display the class number that you can edit. Class Rule Name – Display the name of the class. Rule – Allow to configure detailed settings for the selected Class. Service Type – Allow to configure detailed settings for the Vigor2860 Series User’s Guide...
  • Page 264 There are four queues allowed for QoS control. The first three (Class 1 to Class 3) class rules can be adjusted for your necessity. Yet, the last one is reserved for the packets which are not suitable for the user-defined class rules. Vigor2860 Series User’s Guide...
  • Page 265 UDP application traffic such as streaming video will exhaust lots of bandwidth. Outbound TCP ACK The difference in bandwidth between download and upload Prioritize are great in ADSL2+ environment. For the download speed might be impacted by the uploading TCP ACK, you can Vigor2860 Series User’s Guide...
  • Page 266 Edit link of that one. After you click the Edit link, you will see the following page. Now you can define the name for that Class. In this case, “Test” is used as the name of Class Index #1. Vigor2860 Series User’s Guide...
  • Page 267 Service Type drop down list. Those types are predefined in factory. Simply choose the one that you want for using by current QoS. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...
  • Page 268 Edit to open the rule edit page for modification. To add a new service type, edit or delete an existed service type, please click the Edit link under Service Type field. After you click the Edit link, you will see the following page. Vigor2860 Series User’s Guide...
  • Page 269 After finishing all the settings here, please click OK to save the configuration. By the way, you can set up to 10 service types. If you want to edit/delete an existed service type, please select the radio button of that one and click Edit/Edit for modification. Vigor2860 Series User’s Guide...
  • Page 270 For example, in the following illustration, the VoIP packets in LAN go into Vigor router without any header. However, when they go forward to the Server on ISP through Vigor router, all of the packets are tagged with AF (configured in Bandwidth >>QoS>>Class) automatically. Vigor2860 Series User’s Guide...

  • Page 271: Applications

    Enable the Function and Add a Dynamic DNS Account Assume you have a registered domain name from the DDNS provider, say hostname.dyndns.org, and an account with username: test and password: test. In the DDNS setup menu, check Enable Dynamic DNS Setup. Vigor2860 Series User’s Guide...
  • Page 272 Enable Dynamic Check this box to enable the current account. If you did DNS Account check the box, you will see a check mark appeared on the Active column of the previous web page in step 2). Vigor2860 Series User’s Guide...
  • Page 273 Delete a Dynamic DNS Account In the DDNS setup menu, click the Index number you want to delete and then push Clear All button to delete the account. Vigor2860 Series User’s Guide...

  • Page 274: Lan Dns / Dns Forwarding

    FTP, Mail or Web server inside LAN, you can specify specific private IP address (es) to correspondent servers. Thus, even the remote PC is adopting public DNS as the DNS server, the LAN DNS resolution on Vigor2860 series will respond the specified private IP address.
  • Page 275 In general, one domain name maps with one IP address. If required, you can configure two IP addresses mapping with the same domain name. Add – Click it to open a dialog to type the host’s IP address. Vigor2860 Series User’s Guide...
  • Page 276 Domain Name DNS Server IP Type the IP address of the DNS server you want to use for Address DNS forwarding. Click OK button to save the settings. A new LAN DNS profile has been created. Vigor2860 Series User’s Guide...
  • Page 277 Vigor2860 Series User’s Guide...

  • Page 278: Schedule

    You can set up to 15 schedules. Then you can apply them to your Internet Access or VPN and Remote Access >> LAN-to-LAN settings. To add a schedule: Click any index, say Index No. 1. The detailed settings of the call schedule with index 1 are shown below. Vigor2860 Series User’s Guide...
  • Page 279 Click OK button to save the settings. Example Suppose you want to control the PPPoE Internet access connection to be always on (Force On) from 9:00 to 18:00 for whole week. Other time the Internet access connection should be disconnected (Force Down). Vigor2860 Series User’s Guide...

  • Page 280: Radius/Tacacs

    Both sides must be configured to use the same shared secret. The maximum length of the shared secret you can set is 36 characters. Confirm Shared Secret Re-type the Shared Secret for confirmation. Vigor2860 Series User’s Guide...
  • Page 281 Both sides must be configured to use the same shared secret. Confirm Shared Secret Re-type the Shared Secret for confirmation. After finished the above settings, click OK button to save the settings. Vigor2860 Series User’s Guide...

  • Page 282: Ldap /Active Directory Setup

    LDAP to search or list the directory object, inquire or manage the active directory. This page allows you to enable the function and specify general settings for LDAP server. Vigor2860 Series User’s Guide...
  • Page 283 After finished the above settings, click OK button to save the settings. You can configure eight AD/LDAP profiles. These profiles would be used with User Management for different purposes in management. Click any index number link to open the following page. Vigor2860 Series User’s Guide...
  • Page 284 After finished the above settings, click OK to save and exit this page. A new profile has been created. For detailed information about LDAP application, refer to section 4.6 How to Implement the AD/LDAP Authentication for User Management? Vigor2860 Series User’s Guide...

  • Page 285: Upnp

    Non-privileged users can control some router functions, including removing and adding port mappings. The UPnP function dynamically adds port mappings on behalf of some UPnP-aware applications. When the applications terminate abnormally, these mappings may not be removed. Vigor2860 Series User’s Guide...

  • Page 286: Igmp

    This field displays the ID port for the multicast group. The available range for IGMP starts from 224.0.0.0 to 239.255.255.254. P1 to P6 It indicates the LAN port used for the multicast group. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 287: Wake On Lan

    MAC Address Type any one of the MAC address of the bound PCs. Wake Up Click this button to wake up the selected IP. See the following figure. The result will be shown on the box. Vigor2860 Series User’s Guide...

  • Page 288: Sms / Mail Alert Service

    SMS. Schedule Type the schedule number that the SMS will be sent out. You can click the Schedule(1-15) link to define the schedule. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...
  • Page 289 Schedule Type the schedule number that the notification will be sent out. You can click the Schedule(1-15) link to define the schedule. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 290: Bonjour

    Below shows an example for applying the bonjour feature that Vigor router can be used as the FTP server. 1. Here, we use Firefox and DNSSD to discover the service in such case. Therefore, just ensure the Bonjour client program and DNSSD for Firefox have been installed on the computer. Vigor2860 Series User’s Guide...
  • Page 291 (DNSSD) and see the following results. 3. Open System Maintenance>>Management. Type a name (e.g., Vigor Router) as the Router Name and click OK. 4. Next, open Applications>>Bonjour. Check the service that you want to use via Bonjour. Vigor2860 Series User’s Guide...
  • Page 292 Vigor router (based on Bonjour protocol) is ready to be used as a printer server, FTP server, SSH Server, Telnet Server, and HTTP Server. 6. Now, any page or document can be printed out through Vigor router (installed with a printer). Vigor2860 Series User’s Guide...

  • Page 293: Vpn And Remote Access

    Secure connection between Teleworker, staff on business trip and main office  Exchange data between remote office and main office  POS between chain store and headquarters Below shows the menu items for VPN and Remote Access. Vigor2860 Series User’s Guide...

  • Page 294: Remote Access Control

    PAP Only - elect this option to force the router to Authentication authenticate dial-in users with the PAP protocol. PAP/CHAP/MS-CHAP/MS-CHAPv2 - Selecting this option means the router will attempt to authenticate dial-in users with the CHAP protocol first. If the dial-in user does Vigor2860 Series User’s Guide...
  • Page 295 However, if there is no profile listed, simply click the link of PPTP LDAP Profile to create/add some new LDAP profiles you want. For detailed information about LDAP application, refer to section 4.6 How to Implement the AD/LDAP Authentication for User Management? Vigor2860 Series User’s Guide...

  • Page 296: Ipsec General Setup

    (LAN-to-LAN) which uses dynamic IP address and Method IPsec-related VPN connections such as L2TP over IPsec and IPsec tunnel. There are two methods offered by Vigor router for you to authenticate the incoming data coming from remote dial-in user, Certificate (X.509) and Vigor2860 Series User’s Guide...

  • Page 297: Ipsec Peer Identity

    User Dial-In connection, here you may edit a table of peer certificate for selection. As shown below, the router provides 32 entries of digital certificates for peer dial-in users. Available settings are explained as follows: Item Description Click it to clear all indexes. Set to Factory Default Vigor2860 Series User’s Guide...
  • Page 298 The field includes Country (C), State (ST), Location (L), Organization (O), Organization Unit (OU), Common Name (CN), and Email (E). After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 299: Remote Dial-In User

    Click each index to edit one remote user profile. Each Dial-In Type requires you to fill the different corresponding fields on the right. If the fields gray out, it means you may leave it untouched. The following explanation will guide you to fill all the necessary fields. Vigor2860 Series User’s Guide...
  • Page 300 VPN connection employed the L2TP without IPsec policy can be viewed as one pure L2TP connection.  Nice to Have - Apply the IPsec policy first, if it is applicable during negotiation. Otherwise, the dial-in Vigor2860 Series User’s Guide...
  • Page 301 (X.509) can be set when you select IPsec tunnel either with or without specifying the IP address of the remote node. Pre-Shared Key - Check the box of Pre-Shared Key to invoke this function and type in the required characters (1-63) as the pre-shared key. Vigor2860 Series User’s Guide...

  • Page 302: Lan To Lan

    L2TP by itself or over IPsec) and corresponding security methods, etc. The router supports up to 32 VPN tunnels simultaneously. The following figure shows the summary table. The following figure shows the summary table according to the item (All/Trunk) selected for View. Vigor2860 Series User’s Guide...
  • Page 303 The following shows profiles joined into VPN Load Balance and VPN Backup mechanism. If there is no profile joined yet, this page will be shown as follows: Vigor2860 Series User’s Guide...
  • Page 304 LAN-to-LAN profile includes 4 subgroups. If the fields gray out, it means you may leave it untouched. The following explanations will guide you to fill all the necessary fields. For the web page is too long, we divide the page into several sections for explanation. Vigor2860 Series User’s Guide...
  • Page 305 Pass – Click this button to let multicast packets pass through the router.  Block – This is default setting. Click this button to let multicast packets be blocked by the router. Call Direction - Specify the allowed call direction of this LAN-to-LAN profile. Vigor2860 Series User’s Guide...
  • Page 306 PPTP or L2TP with or without IPsec policy above. The length of the name is limited to 49 characters. Password - This field is applicable when you select PPTP or L2TP with or without IPsec policy above. The length of Vigor2860 Series User’s Guide...
  • Page 307 MD5 or SHA-1 authentication algorithm.  AES without Authentication-Use AES encryption algorithm and not apply any authentication scheme.  AES with Authentication-Use AES encryption algorithm and apply MD5 or SHA-1 authentication algorithm. Vigor2860 Series User’s Guide...
  • Page 308 Index(1-15) - Set the wireless LAN to work at certain time interval only. You may choose up to 4 schedules out of the 15 schedules pre-defined in Applications >> Schedule setup. The default setting of this field is blank and the function will always work. Vigor2860 Series User’s Guide...
  • Page 309 Nice to Have - Apply the IPsec policy first, if it is applicable during negotiation. Otherwise, the dial-in VPN connection becomes one pure L2TP connection.  Must - Specify the IPsec policy to be definitely applied on the L2TP connection. Vigor2860 Series User’s Guide...
  • Page 310 By default, this option is active.  High- Encapsulating Security Payload (ESP) means payload (data) will be encrypted and authenticated. You may select encryption algorithm from Data Encryption Standard (DES), Triple DES (3DES), and Vigor2860 Series User’s Guide...
  • Page 311 More - Add a static route to direct all traffic destined to more Remote Network IP Addresses/ Remote Network Masks through the VPN connection. This is usually used when you find there are several subnets behind the remote VPN router. Vigor2860 Series User’s Guide...
  • Page 312 Then specify an IP address. Click Advanced to configure detailed settings if required. Advanced – Add a static route to direct all traffic destined to more Remote Network IP Addresses/ Remote Network Mask through the VPN connection. This is usually used Vigor2860 Series User’s Guide...
  • Page 313 Virtual IP Mapping – A pop up dialog will appear for you to specify the local IP address and the mapping virtual IP address. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 314: Vpn Trunk Management

    VPN Tunnels disconnected. Users do not need to reconnect with setting TCP/UDP Service Port again. The VPN Load Balance function can keep the transmission for internal data on tunnel stably Vigor2860 Series User’s Guide...
  • Page 315 Type - Display the connection type for that profile, such as IPsec, PPTP, L2TP, L2TP over IPsec (NICE), L2TP over IPsec(MUST) and so on. Member2 - Display the dial-out profile selected from the Member2 drop down list below. Vigor2860 Series User’s Guide...
  • Page 316 IPsec(MUST) and so on. Member2 - Display the dial-out profile selected from the Member2 drop down list below. Advanced – This button is only available when there is one or more profiles created in this page. Vigor2860 Series User’s Guide...
  • Page 317 The corresponding members (LAN-to-LAN profiles) grouped in such new VPN TRUNK – VPN Backup mechanism profile will be locked. The profiles in LAN-to-LAN will be displayed in red. VPN TRUNK – VPN Load Balance mechanism profile will be locked. The Vigor2860 Series User’s Guide...
  • Page 318 Enable radio button; type a name for such profile (e.g., 071023); choose one of the LAN-to-LAN profiles from Member1 drop down list; choose one of the LAN-to-LAN profiles from Member2 drop down list; and click Add at last. Vigor2860 Series User’s Guide...
  • Page 319 Peer GRE IP. See the following graphic for an example. Later, on peer side (as VPN Client): please type 192.168.50.100 in the field of My GRE IP and type IP address of the server (192.168.50.200) in the field of Peer GRE IP. Vigor2860 Series User’s Guide...
  • Page 320 (10Mbps/100Mbps) and switch with fixed value ratio (3:7) for packet transmission. If the transmission rate for packets on both sides of the tunnels is the same, the value of Auto Weighted should be 5.5. According to Speed Ratio allows Vigor2860 Series User’s Guide...
  • Page 321 Port also fits the number here, such binding tunnel table can be established. Other means when the source IP, destination IP, destination port and fragment conditions match with the settings specified here with different TCP Service Port/UDP Service Port/ICMP/IGMP, such binding tunnel table can be established. Vigor2860 Series User’s Guide...
  • Page 322 Type Binding Src IP range (Start and End) and Binding Des IP range (Start and End). Choose TCP/UDP, IGMP/ICMP or Other as Binding Protocol. Detailed Settings for Advanced Backup Available settings are explained as follows: Vigor2860 Series User’s Guide...

  • Page 323: Connection Management

    General Mode - This filed displays the profile configured in LAN-to-LAN (with Index number and VPN Server IP address). The VPN connection built by General Mode does not support VPN backup function. Backup Mode - This filed displays the profile name saved Vigor2860 Series User’s Guide...

  • Page 324: Certificate Management

    Remember to adjust the time of Vigor router before using the certificate so that you can get the correct valid period of certificate. Below shows the menu items for Certificate Management. Available settings are explained as follows: Vigor2860 Series User’s Guide...
  • Page 325 (used for identifying different certificate), subject alternative name type and relational settings for subject name. Then click GENERATE again. Note: Please be noted that “Common Name” must be configured with rotuer’s WAN IP or domain name. Vigor2860 Series User’s Guide...
  • Page 326 Upload Local Certificate It allows users to import the certificate which is generated by Vigor router and signed by CA server. If you have done well in certificate generation, the Status of the certificate will be shown as “OK”. Vigor2860 Series User’s Guide...
  • Page 327 Private Key keys. And the password is needed if the private key is encrypted. REFRESH Click this button to refresh the information listed below. View Click this button to view the detailed settings for certificate request. Vigor2860 Series User’s Guide...

  • Page 328: Trusted Ca Certificate

    CA to save time and provide convenience for general user. Later, such root CA generated by DrayTek server can perform the issuing of local certificate. Note: Root CA can be deleted but not edited. If you want to modify the settings for a Root CA, please delete the one and create another one by clicking Create Root CA.
  • Page 329 Trusted CA Certificate window. For viewing each trusted CA certificate, click View to open the certificate detail information window. If you want to delete a CA certificate, choose the one and click Delete to remove all the certificate information. Vigor2860 Series User’s Guide...

  • Page 330: Certificate Backup

    Backup on the following screen to save them. If you want to set encryption password for these certificates, please type characters in both fields of Encrypt password and Confirm password. Also, you can use Restore to retrieve these two settings to the router whenever you want. Vigor2860 Series User’s Guide...

  • Page 331: Central Vpn Management

    Note: Such menu can manage the CPE connected through WAN only. This page is used to configure settings which will be used by the clients to register to such Vigor router. Click General Settings and IPsec VPN Settings to configure the basic settings for CVM mechanism. Vigor2860 Series User’s Guide...
  • Page 332 Password Type the password for the user. Polling Interval Type the time value (unit is second). The range is from 60 ~ 86400. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...
  • Page 333 Encryption Type Choose one of the selections as the encryption type. Local Subnet Type the IP address and subnet mask of local host. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 334: Cpe Management

    All the CPEs managed by Vigor2860 series can be seen with icons from this page Before using such feature, make sure the CVM port has been enabled and configured properly. This page allows you to manage the CPEs connected to Vigor2860 series.
  • Page 335 Delete – To disconnect the management of any CPE, click the CPE icon you want and click the Delete button. Note: Double-clicking the CPE icon also can pop up the Managed Device Detail window. However, you cannot modify any data on the window. Vigor2860 Series User’s Guide...
  • Page 336 Unmanaged Devices List Any device (CPE) which follows the standard of TR-069 can be configured and can be detected by Vigor2860 series automatically. Only eight remote devices can be managed by Vigor2860 at one time. Therefore, other remote devices detected by Vigor2860 series might not be displayed in such field.
  • Page 337 Click to clear all indexes. Index Display the number of the profile that you can edit. Profile Name Display the name of the maintenance profile. Device Name Display the name of the managed CPE that the maintenance Vigor2860 Series User’s Guide...
  • Page 338 Check it to enable such profile. Device Name The drop down list will display all the CPE devices detected by Vigor2860 series. Choose the one which will be applied with such new created profile. There are three actions for you to choose for such profile.
  • Page 339 Click Select to locate the file you want to save, restore or File/Path upgrade for CPE. Index in Schedule Vigor2860 series will perform the specified action to the selected CPE based on the schedule configured here. Specify one or two schedule profiles (represented by number) here.

  • Page 340: Vpn Management

    An easy and quick method is offered to configure VPN settings for building VPN connection automatically between Vigor2860 series (treated as VPN server) and other Vigor router (treated as CPE device, i.e., VPN client).  Page without CPE connected ...
  • Page 341 Display the dial-in type and the authentication method. Remote IP Display the IP address of the remote CPE and the interface. Virtual Network Display the IP address and subnet mask of Vigor2860 series. Tx Pkts Display the number of the transmitted packets. Tx Rate(Bps) Display the number of the transmitted rate.

  • Page 342: Log & Alert

    Vigor2860 series. Action Type Display the action that Vigor2860 series will perform for the managed CPE. Message Display the information for each event. The Alert page offers brief information to identify the CPE connected to Vigor2860 series. Vigor2860 Series User’s Guide...

  • Page 343: Central Ap Management

    Display the number of wireless clients (stations) connecting to the access point. In which, 0/64 means that up to 64 clients are allowed to connect to the access point. But, now no one connects to the Vigor2860 Series User’s Guide...

  • Page 344: Wlan Profile

    Main SSID Display the SSID configured by such wireless profile. Security Display the security mode selected by such wireless profile. Multi-SSID Enable means multiple SSIDs (more than one) are active. Disable means only SSID1 is active. Vigor2860 Series User’s Guide...
  • Page 345 Simply choose the device you want from Existing Device field. Click >> to move the device to Selected Device field. Then, click OK. The selected WLAN profile will be applied to the selected access point immediately. Later the access point will reboot. Vigor2860 Series User’s Guide...
  • Page 346 2. Click the Edit button to display the following page. Note: The function of Auto Provision is available for the default WLAN profile. 3. After finished the general settings configuration, click Next to open the following page for 2.4G wireless security settings. Vigor2860 Series User’s Guide...
  • Page 347 4. After finished the above web page configuration, click Next to open the following page for 5G wireless security settings. 5. When you finished the above web page configuration, click Finish to exit and return to the first page. The modified WLAN profile will be shown on the web page. Vigor2860 Series User’s Guide...

  • Page 348: Ap Maintenance

    Simply click << or >> to move the device(s) between Select Device and Selected Device areas. Selected Device Display the access points that will be applied by such function after clicking OK. After finishing all the settings here, please click OK to perform the action. Vigor2860 Series User’s Guide...

  • Page 349: Ap Map

    Edit Click it to modify the geographic settings for the selected AP Map profile. Cancel Click it to cancel the configuration in such page. Set to Factory Default Click the link to clear current page configuration. Vigor2860 Series User’s Guide...
  • Page 350 PNG are supported) for floor plan. Cancel Click it to cancel the configuration. Next Click it to go to the next configuration page. Click Next. The configuration page with floor plan will be shown as follows. Vigor2860 Series User’s Guide...
  • Page 351 Choose the signal strength (e.g., 30% in this case) from User Define drop down list. Click Apply. Adjust the AP on the map to find out which place can have the best wireless coverage. At last, click Save. Vigor2860 Series User’s Guide...

  • Page 352: Traffic Graph

    LAN-A or LAN-B, daily or weekly for viewing data transmission chart. Click Refresh to renew the graph at any time. Note: Enabling/Disabling such function will also enable/disable the External Devices function. The horizontal axis represents time; the vertical axis represents the transmission rate (in kbps). Vigor2860 Series User’s Guide...

  • Page 353: Rogue Ap Detection

    Below shows the detected APs by clicking OK. Available settings are explained as follows: Item Description Enable Neighbor AP Detection – The access point(s) registered to Vigor2860 will be used to detect other access points and send Vigor2860 Series User’s Guide...
  • Page 354 AP is friendly and which one is Rogue respectively. Follow the steps below to perform the classification of access points. 1. Click the radio button on one of the access points. In this case, DrayTek-LAN-A is selected. Vigor2860 Series User’s Guide...
  • Page 355 Friendly APs - If you want to change the classification of the friendly AP, simply choose the one and click Delete. Later, the page will refresh and the one will be classified as Unknown. 3. Click OK to save the settings. Vigor2860 Series User’s Guide...
  • Page 356 The following figure shows the APs classified and displayed in different colors. Vigor2860 Series User’s Guide...

  • Page 357: Load Balance

    It is used to limit the allowed number for the station connecting to the access point. The purpose is to prevent lots of stations connecting to access point at the same time and causing traffic Vigor2860 Series User’s Guide...
  • Page 358 After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 359: Function Support List

    Click the Client tab to list the AP management functions that the Access Points support under different firmware versions. Click the Server tab to list the AP management functions that Vigor router supports under different firmware versions. Vigor2860 Series User’s Guide...

  • Page 360: Voip

    Then, both parties’ SIP proxies will forward the sequence of messages to caller to establish the session. If you both register to the same SIP Registrar, then it will be illustrated as below: Vigor2860 Series User’s Guide...
  • Page 361 QoS Assurance assists to assign high priority to voice traffic via Internet. You will always have the required inbound and outbound bandwidth that is prioritized exclusively for Voice traffic over Internet but you just get your data a little slower and it is tolerable for data traffic. Vigor2860 Series User’s Guide...

  • Page 362: Dialplan

    Note: If the incoming or outgoing calls do not match any entry on the phonebook, the router will try to make the call "being protected". But, if the call ends up "unprotected"(e.g. peer side does not support ZRTP+SRTP), the router will not play out a warning message. Vigor2860 Series User’s Guide...
  • Page 363 “speed-dial” Phone Number. There are total 60 index entries in the phonebook for you to store all your friends and family members’ SIP addresses. Loop through and Backup Phone Number will be displayed if you are using Vigor2860 series for setting the phone book.
  • Page 364 Note: If the incoming or outgoing calls do not match any entry on the phonebook, the router will try to make the call "being protected". But, if the call ends up "unprotected"(e.g. peer side does not support ZRTP+SRTP), the router will not play out a warning message. Vigor2860 Series User’s Guide...
  • Page 365 VoIP interface. Take the above picture (Prefix Table Setup web page) as an example, the prefix number of 03 will be replaced by 8863. For example: dial number of “031111111” will be changed to “88631111111” and sent Vigor2860 Series User’s Guide...
  • Page 366 After finishing all the settings here, please click OK to save the configuration. Call barring is used to block phone calls coming from the one that is not welcomed. Click any index number to display the dial plan setup page. Vigor2860 Series User’s Guide...
  • Page 367 Unknown Domain or Block IP Address. Simply click the relational links to open the web page. For Block Anonymous – this function can block the incoming calls without caller ID on the interface (Phone port) specified in the following window. Such control also can be done based on preconfigured schedules. Vigor2860 Series User’s Guide...
  • Page 368 SIP accounts. Such control also can be done based on preconfigured schedules. For Block IP Address – this function can block incoming calls (through Phone port) coming from IP address. Such control also can be done based on preconfigured schedules. Vigor2860 Series User’s Guide...
  • Page 369 Dial the number typed in this field to forward all the incoming calls to the specified place while the phone is busy. Call Forward [No Dial the number typed in this field to forward all the incoming calls to the specified place while there is no Vigor2860 Series User’s Guide...
  • Page 370 PSTN number for dialing without passing through Internet. Check the Enable box to make the PSTN number available for dial whenever you need and type the number in the field of phone number for PSTN relay. Vigor2860 Series User’s Guide...

  • Page 371: Sip Accounts

    As Vigor VoIP Router is turned on, it will first register with Registrar using AuthorizationUser@Domain/Realm. After that, your call will be bypassed by SIP Proxy to the destination using AccountName@Domain/Realm as identity. Note: Selection items for Ring Port will differ according to the router you have. Vigor2860 Series User’s Guide...
  • Page 372 SIP server successfully. – means the account is failed to register on SIP server. STUN Server Type in the IP address or domain of the STUN server. Type in the gateway IP address. External IP Vigor2860 Series User’s Guide...
  • Page 373 Some SIP server allows user to use VoIP function without registering. For such server, please check the box of Call without Registration. Choosing Auto is recommended. The system will select a proper way for your VoIP call. Vigor2860 Series User’s Guide...
  • Page 374 Manual – Choose this option if you want to specify an external IP address as the NAT transversal support. Nortel – If the soft-switch that you use supports Nortel solution, you can choose this option. Vigor2860 Series User’s Guide...
  • Page 375 Single Codec – If the box is checked, only the selected Codec will be applied. Packet Size The amount of data contained in a single packet. The default value is 20 ms, which means the data packet will contain 20 ms voice information. Vigor2860 Series User’s Guide...

  • Page 376: Phone Settings

    Gain - Display the volume gain settings for Mic/Speaker that configured in the advanced settings page of Phone Index. Default SIP Account – “draytel_1” is the default SIP account. You can click the number below the Index field to Vigor2860 Series User’s Guide...
  • Page 377 The default value is 15000. RTP TOS – It decides the level of VoIP package. Use the drop down list to choose any one of them. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...
  • Page 378 Check this box to hide the caller ID on the display panel of the phone set. Call Waiting Check this box to invoke this function. A notice sound will appear to tell the user new phone call is waiting for your Vigor2860 Series User’s Guide...
  • Page 379 Busy tone and Congestion tone will be shown automatically on the page. If you cannot find out a suitable one, please choose User Defined and fill out the corresponding values for dial tone, ringing tone, busy tone, Vigor2860 Series User’s Guide...
  • Page 380 InBand - Choose this one then the Vigor will send the DTMF tone as audio directly when you press the keypad on the phone.  OutBand - Choose this one then the Vigor will capture the keypad number you pressed and transform Vigor2860 Series User’s Guide...

  • Page 381: Status

    From this page, you can find codec, connection and other important call status for each port. Available settings are explained as follows: Item Description Refresh Seconds Specify the interval of refresh time to obtain the latest VoIP calling information. The information will update Vigor2860 Series User’s Guide...
  • Page 382 Accumulation for the times of in call. Out Calls Accumulation for the times of out call. Miss Calls Accumulation for the times of missing call. Speaker Gain The volume of present call. Display logs of VoIP calls. Vigor2860 Series User’s Guide...

  • Page 383: Wireless Lan(2.4Ghz/5Ghz)

    Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs will share the same Internet connection via Vigor wireless router. The General Settings will set up the information of this wireless network, including its SSID as identification, located channel etc. Vigor2860 Series User’s Guide...
  • Page 384 136 and 140 will be restricted in the USA. In some countries, there are restrictions on DFS channels as well. We will implement country code to restrict uncertified channels. Below shows the menu items for Wireless LAN (2.4Ghz) and Wireless LAN (5GHz). Vigor2860 Series User’s Guide...
  • Page 385 The following sections explain setting for wireless LAN. Here we take menu items under Wireless LAN (2.4 GHz) as the examples. The differences for the settings between 2.4 GHz and 5 GHz will be pointed out. Vigor2860 Series User’s Guide...

  • Page 386: General Setup

    Check the box to enable wireless function. Mode For 2.4GHz: At present, the router can connect to 11g Only, 11n Only (2.4 GHz), Mixed (11b+11g), Mixed (11g+11n), and Mixed (11b+11g+11n) stations simultaneously. Simply choose Mixed (11b+11g+11n) mode. Vigor2860 Series User’s Guide...
  • Page 387 You may choose up to 4 schedules out of the 15 schedules pre-defined in Applications >> Schedule setup. The default setting of this field is blank and the function will always work. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 388: Security

    By clicking the Security Settings, a new web page will appear so that you could configure the settings of WPA and WEP. Available settings are explained as follows: Item Description Mode There are several modes provided for you to choose. Vigor2860 Series User’s Guide...
  • Page 389 0x, such as "0x321253abcde..."). 64-Bit - For 64 bits WEP key, either 5 ASCII characters, such as 12345 (or 10 hexadecimal digitals leading by 0x, such as 0x4142434445.) 128-Bit - For 128 bits WEP key, either 13 ASCII Vigor2860 Series User’s Guide...

  • Page 390: Access Control

    Select to enable the MAC Address filter for wireless LAN Filter identified with SSID 1 to 4 respectively. All the clients (expressed by MAC addresses) listed in the box can be grouped under different wireless LAN. For example, they Vigor2860 Series User’s Guide...

  • Page 391: Wps

    He/she only needs to press a button on wireless client, and WPS will connect for client and router automatically. There are two methods to do network connection through WPS between AP and Stations: pressing the Start PBC button or using PIN Code. Vigor2860 Series User’s Guide...
  • Page 392 For WPS is supported in WPA-PSK or WPA2-PSK mode, if you do not choose such mode in Wireless LAN>>Security, you will see the following message box. Please click OK and go back Wireless LAN>>Security to choose WPA-PSK or WPA2-PSK mode and access WPS again. Vigor2860 Series User’s Guide...
  • Page 393 Start PIN button. The WPS LED on the router will blink fast when WPS is in progress. It will return to normal condition after two minutes. (You need to setup WPS within two minutes) Vigor2860 Series User’s Guide...

  • Page 394: Wds

    Internet through the router /AP with Repeater mode configured.  The packets received from one Vigor router can be repeated to another AP (remotely) through WDS links.  Only Repeater mode can do WDS-to-WDS packet forwarding. Vigor2860 Series User’s Guide...
  • Page 395 The wireless signal from the root router (AP) can be received and extended by other router (AP), therefore the coverage range of wireless signal can be expanded which is convenient for remote wireless stations which require to access Internet via the Virgor router (AP). Vigor2860 Series User’s Guide...
  • Page 396 When WEP is selected as Security above, Vigor router will use the same WEP key set in Wireless LAN>>Security Settings page. All you have to do is to make sure WEP mode and WEP Vigor2860 Series User’s Guide...
  • Page 397 Click Enable to make this router serve as an access point. Status It allows user to send “hello” message to peers. Yet, it is valid only when the peer also supports this function. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 398: Advanced Setting

    It is to assure the safety of propagation delays and reflections Guard Interval for the sensitive digital data. If you choose auto as guard interval, the AP router will choose short guard interval (increasing the wireless performance) or long guard interval Vigor2860 Series User’s Guide...
  • Page 399 Set the power percentage for transmission signal of access point. The greater the value is, the higher intensity of the signal will be. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 400: Wmm Configuration

    1 to 15. Be aware that CWMax value must be greater than CWMin or equals to CWMin value. Both values will influence the time delay for WMM accessing categories. The difference between AC_VI and AC_VO categories must be smaller; however, the difference Vigor2860 Series User’s Guide...
  • Page 401 “Check” the box means the AP router will not answer any response request for the transmitting packets. It will have better performance with lower reliability. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 402: Station Control

    This page is used to scan the existence of the APs on the wireless LAN. Yet, only the AP which is in the same channel of this router can be found. Please click Scan to discover all the connected APs. Vigor2860 Series User’s Guide...
  • Page 403 AP’s MAC address on the bottom of the page and click Bridge or Repeater. Next, click Add to. Later, the MAC address of the AP will be added to Bridge or Repeater field of WDS settings page. Vigor2860 Series User’s Guide...

  • Page 404: Station List

    WLAN station and click Add to Access Control below. Available settings are explained as follows: Item Description Refresh Click this button to refresh the status of station list. Click this button to add current typed MAC address into Access Control. Vigor2860 Series User’s Guide...

  • Page 405: Ssl Vpn

    Otherwise, choose Self-signed to use the router’s built-in default certificate. The default certificate can be used in SSL VPN server and HTTPS Web Proxy. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 406: Ssl Web Proxy

    Type the address (function variation or IP address) or path of the proxy server. Host IP Address If you type function variation as URL, you have to type corresponding IP address in this filed. Such field must match with URL setting. Vigor2860 Series User’s Guide...
  • Page 407 In addition, users must execute “Connect” manually in SSL Client Portal page. SSL – if you choose such selection, web proxy over SSL will be applied for VPN. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 408: Ssl Application

    Available settings are explained as follows: Item Description Check the box to enable such profile. Enable Application Server Application Name Type a name for such application. The length of the name is limited to 23 characters. Vigor2860 Series User’s Guide...
  • Page 409 If you choose RDP, you have to choose the screen size for such application. SMB Path If you choose SMB Application, you have to specify the path/directory for file sharing. 3. Enter the required information. 4. After finished the above settings, click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 410: User Account

    With SSL VPN, Vigor2860 series let teleworkers have convenient and simple remote access to central site VPN. The teleworkers do not need to install any VPN software manually. From regular web browser, you can establish VPN connection back to your main office even in a guest network or web cafe.
  • Page 411 (e.g., e759bb6f0e94c7ab4fe6). Allowed Dial-In Type PPTP - Allow the remote dial-in user to make a PPTP VPN connection through the Internet. You should set the User Name and Password of remote dial-in user below. Vigor2860 Series User’s Guide...
  • Page 412 The only exception is Digital Signature (X.509) can be set when you select IPSec tunnel either with or without specify the IP address of the remote node. Pre-Shared Key - Check the box of Pre-Shared Key to invoke Vigor2860 Series User’s Guide...
  • Page 413 Local ID - Specify a local ID to be used for Dial-in setting in the LAN-to-LAN Profile setup. This item is optional and can be used only in IKE aggressive mode. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 414: User Group

    Set to Factory Default Index Display the number of the client which connecting to FTP server. Name Display the name of the group profile. Click any index number link to open the following page for detailed configuration. Vigor2860 Series User’s Guide...
  • Page 415 If the above three options are enabled, the system will do the authentication based on them in sequence. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 416: Online User Status

    If you have finished the configuration of SSL Web Proxy (server), users can find out corresponding settings when they access into DrayTek SSL VPN portal interface. Next, users can open SSL VPN>> Online Status to view logging status of SSL VPN.

  • Page 417: Usb Application

    FAT32. It is recommended for you to use FAT32 for viewing the filename completely (FAT16 cannot support long filename). Available settings are explained as follows: Item Description General Settings Simultaneous FTP Connections - This field is used to Vigor2860 Series User’s Guide...
  • Page 418 ; : " < > * + = \ | ?. Workgroup Name – Type a name for the workgroup. Host Name – Type the host name for the router. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 419: Usb User Management

    USB storage disk. The length of the name is limited to 11 characters. Note: “Admin” could not be typed here as username, for the word is specified for accessing into web pages of Vigor Vigor2860 Series User’s Guide...
  • Page 420 Directory –Check the items (List, Create and Remove) for such profile. Before you click OK, you have to insert a USB storage disk into the USB interface of the Vigor router. Otherwise, you cannot save the configuration. Vigor2860 Series User’s Guide...

  • Page 421: File Explorer

    Click this icon to add a new folder. Create Current Path Display current folder. Upload Click this button to upload the selected file to the USB storage disk. The uploaded file in the USB diskette can be shared for other user through FTP. Vigor2860 Series User’s Guide...

  • Page 422: Usb Device Status

    Username It displays the username that user uses to login to the FTP server. When you insert USB storage disk into the Vigor router, the system will start to find out such device within several seconds. Vigor2860 Series User’s Guide...

  • Page 423: Temperature Sensor

    A USB Thermometer is now available. It complements your installed DrayTek router installations which will help you monitor the server or data communications room environment and notify you if the server room or data communications room is overheating. During summer in particular, it is important to ensure that your server or data communications equipment are not overheating due to cooling system failures.
  • Page 424 Below shows an example of temperature graph: Vigor2860 Series User’s Guide...

  • Page 425: Modem Support List

    Such page provides the information about the brand name and model name of the USB modems which are supported by Vigor router. Vigor2860 Series User’s Guide...

  • Page 426: System Maintenance

    Below shows the menu items for System Maintenance. The System Status provides basic network settings of Vigor router. It includes LAN and WAN interface information. Also, you could get the current running firmware version or firmware related information from this presentation. Vigor2860 Series User’s Guide...
  • Page 427 Scope - Display the scope of IPv6 address. For example, IPv6 Link Local could only be used for direct IPv6 link. It can't be used for IPv6 internet. Internet Access Mode – Display the connection mode chosen for accessing into Internet. Vigor2860 Series User’s Guide...

  • Page 428: 414

    Last Inform Response Time – Display the time that VigorACS server made a response while receiving Inform message from CPE last time. Such information is useful for Auto Configuration Server. CPE Client Vigor2860 Series User’s Guide...
  • Page 429 Gateway. Please type a number as the maximum period. A value of “-1” indicates that no maximum period is specified. After finishing all the settings here, please click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 430: Administrator Password

    This feature allows other user in LAN who can access into the web user interface with the same privilege of the administrator. Local User – Check the box to enable the local user configuration. Local User List – It displays the username of the local user. Vigor2860 Series User’s Guide...
  • Page 431 LDAP Profile Setup. LDAP Profile Setup – It allows you to create a new LDAP profile. When you click OK, the login window will appear. Please use the new password to access into the web user interface again. Vigor2860 Series User’s Guide...

  • Page 432: User Password

    Below shows an example for accessing into User Operation with User Password. 1. Open System Maintenance>>User Password. 2. Check the box of Enable User Mode for simple web configuration to enable user mode operation. Type a new password in the field of New Password and click OK. Vigor2860 Series User’s Guide...
  • Page 433 4. Log out Vigor router web user interface by clicking the Logout button. 5. The following window will be open to ask for username and password. Type the new user password in the filed of Password and click Login. Vigor2860 Series User’s Guide...

  • Page 434: Login

    At that moment, the background of the web page is blank and no heading will be displayed on the Login window. This page allows you to specify login URL and the heading on the Login window if you have such requirement. Vigor2860 Series User’s Guide...
  • Page 435 Enable Check this box to enable the login customization function. Login Page Title Type a brief description (e.g., Welcome to DrayTek) which will be shown on the heading of the login dialog. Welcome Message and Type words or sentences here. It will be displayed for bulletin message.

  • Page 436: Configuration Backup

    Protect with password- For the sake of security, the configuration file for the router can be encrypted.  Password – Type several characters as the password for encrypting the configuration file.  Confirm Password – Type the password again for Vigor2860 Series User’s Guide...
  • Page 437 Supported Model Web configuration file from other Vigor router can be List applied to Vigor2860 series. At present, the configuration file of Vigor2820/Vigor2830/Vigor2850 is accepted for Vigor 2860. This field displays model name(s) and firmware which web configuration file saved can be used by such router.
  • Page 438 Click Choose File button to choose the correct configuration file for uploading to the router. Click Restore button and wait for few seconds, the following picture will tell you that the restoration procedure is successful. Vigor2860 Series User’s Guide...

  • Page 439: Syslog/Mail Alert

    Mail Syslog – Check the box to recode the mail event on Syslog. Enable syslog message - Check the box listed on this web page to send the corresponding message of firewall, VPN, User Access, Call, WAN, Router/DSL information to Syslog. Vigor2860 Series User’s Guide...
  • Page 440 For viewing the Syslog, please do the following: Just set your monitor PC’s IP address in the field of Server IP Address Install the Router Tools in the Utility within provided CD. After installation, click on the Router Tools>>Syslog from program menu. Vigor2860 Series User’s Guide...
  • Page 441 From the Syslog screen, select the router you want to monitor. Be reminded that in Network Information, select the network adapter used to connect to the router. Otherwise, you won’t succeed in retrieving information from the router. Vigor2860 Series User’s Guide...

  • Page 442: Time And Date

    Check the box to enable the daylight saving. Such feature is available for certain area. Advanced – Click it to open a pop up dialog. Use the default time setting or set user defined time for your requirement. Vigor2860 Series User’s Guide...

  • Page 443: Snmp

    DES) and authentication method (support MD5 and SHA) for the management needs. Available settings are explained as follows: Item Description Enable SNMP Agent Check it to enable this function. Get Community Set the name for getting community by typing a proper Vigor2860 Series User’s Guide...
  • Page 444 Privacy Algorithm Choose one of the methods listed below as the privacy algorithm. Privacy Password Type a password for privacy. The maximum length of the text is limited to 23 characters. Click OK to save these settings. Vigor2860 Series User’s Guide...

  • Page 445: Management

    Available settings are explained as follows: Item Description Router Name Type in the router name provided by ISP. Default: Disable If it is enabled, the function of auto-logout for web user Auto-Logout interface will be disabled. Vigor2860 Series User’s Guide...
  • Page 446 Client, you may still need to enable SSL 3.0 to make sure you can connect, however, it's not recommended. CVM Access Control CVM Port – Check the box to enable such port setting. CVM SSL Port – Check the box to enable such port setting. Vigor2860 Series User’s Guide...
  • Page 447 A maximum of three IPs/subnet masks is allowed. IPv6 Address /Prefix Length- Indicate the IP address(es) allowed to login to the router. After finished the above settings, click OK to save the configuration. Vigor2860 Series User’s Guide...

  • Page 448: Reboot System

    Note: When the system pops up Reboot System web page after you configure web settings, please click Reboot Now to reboot your router for ensuring normal operation and preventing unexpected errors of the router in the future. Vigor2860 Series User’s Guide...

  • Page 449: Firmware Upgrade

    Download the newest firmware from DrayTek's web site or FTP site. The DrayTek web site is www.DrayTek.com (or local DrayTek's web site) and FTP site is ftp.DrayTek.com. Click System Maintenance>> Firmware Upgrade to launch the Firmware Upgrade Utility. Choose the right firmware by clicking Select. Then, click Upgrade. The system will upgrade the firmware of the router automatically.

  • Page 450: Modem Code Upgrade

    The Activate link brings you accessing into www.vigorpro.com to finish the activation of the account and the router. Authentication Message As for authentication information of web filter, the process of authenticating will be displayed on this field for your reference. Vigor2860 Series User’s Guide...

  • Page 451: Diagnostics

    Below shows the successful activation of Web Content Filter: Diagnostic Tools provide a useful way to view or diagnose the status of your Vigor router. Below shows the menu items for Diagnostics. Vigor2860 Series User’s Guide...

  • Page 452: Dial-Out Triggering

    (e.g., PPPoE) is triggered by a package sending from the source IP address. Available settings are explained as follows: Item Description Decoded Format It shows the source IP address (local), destination IP (remote) address, the protocol and length of the package. Refresh Click it to reload the page. Vigor2860 Series User’s Guide...

  • Page 453: Routing Table

    Click Diagnostics and click Routing Table to open the web page. Available settings are explained as follows: Item Description Refresh Click it to reload the page. Vigor2860 Series User’s Guide...

  • Page 454: Arp Cache Table

    IPv6 address. This information is helpful in diagnosing network problems, such as IP address conflicts, etc. Click Diagnostics and click IPv6 Neighbour Table to open the web page. Available settings are explained as follows: Item Description Click it to reload the page. Refresh Vigor2860 Series User’s Guide...

  • Page 455: Dhcp Table

    It displays the MAC address for the specified PC that DHCP assigned IP address for it. Leased Time It displays the leased time of the specified PC. HOST ID It displays the host ID name of the specified PC. Vigor2860 Series User’s Guide...

  • Page 456: Nat Sessions Table

    It indicates the temporary port of the router used for NAT. Peer IP:Port It indicates the destination IP address and port of remote host. Interface It displays the representing number for different interface. Refresh Click it to reload the page. Vigor2860 Series User’s Guide...

  • Page 457: Dns Cache Table

    Click OK to enable such function. It means when the TTL value of each DNS query reaches the threshold of the value specified here, the corresponding record will be deleted from router’s Cache automatically. Vigor2860 Series User’s Guide...

  • Page 458: Ping Diagnosis

    Use the drop down list to choose the destination that you want to ping. IP Address Type the IP address of the Host/IP that you want to ping. Ping IPv6 Address Type the IPv6 address that you want to ping. Vigor2860 Series User’s Guide...

  • Page 459: Data Flow Monitor

    Data Flow Monitor. If not, a notification dialog box will appear to remind you enabling it. Click Diagnostics and click Data Flow Monitor to open the web page. You can click IP Address, TX rate, RX rate or Session link for arranging the data display. Vigor2860 Series User’s Guide...
  • Page 460 Peak means the highest peak value detected by the router in data transmission. Speed means line speed specified in WAN>>General Setup. If you do not specify any rate at that page, here will display Auto for instead. Vigor2860 Series User’s Guide...

  • Page 461: Traffic Graph

    WAN1/WAN2/WAN3/WAN4 Bandwidth chart, the numbers displayed on vertical axis represent the numbers of the transmitted and received packets in the past. For Sessions chart, the numbers displayed on vertical axis represent the numbers of the NAT sessions during the past. Vigor2860 Series User’s Guide...

  • Page 462: Trace Route

    Run. The result of route trace will be shown on the screen. Available settings are explained as follows: Item Description IPv4 / IPv6 Click one of them to display corresponding information for Trace through Use the drop down list to choose the interface that you want Vigor2860 Series User’s Guide...

  • Page 463: Syslog Explorer

    Click this link to save the data as a file. Refresh Click this link to refresh this page manually. Clear Click this link to clear information on this page. Display Mode There are two modes for you to choose. Vigor2860 Series User’s Guide...

  • Page 464: Tspc Status

    Display the information for each event. IPv6 TSPC status web page could help you to diagnose the connection status of TSPC. If TSPC has configured properly, the router will display the following page when the user connects to tunnel broker successfully. Vigor2860 Series User’s Guide...

  • Page 465: Dsl Status

    Available settings are explained as follows: Item Description Refresh Click this link to refresh this page manually. DSL Status web page could help you to diagnose the connection status for DSL. Vigor2860 Series User’s Guide...

  • Page 466: External Devices

    You can change the device name if required or remove the information for off-line device whenever you want. When you finished the configuration, click OK to save it. Note: Only DrayTek products can be detected by this function. Vigor2860 Series User’s Guide...
  • Page 467 This page is left blank. Vigor2860 Series User’s Guide...

  • Page 468: Tutorials And Applications

    TSPC, AICCU, DHCPv6 Client and Static IPv6. Access into the web user interface of Viogr2860. Open WAN>> Internet Access. Choose one of the WAN interfaces as the one supporting IPv6 service. Then, click the IPv6 button of the selected WAN. Vigor2860 Series User’s Guide...
  • Page 469 Different connection types will bring out different configuration page. Refer to the following:  PPP – Dual Stack application, IPv4 and IPv6 services can be utilized at the same time Choose PPP and type the information for PPPoE of IPv4. Vigor2860 Series User’s Guide...
  • Page 470 Access into the setting page for IPv6 service, it is not necessary for you to configure anything. Click OK and open Online Status. If the connection is successful, you will get the IP address for IPv4 and IPv6 at the same time. Vigor2860 Series User’s Guide...
  • Page 471 Vigor2860 Series User’s Guide...
  • Page 472 (In the following figure, the TSPC information is obtained from http://gogo6.com/ after applied for the service.) Click OK and open Online Status. If the connection is successful, the physical connection will be shown as follows: Vigor2860 Series User’s Guide...
  • Page 473 (In the following figure, the AICCU information is obtained from https://www.sixxs.net/main/ after applied for the service.) Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2860 Series User’s Guide...
  • Page 474  DHCPv6 Client Choose DHCPv6 Client. Click one of the identity associations and type the IAID number. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2860 Series User’s Guide...
  • Page 475  Static IPv6 Choose Static IPv6. Type IPv6 address, Prefix Length and Gateway Address. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2860 Series User’s Guide...
  • Page 476 Choose 6in4 Static Tunnel. Type remote endpoint IPv4 address, 6in4 IPv6 Address, LAN Routed Prefix and Tunnel TTL. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2860 Series User’s Guide...
  • Page 477  Choose 6rd. Type IPv4 Border Relay, IPv4 Mask Length, 6rd Prefix and 6rd Prefix Length. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2860 Series User’s Guide...
  • Page 478 In the field of DHCPv6 Server, when DHCPv6 service is enabled, you can assign available IPv6 address for the client manually. Note: When both mechanisms are enabled, the client can determine which mechanism to be used (e.g., the default mechanism for Windows7 is RADVD). Vigor2860 Series User’s Guide...
  • Page 479 IPv4 IP and IPv6 IP services. Its IPv6 address is seen with a format of 2001:200:dff:fff1:216:3eff:feb1:44d7. After getting the above message, it means the IPv6 service has been activated successfully. Vigor2860 Series User’s Guide...
  • Page 480 If not, only a steady turtle will be seen. If you can see a turtle dancing on the screen, that means IPv6 service is ready for you to access and utilize. Vigor2860 Series User’s Guide...

  • Page 481: How Can I Get The Files From Usb Storage Device Connecting To Vigor Router

    Plug the USB device to the USB port on the router. Make sure Disk Connected appears on the Connection Status as the figure shown below: Then, please open USB Application >> USB General Settings to enable Samba service. Vigor2860 Series User’s Guide...
  • Page 482 "user1" and assign authorities “Read”, “Write” and “List” to it. Click OK to save the configuration. Make sure the FTP service is running properly. Please open a browser and type ftp://192.168.1.1. Use the account "user1" to login. Vigor2860 Series User’s Guide...
  • Page 483 Now, users in LAN of Vigor2860 can access into the USB storage device by typing ftp://192.168.1.1 on any browser. They can add or remove files / directories, depending on the Access Rule for FTP account settings in USB Application >>USB User Management. Vigor2860 Series User’s Guide...

  • Page 484: How To Build A Lan-To-Lan Vpn Between Remote Office And Headquarter Via Ipsec Tunnel

    (in this case, type VPN Server), and check the box of Enable This Profile. For Vigor router will be set as a server, the call direction shall be set as Dial-in and set 0 as Idle Timeout. Vigor2860 Series User’s Guide...
  • Page 485 (e.g., 218.242.130.19 in this case). Press the IKE Pre-Shared Key button to set the PSK; and select Medium (AH) or High (ESP) as the security method. Continue to navigate to the TCP/IP Network Settings for setting the LAN IP for remote side. Click OK to save the settings. Vigor2860 Series User’s Guide...
  • Page 486 (in this case, type VPN Client), and check the box of Enable This Profile. For such Vigor router will be set as a client, the call direction shall be set as Dial-out. Check the box of Always on for a permanent VPN connection. Vigor2860 Series User’s Guide...
  • Page 487 IKE Pre-Shared Key button to set the PSK; and select Medium (AH) or High (ESP) as the security method. Continue to navigate to the TCP/IP Network Settings for setting the LAN IP for the remote side. Click OK to save the settings. Vigor2860 Series User’s Guide...

  • Page 488: How To Optimize The Bandwidth Through Qos Technology

    Internet connection line? The advanced bandwidth management technology-QoS (Quality of Service) helps you to well allocate the bandwidth upon your demand of Voice, Video, or Data transferring. Let's see how to get the optimum bandwidth per your request by using DrayTek Vigor router as below.
  • Page 489 In the following page, type a name (e.g., VoIP) for such class and click Add. Check the box of ACT. Click Edit to specify the local address. Vigor2860 Series User’s Guide...
  • Page 490 IP address in relational fields. Click OK to save the settings and exit the window. Click OK again to save the settings. The class rule for VoIP has been set. Click OK to return to previous page. Vigor2860 Series User’s Guide...
  • Page 491 Do the same steps to add class rules for IPTV and Data/Email with IP addresses as shown below. Assuming you get 2MB/512Kb Internet line. You can click the Setup link of WAN1 to set up the bandwidth for different groups among VoIP, IPTV and Data/Email. Vigor2860 Series User’s Guide...
  • Page 492 10. In the Setup page, check the box of Enable the QoS Control. Type 30, 50 and 15 in the boxes for VoIP, IPTV and Data/Email respectively. Check the box of Enable UDP Bandwidth Control. 11. Click OK to save the settings. The class rules for WAN1 are defined as shown below. Vigor2860 Series User’s Guide...

  • Page 493: Qos Setting Example

    HTTPS or V PN to check email and access internal database. Meanwhile, children may chat on Skype in the restroom. Go to Bandwidth Management>>Quality of Service. Click Setup link of WAN(1/2/3). Make sure the QoS Control on the left corner is checked. And select BOTH in Direction. Vigor2860 Series User’s Guide...
  • Page 494 “E-mail” for Class 1. Click OK to save the settings. Click the Setup link for WAN2. The user can set reserved bandwidth (e.g., 25%) for E-mail using protocol POP3 and SMTP. Click OK to save the settings. Vigor2860 Series User’s Guide...
  • Page 495 Return to previous page. Enter the Name of Index Class #2 by clicking Edit link. In this index, the user will set reserved bandwidth for HTTPS. And click OK. Click Setup link for WAN2. Vigor2860 Series User’s Guide...
  • Page 496 Class Name of Index 3. In this index, he will set reserved bandwidth for 1 VPN tunnel. 10. Click Edit for Class 3 to open a new window. In this index, the user will set reserved bandwidth for VPN. Vigor2860 Series User’s Guide...
  • Page 497 11. Click Add to open the following window. Check the ACT box, first. 12. Then click Edit of Local Address to set a worker’s subnet address. Click Edit of Remote Address to set headquarter’s IP address. Leave other fields and click OK. Vigor2860 Series User’s Guide...

  • Page 498: How To Implement The Ldap/Ad Authentication For User Management

    Create LDAP server profiles. Click the Active Directory /LDAP tab to open the profile web page and click any one of the index number link. If we have two groups “RD1” and “SHRD” on LDAP server, we can configure two LDAP server profiles with different Group Distinguished Name. Vigor2860 Series User’s Guide...
  • Page 499 Click OK to save the settings above. Open User Management>>General Setup. Select User-Based as the Mode option. Vigor2860 Series User’s Guide...
  • Page 500 Then open VPN and Remote Access>>PPP General Setup to check the profile(s) that will be authenticated with LDAP server. After above configurations, users belong to either “rd1” or “shrd” group can access Internet after inputting their credentials on LDAP server. Vigor2860 Series User’s Guide...

  • Page 501: How To Use Landing

    Landing Page is a special feature configured under User Management. It can specify the message, content to be seen or specify which website to be accessed into when users try to access into the Internet by passing the authentication. Here, we take Vigor2860 series router as an example.
  • Page 502 Open any browser (e.g., FireFox, Internet Explorer). The logging page will appear and asks for username and password. Please type the correct username and password. Click Login. If the logging is successful, you will see the message of Login Success from the browser you use. Vigor2860 Series User’s Guide...
  • Page 503 Next, enable the Landing Page function. Open User Management >> User Profile and click one of the index number (e.g., index number 3) links. In the following page, check the box of Landing page and click OK to save the settings. Vigor2860 Series User’s Guide...
  • Page 504 Open any browser (e.g., FireFox, Internet Explorer). The logging page will appear and asks for username and password. Please type the correct username and password. Vigor2860 Series User’s Guide...
  • Page 505 Click Login. If the logging is successful, you will be directed into the website of www.draytek.com. Vigor2860 Series User’s Guide...

  • Page 506: How To Send A Notification To Specified Phone Number Via Sms Service In Wan Disconnection

    Choose any index number (e.g., Index 1 in this case) to configure the SMS Provider setting. In the following page, type the username and password and set the quota that the router can send the message out. Vigor2860 Series User’s Guide...
  • Page 507 Choose any index number (e.g., Index 1 in this case) to configure conditions for sending the SMS. In the following page, type the name of the profile and check the Disconnected and Reconnected boxes for WAN to work in concert with the topic of this paper. Vigor2860 Series User’s Guide...
  • Page 508 Click OK to save the settings. Later, if one of the WAN connections fails in your router, the system will send out SMS to the phone number specified. If the router has only one WAN interface, the system will send out SMS to the phone number while reconnecting the WAN interface successfully. Vigor2860 Series User’s Guide...
  • Page 509 URL string of the SMS provider and type the username and password. After clicking OK, the new added SMS provider will be added and will be available for you to specify for sending SMS out. Vigor2860 Series User’s Guide...

  • Page 510: How To Create An Account For Myvigor

    The website of MyVigor (a server located on http://myvigor.draytek.com) provides several useful services (such as Anti-Spam, Web Content Filter, Anti-Intrusion, and etc.) to filtering the web pages for the sake of protecting your system. To access into MyVigor for getting more information, please create an account for MyVigor.
  • Page 511 2. Click the Activate link. A login page for MyVigor web site will pop up automatically. 3. Click the link of Create an account now. 4. Check to confirm that you accept the Agreement and click Accept. Vigor2860 Series User’s Guide...
  • Page 512 5. Type your personal information in this page and then click Continue. 6. Choose proper selection for your computer and click Continue. Vigor2860 Series User’s Guide...
  • Page 513 8. Check to see the confirmation email with the title of Letter from myvigor.draytek.com. 9. Click the Activate my Account link to enable the account that you created. The following screen will be shown to verify the register process is finished. Please click Login. Vigor2860 Series User’s Guide...

  • Page 514: Create An Account Via Myvigor Web Site

    11. Now, click Login. Your account has been activated. You can access into MyVigor server to activate the service (e.g., WCF) that you want. 1. Access into http://myvigor.draytek.com. Find the line of Not registered yet?. Then, click the link Click here! to access into next page.
  • Page 515 2. Check to confirm that you accept the Agreement and click Accept. 3. Type your personal information in this page and then click Continue. 4. Choose proper selection for your computer and click Continue. Vigor2860 Series User’s Guide...
  • Page 516 6. Check to see the confirmation email with the title of Letter from myvigor.draytek.com. 7. Click the Activate my Account link to enable the account that you created. The following screen will be shown to verify the register process is finished. Please click Login. Vigor2860 Series User’s Guide...
  • Page 517 UserName and Password. Then type the code in the box of Auth Code according to the value displayed on the right side of it. Now, click Login. Your account has been activated. You can access into MyVigor server to activate the service (e.g., WCF) that you want. Vigor2860 Series User’s Guide...

  • Page 518: How To Setup Address Mapping

    We will take an example to introduce how to make use of this feature. Log into the web user interface of Vigor2860. Open WAN>>Internet Access. For WAN1, choose MPoA/Static or Dynamic IP as the Access Mode. Vigor2860 Series User’s Guide...
  • Page 519 WAN IP address as 202.211.100.10. Click the WAN IP Alias button to configure the other IP address which is 202.211.100.11. Make sure Join IP NAT Pool is not checked. Click OK to save the settings. Vigor2860 Series User’s Guide...
  • Page 520 After finished configuration for WAN1, open Load-Balance/Route Policy. Click Index number 1 and 2 to configure the details. After finished the settings, click OK to save the settings respectively. Vigor2860 Series User’s Guide...
  • Page 521 Upon completing the above configuration, you have specified the outgoing IP address(es) for some specific computers. Now, you bind some specific computers to some WAN IP alias for outgoing traffic. Vigor2860 Series User’s Guide...

  • Page 522: How To Configure Certain Computers Accessing To Internet

    Firewall>>Filter Setup is used as the default setting, we have to create a new rule starting from Filter Rule 2 of Set 2. Access into the web user interface of Vigor router. Open Firewall>>Filter Setup. Click the Set 2 link and choose the Filter Rule 2 button. Vigor2860 Series User’s Guide...
  • Page 523 Next, set another rule. Just open Firewall>>Filter Setup. Click the Set 2 link and choose the Filter Rule 3 button. Check the box of Check to enable the Filter Rule. Type the comments (e.g., open_ip). Click the Edit button for Source IP. Vigor2860 Series User’s Guide...
  • Page 524 End IP. Then, click OK to save the settings. The computers within the range can access into the Internet. Now, check the content of Source IP is correct or not. The action for Filter shall be set with Pass Immediately. Then, click OK to save the settings. Vigor2860 Series User’s Guide...
  • Page 525 Both filter rules have been created. Click OK. Now, all the settings are configured well. Only the computers with the IP addresses within 192.168.1.10 ~ 192.168.1.20 can access to Internet. Vigor2860 Series User’s Guide...

  • Page 526: How To Block Facebook Service Accessed By The Users Via Web Content Filter / Url Content Filter

    Note: License is required. URL Content Filter, Benefits: Free, flexible for customize webpage. Note: Manual setting (e.g., one keyword for one website.) I. Via Web Content Filter Make sure the Web Content Filter (powered by Commtouch) license is valid. Vigor2860 Series User’s Guide...
  • Page 527 Open CSM >> Web Content Filter Profile to create a WCF profile. Check Social Networking with Action, Block. Enable this profile in Firewall>>General Setup>>Default Rule. Next time when someone accesses facebook via this router, the web page would be blocked and the following message would be displayed instead. Vigor2860 Series User’s Guide...
  • Page 528 In the field of Contents, please type facebook. Configure the settings as the following figure. Open CSM>>URL Content Filter Profile. Click an index number to open the setting page. Configure the settings as the following figure. When you finished the above steps, click OK. Then, open Firewall>>General Setup. Vigor2860 Series User’s Guide...
  • Page 529 B. Disallow users to play games on Facebook Open Object Settings>>Keyword Object. Click an index number to open the setting page. In the field of Contents, please type apps.facebook. Configure the settings as the following figure. Vigor2860 Series User’s Guide...
  • Page 530 When you finished the above steps, please open Firewall>>General Setup. Click the Default Rule tab. Choose the profile just configured from the drop down list in the field of URL Content Filter. Now, users cannot open any web page with the word “facebook” inside. Vigor2860 Series User’s Guide...

  • Page 531: Profile

    Edit button be available. Then, click the Edit button. When the following configuration page appears, make the changes you want and check Apply to All APs. Then, click Next to access into the next page. Vigor2860 Series User’s Guide...
  • Page 532 “plug and play” and “zero-configuration”. The following page allows you to modify related settings for 2.4G SSID of managed AP. Make the changes you want for 2.4G SSID. Click Next for next page. Vigor2860 Series User’s Guide...
  • Page 533 AP. Continue to make any changes you want. After finished all of the changes, simply click Finish. Now, the AP (represented with AP800_00507F6EE4980) detected by Vigor router will be applied with the settings modified by Vigor router. Vigor2860 Series User’s Guide...

  • Page 534: Cvm Application - How To Manage The Cpe (Router) Through Vigor2860 Series

    To manage CPEs through Vigor2860 series, you have to set URL on CPE first and set username and password for Vigor2860 series. For this section, we use Vigor2850 series as the example. All the CPE configuration will be done through Vigor2850 series.
  • Page 535 In the field of ACS Server, type the URL (IP address with port number) of Vigor2860 series and type the same Username and Password defined on the page of Central VPN Management>>General Setup in Vigor2860 series. Then, click Enable for CPE Client and then click OK to save the settings.
  • Page 536 Open WAN>>Internet Access. Use the drop down list of Access Mode on WAN1 to select MPoA (RFC1483/2684). Then, click Details Page. Click Specify an IP address. Type correct WAN IP address, subnet mask and gateway IP address for your CPE. Then click OK. Vigor2860 Series User’s Guide...
  • Page 537 Note: Reboot the CPE device and re-log into Vigor2860 series. CPE which has registered to Vigor2860 series will be captured and displayed on the page of Central VPN Management>>CPE Management. Return to the web user interface of Vigor2860 series. Open Central VPN Management>>VPN Management. Now there is one CPE displayed on the field of Unmanaged Devices List.

  • Page 538: Cvm Application - How To Build The Vpn Between Remote Devices And Vigor2860 Series

    When a remote device is managed by Vigor2860 series, it is easy to build VPN between these two devices. Access into the web user interface of Vigor2860 series. Open Central VPN Management>>CPE Management. Click the device icon (marked with ) and click the PPTP/IPsec button.
  • Page 539 VPN and Remote Access>>LAN to LAN of the remote device for viewing the detailed information. Note: The profile name is created automatically by the system. Do not modify any value in such page to avoid VPN error. Vigor2860 Series User’s Guide...

  • Page 540: Cvm Application - How To Upgrade Cpe Firmware Through Vigor2860 Series

    Vigor2850, as an example, is chosen for Vigor2860 to perform the CPE firmware upgrade remotely in this case. Plug in USB storage disk onto Vigor2860 series via USB interface. Make sure the USB disk has been installed correctly, otherwise, the firmware upgrade will not be successful.
  • Page 541 Select to locate it. Specify the Schedule profile. At last, click Now, a new maintenance profile has been created. Click Now to perform the firmware upgrade immediately for Vigor2850. Wait for several minutes for firmware upgrade. Vigor2860 Series User’s Guide...
  • Page 542 Click Managed Devices List. Click the icon of Vigor2850 and click Edit and view the software version. Another way to check if the firmware upgrade is completed or not, simply open Central VPN Management>>Log & Alert. Vigor2860 Series User’s Guide...

  • Page 543: How To Setup Load Balance For Packets

    Internet. The PC in LAN1 can send the data to the remote PC through the specified WAN1. Access into web user interface of Vigor2860 series. Open Load-Balance/Route Policy. From the following web page, simply click index number #1.
  • Page 544 203.65.1.35; choose WAN1 as the Interface; click default gateway; do not check Auto Failover To The Other WAN. After finished the above settings, click OK to save the configuration. Now, the packets sent to the remote PC (IP address: 203.65.1.35) will be forced to pass through WAN1. Vigor2860 Series User’s Guide...

  • Page 545: How To Authenticate Clients Via User Management

    With User Management authentication function, before a valid username and password have been correctly supplied, a particular client will not be allowed to access Internet through the router. There are three ways for authentication: Web, Telnet and Alert Tool. Vigor2860 Series User’s Guide...
  • Page 546 Web authentication interface first. Then, the client is trying to access http://www.draytek.com and but brought to the Vigor router. Since this is an SSL connection, some web browsers will display warning messages.
  • Page 547  With Mozilla Firefox, you may get the following warning message. Select I Understand the Risks. Vigor2860 Series User’s Guide...
  • Page 548 With Chrome browser, you may get the following warning. Click Proceed anyway. After that, the web authentication window will appear. Input the user name and the password for your account (defined in User Management) and click Login. Vigor2860 Series User’s Guide...
  • Page 549 If the authentication is successful, the client will be redirected to the original web site that he tried to access. In this example, it is http://www.draytek.com . Furthermore, you will get a popped up window as the following. Then you can access the Internet.
  • Page 550 With the default setup <body stats=1><script language='javascript'> window.location='http://www.draytek.com'</script></body>, you will be redirected to http://www.draytek.com . You may change it if you want. For example, you will get the following welcome message if you enter Login Successful in the Welcome Message table.
  • Page 551 VPN Remote Dial-in user profile with the same username “chaochen” but a different password “1234”, you will always get error message The username or password you entered is incorrect when you use chaochen/test via Web to do authentication. Vigor2860 Series User’s Guide...
  • Page 552 If SSL Tunnel or SSL Web Proxy is disabled in the VPN profile, a User Management account and a remote dial-in VPN profile can use the same Username, even with different passwords. However, we recommend you to use different usernames for different user profiles in User Management and VPN profiles. Vigor2860 Series User’s Guide...
  • Page 553 Note: Here expired time is “Unlimited” means the Time Quota function is not enabled for this account. After login, this account will not be expired until it is logout. In the Web interface of router, the configuration page of Time Quota is shown as below. Vigor2860 Series User’s Guide...
  • Page 554 You will get the following message. The expired time is shown after you login. After you run out the available time, you can’t use this account any more until the administrator manually adds additional time for you. Vigor2860 Series User’s Guide...
  • Page 555 Any modification to the Firewall policy will break down the connections of all current users. They all have to authenticate again for Internet access.  The administrator may check the current users from User Online Status page. Vigor2860 Series User’s Guide...
  • Page 556 Vigor2860 Series User’s Guide...

  • Page 557: Trouble Shooting

    Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “1.3 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor2860 Series User’s Guide...

  • Page 558: Checking If The Network Connection Settings On Your Computer Is Ok Or Not

    Open All Programs>>Getting Started>>Control Panel. Click Network and Sharing Center. In the following window, click Change adapter settings. Icons of network connection will be shown on the window. Right-click on Local Area Connection and click on Properties. Vigor2860 Series User’s Guide...
  • Page 559 Select Internet Protocol Version 4 (TCP/IP) and then click Properties. Select Obtain an IP address automatically and Obtain DNS server address automatically. Finally, click OK. Vigor2860 Series User’s Guide...
  • Page 560 Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2860 Series User’s Guide...

  • Page 561: Pinging The Router From Your Computer

    Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor2860 Series User’s Guide...

  • Page 562: Checking If The Isp Settings Are Ok Or Not

     If the problem of LEDs cannot be solved by the above measures, please contact with the nearest reseller, or send an e-mail to DrayTek FAE for technical support.  Check if the settings offered by ISP are configured well or not.

  • Page 563: Problems For 3G/4G Network Connection

    Please open DrayTek Syslog Tool to capture the connection information (WAN Log) and send the page (similar to the following graphic) to the service center of DrayTek. Please connect your Notebook with 3G/4G USB Modem to test the connection speed to verify if the problem is caused by Vigor2860.

  • Page 564: Backing To Factory Default Setting If Necessary

    While the router is running (ACT LED blinking), press the Factory Reset button and hold for more than 5 seconds. When you see the ACT LED blinks rapidly, please release the button. Then, the router will restart with the default configuration. Vigor2860 Series User’s Guide...

  • Page 565: Contacting Draytek

    After restore the factory default setting, you can configure the settings for the router again to fit your personal request. If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@DrayTek.com. Vigor2860 Series User’s Guide...
  • Page 566 This page is left blank. Vigor2860 Series User’s Guide...

  • Page 567: Appendix I: Vlan Applications On Vigor Router

    VLAN helps you to solve these situations, and DrayTek’s products support bellow two popular types: It uses a matrix table of the physical ports to define the traffics how to exchange between each port, and the traffics will be isolated from the ports are not being ticked in the same line.
  • Page 568 P1 and P2 are doing NAT flow to access to the internet, but P3 and P4 will forward the packets between WAN and LAN ports directly. So far, there are two kinds of open system on Vigor router. One is DrayOS, which is DrayTek owned, and another is Linux-like which customized by DrayTek from OpenWRT. Here DrayOS system is going to be introduced to you because it is the most stable and superfast Vigor2860 Series User’s Guide...
  • Page 569 DrayTek products. If the UI style of yours is different from the following. It may not DrayOS system with new web style or maybe the Linux-like model. Vigor2860 Series User’s Guide...
  • Page 570  Multi Subnet (VLAN of LAN) Vigor2860 Series User’s Guide...
  • Page 571 The benefit of Port-based is able to extend the wired ports by installing a cheaper dumb switch as many as you need, but Tag-based offers you a flexible and well-managed network. The networks are isolated, secured and reduce the broadcasting storm effectively in each of networks with VLAN.  Guest Network Vigor2860 Series User’s Guide...
  • Page 572 However, a switch support VLAN function is need if VLAN Tag enabled.  Triple Play (Multi-WAN) NAT mode with VLAN Vigor2860 Series User’s Guide...
  • Page 573 Following settings, the set-top box (STB) is able to attach with any LAN port. Video streaming which your ISP provided will be played on your monitor. Vigor2860 Series User’s Guide...
  • Page 574 Set-top box (STB) or the other kinds of media devices are able to attach with Port4 or Port5 of LAN. Those devices that attached with Port4 or Port5 are able to access the services network directly which your ISP provided. Vigor2860 Series User’s Guide...

  • Page 575: Telnet Command Reference

    Then, type ?. You will see a list of valid/common commands depending on the router that your use. This command allows the user to adjust the percentage of data transmission (receiving/transmitting) for QoS application. adsl txpct [auto:percent] adsl rxpct [auto:percent] Syntax Description auto It means auto detection of ADSL transmission packet. Vigor2860 Series User’s Guide...

  • Page 576: Telnet Command: Adsl Status

    : 00000000 DSLAM CHIPSET VENDOR : < ADI > > This command can set the Internet Access mode for the router. adsl ppp [ ? | pvc_no vci vpi Encap Proto modu acqIP idle [Username Password] Vigor2860 Series User’s Guide...
  • Page 577 This parameter is used only for PPPoE/PPPoA Password This parameter is used only for PPPoE/PPPoA You have to reboot the system when you set it on Route mode. > adsl ppp o 35 8 1 1 4 1 -1 draytek draytek pvc no.=0 vci=35 vpi=8...

  • Page 578: Telnet Command: Adsl Bridge

    The number 0 to 7 can be set to indicate the priority. “7” is the highest. Two number can be set: service type 0: for Normal (all the applications will be processed with the same PVC). Vigor2860 Series User’s Guide...

  • Page 579: Telnet Command: Adsl Idle

    4. Now, it is on continuous sending mode, and adsl2/2+ led is always ON. 5. Use 'adsl reboot' to restart dsl to normal mode. This command can wake up the idle router. > adsl reboot % Adsl is Rebooting... Vigor2860 Series User’s Guide...

  • Page 580: Telnet Command: Adsl Oamlb

    Some ISP might set the vci value under 32. In such case, we can cancel such limit manually by using this command. Do not set the number greater than 254. adsl vcilimit [n] The number shall be between 1 ~ 254. Vigor2860 Series User’s Guide...
  • Page 581 > adsl vcilimit 33 change VCI limitation from 32 to 33. Vigor2860 Series User’s Guide...

  • Page 582: Telnet Command: Adsl Annex

    > Vigor> adsl automode set ANNEXJ Automode supported : T1.413, G.DMT, ADSL2, ADSL2+, ANNEXJ, Vigor> adsl automode default Automode supported : T1.413, G.DMT, ADSL2, ADSL2+, At present ,this command allows you to enable and disable dual-latency only. adsl optn FUNC [value/on/off] Vigor2860 Series User’s Guide...

  • Page 583: Telnet Command: Adsl Savecfg

    It means to set user-defined vendor ID with vid0 and vid1. The vendor ID shall be set with HEX format, ex: 00fe7244: 79612f21. > adsl vendorid status % User define CPE Vendor ID is OFF % vid0:vid1 = 0x00fe7244:79612f21 Vigor2860 Series User’s Guide...

  • Page 584: Telnet Command: Adsl Atm

    It means Maximum Burst Size. It means to display PCR/SCR/MBS setting. status > adsl atm pcr 1 200 max % PCR is 200 for pvc 1. > adsl atm pcr status channel --------------------------- > adsl atm mbs 2 300 max Vigor2860 Series User’s Guide...

  • Page 585: Telnet Command: Adsl Pvcbinding

    Smaller value results in better Up/Down speed but easy to disconnect. adsl snr [delta] Parameter Description delta It means SNR margin delta. The range is from -50 to 50. Current ADSL SNR Margin is 0 dB. > vdsl snr 25 Vigor2860 Series User’s Guide...

  • Page 586: Telnet Command: Bpa

    5 : WA(61.9.240.13) -l <List> List all settings configured. > bpa 1 -a 1 -n testUser -p testPassword -s 4 > bpa -l -------index: 1 active------ UserName[1]: testUser PassWord[1]: testPassword ServerIP[1]:4 -------index: 2 inactive------ UserName[2]: PassWord[2]: ServerIP[2]:0 Vigor2860 Series User’s Guide...

  • Page 587: Telnet Command: Csm Appe Prof

    It means to view the IM configuration of the CSM profile. It means to enable the blocking for specific application. It means to disable the blocking for specific application. Set the action of specific application Specify one of the following applications for such profile. : MSN Vigor2860 Series User’s Guide...

  • Page 588: Telnet Command: Csm Appe P2P

    It is used to configure P2P settings for APP Enforcement Profile. csm appe p2p -i INDEX [-v | -e AP | -d AP | -a AP [ACTION]] Parameter Description INDEX It means to specify the index number of CSM profile, Vigor2860 Series User’s Guide...

  • Page 589: Telnet Command: Csm Appe Prot

    It is used to configure protocol settings for APP Enforcement Profile. It is used to configure miscellaneous settings for APP Enforcement Profile. csm appe misc -i INDEX [-v | -e AP | -d AP | -a AP [ACTION]] Vigor2860 Series User’s Guide...
  • Page 590 RTSP TVAnts: TVAnts PPStream: PPStream PPlive: PPlive FeiDian: FeiDian UUSee: UUSee NSPlayer: NSPlayer PCAST: PCAST TVKoo: TVKoo SopCast: SopCast UDLiveX: UDLiveX TVUPlayer: TVUPlayer MySee: MySee Joost: Joost FlashVideo: FlashVideo SilverLight: MS SilverLight Slingbox: Slingbox QVOD: QVOD Vigor2860 Series User’s Guide...

  • Page 591: Telnet Command: Csm Ucf

    It means to specify the object for the profile. INDEX It means to specify the index number of CSM profile, from 1 to 8. It means to set the profile name. PROFILE_NAME It means to specify the name of the profile (less than 16 Vigor2860 Series User’s Guide...

  • Page 592: Telnet Command: Csm Ucf Obj Index Uac

    Log:[none] Priority Select : [Bundle : Pass] [ ]Enable URL Access Control Action:[pass] [ ]Prevent web access from IP address. No Obj NO. Object Name --- -------- --------------------------------- No Grp NO. Group Name --- -------- --------------------------------- Vigor2860 Series User’s Guide...
  • Page 593 E: Enable the function. The Internet access from any IP address will be blocked. D: Disable the function. Set the keyword object. KEY_WORD_Object_In Specify the index number of the object profile. Set the keyword group. KEY_WORD_Group_In Specify the index number of the group profile. Vigor2860 Series User’s Guide...
  • Page 594 Profile Name:[game] Log:[none] Priority Select : [Bundle : Pass] [ ]Enable URL Access Control Action:[block] [v]Prevent web access from IP address. No Obj NO. Object Name --- -------- --------------------------------- No Grp NO. Group Name --- -------- --------------------------------- Vigor2860 Series User’s Guide...

  • Page 595: Telnet Command: Csm Ucf Obj Index Wf

    Proxy u: Upload It means to cancel the web feature configuration. It means to set the file extension object index number. Type the index number (1 to 8) for the file extension File_Extension_Object_ index object. Vigor2860 Series User’s Guide...

  • Page 596: Telnet Command: Csm Wcf

    INDEX -g KEY_WORD Group Index csm wcf obj INDEX -w E|D|P|B csm wcf obj INDEX -s CATEGORY|WEB_GROUP csm wcf obj INDEX -u CATEGORY|WEB_GROUP Parameter Description show It means to display the web content filter profiles. Vigor2860 Series User’s Guide...
  • Page 597 Set the keyword object. KEY_WORD_Object_In Specify the index number of the object profile. Set the keyword group. KEY_WORD_Group_In Specify the index number of the group profile. It means to set the action for the black and white list. Vigor2860 Series User’s Guide...
  • Page 598 Transportation, Compromised, Dating & Personals, , Education, Finance, Government,Health & Medcine, News, Non-profits & NGOs, Personal Sites,Politics, Real Estate, Rligion, Restaurants & Dining,Shopping, Translators, General, Cults,Greetig cards, Image Sharing, Network Errors, Parked Domains, Private IP Addresses) Vigor2860 Series User’s Guide...

  • Page 599: Telnet Command: Ddns Log

    [v]School Cheating [v]Sex Education [v]Tasteless [v]Child Abuse Images ------------------------------------------------------------------ ------------- leisure Group: [ ]Entertainment [ ]Games [ ]Sports [ ]Travel [ ]Leisure & Recreation [ ]Fashion & Beauty > Displays the DDNS log. >ddns log > Vigor2860 Series User’s Guide...

  • Page 600: Telnet Command: Dos

    It means to activate the DoS defense system. It means to enable the defense function for a specific attack and set its parameter(s). ATTACK_F It means to specify the name of flooding attack(s) or portscan, e.g., synflood, udpflood, icmpflood, or postscan. Vigor2860 Series User’s Guide...
  • Page 601 It means to disable the defense function for a specific attack(s). >dos –A The Dos Defense system is Activated >dos –s synflood 50 10 Synflood is enabled! Threshold=50 <pke/sec> timeout=10 <pke/sec> Vigor2860 Series User’s Guide...

  • Page 602: Telnet Command: Exit

    (represented by 0-1). n=0: PAP/CHAP (this is default setting) n=1: PAP Only -t n It means to set connection duration and n means different conditions. n=-1: Always-on n=1 ~ 999: Idle time for offline (default 180 seconds) Vigor2860 Series User’s Guide...

  • Page 603: Telnet Command: Ip 2Ndsubnet

    > internet -V WAN1 Internet Mode:PPPoE ISP Name: tcom Username: username Authentication: PAP/CHAP Idle Timeout: -1 WAN IP: Dynamic IP This command allows users to enable or disable the IP routing subnet for your router. ip 2ndsubnet <Enable/Disable> Vigor2860 Series User’s Guide...

  • Page 604: Telnet Command: Ip 2Ndaddr

    > ip 2ndaddr 192.168.2.5 % Set 2nd subnet IP address done !!! This command allows users to set the subnet mask for second subnet mask of your router. ip 2ndmask ? ip 2ndmask <public subnet mask> Parameter Description Vigor2860 Series User’s Guide...

  • Page 605: Telnet Command: Ip Aux

    > ip aux add 192.168.1.65 1 % 192.168.1.65 has added in index 2. > ip aux ?%% ip aux add [IP] [Join to NAT Pool] %% ip aux remove [Index] Where IP = Auxiliary WAN IP Address. Vigor2860 Series User’s Guide...

  • Page 606: Telnet Command: Ip Addr

    (they should be in the same network segment), the IP address of the PC must be fixed with the same LAN IP address (network segment) set by this command for accessing into the web user interface of the router. Later, modify the start addresses for the DHCP server. Vigor2860 Series User’s Guide...

  • Page 607: Telnet Command: Ip Nmask

    It indicates the direction for the arp function. 0/1/2/3/4/5 0: disable to accept illegal source mac address 1: enable to accept illegal source mac address 2: disable to accept illegal dest mac address 3: enable to accept illegal dest mac address Vigor2860 Series User’s Guide...

  • Page 608: Telnet Command: Ip Dhcpc

    Parameter Description option It is an optional setting for DHCP server. -h: display usage -l: list all custom set DHCP options -d: delete custom dhcp client option by index number Vigor2860 Series User’s Guide...

  • Page 609: Telnet Command: Ip Ping

    Leased Elapsed T1 : 129594 Leased Elapsed T2 : 226794 This command allows users to ping IP address of WAN1/WAN2/PVC3/PVC4/PVC5 for verifying if the WAN connection is OK or not. ip ping [IP address] [WAN1 /PVC3/PVC4/PVC5] Parameter Description Vigor2860 Series User’s Guide...

  • Page 610: Telnet Command: Ip Tracert

    It means the UDP or ICMP. >ip tracert 22.128.2.62 WAN1 Traceroute to 22.128.2.62, 30 hops max 172.16.3.7 10ms 172.16.1.2 10ms Request Time out. 168.95.90.66 50ms 211.22.38.134 50ms 220.128.2.62 50ms Trace complete This command allows users to access specified device by telnet. Vigor2860 Series User’s Guide...

  • Page 611: Telnet Command: Ip Rip

    This command allows users to set the RIP (routing information protocol) of IP. ip rip [0/1/2] Parameter Description 0/1/2 0 means disable; 1 means first subnet and 2 means second subnet. > ip rip 1 %% Set RIP 1st subnet. Vigor2860 Series User’s Guide...

  • Page 612: Telnet Command: Ip Wanrip

    > ip wanrip 5 -e 1 > ip wanrip ? Valid ex:ip wanrip <ifno> -e <0/1> <ifno> 1: WAN1,2: WAN2 3: PVC3,4: PVC4,5: PVC5 -e <0/1> 0: disable, 1: enable Now status: WAN[1] Rip Protocol disable WAN[2] Rip Protocol disable Vigor2860 Series User’s Guide...
  • Page 613 WAN[3] Rip Protocol disable WAN[4] Rip Protocol disable WAN[5] Rip Protocol enable > Vigor2860 Series User’s Guide...

  • Page 614: Telnet Command: Ip Route

    It means current IP range for CNC Network. default Set WAN1/WAN2/off as current default route. clean Clean all of the route settings. 1: Enable the function. 0: Disable the function. > ip route add 172.16.2.0 255.255.255.0 172.16.2.4 3 static Vigor2860 Series User’s Guide...
  • Page 615 > ip route status Codes: C - connected, S - static, R - RIP, * - default, ~ - private 192.168.1.0/ 255.255.255.0 is directly connected, LAN1 172.16.2.0/ 255.255.255.0 via 172.16.2.4, WAN1 Vigor2860 Series User’s Guide...

  • Page 616: Telnet Command: Ip Igmp_Proxy

    %WAN1 : Enabled, connection type: PPPoE, without tag for ADSL %WAN5 : Enabled, connection type: DHCP, tag: 8 %: PVC4(WAN5) is bound to PVC0(WAN1), protocol=MPoA 1483 Bridge %IGMP Proxy Interface: WAN5(PVC) %WAN5 for Router-borne Application/ IPTV on/off: ON Vigor2860 Series User’s Guide...
  • Page 617 > ip igmp_proxy query 130000 This command is for setting IGMP General Query Interval The default value is 125000 ms Current Setting is:130000 ms > Vigor2860 Series User’s Guide...

  • Page 618: Telnet Command: Ip Wanaddr

    > ip ip wanttr 500 > Specify MAC address of certain device as the DMZ host. ip dmz [mac] Parameter Description It means the MAC address of the device that you want to specify >ip dmz ? Vigor2860 Series User’s Guide...

  • Page 619: Telnet Command: Ip Session

    It means to display all session limit settings in the IP range. It means to set when the IP session block works. timer [num] The unit is second. [block/unblock][IP] It means to block/unblock the specified IP address. Block: The IP cannot access Internet through the router. Vigor2860 Series User’s Guide...

  • Page 620: Telnet Command: Ip Bandwidth

    This command allows users to set maximum bandwidth limit number for the specified IP. ip bandwidth on ip bandwidth off ip bandwidth default [tx_rate][rx_rate] ip bandwidth status ip bandwidth show ip bandwidth [add/del] [IP1-IP2][tx][rx][shared] Parameter Description Vigor2860 Series User’s Guide...

  • Page 621: Telnet Command: Ip Bindmac

    IP range: 192.168.1.50 - 192.168.1.100 : Tx:10K Rx:60K Current ip Bandwidth limit is turn off Auto adjustment is off This command allows users to set IP-MAC binding for LAN host. ip bindmac on ip bindmac off Vigor2860 Series User’s Guide...
  • Page 622 It means to delete all the IP bindmac settings. > ip bindmac add 192.168.1.46 00:50:7f:22:33:55 just for test > ip bindmac show ip bind mac function is turned ON IP : 192.168.1.46 bind MAC : 00-50-7f-22-33-55 Comment : just Vigor2860 Series User’s Guide...

  • Page 623: Telnet Command: Ip Maxnatuser

    It means to type the prefix number of IPv6 address. prefix-length It means to type a fixed value as the length of the prefix. LAN|WAN1|WAN2|iface It means to specify LAN or WAN interface for such address. > ip6 addr -a Vigor2860 Series User’s Guide...

  • Page 624: Telnet Command: Ip6 Dhcp Req_Opt

    It means to ask the DNS name. It means to ask NTP. It means to ask NIS. It means to ask NIS name. It means to ask NISP. It means to ask NISP name. It means to ask BCMCS. Vigor2860 Series User’s Guide...

  • Page 625: Telnet Command: Ip6 Dhcp Client

    It means to request identity association ID for Non-temporary Address. It means to send rapid commit to server. -c [parameter] -i [parameter] It means to send information request to server. -e[parameter] It means to enable or disable the DHCPv6 client. Vigor2860 Series User’s Guide...

  • Page 626: Telnet Command: Ip6 Dhcp Server

    It means to set the start IPv6 address of the address pool. It means to set the end IPv6 address of the address -x<pool_max_addr> pool. -d<addr> It means to set the first DNS IPv6 address. -D<addr> It means to set the second DNS IPv6 address. Vigor2860 Series User’s Guide...
  • Page 627 > ip6 dhcp server -x ff02::3 > ip6 dhcp server -a % Interface LAN has following DHCPv6 server settings: DHCPv6 server disabled maximum address of the pool: FF02::3 minimum address of the pool: FF02::1 1st DNS IPv6 Addr: FF02::1 Vigor2860 Series User’s Guide...

  • Page 628: Telnet Command: Ip6 Internet

    […] means that you can type in several commands in one line. -m n It means to set IPv6 MTU. N = any value (0 means “unspecified”). -u <username> It means to set Username. <username>= type a name as the username (maximum 63 characters). Vigor2860 Series User’s Guide...

  • Page 629: Telnet Command: Ip6 Neigh

    Please use "sys reboot" command to reboot the router. > system reboot This command allows you to display IPv6 neighbour table. ip6 neigh -s[ inet6_addr] [eth_addr] [LAN|WAN1|WAN2] ip6 neigh -d [inet6_addr] [LAN|WAN1|WAN2] ip6 neigh -a [inet6_addr] [-N LAN|WAN1|WAN2] Parameter Description Vigor2860 Series User’s Guide...
  • Page 630 Neighbour 2001:2222:3333::1111 successfully added! > ip6 neigh -a I/F ADDR STATE ------------------------------------------------------------------------- LAN FF02::1 33-33-00-00-00-01 CONNECTED WAN2 2001:5C0:1400:B::10B8 00-00-00-00-00-00 CONNECTED WAN2 2001:2222:3333::1111 00-00-00-00-00-00 CONNECTED WAN2 2001:2222:6666::1111 00-00-00-00-00-00 CONNECTED WAN2 :: 00-00-00-00-00-00 CONNECTED LAN :: NONE > Vigor2860 Series User’s Guide...

  • Page 631: Telnet Command: Ip6 Pneigh

    It means that such route will be treated as the default route. prefix It means to type the prefix number of IPv6 address. prefix-length It means to type a fixed value as the length of the prefix. Vigor2860 Series User’s Guide...

  • Page 632: Telnet Command: Ip6 Ping

    [IPV6 address/Host] [LAN/WAN1/WAN2] Parameter Description IPV6 address/Host It means to specify the IPv6 address or host for ping. LAN/WAN1/WAN2 It means to specify LAN or WAN interface for such address. > ip6 ping 2001:4860:4860::8888 WAN2 Vigor2860 Series User’s Guide...
  • Page 633 Receive reply from 2001:4860:4860::8888, time=330ms Receive reply from 2001:4860:4860::8888, time=330ms Receive reply from 2001:4860:4860::8888, time=330ms Receive reply from 2001:4860:4860::8888, time=330ms Receive reply from 2001:4860:4860::8888, time=330ms Packets: Sent = 5, Received = 5, Lost = 0 <% loss> > Vigor2860 Series User’s Guide...

  • Page 634: Telnet Command: Ip6 Tracert

    10 2001:4860:4860::8888 350 ms Trace complete. > This command allows you to display TSPC status. ip6 tspc [ifno] Parameter Description ifno It means the connection interface. Ifno=1 (means WAN1) Info=2 (means WAN2) > ip6 tspc 2 Vigor2860 Series User’s Guide...

  • Page 635: Telnet Command: Ip6 Radvd

    Type the number (unit: second) you want. It means to show the RADVD configuration. It means RA default test. It means RA test for item [num]. -r [num] Vigor2860 Series User’s Guide...

  • Page 636: Telnet Command: Ip6 Mngt

    It means to clear the IPv6 access table. http|telnet|ping|https|ss These protocols are used for accessing Internet. on|off It means to enable (on) or disable (off) the Internet accessing through http/telnet/ping. > ip6 mngt list add 1 FE80::250:7FFF:FE12:1010 128 Vigor2860 Series User’s Guide...

  • Page 637: Telnet Command: Ip6 Online

    % IPv6 DNS Server: :: Static % IPv6 DNS Server: :: Static % IPv6 DNS Server: :: Static % Tx packets = 408, Tx bytes = 32160, Rx packets = 428, Rx bytes = 33636 > ip6 online 1 Vigor2860 Series User’s Guide...

  • Page 638: Telnet Command: Ip6 Aiccu

    It means to type a fixed value as the length of the prefix. remove It means to remove (delete) the specified index number with IPv6 settings. show It means to display the AICCU status. > ip6 aiccu subnet add 2 2001:1111:0000::1111 64 > ip6 aiccu 2 Status: Connecting Vigor2860 Series User’s Guide...

  • Page 639: Telnet Command: Ip6 Ntp

    It means to show the running call filter rules. It means to show the running data filter rules. It means to show the hit-number of the filter rules. It means to show the running call and data filter rules. Vigor2860 Series User’s Guide...

  • Page 640: Telnet Command: Ipf Set

    It means to setup Data Filter, e.g., -d 3. The range for the index number you can type is “0” to “12” (0 means “disable). -l [VALUE] It means to setup Log Flag, e.g., -l 2 Vigor2860 Series User’s Guide...
  • Page 641 It means to set the QoS class. > ipf set -c 1 #set call filter start from set 1 Setting saved. > ipf set -d 2 #set data filter start from set 2 Setting saved. > ipf set -v Vigor2860 Series User’s Guide...

  • Page 642: Telnet Command: Ipf Rule

    This command is used to set filter rule for firewall. ipf rule s r [-<command> <parameter> | ... ipf rule s r -v Parameter Description Such word means Filter Set, range form 1~12. Such word means Filter Rule, range from 1~7. Vigor2860 Series User’s Guide...
  • Page 643 Set Range Address => -s u 3 192.168.1.10 192.168.1.15 –d u <Address Type> It means to configure destination IP address including <Start IP Address> address type, start IP address, end IP address and <End IP Address> | address mask. Vigor2860 Series User’s Guide...
  • Page 644 For example, “-S 0 1" means the first service type object profile. -S u <protocol> It means to configure advanced settings for Service <source_port__value> Type, such as protocol and port range. <destination_port_vale u – it means “user defined”. > <protocol> – It means TCP(6),UDP(17), TCP/UDP(255). Vigor2860 Series User’s Guide...
  • Page 645 It means to specify which APP Enforcement profile will be applied. <index> – Available settings range from 0 ~ 32. “0” means no profile will be applied. -u<index> It means to specify which URL Content Filter profile will be applied. Vigor2860 Series User’s Guide...
  • Page 646 20. ANSI/OEM(950)-Traditional Chinese Big5 -C <Windows Size> It means to set Window size and Session timeout <Session_Timeout> (Minute). <Windows Size> - Available settings range from 1 ~ 65535. <Session_Timeout> - Make the best utilization of network resources. Vigor2860 Series User’s Guide...
  • Page 647 : None APP Enforcement : None URL Content Filter : None Load-Balance policy : Auto-select : Disable ------------------------------------------------------------------ ---- CodePage : ANSI(1252)-Latin I Window size : 65535 Session timeout : 1440 DrayTek Banner : Enable ------------------------------------------------------------------ Vigor2860 Series User’s Guide...

  • Page 648: Telnet Command: Ipf Flowtrack

    -p[value] It means to type a port number (e.g., -p 1024). Available settings are 0 ~ 65535. It means to specify a protocol (e.g., -t tcp). -t [value] Available settings include: icmp >ipf flowtrack set -r Vigor2860 Series User’s Guide...

  • Page 649: Telnet Command: Log

    IP filter log w: flush the WAN log It means to show this usage help. It means to show PPP/MP log. It means to show all logs saved in the log buffer. It means to show WAN log. Vigor2860 Series User’s Guide...

  • Page 650: Telnet Command: Mngt Ftpport

    Client IP = 0.0.0.0 Your IP = 0.0.0.0 --- MORE --- ['q': Quit, 'Enter': New Lines, 'Space Bar': Next Page] This command allows users to set FTP port for management. mngt ftpport [FTP port] Parameter Description Vigor2860 Series User’s Guide...

  • Page 651: Telnet Command: Mngt Httpport

    It means to type the number for HTTPS port. The default setting is 443. > mngt httpsport 443 % Set web server port to 443 done. This command allows users to set telnet port for management. mngt telnetport [Telnet port] Parameter Description Vigor2860 Series User’s Guide...

  • Page 652: Telnet Command: Mngt Sshport

    It means to activate FTP server function. disable It means to inactivate FTP server function. > mngt ftpserver enable %% FTP server has been enabled. > mngt ftpserver disable %% FTP server has been disabled. Vigor2860 Series User’s Guide...

  • Page 653: Telnet Command: Mngt Noping

    It means to display a log of ping action, including source MAC and source IP. clearlog It means to clear the log of ping action. > mngt noping off No Ping Packet Out is OFF!! Vigor2860 Series User’s Guide...

  • Page 654: Telnet Command: Mngt Defenseworm

    Block TCP port list: 135, 137, 138, 139, 445 This command an allow the system administrators to login from the Internet. By default, it is not allowed. mngt rmtcfg [status] mngt rmtcfg [enable] mngt rmtcfg [disable] mngt rmtcfg [http/https/ftp/telnet/ssh/tr069] [on/off] Vigor2860 Series User’s Guide...

  • Page 655: Telnet Command: Mngt Lanaccess

    This command allows users to manage accessing into Vigor router through LAN port. mngt lanaccess -e [0/1] –s [value] –i [value] mngt lanaccess –f mngt lanaccess –d mngt lanaccess –v mngt lanaccess –h Parameter Description -e[0/1] It means to enable/disable the function. Vigor2860 Series User’s Guide...
  • Page 656 Current LAN Access Control Setting: * Enable:Yes * Service: - FTP:Yes - HTTP:No - HTTPS:No - TELNET:Yes - SSH:No * Subnet: - LAN 2: disabled - LAN 3: enabled - LAN 4: disabled - LAN 5: disabled Vigor2860 Series User’s Guide...

  • Page 657: Telnet Command: Mngt Echoicmp

    Parameter Description list It can display current setting for your reference. It means adding a new entry. index It means to specify the number of the entry. ip addr It means to specify an IP address. Vigor2860 Series User’s Guide...

  • Page 658: Telnet Command: Mngt Snmp

    It means to set one host as the manager to execute SNMP function. Please type in IPv4 address to specify certain host. -t <Community name> It means to set trap community by typing a proper name. (max. 23 characters) Vigor2860 Series User’s Guide...

  • Page 659: Telnet Command: Msubnet Switch

    -T <seconds> It means to set the trap timeout <0~999>. It means to list SNMP setting. > mngt snmp -e 1 -g draytek -s DK -m 192.168.1.1 -t trapcom -n 10.20.3.40 -T 88 SNMP Agent Turn on!!! Get Community set to draytek Set Community set to DK Manager Host IP set to 192.168.1.1...

  • Page 660: Telnet Command: Msubnet Addr

    Please use "sys reboot" command to reboot the router. This command is used to configure net mask address for the specified LAN interface. msubnet nmask [2/3/4/5/6][IP address] Parameter Description 2/3/4/5/6 It means LAN interface. 2=LAN2 3=LAN3 Vigor2860 Series User’s Guide...

  • Page 661: Telnet Command: Msubnet Status

    Off: 0.0.0.0/0.0.0.0, PPP Start IP: 0.0.0.60 % DHCP server: Off % Dhcp Gateway: 0.0.0.0, Start IP: 0.0.0.10, Pool Count: 50 This command allows you to enable or disable DHCP server for the subnet. msubnet dhcps [2/3/4/5/6][On/Off] Vigor2860 Series User’s Guide...

  • Page 662: Telnet Command: Msubnet Nat

    Parameter Description 2/3/4/5/6 It means LAN interface. 2=LAN2 3=LAN3 4=LAN4 5=LAN5 6=LAN6 On/Off On – It means the subnet will be configured for NAT usage. Off - It means the subnet will be configured for Routing Vigor2860 Series User’s Guide...

  • Page 663: Telnet Command: Msubnet Gateway

    % Set LAN2 Dhcp Gateway IP done !!! This setting will take effect after rebooting. Please use "sys reboot" command to reboot the router. This command is used to defined the total number allowed for each LAN interface. msubnet ipcnt [2/3/4] [IP counts] Vigor2860 Series User’s Guide...

  • Page 664: Telnet Command: Msubnet Talk

    This command is used to establish a route between two LAN interfaces. msubnet talk [1/2/3/4/5/6] [1/2/3/4/5/6] [On/Off] Parameter Description It means LAN interface. 1/2/3/4/5/6 1=LAN1 2=LAN2 3=LAN3 4=LAN4 5=LAN5 6=LAN6 On/Off On – It means Off - It means Vigor2860 Series User’s Guide...

  • Page 665: Telnet Command: Msubnet Startip

    [2/3/4/5/6] [Gateway IP] Parameter Description 2/3/4/5/6 It means LAN interface. 2=LAN2 3=LAN3 4=LAN4 5=LAN5 6=LAN6 Gateway IP Type an IP address as the starting IP address for a subnet. > msubnet startip 2 192.168.2.90 Vigor2860 Series User’s Guide...

  • Page 666: Telnet Command: Msubnet Pppip

    This setting will take effect after rebooting. Please use "sys reboot" command to reboot the router. > msubnet pppip ? % msubnet pppip <2/3/4/5/6> <Start IP> % Now: LAN2 192.168.2.250; LAN3 192.168.3.200; LAN4 192.168.4.200; LAN5 192.168.5.200; LAN6 192.168.6.200 Vigor2860 Series User’s Guide...

  • Page 667: Telnet Command: Msubnet Nodetype

    % count: 1. B-node 2. P-node 4. M-node 8. H-node > msubnet nodetype 2 1 % Set LAN2 Dhcp Node Type done !!! > msubnet nodetype ? % msubnet nodetype <2/3/4/5/6> <count> % Now: LAN2 1; LAN3 0; LAN4 0; LAN5 0; LAN6 0 Vigor2860 Series User’s Guide...

  • Page 668: Telnet Command: Msubnet Primwins

    > msubnet primWINS ? % msubnet primWINS <2/3/4/5/6> <WINS IP> % Now: LAN2 192.168.3.5; LAN3 0.0.0.0; LAN4 0.0.0.0; LAN5 0.0.0.0; LAN6 0.0.0.0 This command is used to configure secondary WINS server. msubnet secWINS [2/3/4/5/6] [WINS IP] Parameter Description Vigor2860 Series User’s Guide...
  • Page 669 > > msubnet secWINS 2 192.168.3.89 % Set LAN2 Dhcp Secondary WINS IP done !!! > msubnet secWINS ? % msubnet secWINS <2/3/4/5/6> <WINS IP> % Now: LAN2 192.168.3.89; LAN3 0.0.0.0; LAN4 0.0.0.0; LAN5 0.0.0.0; LAN6 0.0.0.0 Vigor2860 Series User’s Guide...

  • Page 670: Telnet Command: Msubnet Tftp

    % Set LAN2 TFTP Server Name done !!! > msubnet tftp ? % msubnet tftp <2/3/4/5/6> <TFTP server name> % Now: LAN2 publish LAN3 LAN4 LAN5 LAN6 This command allows you to configure MTU value for LAN/DMZ/IP Routed Subnet. Vigor2860 Series User’s Guide...

  • Page 671: Telnet Command: Object Ip Obj

    1500 (Bytes) DMZ MTU: 1500 (Bytes) IP Routed Subnet MTU: 1500 (Bytes) This command is used to create an IP object profile. object ip obj setdefault object ip obj INDEX -v object ip obj INDEX -n NAME Vigor2860 Series User’s Guide...
  • Page 672 3 -s 1 -a TYPE It means to set the address type and IP for the IP object profile. TYPE=0, means Mask TYPE=1, means Single TYPE=2, means Any TYPE=3, means Rang Example: object ip obj 3 -a 2 Vigor2860 Series User’s Guide...

  • Page 673: Telnet Command: Object Ip Grp

    It means the index number of the specified group profile. It means to view the information of the specified group profile. Example: object ip grp 1 -v -n NAME It means to define a name for the IP group. Vigor2860 Series User’s Guide...
  • Page 674 Included ip object index: [0:][0] [1:][0] [2:][0] [3:][0] [4:][0] [5:][0] [6:][0] [7:][0] > object ip grp 2 -i 1 > object ip grp 2 -a 1 2 IP Group Profile 2 Name :[First] Interface:[Lan] Included ip object index: Vigor2860 Series User’s Guide...
  • Page 675 [0:][1] [1:][2] [2:][0] [3:][0] [4:][0] [5:][0] [6:][0] [7:][0] Vigor2860 Series User’s Guide...

  • Page 676: Telnet Command: Object Ipv6 Obj

    INVERT=0, means disableing the function. INVERT=1, means enabling the function. Example: object ip obj 3 -s 1 -a TYPE It means to set the address type and IP for the IP object profile. TYPE=0, means Mask Vigor2860 Series User’s Guide...

  • Page 677: Telnet Command: Object Ipv6 Grp

    INDEX -i INTERFACE object ip grp INDEX -a IP_OBJ_INDEX Parameter Description setdefault It means to return to default settings for all profiles. INDEX It means the index number of the specified group profile. Vigor2860 Series User’s Guide...
  • Page 678 > object ip grp 2 -n First IP Group Profile 2 Name :[First] Interface:[Any] Included ip object index: [0:][0] [1:][0] [2:][0] [3:][0] [4:][0] [5:][0] [6:][0] [7:][0] > object ip grp 2 -i 1 Vigor2860 Series User’s Guide...

  • Page 679: Telnet Command: Object Service Obj

    It means to define a name for the IP object. NAME: Type a name with less than 15 characters. Example: object service obj 9 -n bruce It means to define a PROTOCOL for the service object -i PROTOCOL Vigor2860 Series User’s Guide...
  • Page 680 Example: object service obj 3 -s 0 100 200 -d CHK [START_P] It means to set destination port check and configure port range (1~65565) for TCP/UDP. [END_P] END_P, type a port number to indicate destination port. Vigor2860 Series User’s Guide...

  • Page 681: Telnet Command: Object Service Grp

    It means to define a name for the service group. NAME: Type a name with less than 15 characters. Example: object service grp 8 -n bruce -a SER_OBJ_INDEX It means to specify service object profiles for the group Vigor2860 Series User’s Guide...

  • Page 682: Telnet Command: Object Kw

    > object service grp 1 -a 1 2 Service Group Profile 1 Name :[Grope_1] Included service object index: [0:][1] [1:][2] [2:][0] [3:][0] [4:][0] [5:][0] [6:][0] [7:][0] This command is used to create keyword profile. object kw obj setdefault object kw obj show PAGE Vigor2860 Series User’s Guide...
  • Page 683 40 -a test > object kw obj 1 -n children Profile 1 Name :[children] Content:[] > object kw obj 1 -a gambling Profile 1 Name :[children] Content:[gambling] > object kw obj 1 -v Profile 1 Name :[children] Content:[gambling] Vigor2860 Series User’s Guide...

  • Page 684: Telnet Command: Object Fe

    Image, Video, Audio, Java, ActiveX, Compression, Executation Example: object fe obj 1 -e Image FILE_EXTENSION: ".bmp", ".dib", ".gif", ".jpeg", ".jpg", ".jpg2", ".jp2", ".pct", ".pcx", ".pic", ".pict", ".png", ".tif", ".tiff", ".asf", ".avi", ".mov", ".mpe", ".mpeg", ".mpg", ".mp4", ".qt", ".rm", ".wmv", Vigor2860 Series User’s Guide...
  • Page 685 ------------------------------------------------------------------------- ------ Audio category: [v].aac [v].aiff [v].au [v].mp3 [v].m4a [v].m4p [v].ogg [v].ra [v].ram [v].vox [v].wav [v].wma ------------------------------------------------------------------------- ------ Java category: [ ].class [ ].jad [ ].jar [ ].jav [ ].java [ ].jcm [ ].js [ ].jse Vigor2860 Series User’s Guide...
  • Page 686 [ ].bzip2 [ ].bz2 [ ].cab [ ].gz [ ].gzip [ ].rar [ ].sit [ ].zip ------------------------------------------------------------------------- ------ Executation category: [ ].bas [ ].bat [ ].com [ ].exe [ ].inf [ ].pif [ ].reg [ ].scr Vigor2860 Series User’s Guide...

  • Page 687: Telnet Command: Port

    > port 1 100F %Set Port 1 Force speed 100 Full duplex OK !!! This command allows you to set a time of keeping the session connection for specified protocol. portmaptime [-<command> <parameter> | ... ] Vigor2860 Series User’s Guide...

  • Page 688: Telnet Command: Prn

    > portmaptime -t 86400 -u 300 -i 10 > portmaptime -l ------ Current setting ------ TCP Timeout : 86400 sec. UDP Timeout : 300 sec. IGMP Timeout : 10 sec. TCP WWW Timeout: 60 sec. TCP SYN Timeout: 60 sec. Vigor2860 Series User’s Guide...

  • Page 689: Telnet Command: Qos Setup

    […] means that you can type in several commands in one line. Type it to display the usage of this command. -m <mode> It means to define which traffic the QoS control settings will apply to and eable QoS control. Vigor2860 Series User’s Guide...
  • Page 690 > qos setup -m 3 -i 9500 -o 8500 -r 3:20 -u 1 -p 50 -t 1 WAN1 QOS mode is both Wan 1 is XDSL model ,don,t need to set up Wan 1 is XDSL model ,don,t need to set up WAN1 class 3 ratio set to 20 Vigor2860 Series User’s Guide...
  • Page 691 WAN1 udp bandwidth control set to enable WAN1 udp bandwidth limit ratio set to 50 WAN1 Outbound TCP ACK Prioritizel set to enable QoS WAN1 set complete; restart QoS > Vigor2860 Series User’s Guide...

  • Page 692: Telnet Command: Qos Class

    – It means Range address. Please specify the IP addresses, for example, “-l 172.16.3.9: 172.16.3.50.” addr1:subnet – It means the subnet address with start IP address. Please type the subnet and the IP address, for example, “-l 172.16.3.9:255.255.0.0”.0 Vigor2860 Series User’s Guide...
  • Page 693 […] It means that you can type in several commands in one line. > qos class -c 2 -n draytek -a -m 1 -l 192.168.1.50:192.168.1.80 Following setting will set in the class2 class 2 name set to draytek Add a rule in class2...

  • Page 694: Telnet Command: Qos Type

    -t <type> It means protocol type. tcp(default) tcp/udp <1~254>: other -p <port> It means service port. The typing format must be [start:end] (ex., 510:330). List user defined types. “no” means the index number. Available numbers are 1~40. Vigor2860 Series User’s Guide...

  • Page 695: Telnet Command: Quit

    > qos type -a draytek -t 6 -p 510:1330 service name set to draytek service type set to 6:TCP Port type set to Range Service Port set to 510 ~ 1330 > This command can exit the telnet command screen.

  • Page 696: Telnet Command: Show Dmz

    Index Status Comment Local IP Address ******************************************************** No data entry. This command displays current status of NAT. > show nat Port Redirection Running Table: Index Protocol Public Port Private IP Private Port 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 Vigor2860 Series User’s Guide...

  • Page 697: Telnet Command: Show Portmap

    Level2: It will be applied when the NAT sessions are smaller than the eighth of the default setting. > show pmtime Level0 TCP=86400001 UDP=300001 ICMP=10001 Level1 TCP=600000 UDP=90000 ICMP=7000 Level2 TCP=60000 UDP=30000 ICMP=5000 This command displays current status of current session. Vigor2860 Series User’s Guide...

  • Page 698: Telnet Command: Show Status

    DS Interleave Depth US Interleave Depth : NE Current Attenuation : 0 dB Cur SNR Margin 0 dB DS actual PSD 0. 0 dB US actual PSD 0. 0 ADSL Firmware Version : 05-04-04-04-00-01 -------------------------------- ATU-C Info --------------------------------- Vigor2860 Series User’s Guide...

  • Page 699: Telnet Command: Show Statistic

    WAN1 total TX: 0 Bytes ,RX: 0 Bytes WAN2 total TX: 0 Bytes ,RX: 0 Bytes WAN3 total TX: 0 Bytes ,RX: 0 Bytes WAN4 total TX: 0 Bytes ,RX: 0 Bytes WAN5 total TX: 0 Bytes ,RX: 0 Bytes > Vigor2860 Series User’s Guide...

  • Page 700: Telnet Command: Srv Dhcp Badip

    It means removing the selected MAC address. It means to specify MAC Address of the host. MAC Addr all/ALL It means all of the MAC addresses. Vigor> ip route add 192.168.1.56 255.255.255.0 192.168.1.12 3 default Vigor> srv dhcp public status Vigor2860 Series User’s Guide...

  • Page 701: Telnet Command: Srv Dhcp Dns1

    DHCP server. DNS IP address It means the IP address that you want to use as DNS2. Note: The IP Routed Subnet DNS must be the same as NAT Subnet DNS). > srv dhcp dns2 10.1.1.1 Vigor2860 Series User’s Guide...
  • Page 702 % srv dhcp dns2 <DNS IP address> % Now: 10.1.1.1 (IP Routed Subnet dns same as NAT Subnet dns) Vigor2860 Series User’s Guide...

  • Page 703: Telnet Command: Srv Dhcp Frcdnsmanl

    It means to display current gateway that you can use. Gateway IP It means to specify a gateway address used for DHCP server. > srv dhcp gateway 192.168.2.1 This setting will take effect after rebooting. Please use "sys reboot" command to reboot the router. Vigor2860 Series User’s Guide...

  • Page 704: Telnet Command: Srv Dhcp Ipcnt

    It means the IP address that you want to used as DHCP server. Index It means subnet 1 or 2. Please type 1 or 2. The router will invoke this function according to the subnet 1 or 2 specified here. > srv dhcp relay servip 192.168.1.46 Vigor2860 Series User’s Guide...

  • Page 705: Telnet Command: Srv Dhcp Startip

    This command can display general information for the DHCP server, such as IP address, MAC address, leased time, host ID and so on. > srv dhcp status DHCP server: Relay Agent Default gateway: 192.168.1.1 Index IP Address MAC Address Leased Time HOST ID 192.168.1.113 00-05-5D-E4-D8-EE 17:20:08 A1000351 Vigor2860 Series User’s Guide...

  • Page 706: Telnet Command: Srv Dhcp Leasetime

    <count> Parameter Description count It means to specify a type for node. 1. B-node 2. P-node 4. M-node 8. H-node > srv dhcp nodetype 1 > srv dhcp nodetype ? %% srv dhcp nodetype <count> Vigor2860 Series User’s Guide...
  • Page 707 %% 1. B-node 2. P-node 4. M-node 8. H-node % Now: 1 Vigor2860 Series User’s Guide...

  • Page 708: Telnet Command: Srv Dhcp Primwins

    It means the IP address of secondary WINS server. clear It means to remove the IP address settings of second WINS server. > srv dhcp secWINS 192.168.1.180 > srv dhcp secWINS ? %% srv dhcp secWINS <WINS IP address> %% srv dhcp secWINS clear Vigor2860 Series User’s Guide...
  • Page 709 % Now: 192.168.1.180 Vigor2860 Series User’s Guide...

  • Page 710: Telnet Command: Srv Dhcp Expired_Recycleip

    -e [1 or 0] -c [option number] -v [option value] srv dhcp option -e [1 or 0] -c [option number] -a [option value] srv dhcp option -e [1 or 0] -c [option number] -x [option value] srv dhcp option -u [idx unmber] Vigor2860 Series User’s Guide...
  • Page 711 It means the index number of the option value. > srv dhcp option -e 1 -c 18 -v /path > srv dhcp option -l % state idx interface opt type data % enable 1 ALL LAN 18 ASCII /path Vigor2860 Series User’s Guide...

  • Page 712: Telnet Command: Srv Nat Dmz

    It means to remove DMZ host setting. It means to display current status. > srv nat dmz 1 1 -i 192.168.1.96 > srv nat dmz -v WAN1 DMZ mapping status: Index Status WAN1 aux IP Private IP ---------------------------------------------------- Disable 0.0.0.0 192.168.1.96 Vigor2860 Series User’s Guide...

  • Page 713: Telnet Command: Srv Nat Ipsecpass

    The range is from 1 to 10. [<command> The available commands with parameters are listed below. <parameter>|…] […] means that you can type in several commands in one line. -a <enable> It means to enable or disable the open port rule profile. Vigor2860 Series User’s Guide...
  • Page 714 > srv nat openport 1 1 -a 1 -c games -i 192.168.1.100 -w 1 -p TCP -s 23 -e 83 > srv nat openport -v %% Status: Enable %% Comment: games %% Private IP address: 192.168.1.100 Index Protocal Start Port End Port ***************************************************************** Vigor2860 Series User’s Guide...

  • Page 715: Telnet Command: Srv Nat Portmap

    Private IP and Port of the internal host. pri ip It means to specify the private IP address of the internal host providing the service. pri port It means to specify the private port number of the service offered by the internal host. Vigor2860 Series User’s Guide...
  • Page 716 It means to display Port Redirection Configuration Table. > srv nat portmap add 1 game tcp 80 192.168.1.11 100 wan1 > srv nat portmap table NAT Port Redirection Configuration Table: Index Service Name Protocol Public Port Private IP Private Port ifno game 192.168.1.11 Vigor2860 Series User’s Guide...

  • Page 717: Telnet Command: Srv Nat Showall

    0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 --- MORE --- ['q': Quit, 'Enter': New Lines, 'Space Bar': Next Page] This command allows users to view a summary of NAT port redirection setting, open port and DMZ settings. Vigor2860 Series User’s Guide...

  • Page 718: Telnet Command: Switch -I

    It means to turn on/off or display the data transmission [on/off/status/tx/rx] from the client. > switch -i 1 traffic on External Device NO. 1 traffic statistic function is enable This command is used to turn on the auto discovery for external devices. Vigor2860 Series User’s Guide...

  • Page 719: Telnet Command: Switch Off

    It means the index number of each item shown on the table. The range is from 1 to 8. It means to clear all of the data. > switch clear 1 Switch Data clear successful > switch clear -f Switch Data clear successful Vigor2860 Series User’s Guide...

  • Page 720: Telnet Command: Switch Query

    Edit an existed user account or create a new local user password account. [INDEX] – 1 ~8. There are eight profiles to be added / edited. Username – Type a new name for local user. Password – Type a password for local user. Vigor2860 Series User’s Guide...

  • Page 721: Telnet Command: Sys Bonjour

    It is used to disable/enable FTP service (0: disable, 1: enable). -s <enable> It is used to disable/enable SSH service (0: disable, 1: enable). It is used to disable/enable printer service (0: disable, 1: -p <enable> enable). Vigor2860 Series User’s Guide...
  • Page 722 -6 <enable> It is used to disable/enable IPv6 (0: disable, 1: enable). > sys bonjour -s 1 > Vigor2860 Series User’s Guide...

  • Page 723: Telnet Command: Sys Cfg

    [3] sys ? [4] sys cfg status [5] sys cfg ? This command displays current status of FTP server. sys ftpd on sys ftpd off Parameter Description It means to turn on the FTP server of the system. Vigor2860 Series User’s Guide...

  • Page 724: Telnet Command: Sys Domainname

    % Now: wan1 == clever, wan2 ==intelligent > This command displays the current interface connection status (UP or Down) with IP address, MAC address and Netmask for the router. > sys iface Interface 0 Ethernet: Status: UP Vigor2860 Series User’s Guide...
  • Page 725 Interface 8 Ethernet: Status: DOWN IP Address: 0.0.0.0 Netmask: 0x00000000 MAC: 00-50-7F-00-00-06 Interface 9 Ethernet: Status: DOWN IP Address: 0.0.0.0 Netmask: 0x00000000 MAC: 00-50-7F-00-00-07 --- MORE --- ['q': Quit, 'Enter': New Lines, 'Space Bar': Next Page] > Vigor2860 Series User’s Guide...

  • Page 726: Telnet Command: Sys Name

    [ASCII string] Parameter Description ASCII string It means the password for administrator. The maximum character that you can set is 23. > sys passwd admin123 > This command allows users to restart the router immediately. Vigor2860 Series User’s Guide...
  • Page 727 > sys reboot > Vigor2860 Series User’s Guide...

  • Page 728: Telnet Command: Sys Autoreboot

    > sys commit > This command can turn on TFTP server for upgrading the firmware. > sys tftpd % TFTP server enabled !!! This command can display current country code and wireless region of this device. Vigor2860 Series User’s Guide...

  • Page 729: Telnet Command: Sys Version

    ( 248B), used#: 26, cached#: Buf KMC120 ( 120B), used#: 67, cached#: Buf KMC56 ( 56B), used#: 20, cached#: Buf KMC24 ( 24B), used#: 58, cached#: Dynamic memory: 13107200B; 4573168B used; 190480B/0B in level 1/2 cache. Vigor2860 Series User’s Guide...

  • Page 730: Telnet Command: Sys Pollbuf

    This command can improve triple play quality. sys britask [on] sys britask [off] Parameter Description It means to turn on the bridge task for improving the triple play quality. It means to turn off the bridge task. Vigor2860 Series User’s Guide...

  • Page 731: Telnet Command: Sys Tr069

    It means to save the parameters to the flash memory of the router. Inform [event code] It means to inform parameters for tr069 with different event codes. [event code] includes: Vigor2860 Series User’s Guide...
  • Page 732 > sys tr069 get Int. nextlevel Total number of parameter is 24 Total content length of parameter is 915 InternetGatewayDevice.LANDeviceNumberOfEntries InternetGatewayDevice.WANDeviceNumberOfEntries InternetGatewayDevice.DeviceInfo. InternetGatewayDevice.ManagementServer. InternetGatewayDevice.Time. InternetGatewayDevice.Layer3Forwarding. InternetGatewayDevice.LANDevice. InternetGatewayDevice.WANDevice. InternetGatewayDevice.Services. InternetGatewayDevice.X_00507F_InternetAcc. InternetGatewayDevice.X_00507F_LAN. InternetGatewayDevice.X_00507F_NAT. InternetGatewayDevice.X_00507F_Firewall. InternetGatewayDevice.X_00507F_Bandwidth. InternetGatewayDevice.X_00507F_Applications. Vigor2860 Series User’s Guide...

  • Page 733: Telnet Command: Sys Sip_Alg

    SIP ALG is disabled This command can process the system license. sys license licmsg sys license licauth sys license regser sys license licera sys license licifno sys license lic_wiz [set/reg/qry] sys license dev_chg sys license dev_key Vigor2860 Series User’s Guide...

  • Page 734: Telnet Command: Sys Diag_Log

    Download interface is "auto-selected" now. This command is used for RD debug. sys diag_log [status| enable| disable| flush| lineno [w] | level [x] | feature [on|off] [y]| log] Parameter Description status It means to show the status of diagnostic log. Vigor2860 Series User’s Guide...
  • Page 735 [DSL] xtseCfg=04 00 04 00 0c 01 00 07 0:00:02 [DSL] don't have last showtime mode!! set next mode to VDSL!! 0:00:02 [DSL] Status has changed: Stopped(0) -> FwWait(3) 0:00:02 [DSL] Status has changed: FwWait(3) -> Starting(1) Vigor2860 Series User’s Guide...

  • Page 736: Telnet Command: Testmail

    This command is used to display current settings for sending test mail. > testmail Send out test mail Mail Alert:[Disable] SMTP_Server:[0.0.0.0] Mail to:[] Return-Path:[] This command can close UPnP function. >upnp off UPNP say bye-bye This command can enable UPnP function. Vigor2860 Series User’s Guide...

  • Page 737: Telnet Command: Upnp Nat

    PortMapLeaseDuration >>0<<, PortMapEnabled >>0<< 0<< --- MORE --- ['q': Quit, 'Enter': New Lines, 'Space Bar': Next Page] --- This command can display the information of the UPnP service. UPnP service must be enabled first. > upnp on UPNP start. Vigor2860 Series User’s Guide...

  • Page 738: Telnet Command: Upnp Subscribe

    /upnp?event=WANCommonIFC1 uuid:2608d902-03e2-46a5-9968-4a54ca499148 This command can show all UPnP services subscribed. > upnp on UPNP start. > upnp subscribe Vigor> upnp subscribe >>>> (1) serviceType urn:schemas-microsoft-com:service:OSInfo:1 ----- Subscribtion1 ------- sid = 7a2bbdd0-0047-4fc8-b870-4597b34da7fb eventKey =1, ToSendEventKey = 1 Vigor2860 Series User’s Guide...

  • Page 739: Telnet Command: Upnp Tmpvs

    Vigor> upnp tmpvs ****************** Temp virtual server status **************** ((0)) real_addr >>192.168.1.10<<, pseudo_addr >>172.16.3.229<< real_port >>0<<, pseudo_port >>0<< hit_portmap_index >>0<< The protocol >>TCP<< time >>0<< ((1)) real_addr >>0.0.0.0<<, pseudo_addr >>0.0.0.0<< real_port >>0<<, pseudo_port >>0<< hit_portmap_index >>0<< Vigor2860 Series User’s Guide...
  • Page 740 The protocol >>0<< time >>0<< --- MORE --- ['q': Quit, 'Enter': New Lines, 'Space Bar': Next Page] Vigor2860 Series User’s Guide...

  • Page 741: Telnet Command: Upnp Wan

    Bandluxe C330 3.5G BandRich Bandluxe C331 3.5G BandRich Bandluxe C502 3.5G Huawei Huawei E169u 3.5G Huawei Huawei E220 3.5G Huawei Huawei E303D 3.5G Huawei Huawei E392 3.5G Huawei Huawei E398 3.5G Sony Erics Sony Ericsson MD30 3.5G Vigor2860 Series User’s Guide...

  • Page 742: Telnet Command: Vigbrg On

    This command can disable vigor bridge function. > vigbrg off %Disable Vigor Bridge Function! This command can show whether the Vigor Bridge Function is enabled or disabled. > vigbrg status %Vigor Bridge Function is enable! %Wan1 management is disable! Vigor2860 Series User’s Guide...

  • Page 743: Telnet Command: Vigbrg Cfgip

    [list index] peerid [peerid] vpn l2lset [list index] localid [localid] vpn l2lset [list index]main [auto/proposal index] vpn l2lset [list index] aggressive [g1/g2] vpn l2lset [list index]pfs [on/off] vpn l2lset [list index] phase1[lifetime] vpn l2lset [list index] phase2[lifetime] Vigor2860 Series User’s Guide...

  • Page 744: Telnet Command: Vpn L2Ldrop

    > vpn l2lDrop > This command allows users to configure setting for remote dial-in VPN profile. vpn dinset <list index> vpn dinset <list index> <on/off> vpn dinset <list index> motp <on/off> vpn dinset <list index> pin_secret <pin> <secret> Vigor2860 Series User’s Guide...
  • Page 745 > vpn dinset 1 Dial-in profile index 1 Profile Name: ??? Status: Deactive Mobile OTP: Disabled Password: Idle Timeout: 300 sec > vpn dinset 1 on % set profile active > vpn dinset 1 motp on Vigor2860 Series User’s Guide...

  • Page 746: Telnet Command: Vpn Subnet

    1 – it means LAN1 2 – it means LAN2. 3 – it means LAN3 4 – it means LAN4. 5 – it means LAN51 6 – it means LAN6. > vpn subnet 1 2 > Vigor2860 Series User’s Guide...

  • Page 747: Telnet Command: Vpn Setup

    It means the IP address to dial to. <key> It means the value of IPsec Pre-Shared Key. <nip> <nmask> It means the remote network IP and the mask. e.g., vpn setup 1 name1 ipsec_out 1.2.3.4 1234 192.168.1.0 255.255.255.0 Vigor2860 Series User’s Guide...
  • Page 748 192.168.1.0 255.255.255.0 > vpn setup 1 name1 dialin 1.2.3.4 vigor 1234 abc 192.168.1.0 255.255.255.0 % Profile Change Log ... % Profile Index : 1 % Profile Name : name1 % Username : vigor % Password : 1234 Vigor2860 Series User’s Guide...

  • Page 749: Telnet Command: Vpn Option

    – WAN1 Only. w2f – WAN2 First. w2o – WAN2 Only. nnpkt It means the NetBios Naming Packet. on – Enable the function to pass the packet. off – Disable the function to block the packet. Vigor2860 Series User’s Guide...
  • Page 750 “ctype= l2” means L2TP(IPSec Policy Must). It means Server IP/Host Name for VPN. (such dialto as draytek.com or 123.45.67.89). ltype It means Link Type. “ltype=0” means “Disable”. “ltype=1” means “64kbps”. “ltype=2” means “128kbps”. “ltype=3” means “BOD”. oname It means Dial-Out Username. Vigor2860 Series User’s Guide...
  • Page 751 “rcallb=on/off” means to enable/disable Set Require Remote to Callback. ikeid It means IKE Local ID. “ikeid=vigor” means Set Local ID = vigor. For Dial-In Settings itype It means Allowed Dial-In Type. Available settings include: “itype=t” means PPTP. Vigor2860 Series User’s Guide...
  • Page 752 Type “off” means any remote IP is allowed to dial in. peerid It means the peer ID for Remote VPN Gateway. Type “draytek” means the word is used as local ID. iname It means Dial-in Username. “iname=admin” means to set username as “admin”.

  • Page 753: Telnet Command: Vpn Mroute

    % Idle Timeout = 250 This command allows users to list, add or delete static routes for a certain LAN to LAN VPN profile. vpn mroute <index> list vpn mroute <index> add <network ip>/<mask> vpn mroute <index> del <network ip>/<mask> Vigor2860 Series User’s Guide...

  • Page 754: Telnet Command: Vpn List

    It means to list dial-out settings of the specified profile. It means to list dial-in settings of the specified profile. It means to list Network Settings of the specified profile. <index> It means the index number of the profile. Available index numbers: 1 ~ 32 Vigor2860 Series User’s Guide...
  • Page 755 ['q': Quit, 'Enter': New Lines, 'Space Bar': Next Page] --- > vpn list 1 com % Common Settings % Profile Name : ??? % Profile Status : Disable % Netbios Naming Packet : Pass % Call Direction : Both Vigor2860 Series User’s Guide...

  • Page 756: Telnet Command: Vpn Remote

    This command allows users to enable second subnet IP as VPN server IP. vpn 2ndsubnet on vpn 2ndsubnet off Parameter Description on/off It means to enable or disable second subnet. > vpn 2ndsubnet on %Enable second subnet IP as VPN server IP! Vigor2860 Series User’s Guide...

  • Page 757: Telnet Command: Vpn Mss

    <connection type> <TCP maximum segment size range> Parameter Description show It means to display current setting status. default TCP maximum segment size for all the VPN connection will be set as 1360 bytes. Vigor2860 Series User’s Guide...

  • Page 758: Telnet Command: Vpn Ike

    L2TP = 1360 IPSec = 1360 L2TP over IPSec = 1360 This command is used to display IKE memory status and leakage list. vpn ike -q > vpn ike -q IKE Memory Status and Leakage List Vigor2860 Series User’s Guide...

  • Page 759: Telnet Command: Vpn Multicast

    This command allows users to determine if the packets coming from the second subnet passing through current used VPN tunnel. vpn pass2nd[on] vpn pass2nd [off] Parameter Description on – the packets can pass through NAT. on/off off – the packets cannot pass through NAT. > vpn pass2nd on Vigor2860 Series User’s Guide...

  • Page 760: Telnet Command: Vpn Pass2Nat

    Vigor130, the number is 1 (which means WAN1). <MRU size > It means the number of PPP LCP MRU. The available range is from 1400 to 1600. wan ppp_mru 1 ? > % Now: 1492 > wan ppp_mru 1 1490 > Vigor2860 Series User’s Guide...

  • Page 761: Telnet Command: Wan Mtu

    % wan ppp_mss <MSS size: 1000 ~ 1500> % Now: 1100 This command allows you to enable or disable the function of DF (Don’t fragment) wan DF_check [on] wan DF_check [off] Parameter Description on/off It means to enable or disable DF. Vigor2860 Series User’s Guide...
  • Page 762 > wan DF_check on %DF bit check enable! Vigor2860 Series User’s Guide...

  • Page 763: Telnet Command: Wan Disable

    %WAN forwarding is enable! This command allows you to display the status of WAN connection, including connection mode, TX/RX packets, DNS settings and IP address. > wan status WAN1: Offline, stall=N Mode: ---, Up Time=00:00:00 IP=---, GW IP=--- Vigor2860 Series User’s Guide...

  • Page 764: Telnet Command: Wan Vdsl

    It means to display current VDSL status. fbk_mode It means to display current status of Fallback Mode used. Available modes to be set as fallback mode include, Auto Vdsl_only Adsl_only > wan vdsl show basic Vigor2860 Series User’s Guide...

  • Page 765: Telnet Command: Wan Detect

    It means to set the ping TTL value (work as trace route) If you do not set any value for ttl here or just type 0 here, the system will use default setting (255) as the ttl value. status It means to show the current status. Vigor2860 Series User’s Guide...

  • Page 766: Telnet Command: Wan Lb

    It means to specify which WAN will be applied with load balance. It means to make WAN interface as the member of load balance. It means to cancel WAN interface as the member of load balance. Vigor2860 Series User’s Guide...

  • Page 767: Telnet Command: Wan Mvlan

    It means to tag a number for the VLAN. -1: No need to add tag number. 1-4095: Available setting numbers used as tagged number. service type It means to specify the service type for VLAN. 0: Normal. 1: IGMP. Vigor2860 Series User’s Guide...

  • Page 768: Telnet Command: Wan Multifno

    Available settings are: 1=Channel 1 3=Channel 3 4=Channel 4 5=Channel 5 WAN interface # Type a number to indicate the WAN interface. 1=WAN1 status It means to display current bridge status. > wan multifno 5 1 Vigor2860 Series User’s Guide...
  • Page 769 % Configured channel 5 uplink to WAN1 > wan multifno status % Channel 3 uplink ifno: 3 % Channel 4 uplink ifno: 3 % Channel 5 uplink ifno: 3 % Channel 6 uplink ifno: 3 % Channel 7 uplink ifno: 3 > Vigor2860 Series User’s Guide...

  • Page 770: Telnet Command: Wl Acl

    It means to set white/black list for each SSID. ssid4] [white/black] wl acl show It means to show access control status. wl acl showmode It means to show the mode for each SSID. wl acl clean It means to clean all access control setting. Vigor2860 Series User’s Guide...

  • Page 771: Telnet Command: Wl Config

    [ssid_num enable ssid_name [hidden_ssid]] wl config security [SSID_NUMBER] [mode] wl config ratectl [ssid_num enable upload download ] wl config isolate [ssid_num lan member] Parameter Description mode[value] It means to select connection mode for wireless connection. Vigor2860 Series User’s Guide...
  • Page 772 [hidden_ssid]] ssid_num: Type 1, 2, 3 or 4 to specify SSID1, SSID2, SSID3 or SSID4. ssid_name: Give a name for the specified SSID. hidden_ssid: Type 0 to hide the SSID or 1 to display the SSID Vigor2860 Series User’s Guide...
  • Page 773 It means to configure the rate control for data upload. The unit is kbps. download: It means to configure the rate control for data download. The unit is kbps. It means to isolate the wireless connection for LAN isolate [ssid_num lan member] and/or Member. Vigor2860 Series User’s Guide...

  • Page 774: Telnet Command: Wl Set

    This command allows users to configure basic wireless settings. wl set [SSID] [CHAN[En]] wl set txburst [enable] Parameter Description SSID It means to type the SSID for the router. The maximum character that you can use is 32. Vigor2860 Series User’s Guide...

  • Page 775: Telnet Command: Wl Act

    [En] Parameter Description It means to enable or disable the function of VPN isolation. 0: diable 1: enable > wl act on % Set Wlan to Enable. This command allows users to perform AP scanning. Vigor2860 Series User’s Guide...
  • Page 776 It is used to show AP list. 0 - display white list 1 - display block list, 2 - display gray/unknown list, 3 - display all list wl scan set wlist 001122aabbcc > wl scan start > Vigor2860 Series User’s Guide...

  • Page 777: Telnet Command: Wl Stamgt

    It means reconnection time. The unit is minute. > wl stamgt enable 1 % Station Management Status: enabled > wl stamgt set 1 60 60 > wl stamgt show 1 NO. SSID BSSID Connect time Reconnect time Draytek 00:11:22:aa:bb:cc 0d:0:58:26 0d:0:0 Vigor2860 Series User’s Guide...

  • Page 778: Telnet Command: Wl Iso_Vpn

    This command allows you to configure WPA wireless settings. wl wpa 1/2/3 Parameter Description wl wpa Type 1/2/3 to represent different WPA modes. 1 – means WPA+WPA2 2 – means WPA2 Only 3 – means WPA Only > wl wpa 1 > Vigor2860 Series User’s Guide...
  • Page 779 CWMin means contention Window-Min and CWMax means contention Window-Max. Specify the value ranging from 1 to 15. Txop It means transmission opportunity. Specify the value ranging from 0 to 65535. It can restrict stations from using specific category class Vigor2860 Series User’s Guide...

  • Page 780: Telnet Command: Wl Ht

    Parameter Description Vigor2860 Series User’s Guide...

  • Page 781: Telnet Command: Wl Restart

    > wl ht bw value 1 BW=0 <Note> Please restart wireless after you set new parameters. > wl restart Wireless restart....This command allows you to restart wireless setting. > wl restart Wireless restart....Vigor2860 Series User’s Guide...

  • Page 782: Telnet Command: Wl Btnctl

    & These two commands are reserved for RD debug. Do not use them. This command is used to configure parameters related to wireless RF hardware. At present, it is not allowed for end user to operate. Vigor2860 Series User’s Guide...

  • Page 783: Telnet Command: Wan Vlan

    LAN client. You also need to set NAT rule for LAN client. wol up [MAC Address]/[IP Address] wol fromWan [on/off/any] wol fromWan_Setting [idx][ip address][mask] Parameter Description MAC Address It means the MAC address of the host. Vigor2860 Series User’s Guide...

  • Page 784: Telnet Command: User

    > wol fromWan_Setting 1 192.168.1.45 255.255.255.0 > The command is used to create new user account profiles. User set [-e|-d|-c|-l|-o|-a|-r|-b] user edit [PROFILE_IDX] [-e|-d|-n|-p|-t|-u|-i|-q|-r|-w|-s|-m|-x|-v] user account [USER_NAME] [-t|-d|-q|-r|-w] Parameter Description It means to configure general setup for the user management. Vigor2860 Series User’s Guide...
  • Page 785 Unblock specifies user or IP address. -u user [user name] -u ip [ ip address] user name – type the user name that you want to unblock. ip address –– type the IP address that you want to Vigor2860 Series User’s Guide...
  • Page 786 It means to enable /disable time quota limitation for user profile 0:Disable 1:Enable It means to enable /disable data quota limitation for user profile 0:Disable 1:Enable It means to set idle time. e.g., -i 60 set time quota Vigor2860 Series User’s Guide...
  • Page 787 It means to enable /disable time quota limitation for user account. 0:Disable 1:Enable It means to enable /disable data quota limitation for user account. 0:Disable 1:Enable It means to set account time quota. e.g., -q 200 It means to set account data quota. Vigor2860 Series User’s Guide...

  • Page 788: Telnet Command: Nand Bad /Nand Usage

    1021 0x07fa0000 unused 1022 0x07fc0000 unused 1023 0x07fe0000 unused The apm command(s) is use to display, remove, discover or query the information of VigorAP registered to Vigor2860. apm show apm clear apm discover apm query Vigor2860 Series User’s Guide...

  • Page 789: Telnet Command: Apm Profile

    (index #1) should not be deleted. reset It is used to reset to factory settings for WLAN profile. summary It is used to list all of the APM profiles with required information. show It is used to display specified APM profile. Vigor2860 Series User’s Guide...

  • Page 790: Telnet Command: Apm Cache

    This command is used to display or remove the information of registered VigorAP, including MAC address, name, and authentication. Up to 30 entries of registered information can be stored and displayed. apm cache [show] apm cache clear Vigor2860 Series User’s Guide...

  • Page 791: Telnet Command: Apm Lbcfg

    1 – enable load balance, 0 – disable load balance. [2] – The second number means the station limit function. Type 1 –enable station limit, 0 – disable station limit. [3] – The third number means the traffic limit function. Vigor2860 Series User’s Guide...
  • Page 792 (for upload) 1 – Mbps 0 – kbps [10] – The tenth number means to determine the unit of traffic limit (for download) 1 – Mbps 0 – kbps > apm lbcfg show apm LoadBalance Config : Vigor2860 Series User’s Guide...

  • Page 793: Telnet Command: Apm Napdetect

    This command is used to enable/disable AP detection function. apm napdetect [get] apm napdetect [set] [enable/disable AP Detection 1/0][Refresh Time]. Parameter Description It is used to get AP detection data from VigorAP (e.g., AP900). It allows to set detect configuration to VigorAP. Vigor2860 Series User’s Guide...
  • Page 794 > apm napdetect set 1 1 > wl scan show 3 Sta Ch SSID BSSID BssType Security Siganl(%) Beacon Period First Detected Last Detected 11 DrayTek-LAN-B 02:1d:aa:4c:bd:a8 Mixed 11 DrayTek-LAN-A 00:1d:aa:4f:bd:a8 Mixed Dec 09,10:35:44 Dec 09,10:35:44 Vigor2860 Series User’s Guide...
