Draytek Vigor2860 Series User Manual page 537

Note: Reboot the CPE device and re-log into Vigor2860 series. CPE which has
registered to Vigor2860 series will be captured and displayed on the page of Central
VPN Management>>CPE Management.
4 4 . . 1 1 4 4 . . 3 3 C C h h e e c c k k C C P P E E
1. Return to the web user interface of Vigor2860 series.
2. Open Central VPN Management>>VPN Management. Now there is one CPE
displayed on the field of Unmanaged Devices List.

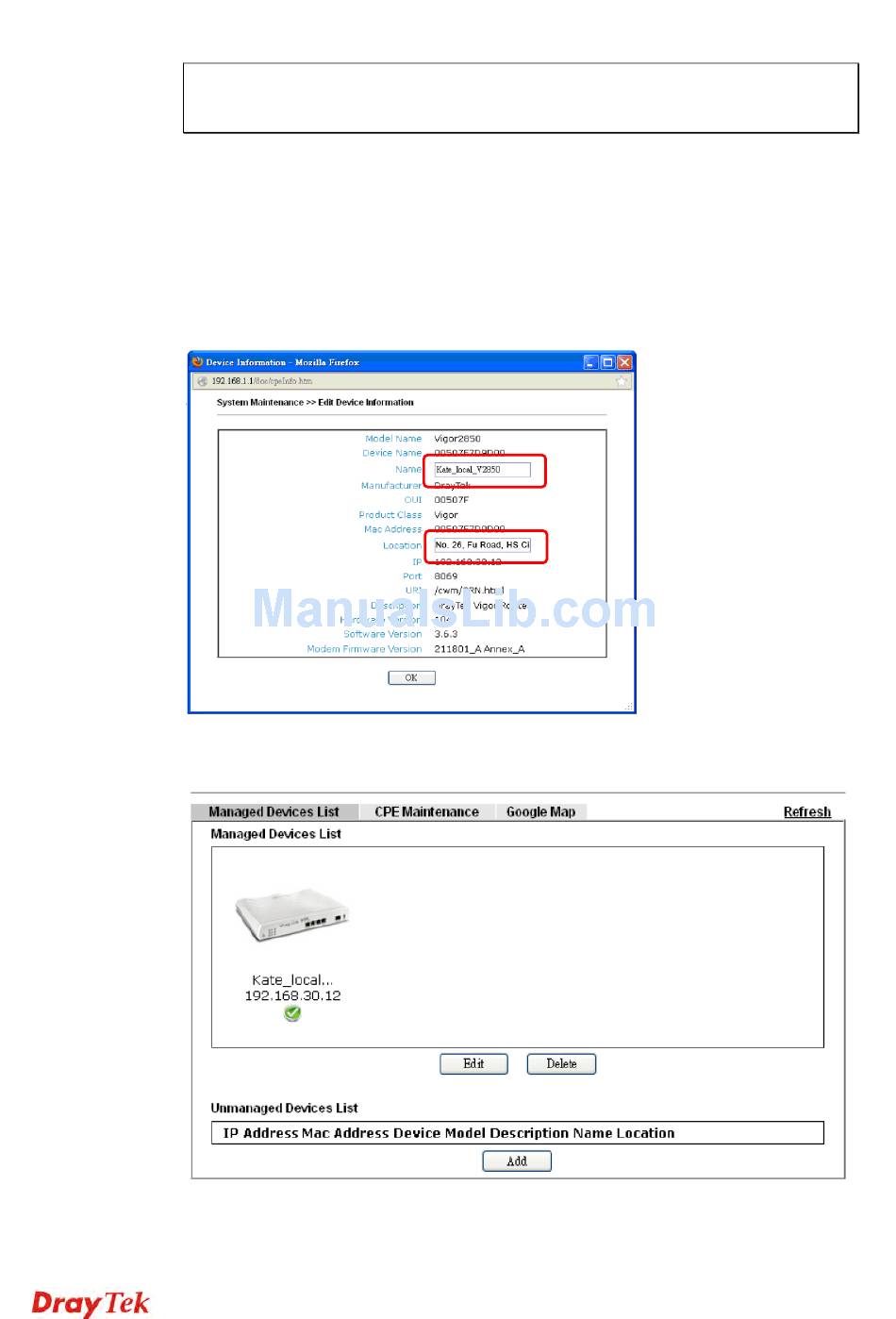

3. Choose the one (Vigor2850) from Unmanaged Devices List and click Add. The
following dialog will be popped up. Type the name and the location of the router
respectively. Click OK to save the configuration.
4. The selected CPE will be moved and displayed on Managed Devices List which means it
is controlled / managed by Vigor2860 series from now on.
M M a a i i n n t t e e n n a a n n c c e e P P a a g g e e
523
Vigor2860 Series User's Guide
