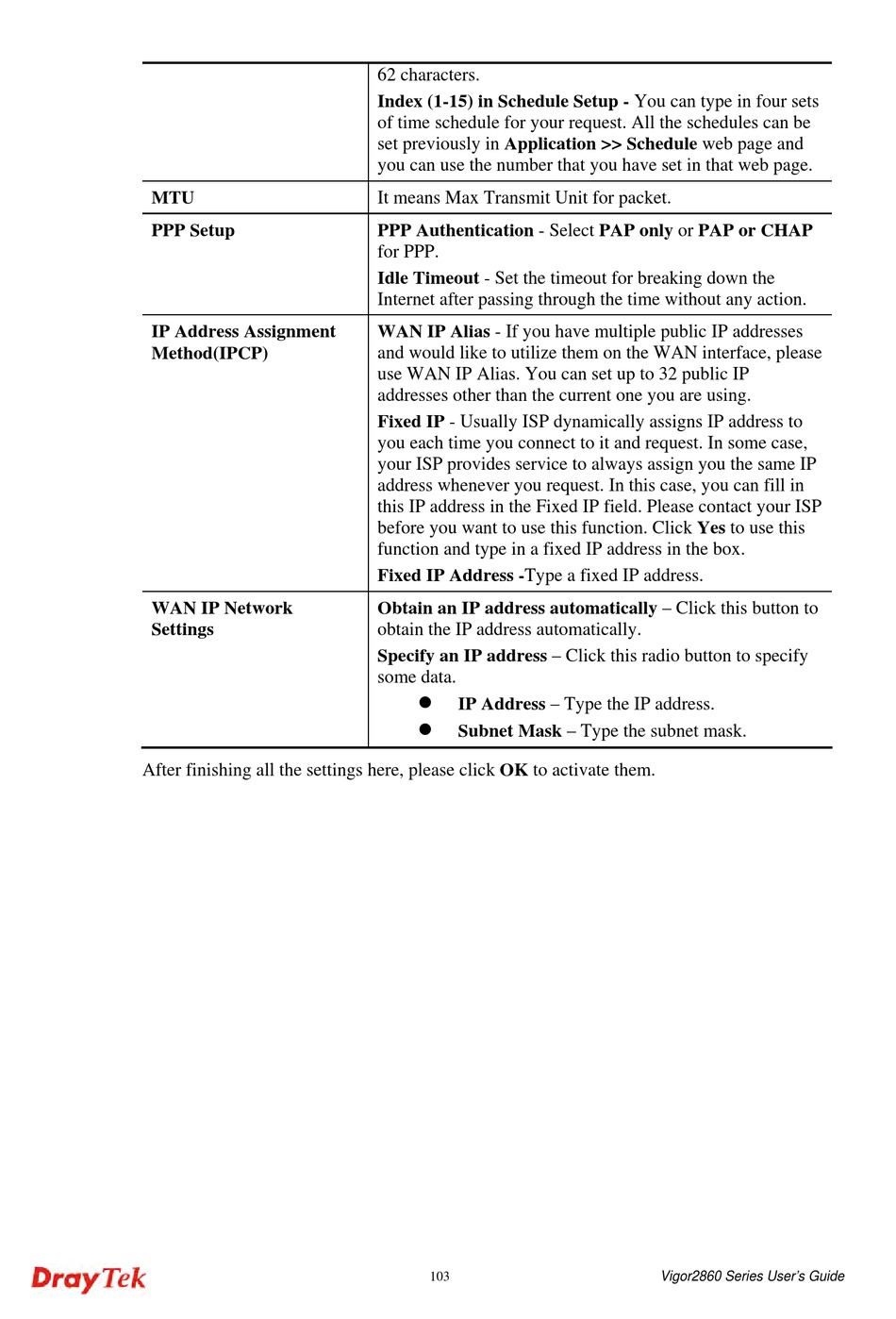

Draytek Vigor2860 Series User Manual page 117

MTU
PPP Setup
IP Address Assignment
Method(IPCP)
WAN IP Network
Settings
After finishing all the settings here, please click OK to activate them.
62 characters.
Index (1-15) in Schedule Setup - You can type in four sets
of time schedule for your request. All the schedules can be
set previously in Application >> Schedule web page and
you can use the number that you have set in that web page.
It means Max Transmit Unit for packet.
PPP Authentication - Select PAP only or PAP or CHAP
for PPP.
Idle Timeout - Set the timeout for breaking down the
Internet after passing through the time without any action.
WAN IP Alias - If you have multiple public IP addresses
and would like to utilize them on the WAN interface, please
use WAN IP Alias. You can set up to 32 public IP
addresses other than the current one you are using.
Fixed IP - Usually ISP dynamically assigns IP address to
you each time you connect to it and request. In some case,
your ISP provides service to always assign you the same IP
address whenever you request. In this case, you can fill in
this IP address in the Fixed IP field. Please contact your ISP
before you want to use this function. Click Yes to use this
function and type in a fixed IP address in the box.
Fixed IP Address -Type a fixed IP address.
Obtain an IP address automatically – Click this button to
obtain the IP address automatically.
Specify an IP address – Click this radio button to specify
some data.

IP Address – Type the IP address.

Subnet Mask – Type the subnet mask.
