CHAPTER 4

USING AND MAINTAINING THE INTERACTIVE WHITEBOARD

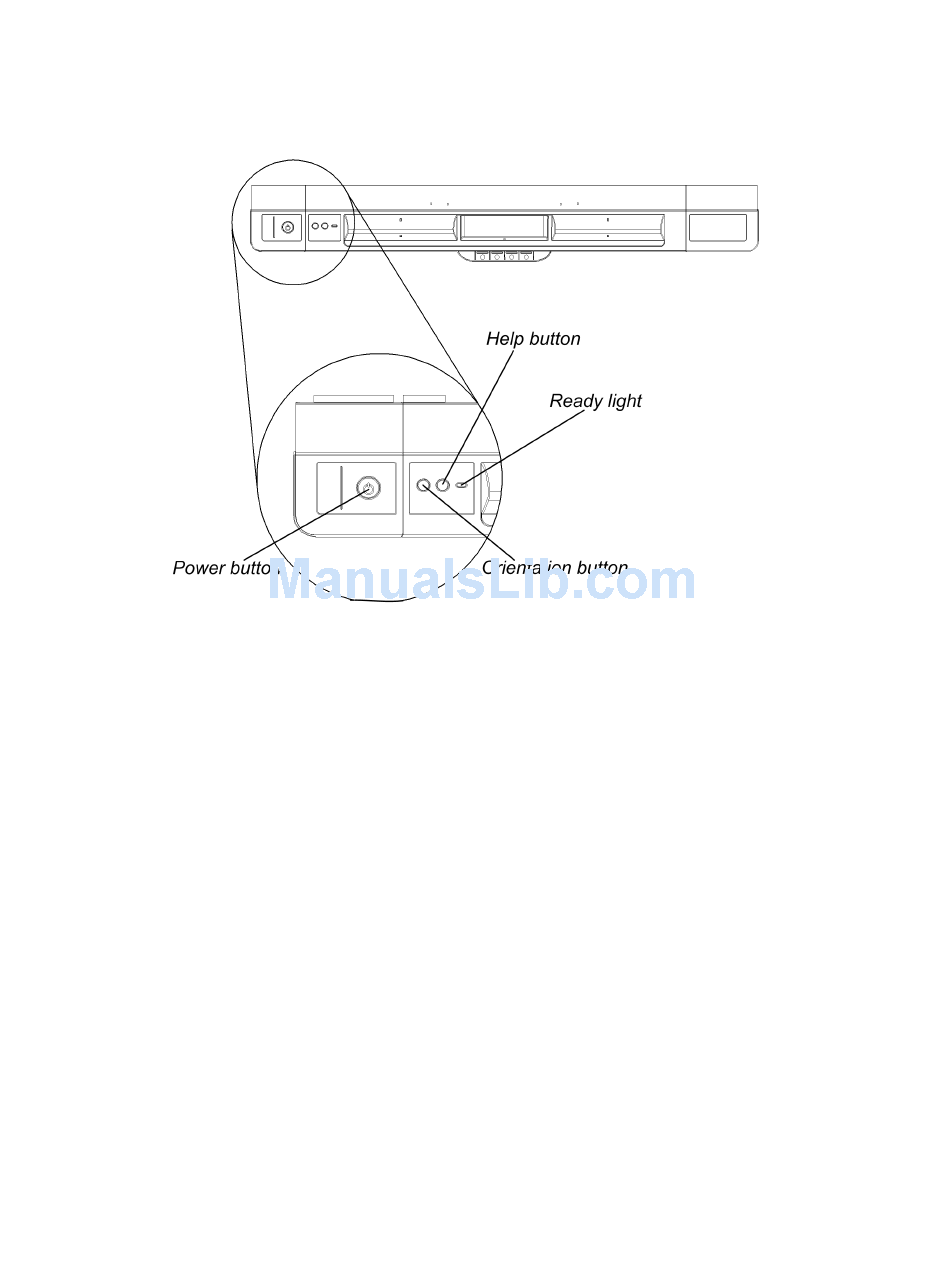

The Power module at the pen tray's left side has Power, Orientation and Help buttons, as well as

the Ready light.

Power button

Press this button to put your interactive whiteboard into Standby mode when it isn't in use, or to

restore full power to it when you need to use it. Ensure that the interactive whiteboard is

connected to your computer and to a wall power outlet.

Press this button to start the orientation process. Orienting your interactive whiteboard ensures that

the mouse pointer or digital ink appears directly below your finger or pen tray tool when you touch

the interactive surface. Refer to page 17 for information on performing an orientation procedure.

Press this button to access on-screen Help options, including links to online Help files,

troubleshooting options and contact information for SMART Support.

This light indicates the status of the interactive whiteboard's controller module. The Ready light is

solid green when the system is working properly.

smarttech.com/kb/144817
