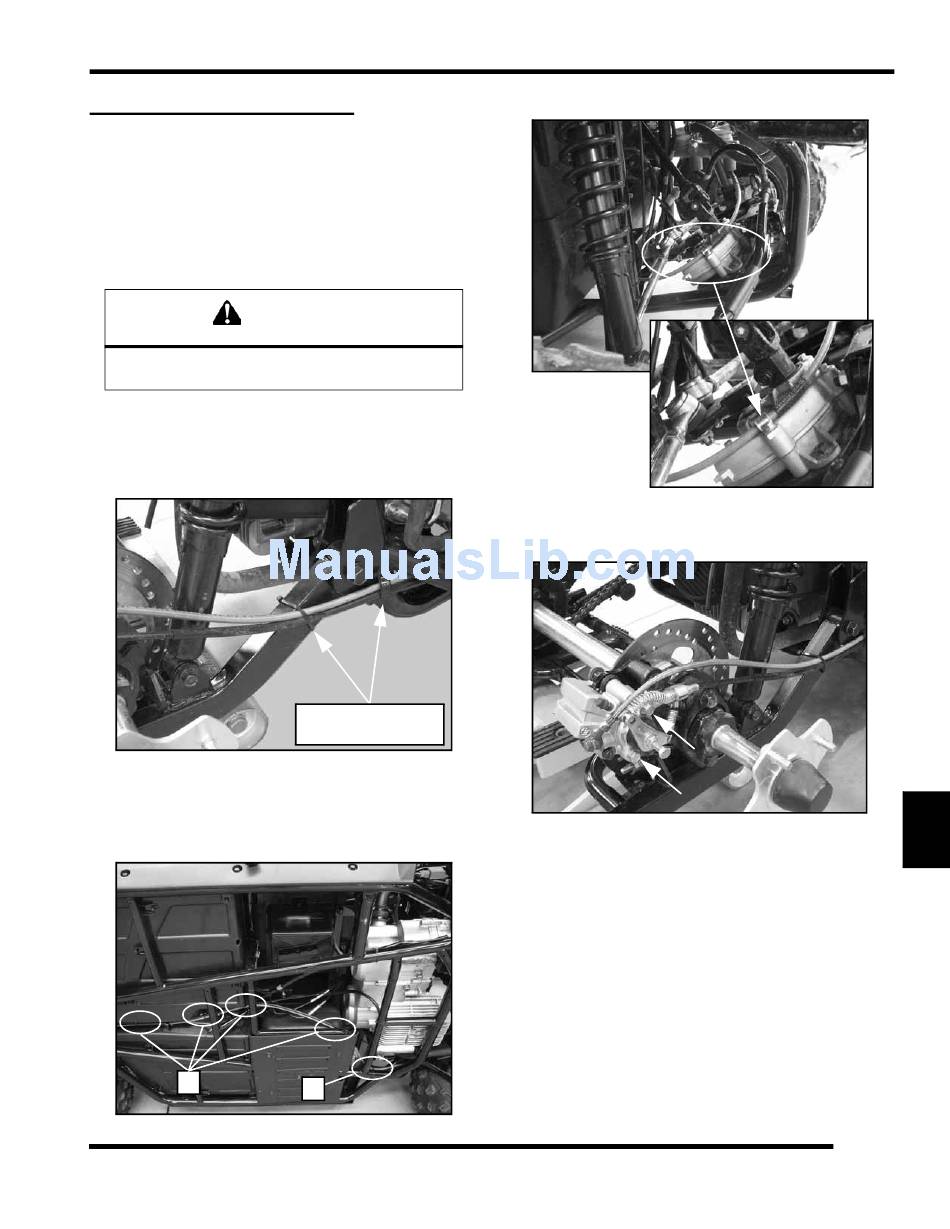

REAR CALIPER SERVICE

Rear Caliper Removal

NOTE: The caliper is not serviceable. The caliper
must be replaced as an assembly.
1. Elevate and safely support rear of vehicle.
2. Remove right wheel.
CAUTION
Use care when supporting vehicle so that it does not
tip or fall. Severe injury may occur.
3. Clean caliper, brake line, and banjo bolt before
removal, and note how rear brake line fitting is
oriented on caliper. If brake line is being replaced,
note how brake line is routed and secured.
4. Tie straps - secure brake line with throttle cable in
areas (A). Secure with parking brake cable to frame
in area (B).
A
Brake line with park
brake cable.
B
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
5. Front routing and clamp shown below.
6. Remove two bolts and separate parking brake lever
arm assembly from caliper or see NOTE below.
