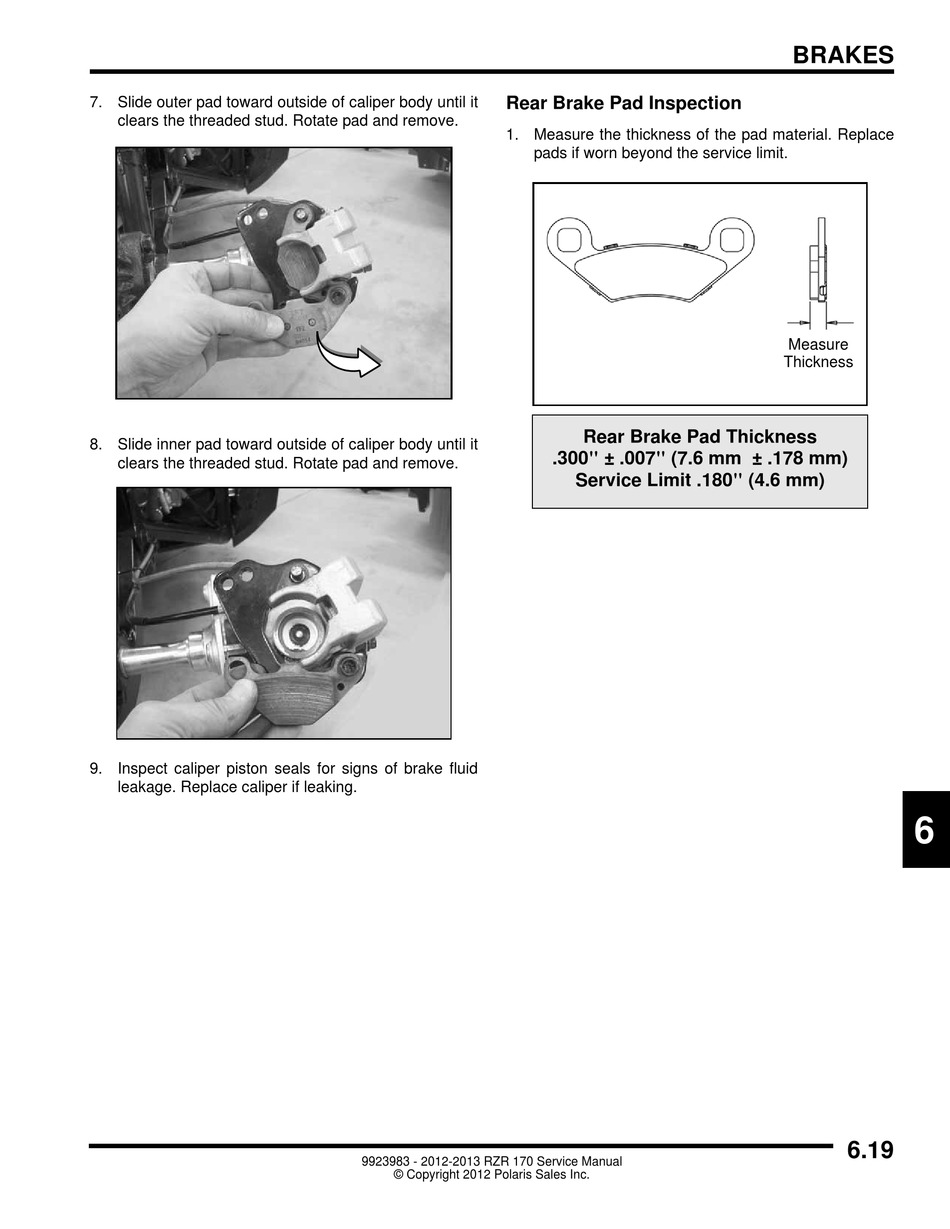

7. Slide outer pad toward outside of caliper body until it
clears the threaded stud. Rotate pad and remove.
8. Slide inner pad toward outside of caliper body until it
clears the threaded stud. Rotate pad and remove.
9. Inspect caliper piston seals for signs of brake fluid
leakage. Replace caliper if leaking.

Rear Brake Pad Inspection

1. Measure the thickness of the pad material. Replace
pads if worn beyond the service limit.
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
Rear Brake Pad Thickness
.300" ± .007" (7.6 mm ± .178 mm)
Service Limit .180" (4.6 mm)
BRAKES
Measure
Thickness
6
6.19
