Carburetor Disassembly - Keihin

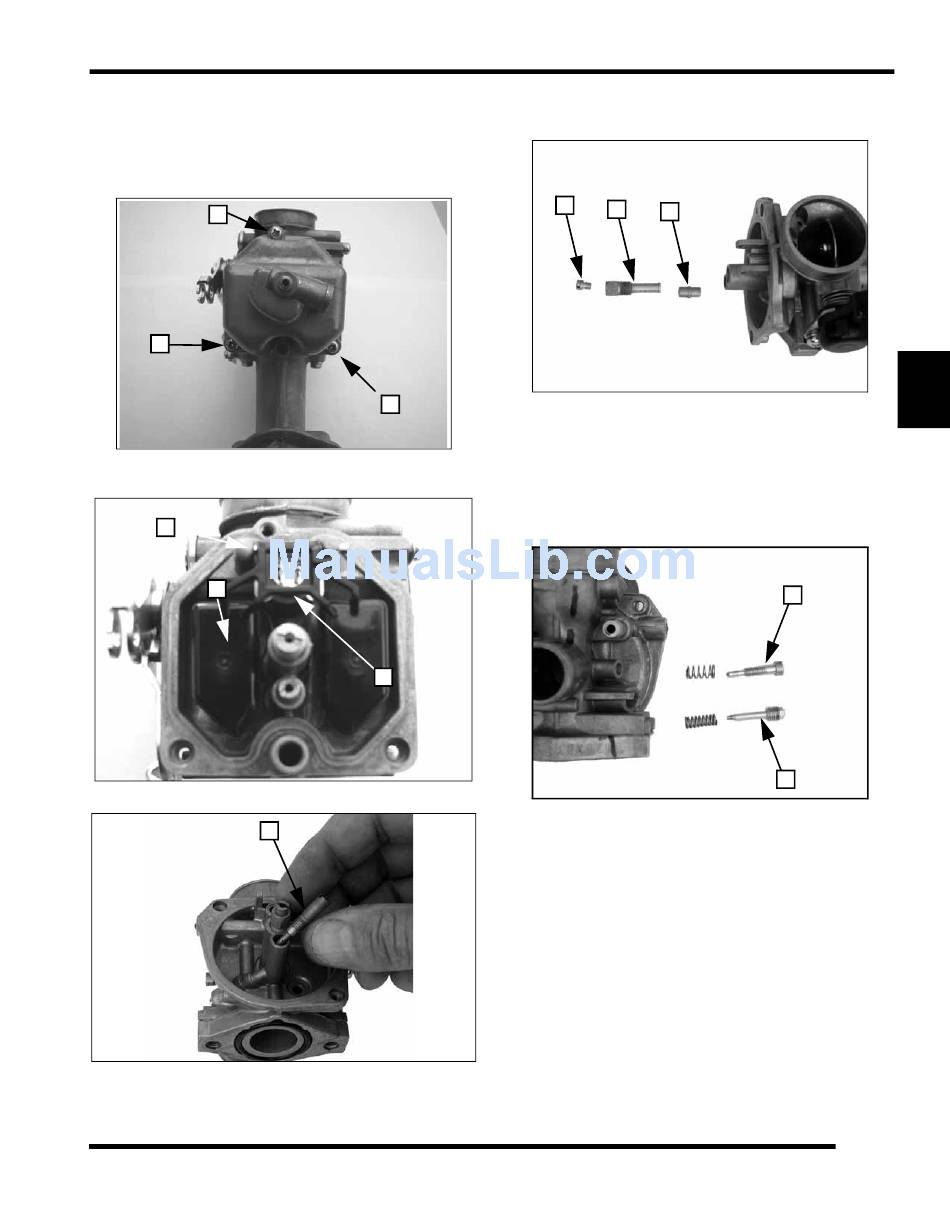

Use the following procedure to disassemble the Keihin
carburetor.
1. Remove the float bowl screws (A) and float bowl.
A
A
2. Remove the float pin (B), float (C), and inlet needle
(D).
B
C
3. Remove the pilot jet (E).
E
4. Remove the main jet (F), emulsion tube (G), and
needle jet (H) from the carburetor body.
A
NOTE: Typically, the needle jet (H) can be left in the
carburetor body and only requires removal if
damaged.
5. Note the position of both the pilot mixture screw (J)
and idle speed adjustment screw (K) and remove both
from the carb body.
D
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
FUEL SYSTEM
F
G
H
4
K
J
4.5
