ENGINE

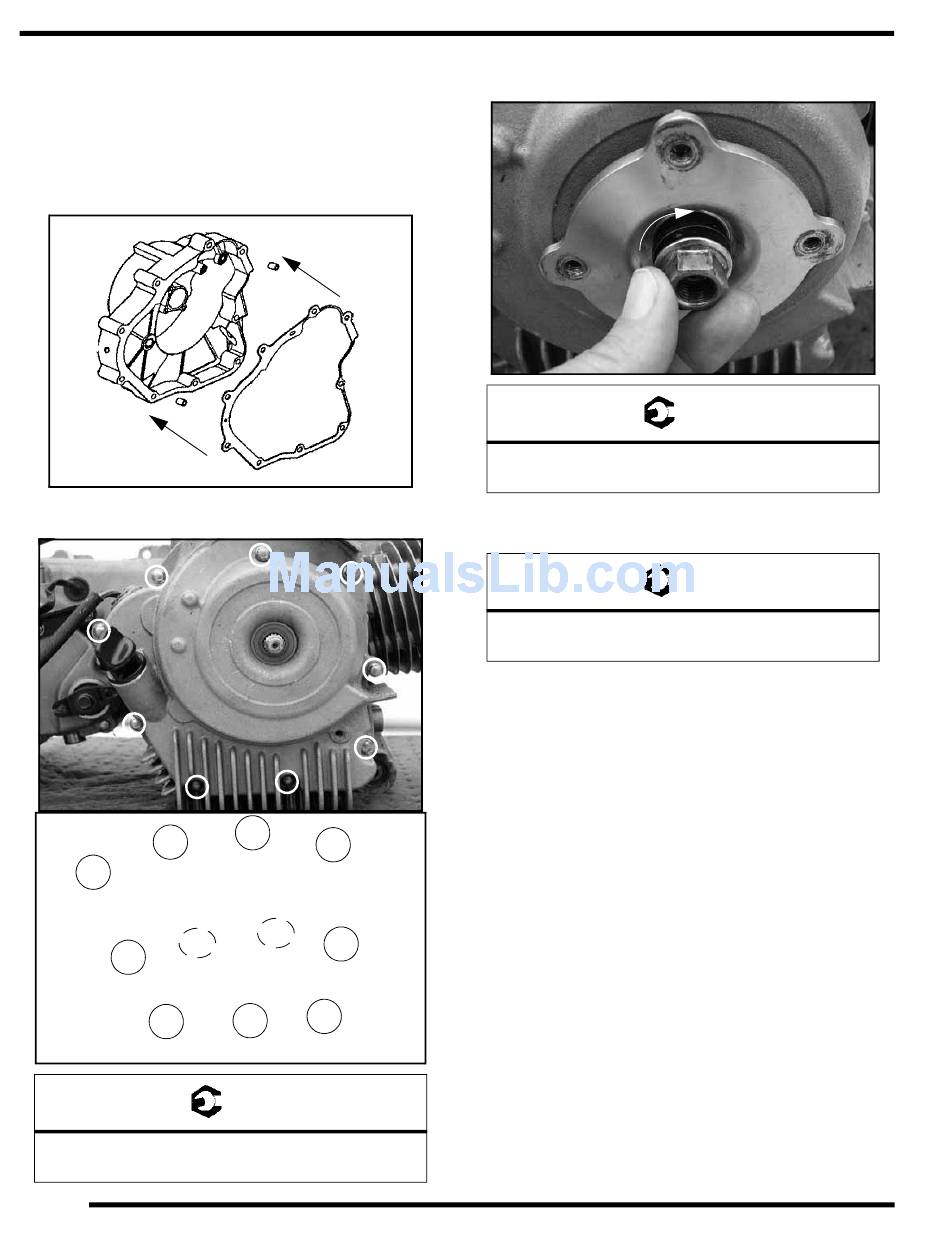

Stator Housing Installation

NOTE: The stator, flywheel, starter drive, and stator
can be serviced with the engine in the frame.
1. Apply a small amount of Crankcase Sealant (PN
2871557) to the mounting surface and install a new
gasket. Install the dowel pins if removed.
2. Install the housing. Torque bolts in sequence to
specification.
10
8
4
(#1, #2 RH case bolts)
6
RH Crankcase - Stator Cover
Stator Housing Bolt:
7-8 ft-lbs (9-11 Nm)
3.48
3
7
5
11
9
= T
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
3. Install the fan hub, washer, and flywheel nut. Torque
the flywheel nut to specification.
Flywheel Nut:
43 ft-lbs (58 Nm)
4. Install the fan and fan bolts. Tighten bolts evenly to
specification.
Fan Bolt:
4-5 ft-lbs (5-7 Nm)
5. Install the cooling shroud and tighten the fasteners
sufficiently. Use care not to over-tighten.
