INSTAllATION
Installation
The cassette is designed to be installed in existing open hearths.
There must be a 20 mm air gap around the cassette for optimum
hot air convection.

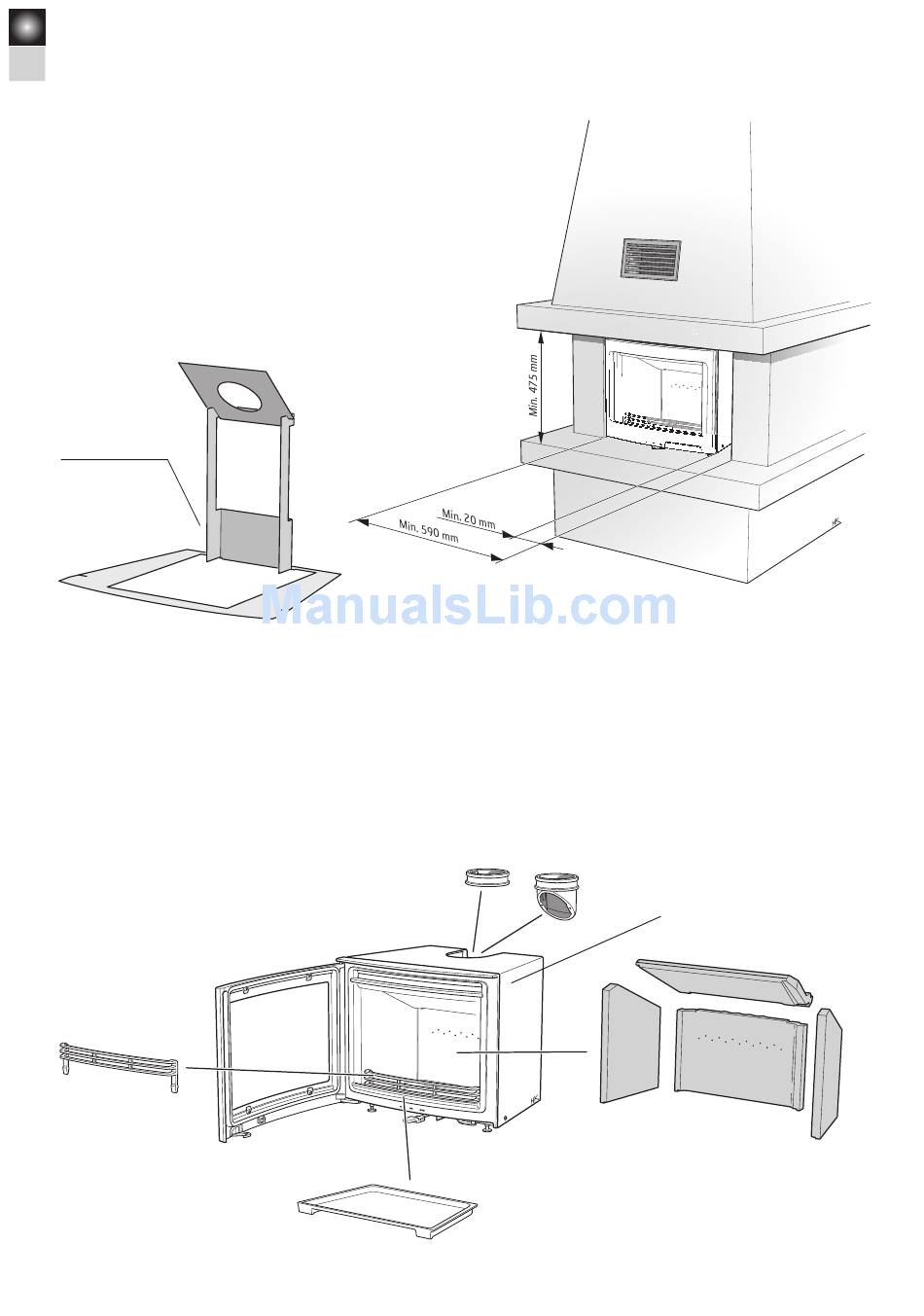

Use the cardboard template and check that there is sufficient
space for the installation. Fold out template to see where the
sleeve connection ends up.
Cardboard template
The cassette can be connected to the chimney from above, the
back or at angle of 45°, depending on the choice of sleeve.
Due to the risk of falling embers, a flammable floor must be
protected by a hearth plate. The hearth plate must extend 300
mm in front of the hearth and can consist of natural stone,
concrete, metal or glass. The minimum distance in front of the
hearth to combustible parts of the building or interior decoration
must be at least 1 metre.
Fire bars
Sleeve conn. 45°
Hearth bottom
Sleeve conn. 90° (Option)
Hood cover
Hearth cladding
