GB
PRIOR TO INSTALLATION
22

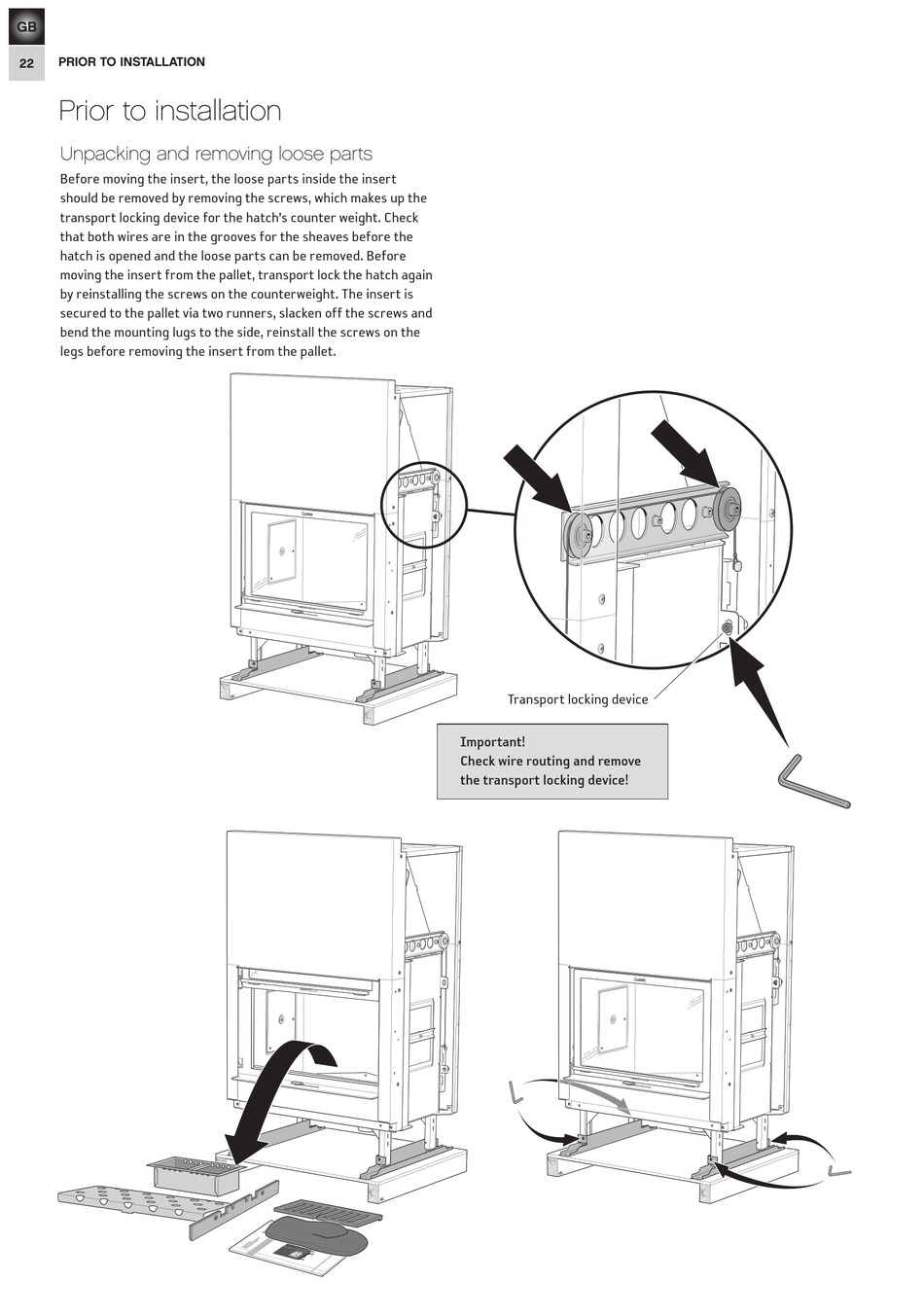

Prior to installation
Unpacking and removing loose parts
Before moving the insert, the loose parts inside the insert
should be removed by removing the screws, which makes up the
transport locking device for the hatch's counter weight. Check
that both wires are in the grooves for the sheaves before the
hatch is opened and the loose parts can be removed. Before
moving the insert from the pallet, transport lock the hatch again
by reinstalling the screws on the counterweight. The insert is
secured to the pallet via two runners, slacken off the screws and
bend the mounting lugs to the side, reinstall the screws on the
legs before removing the insert from the pallet.
Transportsäkring
Transport locking device
Important!
Check wire routing and remove
the transport locking device!
