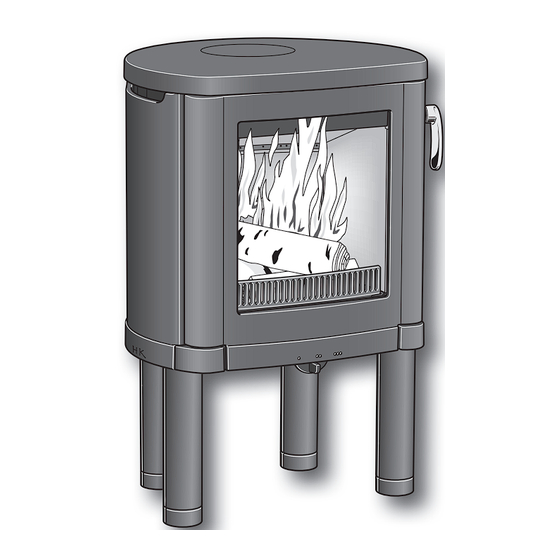

- Page 1 Installation instruction 51 52 52T 53 54 54T www.contura.eu...
- Page 2 Contura 50 is a Swan marked wood burning stove. NIBE was the first stove manufacturer in Sweden to commit to Swan marking stoves. The Swan mark is one aspect of our vision to be a company of the future, setting high quality standards regarding the environment.
-
Page 3: Table Of Contents
A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life. -
Page 4: General
To guarantee the function and safety of the stove we recommend Structural support that it is installed by a professional. Our Contura agents can Check that the wood joists are strong enough to bear the weight of recommend a suitable installer. -
Page 5: Installation Distance To Walls And Ceiling
INSTALLATION DISTANCE Installation distance to walls and ceiling C51, C52 and C52T Combustible roof Position the stove on a hearth plate and check that the installation distances given in the diagrams are met. The minimum distance between the stove opening and combustible parts of the building or décor must be at least 1 m. - Page 6 To prevent the discolouring of painted fire walls, we recommend a side distance the same as for the combustible wall. ** Minimum installation distance when using Contura 50 base plate, applies when combustion air is obtained from the room and when connecting outdoor air through the floor.
-
Page 7: Removing The Loose Components
REMOVING Removing the loose components Fire bars Lift the fire bars straight up, clean the ash from the guide groove in the stove base plate before repositioning it in position. Fire box surround When sweeping, the smoke baffle must be lifted out, this can be done when one side has been dismantled. Smoke baffle... - Page 8 REMOVING Stove base plate The stove base plate is lifted out when all the cladding has been removed. Fixed or removable handle The stove handle is fitted on delivery. To make the handle removable, replace the screw for the lock hook with the shorter screw supplied.
-
Page 9: Supply Of Combustion Air
COMBUSTION AIR Supply of combustion air Combustion air can be provided directly via a duct from outside, or indirectly via a vent in the outer wall of the room where the stove is to be placed. The amount of combustion air used for combustion is approximately 25 m Some installation alternatives are shown to the right. - Page 10 ADJUSTING AND CONNECTING Adjusting and connecting Contura 51 Preparations before rear connection The stove is prepared for top connection on delivery. When connecting from the rear, the cover and connection must be swapped around. • Dismantle the cladding as instructed previously, see page 55. • Tap out the knock out in the stove’ s back panel, remember to protect the floor.
- Page 11 ADJUSTING AND CONNECTING Adjusting and connecting Contura 52 / 52T Preparations before rear connection The stove is prepared for top connection on delivery. When connecting from the rear, the cover and connection must be swapped around. • Dismantle the cladding as instructed previously, see page 55. • Tap out the knock out in the stove’ s back panel, remember to protect the floor.
- Page 12 ADJUSTING AND CONNECTING Soapstone installation Contura 52T Handle soapstone with care, the edges are susceptible to damage. Soapstone is most easily cleaned using a cloth dampened with acetone. • Remove the upper securing plate. • Position with the decorative groove downward so that the turned up edge holds the soapstone in place.
- Page 13 ADJUSTING AND CONNECTING Adjusting and connecting Contura 53 Preparations before rear connection The stove is prepared for top connection on delivery. When connecting from the rear, the cover and connection must be swapped around. • Dismantle the cladding as instructed previously, see page 55. • Tap out the knock out in the stove’ s back panel, remember to protect the floor. • Then unscrew both the connector and the cover.
- Page 14 ADJUSTING AND CONNECTING Adjusting and connecting Contura 54 / 54T Preparations before rear connection C54 The stove is prepared for top connection on delivery. When connecting from the rear, the cover and connection must be swapped around. • Dismantle the cladding as instructed previously, see page 55.
- Page 15 ADJUSTING AND CONNECTING Adjusting the stove Position the stove on the hearth plate. Twist the cover plate as indicated by the Adjust the adjustable feet until the Unscrew the cover plate. arrow. stove is horizontal and then reinstall the cover plate. Soapstone installation C54T Handle soapstone with care, the edges are susceptible to damage.
-
Page 16: Connection To The Chimney
NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change colours, materials, dimensions and models at any time without special notice. 811100 IAV SE-EX C50-2 Your dealer can give you the most up to date information.
