Additional
www.contura.eu
installation instruction
811188 Kompletterande IAV Ci5 GB - 6
2018-11-26
When installing Ci5 and Ci6 in UK

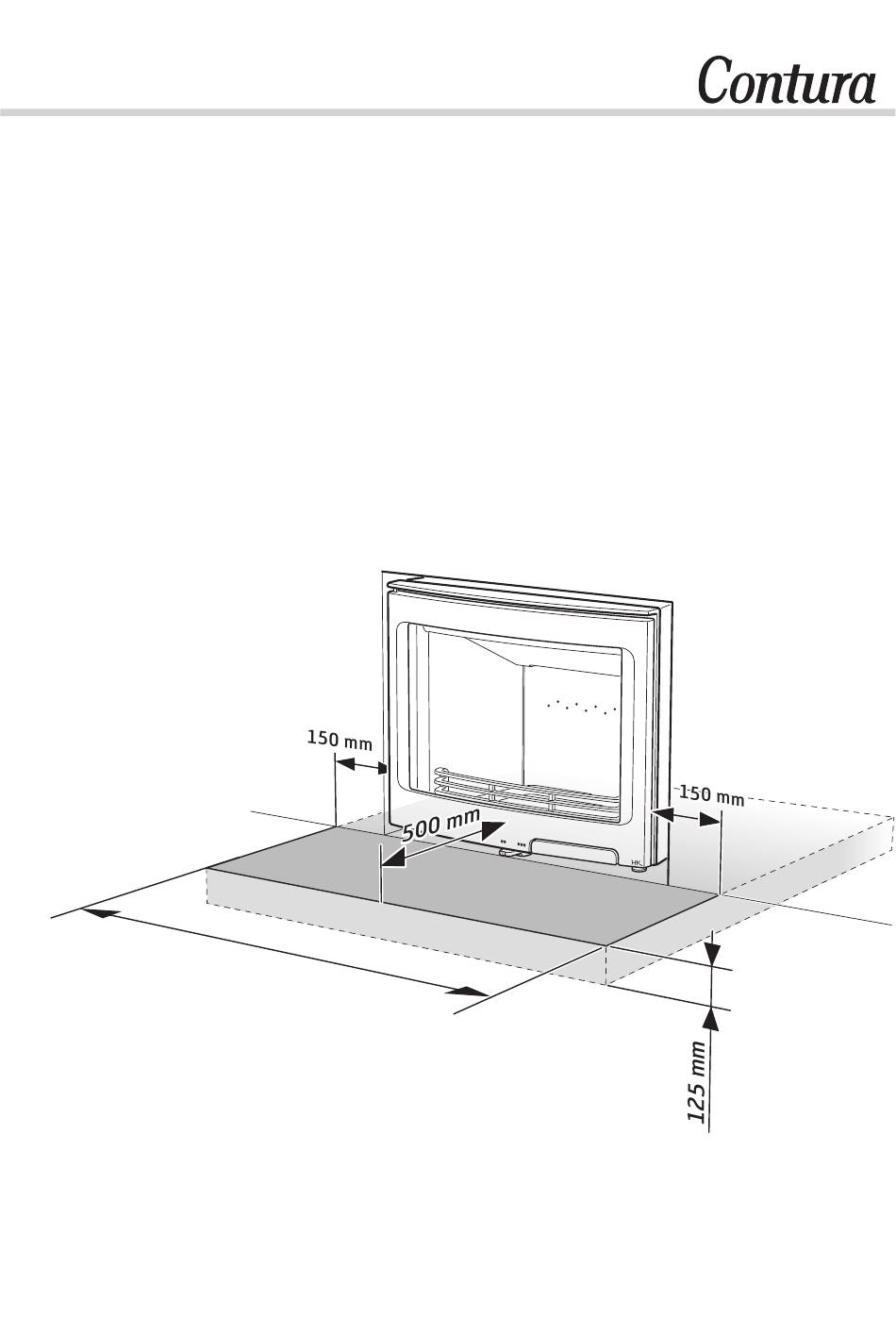

Hearth dimensions
The appliance must stand on a constructional hearth which meet
the building regulations and has minimum dimension in front of
the appliance as shown in the diagram beside. Always check that
the building has enough bearing capacity for the hearth, stove and
chimney. The stove can be loaded with maximum 100 kg of chimney.
8 5 0 m m
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Contura Ci5
Summary of Contents for Contura Ci5
- Page 1 Additional www.contura.eu installation instruction 811188 Kompletterande IAV Ci5 GB - 6 2018-11-26 When installing Ci5 and Ci6 in UK Hearth dimensions The appliance must stand on a constructional hearth which meet the building regulations and has minimum dimension in front of the appliance as shown in the diagram beside.
- Page 2 Flue collar Remove the internal parts according to installation instruction. Replace standard flue collar with collar adapted for UK.
- Page 3 Ci5 only If the insert is connected backwards the lid can be used to cover the hole on the top.
- Page 4 Smoke control area In smoke control areas it is mandatory to stop the damper from closing completely. In other areas it´s optional.
