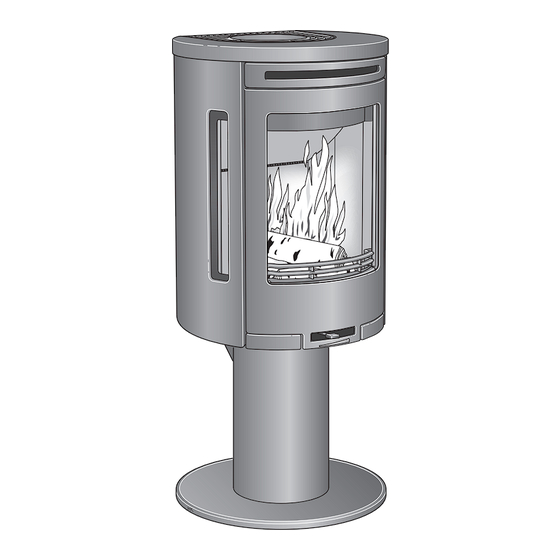

- Page 1 Installation instruction C 580 C 585 www.contura.eu...
- Page 2 350° C for both top connection directly upwards and connection directly backwards from the rear of the stove. Contura 580/585 is a Swan labelled stove. NIBE was the first stove manufacturer in Sweden to commit to Swan labelling their stoves. The Swan label is one aspect of our vision to be a company of the future, setting high quality standards regarding the environment.
- Page 3 A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life.
-
Page 4: Technical Details
FACTS Important to remember! Technical details Installation by authorised Structural support Effect 3-7kW Nominal effect 5 kW technician Check that the wood joists are strong Efficiency up to 79% enough to bear the weight of the stove and This manual contains instructions about chimney. - Page 5 REMOVAL How to remove the hearth surround (Vermiculite) Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing the sides pieces. Reinstall in reverse order...
- Page 6 CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for 350°C flue gas temperature. draught in the chimney. The maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m.
-
Page 7: Supply Of Combustion Air
1 m the pipe diameter must be increased to 100 mm and a correspondingly larger wall vent must be selected. C 580/585 In hot areas the duct should be insulated with 30 mm mineral wool There is a detachable cover on the reverse covered with a moisture inhibitor (plastic). - Page 8 INSTALLATION DISTANCES Installation distances C 580 WHEN INSTALLING TURNTABLE (OPTION) the The minimum distance in front of the stove opening to combustible Combustible roof following installation distances do not apply. See the separate installation instructions for parts of the building or interior turntable.
- Page 9 INSTALLATION DISTANCES Installation distances C 585 Combustible roof WHEN INSTALLING TURNTABLE (OPTION) the The minimum distance in front of the stove opening to combustible following installation distances do not apply. See the separate installation instructions for parts of the building or interior turntable.
- Page 10 ASSEMBLY Installing C 580/585 Do not tighten the screws until the stove has been raised again. To facilitate the installation of the side panels, the screws for the back panel must not be tightened before the side panels are installed.
- Page 11 ASSEMBLY Clean the side glass thoroughly before installing the side panels.
- Page 12 Also read the ”Lighting instructions”, before lighting for the first time. NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change colours, materials, dimensions and models at any time without special notice. 811108 IAV SE-EX C580/C585 -3 Your dealer can give you the most up to date information.
