MAINTENANCE PROCEDURES
Belt alignment and deflection adjust-
ment should always be performed by
an authorized Can-Am roadster dealer
according to the
SCHEDULE
.

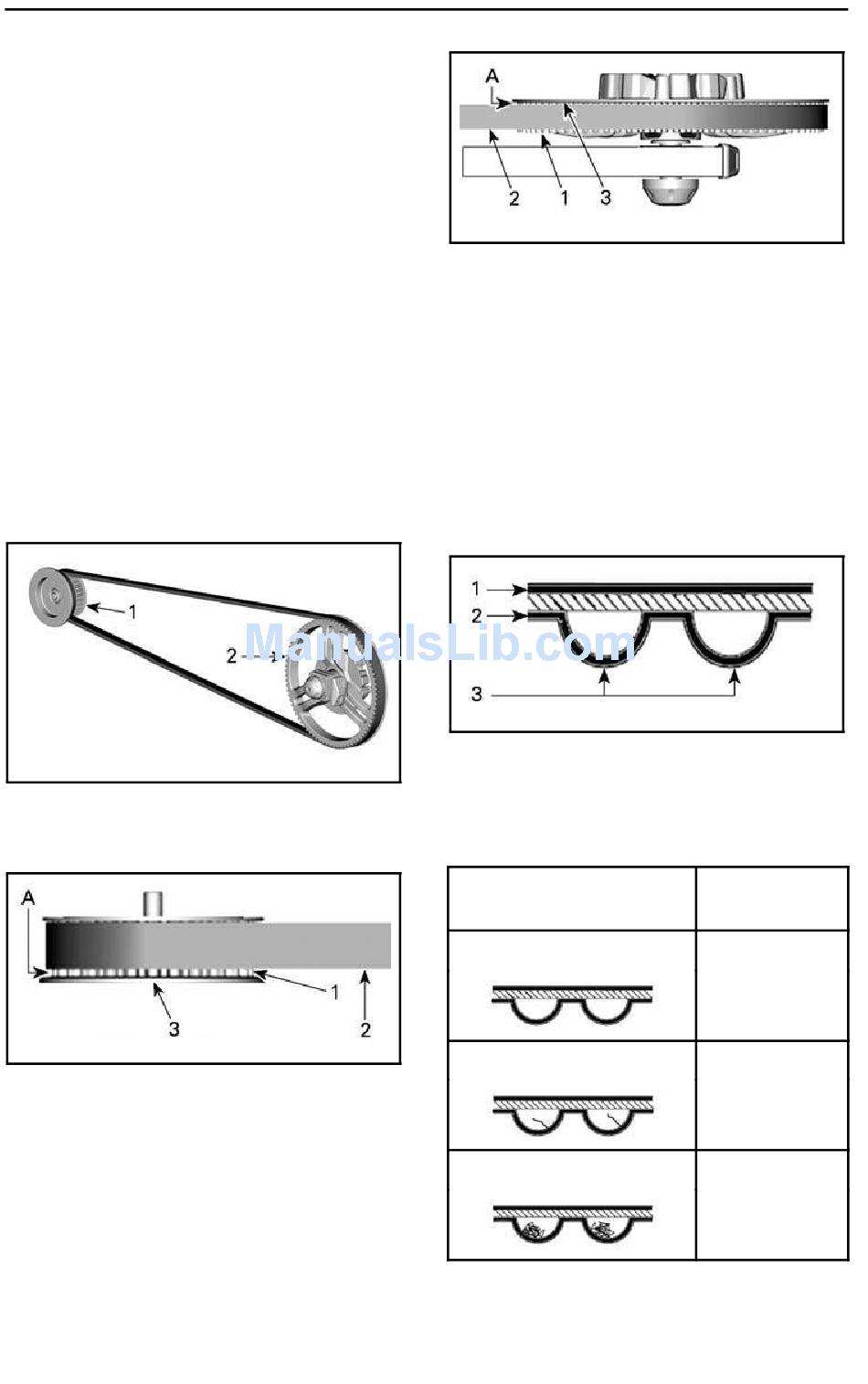

Drive Belt Alignment
The gap between the belt and the
sprocket internal flange should be
sum of "X" + "Y" = 3.25 mm ± 2.75 mm
(.13 in ± .11 in). If belt goes beyond
the outside edge of sprocket, have the
belt properly aligned by an authorized
Can-Am roadster dealer as soon as
possible.
NOTE: Belt can be in contact with
ONLY ONE flange from ONLY ONE
of the sprockets.
rmo2014-003-001_a
TYPICAL
1. Front sprocket
2. Rear sprocket
rmo2014-005-031_a
FRONT SPROCKET
1. Front sprocket teeth
2. Belt
3. Sprocket internal flange
A. GAP "X"
______________
96
MAINTENANCE
rmo2014-003-007_a
REAR SPROCKET
1. Rear sprocket teeth
2. Belt
3. Sprocket internal flange
A. GAP "Y"
Drive Belt Wear
Inspect the drive belt with the vehicle
in neutral, engine off, on a level surface
with plenty of room — you will have to
roll the vehicle forward or backward to
see the full length of the belt.
rmo2008-001-109_a
DRIVE BELT SURFACES
1. Outer surface
2. Teeth side surface
3. Tooth
Inspect for the following conditions:
WEAR CONDITION
Good condition
Hairline cracks
Minor chipping
REQUIRED
ACTION
None
Monitor
condition
Monitor
condition
