Can-Am SPYDER F3TM 2016 Operator's Manual page 32

EQUIPMENT
rmr2015-141-009_a

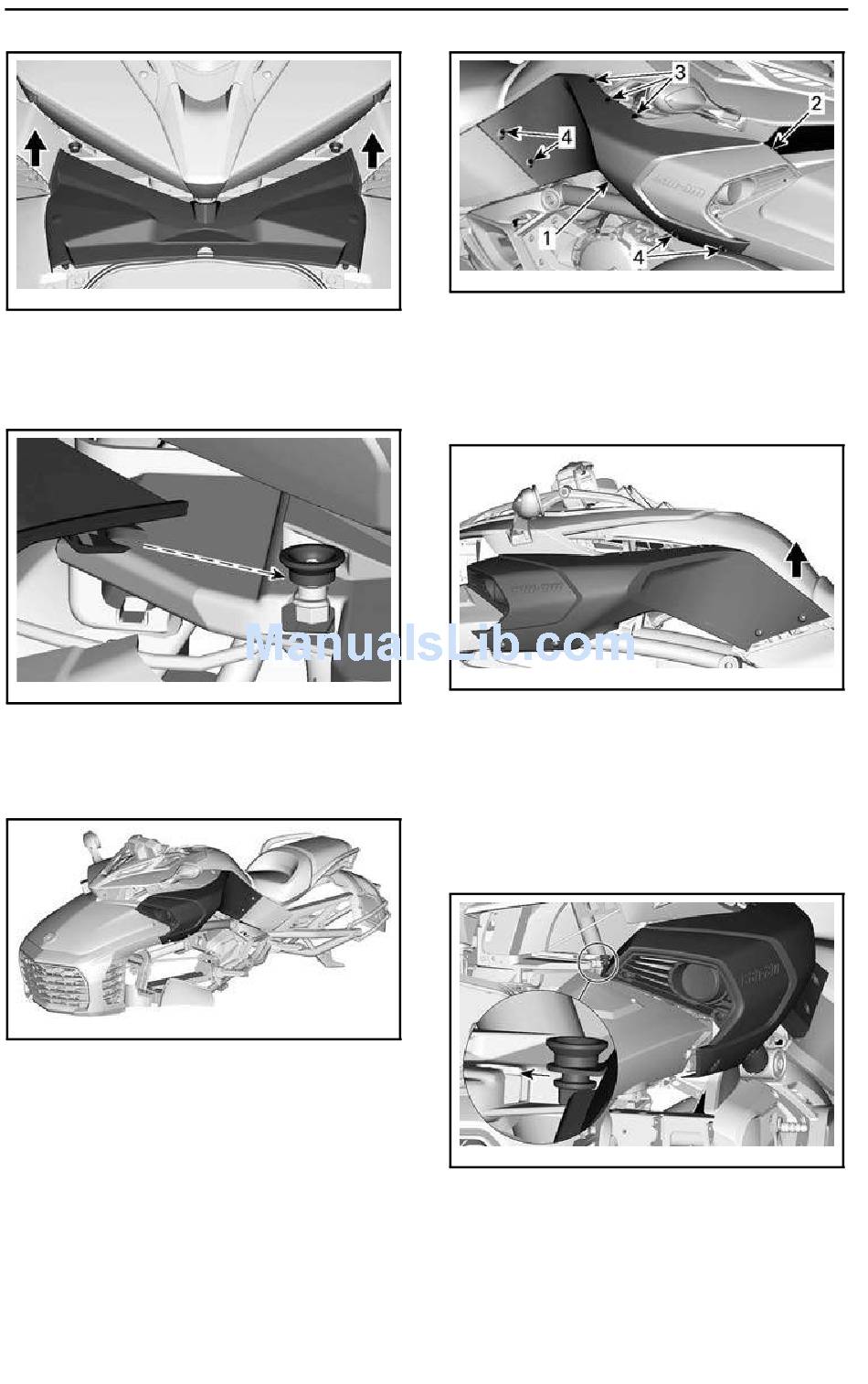

SLIDING SERVICE COVER IN POSITION
NOTE: Make sure front service cover
tab are positioned properly on vehicle.
rmr2015-141-010_a
ALIGNING TABS IN CORRECT
INSTALLATION LOCATION
Side Panel
rmr2015-141-011
Side Panel Removal
1. Remove screws and plastic rivets
securing side panel to vehicle.
______________
30
rmo2015-008-026_a
1. Side panel
2. Clip
3. Plastic rivets
4. Retaining screws
2. Lift side panel to remove it.
rmr2015-141-013_a
Side Panel Installation
1. Slide the inner side panel back in po-
sition.
NOTE: Take care to align side panel re-
taining screw tab to air scoop retaining
screw tab.
rmr2015-141-014_a
ALIGNING PANELS PROPERLY
2. Install plastic rivets and screw in
Torx screw.
