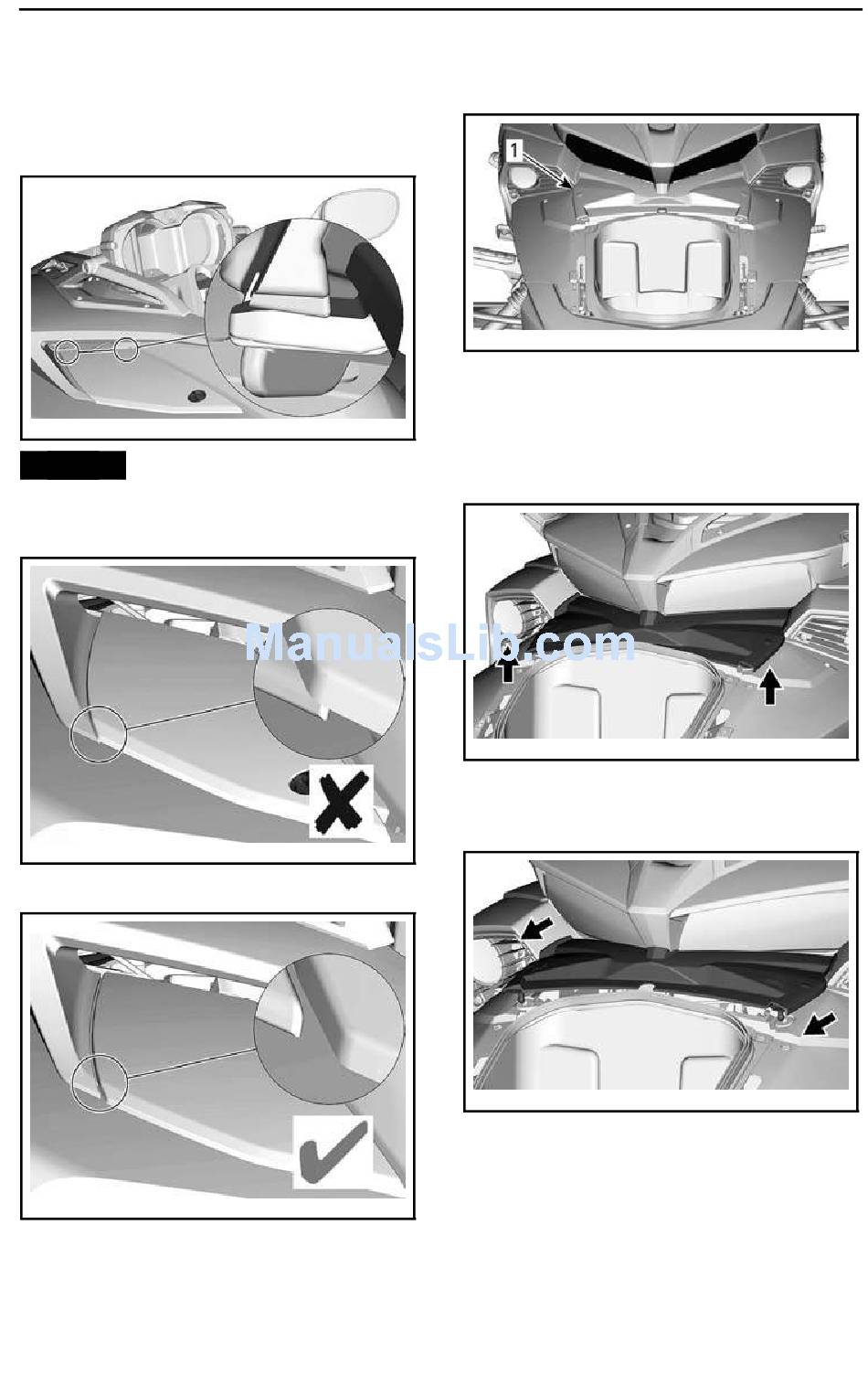

Can-Am SPYDER F3TM 2016 Operator's Manual page 31

Installation
1. Install lateral service cover in place
taking care to align tabs properly.
rmr2015-141-035_a
NOTICE
Make sure lateral ser-
vice cover does not overlap on side
panel.
rmr2015-141-033_a
OVERLAPPING INSTALLATION
rmr2015-141-034_a
CORRECT INSTALLATION
Front Service Cover
rmo2015-008-005_a
1. Front service cover
Front Service Cover Removal
1. Lift front of service cover to clear
grommets
rmr2015-141-007_a
LIFTING SERVICE COVER
2. Remove service cover from vehicle
rmr2015-141-008_a
REMOVING SERVICE COVER
Front Service Cover Installation
1. Slide front service cover back in
place.
_______________
EQUIPMENT
