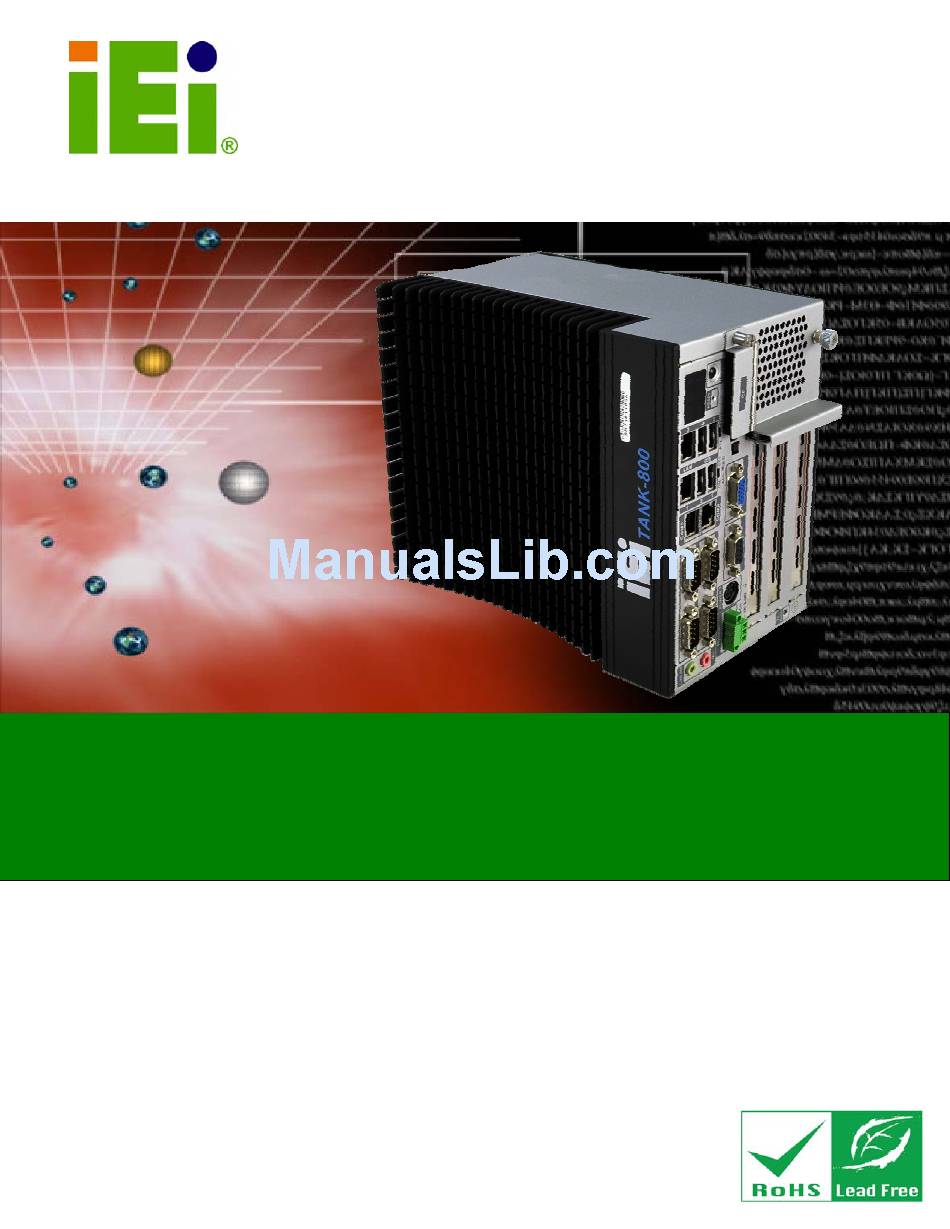

TANK-800 Embedded System
IEI Technology Corp.
MODEL:
TANK-800
Fanless Embedded System with Intel® Atom™ D525
Dual Core CPU, VGA, Two Gigabit Ethernet, Four USB,
RS-232/422/485, RoHS Compliant
Rev. 1.00 – 3 November 2011

User Manual

Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TANK-800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology TANK-800

Summary of Contents for IEI Technology TANK-800

  • Page 1: User Manual

    TANK-800 Embedded System IEI Technology Corp. MODEL: TANK-800 Fanless Embedded System with Intel® Atom™ D525 Dual Core CPU, VGA, Two Gigabit Ethernet, Four USB, RS-232/422/485, RoHS Compliant User Manual Page i Rev. 1.00 – 3 November 2011...
  • Page 2 TANK-800 Embedded System Revision Date Version Changes 3 November 2011 1.00 Initial release Page ii...
  • Page 3 TANK-800 Embedded System Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    TANK-800 Embedded System Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 T ..................4 ECHNICAL PECIFICATIONS 1.5 C ....................6 ONNECTOR ANEL 1.6 LED I .......................
  • Page 5 TANK-800 Embedded System 3.7.9 RJ-45 RS-422/485 Serial Ports................ 30 3.7.10 RS-232 Serial Port Connectors..............32 3.7.11 USB Connectors ..................... 33 3.7.12 VGA Connector ....................34 3.8 P ................36 OWERING FF THE YSTEM 3.9 R ....................37 EDUNDANT OWER 3.9.1 ACC ON ......................38 3.9.1.1 Boot-up .....................
  • Page 6 TANK-800 Embedded System 4.4.2 South Bridge Configuration................65 4.4.3 Intel IGD SWSCI OpRegion................67 4.5 B ........................68 4.6 S ......................... 69 ECURITY 4.7 E ......................... 71 A ONE KEY RECOVERY ..................... 73 A.1 O ..............74 ECOVERY NTRODUCTION A.1.1 System Requirement..................75 A.1.2 Supported Operating System ................
  • Page 7 Figure 3-2: CF Card Slot Cover ....................18 Figure 3-3: CF Card Installation ....................19 Figure 3-4: Unscrew the Cover....................20 Figure 3-5: Remove the Cover from TANK-800 .................20 Figure 3-6: HDD Installation ......................21 Figure 3-7: HDD Retention Screws .....................21 Figure 3-8: System Fan Installation ....................22 Figure 3-9: Pluggable DC-in Terminal Block Installation ............23...
  • Page 8 TANK-800 Embedded System Figure 3-25: Power Button......................36 Figure 3-26: Power Connectors ....................37 Figure 3-27: ACC On: AT Mode ....................38 Figure 3-28: ACC On: ATX Mode....................38 Figure 3-29: ACC On: Switch Between PWR1 and PWR2 ............39 Figure 3-30: ACC On: Shutdown....................39 Figure 3-31: ACC Off: AT Mode....................40...
  • Page 9 TANK-800 Embedded System Figure A-26: Recovery Tool Main Menu ..................93 Figure A-27: Restore Factory Default ..................94 Figure A-28: Recovery Complete Window .................94 Figure A-29: Backup System.......................95 Figure A-30: System Backup Complete Window ..............95 Figure A-31: Restore Backup ......................96 Figure A-32: Restore System Backup Complete Window ............96 Figure A-33: Symantec Ghost Window ..................97...
  • Page 10 TANK-800 Embedded System List of Tables Table 1-1: TANK-800 Model Variations..................3 Table 1-2: Technical Specifications....................5 Table 3-1: DIO Connector Pinouts ....................27 Table 3-2: LAN Pinouts ........................28 Table 3-3: RJ-45 Ethernet Connector LEDs ................29 Table 3-4: Power Input Pinouts ....................30 Table 3-5: RJ-45 RS-422/485 Serial Port Pinouts ..............31 Table 3-6: Serial Port Pinouts......................33...

  • Page 11: Introduction

    TANK-800 Embedded System Chapter Introduction Page 1...

  • Page 12: Overview

    It is powered by the Intel® Atom™ D525 dual core processor, uses the Intel® ICH8M chipset and has 1.0 GB of DDR3 memory. The TANK-800 Series includes one VGA port, two PCIe GbE LAN, four USB 2.0 ports, and six COM ports.

  • Page 13: Model Variations

    TANK-800 Embedded System 1.2 Model Variations The model variations of the TANK-800 Series are listed below. Model No. Expansion Slots Intel® Atom™ D525 1.8 GHz Two PCI slots TANK-800-R10/D525/1GB/2P1E dual core One PCIe x4 slot Intel® Atom™ D525 1.8 GHz...

  • Page 14: Technical Specifications

    TANK-800 Embedded System 1.4 Technical Specifications The TANK-800 technical specifications are listed in Table 1-2. Specifications System 1.8 GHz Intel® Atom™ D525 dual core CPU Intel® ICH8M Chipset 1.0 GB of DDR3 SDRAM SO-DIMM preinstalled (system max. 2.0 Memory Dual Realtek RTL8111E PCIe GbE controllers with ASF 2.0 support...

  • Page 15: Table 1-2: Technical Specifications

    TANK-800 Embedded System Specifications Power Redundant dual DC input 9V~36V Power Supply 33 W (without add-on card) Power Consumption One power button Power Button AT or ATX power mode (selectable by AT/ATX mode switch) Power Mode Environmental and Mechanical -20°C~70°C Operating Temperature -30°C~80°C...

  • Page 16: Connector Panel

    TANK-800 Embedded System 1.5 Connector Panel All external peripheral interface connectors are located on the rear panel of the TANK-800. The peripheral interface connectors are shown in Figure 1-2. Figure 1-2: TANK-800 Peripheral Connectors Connectors and buttons on the rear panel include the following.

  • Page 17: Led Indicators

    1 x ACC mode switch 1 x AT/ATX power mode switch 1.6 LED Indicators There are several indicators on the rear panel of the TANK-800 as shown in Figure 1-3. Figure 1-3: TANK-800 LED Indicators WARNING: The CPU Temperature Alert LED turns red when the CPU temperature is too high.

  • Page 18: Backplane Options

    TANK-800 Embedded System 1.7 Backplane Options The backplane options of the TANK-800 are shown below. Figure 1-4: TANK-800-R10/D525/1GB/2P1E Backplane Figure 1-5: TANK-800-R10/D525/1GB/1P2E Backplane Page 8...
  • Page 19 TANK-800 Embedded System The rated voltage and current of the backplane are listed below: Rated Voltage Rated Current +5 V +12 V 3.75 A -12 V 0.1 A +3.3 V WARNING: The system default power is 96 W. The maximum total power of the backplane to support expansion cards is 45 W.

  • Page 20: Dimensions

    TANK-800 Embedded System 1.8 Dimensions The physical dimensions are shown below: Figure 1-6: Physical Dimensions (millimeters) Page 10...

  • Page 21: Unpacking

    TANK-800 Embedded System Chapter Unpacking Page 11...

  • Page 22: Anti-Static Precautions

    When the TANK-800 is unpacked, please do the following: Follow the anti-static precautions outlined in Section 2.1. Make sure the packing box is facing upwards so the TANK-800 does not fall out of the box. Make sure all the components shown in Section 2.3 are present.

  • Page 23: Unpacking Checklist

    If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the TANK-800 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.
  • Page 24 TANK-800 Embedded System Quantity Item and Part Number Image Standard HDD screw (P/N: 44043-030051-RS) Rubber foot pad screw (P/N: 44005-030061-RS) RJ-45 to DB-9 COM port cable (P/N: 32005-000200-200-RS) Pluggable DC-in terminal block (P/N: 33502-000007-RS) One Key Recovery CD (P/N: IEI-7B000-000478-RS)
  • Page 25 TANK-800 Embedded System Optional OS: Win XPE (4GB CF Card) (P/N: TANKCF-800-D525-XPE-4G-R10) OS: Linux (2GB CF Card) (P/N: TANKCF-800-D525-LNX-2G-R10) OS: Win 7 Embedded (2GB CF Card) (P/N: TANKCF-800-D525-WES7E-2G-R10) OS: Win 7 Embedded (4GB CF Card) (P/N: TANKCF-800-D525-WES7E-4G-R10) Page 15...

  • Page 26: Installation

    TANK-800 Embedded System Chapter Installation Page 16...

  • Page 27: Installation Precautions

    Electric shock and personal injury might occur if the rear panel of the TANK-800 is opened while the power cord is still connected to an electrical outlet.

  • Page 28: Figure 3-1: Cf Card Slot

    TANK-800 Embedded System Figure 3-1: CF Card Slot Open the CF card slot cover (Figure 3-2). Step 2: Figure 3-2: CF Card Slot Cover Page 18...

  • Page 29: Hard Disk Drive (Hdd) Installation

    TANK-800 Embedded System Correctly align the CF card with the socket and insert the CF card into the socket Step 3: (Figure 3-3). Figure 3-3: CF Card Installation Reinstall the cover. Step 4: 3.3 Hard Disk Drive (HDD) Installation To install the hard drive, please follow the steps below:...

  • Page 30: Figure 3-4: Unscrew The Cover

    TANK-800 Embedded System Figure 3-4: Unscrew the Cover Unplug the SATA signal and power cables connected to the TANK-800, and then Step 2: put the cover on a flat surface (Figure 3-5). Figure 3-5: Remove the Cover from TANK-800 Page 20...

  • Page 31: Figure 3-6: Hdd Installation

    TANK-800 Embedded System Attach the HDD to the HDD bracket, and then slide the HDD to connect the HDD Step 3: to the SATA connector (Figure 3-6). Figure 3-6: HDD Installation Secure the HDD with the HDD bracket by four retention screws (Figure 3-7).

  • Page 32: System Fan Installation

    Unplug the SATA signal and power cables connected to the TANK-800, and then Step 2: place the cover on a flat surface (Figure 3-5). Attach the system fan to the TANK-800 and secure it by four retention screws Step 3: (Figure 3-8).

  • Page 33: Pluggable Dc-In Terminal Block Installation

    TANK-800 Embedded System Connect the system fan cable to the CPU_FAN1 connector on the motherboard Step 4: of TANK-800. Reconnect the SATA signal and power cables to the TANK-800. Step 5: Reinstall the cover. Step 6: 3.5 Pluggable DC-In Terminal Block Installation To install the pluggable DC-in terminal block, please follow the steps below: Locate the DC-in terminal block connector.

  • Page 34: Mounting The System With Mounting Brackets

    Insert four retention screws, two in each bracket, to secure the system to the Step 6: wall. 3.7 External Peripheral Interface Connectors The TANK-800 has the following connectors. Detailed descriptions of the connectors can be found in the subsections below. Audio CompactFlash® Type II...

  • Page 35: Acc Mode Selection

    TANK-800 Embedded System 3.7.1 ACC Mode Selection The TANK-800 allows turning the ACC mode on or off. The setting can be made through the ACC mode switch on the external peripheral interface panel as shown below. Figure 3-10: ACC Mode Switch 3.7.2 AT/ATX Power Mode Selection...

  • Page 36: Audio Connector

    Figure 3-12: Audio Connector 3.7.4 CompactFlash® Type II The TANK-800 has one CF Type II socket. The location of the socket is shown in Error! Reference source not found.. To install the CF card, refer to Section 3.2. 3.7.5 Digital Input/Output Connector...

  • Page 37: Lan Connectors

    Locate the RJ-45 connectors. The locations of the RJ-45 connectors are Step 1: shown in Figure 1-2. Align the connectors. Align the RJ-45 connector on the LAN cable with one of Step 2: the RJ-45 connectors on the TANK-800. See Figure 3-14. Page 27...

  • Page 38: Figure 3-14: Lan Connection

    TANK-800 Embedded System Figure 3-14: LAN Connection Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN Step 3: cable RJ-45 connector into the on-board RJ-45 connector. Description Description TRD1P0 TRD1P2 TRD1N0 TRD1N2 TRD1P1 TRD1P3 TRD1N1 TRD1N3 Table 3-2: LAN Pinouts Figure 3-15: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one green and one yellow.

  • Page 39: Power Input, 3-Pin Terminal Block

    TANK-800 Embedded System Activity/Link LED Speed LED DESCRIPTION STATUS DESCRIPTION STATUS No link 10 Mbps connection Yellow Linked Green 100 Mbps connection Blinking TX/RX activity Orange 1 Gbps connection Table 3-3: RJ-45 Ethernet Connector LEDs 3.7.7 Power Input, 3-pin Terminal Block...

  • Page 40: Rs-422/485 Serial Ports

    RS-422/RS-485 connectors are shown in Figure 1-2. Insert the RJ-45 connector. Insert the RJ-45 connector on the RJ-45 to DB-9 Step 2: COM port cable to one of the RJ-45 RS-422/485 connectors on the TANK-800. See Figure 3-18. Page 30...

  • Page 41: Figure 3-18: Rj-45 Rs-422/485 Serial Device Connection

    TANK-800 Embedded System Figure 3-18: RJ-45 RS-422/485 Serial Device Connection Insert the serial connector. Insert the DB-9 connector of a serial device into Step 3: the DB-9 connector on the RJ-45 to DB-9 COM port cable. Secure the connector. Secure the serial device connector to the external Step 4: interface by tightening the two retention screws on either side of the connector.

  • Page 42: Serial Port Connectors

    TANK-800 Embedded System 3.7.10 RS-232 Serial Port Connectors COM1, COM2, COM3 and COM4 CN Label: DB-9 connectors CN Type: See Figure 1-2 CN Location: See Table 3-6 and Figure 3-21 CN Pinouts: RS-232 serial port devices can be attached to the DB-9 ports on the rear panel.

  • Page 43: Usb Connectors

    TANK-800 Embedded System Description Description Table 3-6: Serial Port Pinouts Figure 3-21: Serial Port Pinout Location 3.7.11 USB Connectors CN Label: USB port CN Type: See Figure 1-2 CN Location: See Table 3-7 CN Pinouts: The USB ports are for connecting USB peripheral devices to the system.

  • Page 44: Vga Connector

    TANK-800 Embedded System Figure 3-22: USB Device Connection Insert the device connector. Once aligned, gently insert the USB device Step 3: connector into the on-board connector. Description Description DATA- DATA- DATA+ DATA+ GROUND GROUND Table 3-7: USB Port Pinouts 3.7.12 VGA Connector...

  • Page 45: Figure 3-23: Vga Connector

    Step 3: Insert the VGA connector. insert the male connector from the VGA screen into the female connector on the TANK-800. See Figure 3-23. Figure 3-23: VGA Connector Secure the connector. Secure the DB-15 VGA connector from the VGA Step 4: monitor to the external interface by tightening the two retention screws on either side of the connector.

  • Page 46: Powering On/Off The System

    TANK-800 Embedded System Description Description GREEN BLUE VCC / NC DDC DAT HSYNC VSYNC DDCCLK Table 3-8: VGA Connector Pinouts 3.8 Powering On/Off the System WARNING: Make sure a power supply with the correct input voltage is being fed into the system.

  • Page 47: Redundant Power

    TANK-800 Embedded System 3.9 Redundant Power The TANK-800 is a system that supports redundant power. The redundant power input increases the reliability of the system and prevents data loss and system corruption from sudden power failure. The system can instantly and uninterruptedly switch to the second power input when the main power is unavailable or in low voltage capacity.

  • Page 48: Acc On

    The ACC On mode is designed for vehicle applications. When the TANK-800 is in ACC On mode, the main power input is Power 1 connector and the backup power is from Power 2 connector.

  • Page 49: Switch To Backup Power

    TANK-800 Embedded System 3.9.1.2 Switch to Backup Power During the operation, the system power will switch from Power 1 to Power 2 automatically when the following situations occur: Power 1 < 9V and Power 2 > 10.5V Power 1 > 9V, but the ACC ON signal jump from high to low Power 1 is unplugged and Power 2 >...

  • Page 50: Acc Off

    Press the Power button for six seconds to turn off the system. 3.9.2 ACC OFF When the TANK-800 is in ACC Off mode, the main power input is Power 2 connector and the backup power is from Power 1 connector. 3.9.2.1 Boot-up When both power connectors are connected to power source with over 9 V power input, the two power LEDs on the front panel turn on.

  • Page 51: Switch To Backup Power

    TANK-800 Embedded System 3.9.2.2 Switch to Backup Power During the operation, the system power will switch from Power 2 to Power 1 automatically when the following situations occur: Power 2 < 10.5V and Power 1 > 9V Power 2 is unplugged and Power 1 > 9V The following flow diagram shows how the power is switched between Power 2 and Power 1 and their LED statuses.
  • Page 52 TANK-800 Embedded System NOTE: The power LED turns off when the power cable is unplugged from the system. Page 42...

  • Page 53: Bios

    TANK-800 Embedded System Chapter BIOS Page 43...

  • Page 54: Introduction

    TANK-800 Embedded System 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 4.1.1 Starting Setup The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 55: Getting Help

    TANK-800 Embedded System Function Esc key Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option...

  • Page 56: Main

    TANK-800 Embedded System 4.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 57: Advanced

    TANK-800 Embedded System System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 4.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:...

  • Page 58: Acpi Settings

    TANK-800 Embedded System 4.3.1 ACPI Settings The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced ACPI Sleep State [S1 (CPU Stop Clock)]...

  • Page 59: Cpu Configuration

    TANK-800 Embedded System 4.3.2 CPU Configuration Use the CPU Configuration menu (BIOS Menu 4) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced CPU Configuration Enabled for Windows XP...

  • Page 60: Ide Configuration

    TANK-800 Embedded System Hyper-Threading: Indicates if the Intel Hyper-Threading Technology is supported by the CPU. Hyper-Threading [Enabled] Use the Hyper-Threading BIOS option to enable or disable the Intel Hyper-Threading Technology. Disables the Intel Hyper-Threading Technology. Disabled Enables the Intel Hyper-Threading Technology.
  • Page 61 TANK-800 Embedded System Configures the on-board ATA/IDE controller to be in Compatible compatible mode. In this mode, a SATA channel will replace one of the IDE channels. This mode supports up to 4 storage devices. Configures the on-board ATA/IDE controller to be in...

  • Page 62: Usb Configuration

    TANK-800 Embedded System 4.3.4 USB Configuration Use the USB Configuration menu (BIOS Menu 6) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 63: Super Io Configuration

    TANK-800 Embedded System Legacy USB support disabled Disabled Legacy USB support disabled if no USB devices are Auto connected 4.3.5 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 7) to set or change the configurations for the serial ports.

  • Page 64: Serial Port N Configuration

    TANK-800 Embedded System 4.3.5.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 8) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Serial Port n Configuration Enable or Disable Serial...
  • Page 65 TANK-800 Embedded System Serial Port I/O port address is 3F8h and the interrupt IO=3F8h; address is IRQ3, 4 IRQ=3, 4 Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3, 4 IRQ=3, 4 Serial Port I/O port address is 2C0h and the interrupt IO=2C0h;...
  • Page 66 TANK-800 Embedded System Serial Port I/O port address is 2C8h and the interrupt IO=2C8h; address is IRQ3, 4 IRQ=3, 4 4.3.5.1.3 Serial Port 3 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.
  • Page 67 TANK-800 Embedded System 4.3.5.1.4 Serial Port 4 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 68 TANK-800 Embedded System 4.3.5.1.5 Serial Port 5 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 69 TANK-800 Embedded System Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. The serial port IO port address and interrupt address...

  • Page 70: H/W Monitor

    TANK-800 Embedded System 4.3.6 H/W Monitor The H/W Monitor menu (BIOS Menu 9) shows the operating temperature, fan speeds and system voltages. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced PC Health Status CPU Temperature :+45 C Accuracy: 1.

  • Page 71: Serial Port Console Redirection

    TANK-800 Embedded System Vcc3S Vcc5V VSB3V VBAT 4.3.7 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 10) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.
  • Page 72 TANK-800 Embedded System Enabled the console redirection function Enabled Terminal Type [VT-100+] Use the Terminal Type option to specify the remote terminal type. The target terminal type is VT100 VT100 The target terminal type is VT100+ VT100+ The target terminal type is VT-UTF8...

  • Page 73: Iei Feature

    TANK-800 Embedded System 4.3.8 iEi Feature Use the iEi Feature menu (BIOS Menu 11) to configure the iEi features. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function...

  • Page 74: Chipset

    TANK-800 Embedded System 4.4 Chipset Use the Chipset menu (BIOS Menu 12) to access the Northbridge and Southbridge configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 75: Host Bridge Configuration

    TANK-800 Embedded System 4.4.1 Host Bridge Configuration Tthe Host Bridge Configuration menu (BIOS Menu 13) shows the memory frequency and memory capacity. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset ******* Memory Information ******* Memory Frequency 800 Mhz...
  • Page 76 TANK-800 Embedded System Restore AC Power Loss [Last State] Use the Restore AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system. The system remains turned off...

  • Page 77: Intel Igd Swsci Opregion

    TANK-800 Embedded System The spread spectrum mode is disabled Disabled EFAULT The spread spectrum mode is enabled Enabled 4.4.3 Intel IGD SWSCI OpRegion Use the Intel IGD SWSCI OpRegion menu (BIOS Menu 15) to configure the video device connected to the system.

  • Page 78: Boot

    TANK-800 Embedded System 128 MB 256 MB Maximum Default 4.5 Boot Use the Boot menu (BIOS Menu 16) to configure system boot options. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit...

  • Page 79: Security

    TANK-800 Embedded System Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.
  • Page 80 TANK-800 Embedded System Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Setup Administrator Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.

  • Page 81: Exit

    TANK-800 Embedded System 4.7 Exit Use the Exit menu (BIOS Menu 18) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save &...
  • Page 82 TANK-800 Embedded System Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 83: A One Key Recovery

    TANK-800 Embedded System Appendix One Key Recovery Page 73...

  • Page 84: One Key Recovery Introduction

    TANK-800 Embedded System A.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. The one key recovery provides quick and easy shortcuts for creating a backup and reverting to that backup or for reverting to the factory default settings.

  • Page 85: System Requirement

    TANK-800 Embedded System A.1.1 System Requirement NOTE: The recovery CD can only be used with IEI products. The software will fail to run and a warning message will appear when used on non-IEI hardware. To create the system backup, the main storage device must be split into two partitions (three partitions for Linux).

  • Page 86: Supported Operating System

    TANK-800 Embedded System NOTE: Specialized tools are required to change the partition size if the operating system is already installed. A.1.2 Supported Operating System The recovery CD is compatible with both Microsoft Windows and Linux operating system (OS). The supported OS versions are listed below.

  • Page 87: Setup Procedure For Windows

    TANK-800 Embedded System NOTE: Installing unsupported OS versions may cause the recovery tool to fail. A.2 Setup Procedure for Windows Prior to using the recovery tool to backup or restore Windows system, a few setup procedures are required. Hardware and BIOS setup (see Section Step 1: A .2.1)

  • Page 88: Create Partitions

    TANK-800 Embedded System Turn on the system. Step 4: Press the <DELETE> key as soon as the system is turned on to enter the BIOS. Step 5: Select the connected optical disk drive as the 1 boot device. (Boot Step 6:...

  • Page 89: Figure A-3: Recovery Tool Setup Menu

    TANK-800 Embedded System The recovery tool setup menu is shown as below. Step 3: Figure A-3: Recovery Tool Setup Menu Press <5> then <Enter>. Step 4: Figure A-4: Command Mode The command prompt window appears. Type the following commands (marked Step 5: in red) to create two partitions.

  • Page 90: Figure A-5: Partition Creation Commands

    TANK-800 Embedded System system32>format F: /fs:ntfs /q /v:Recovery /y system32>exit Figure A-5: Partition Creation Commands Page 80...

  • Page 91: Install Operating System, Drivers And Applications

    TANK-800 Embedded System NOTE: Use the following commands to check if the partitions were created successfully. Press any key to exit the recovery tool and automatically reboot the system. Step 6: Please continue to the following procedure: Build-up Recovery Partition.

  • Page 92: Build-Up Recovery Partition

    TANK-800 Embedded System A.2.4 Build-up Recovery Partition Put the recover CD in the optical drive. Step 1: Start the system. Step 2: Boot the system from recovery CD. When prompted, press any key to boot Step 3: from the recovery CD. It will take a while to launch the recovery tool. Please be...

  • Page 93: Figure A-8: Build-Up Recovery Partition

    TANK-800 Embedded System recovery files in Section A .2.2 is hidden and the recovery tool is saved in this partition. Figure A-8: Build-up Recovery Partition After completing the system configuration, press any key in the following window Step 6: to reboot the system.

  • Page 94: Create Factory Default Image

    TANK-800 Embedded System A.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 95: Figure A-12: About Symantec Ghost Window

    TANK-800 Embedded System Figure A-12: About Symantec Ghost Window Use mouse to navigate to the option shown below ( Step 4: F igure A-13). Figure A-13: Symantec Ghost Path Select the local source drive (Drive 1) as shown in F igure A-14. Then click OK.

  • Page 96: Figure A-14: Select A Local Source Drive

    TANK-800 Embedded System Figure A-14: Select a Local Source Drive Select a source partition (Part 1) from basic drive as shown in Step 6: F igure A-15. Then click OK. Figure A-15: Select a Source Partition from Basic Drive Select 1.2: [Recovery] NTFS drive and enter a file name called Step 7: F igure A-16).

  • Page 97: Figure A-16: File Name To Copy Image To

    TANK-800 Embedded System Figure A-16: File Name to Copy Image to When the Compress Image screen in F igure A-17 prompts, click High to make Step 8: the image file smaller. Figure A-17: Compress Image Page 87...

  • Page 98: Figure A-18: Image Creation Confirmation

    TANK-800 Embedded System The Proceed with partition image creation window appears, click Yes to Step 9: continue. Figure A-18: Image Creation Confirmation The Symantec Ghost starts to create the factory default image ( Step 10: F igure A-19). Figure A-19: Image Creation Process...

  • Page 99: Setup Procedure For Linux

    TANK-800 Embedded System The recovery tool main menu window is shown as below. Press any key to Step 12: reboot the system. S t e p 0 : Figure A-21: Press Any Key to Continue A.3 Setup Procedure for Linux The initial setup procedures for a Linux system are mostly the same with the procedure for Microsoft Windows.

  • Page 100: Figure A-22: Partitions For Linux

    TANK-800 Embedded System NOTE: Please reserve enough space for partition 3 for saving recovery images. Figure A-22: Partitions for Linux Create a recovery partition. Insert the recovery CD into the optical disk drive. Step 3: Follow described in Section A .2.2. Then type the following...

  • Page 101: Figure A-23: System Configuration For Linux

    TANK-800 Embedded System Figure A-23: System Configuration for Linux Access the recovery tool main menu by modifying the “menu.lst”. To first Step 5: access the recovery tool main menu, the menu.lst must be modified. In Linux system, enter Administrator (root). When prompt appears, type: cd /boot/grub vi menu.lst...

  • Page 102: Recovery Tool Functions

    TANK-800 Embedded System The recovery tool menu appears. ( Step 7: F igure A-25) Figure A-25: Recovery Tool Menu Create a factory default image. Follow described in Section Step 8: Step 2 Step 12 A .2.5 to create a factory default image.

  • Page 103: Figure A-26: Recovery Tool Main Menu

    TANK-800 Embedded System Figure A-26: Recovery Tool Main Menu The recovery tool has several functions including: 1. Factory Restore: Restore the factory default image (iei.GHO) created in Section A .2.5. 2. Backup system: Create a system backup image (iei_user.GHO) which will be saved in the hidden partition.

  • Page 104: Factory Restore

    TANK-800 Embedded System A.4.1 Factory Restore To restore the factory default image, please follow the steps below. Type <1> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to restore the factory default. A Step 2: factory default image called iei.GHO is created in the hidden Recovery partition.

  • Page 105: Backup System

    TANK-800 Embedded System A.4.2 Backup System To backup the system, please follow the steps below. Type <2> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to backup the system. A Step 2: backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 106: Restore Your Last Backup

    TANK-800 Embedded System A.4.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Type <3> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to restore the last backup Step 2: image (iei_user.GHO).

  • Page 107: Manual

    TANK-800 Embedded System A.4.4 Manual To restore the last system backup, please follow the steps below. Type <4> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears. Use the Ghost program to backup or Step 2: recover the system manually.

  • Page 108: B Safety Precautions

    TANK-800 Embedded System Appendix Safety Precautions Page 98...

  • Page 109: Safety Precautions

    TANK-800 Embedded System B.1 Safety Precautions WARNING: The precautions outlined in this appendix should be strictly followed. Failure to follow these precautions may result in permanent damage to the TANK-800. Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions...

  • Page 110: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the TANK-800. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the TANK-800 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 111: Product Disposal

    When maintaining or cleaning the TANK-800, please follow the guidelines below. B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the TANK-800, please read the details below. The interior of the TANK-800 does not require cleaning. Keep fluids away from the TANK-800 interior.

  • Page 112: Cleaning Tools

    In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the TANK-800.  C loth – Although paper towels or tissues can be used, a soft, clean piece of cloth is recommended when cleaning the TANK-800.

  • Page 113: C Hazardous Materials Disclosure

    TANK-800 Embedded System Appendix Hazardous Materials Disclosure Page 103...

  • Page 114: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    TANK-800 Embedded System C.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
