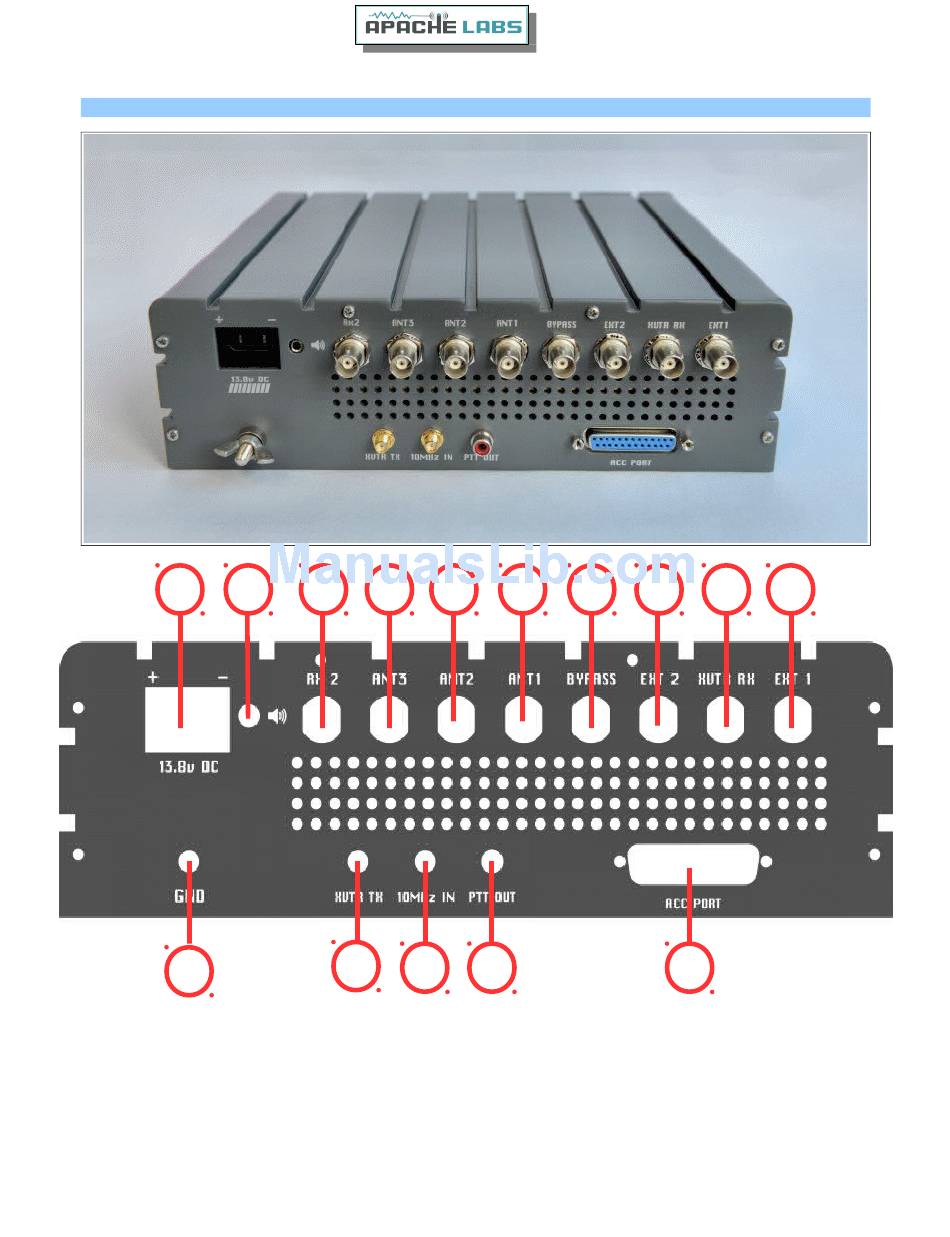

ANAN back panel

1 2
11
1. 13.8VDC Power connector
2. Balanced Speaker Out
3. Rx-2
4. ANT-3
5 ANT-2
6. ANT-1
7. Bypass
8. Ext-2
Copyright Apache Labs © ANAN-200D
3 4 5
12 13 14
13
6 7 8
15
9. Transverter Rx
10. Ext-1
11. Ground Lug
12. Transverter Tx
13. 10Mhz input
14. Push to Talk OUT
15, Accessory I/O connector
10
9
