Make a note of your ANAN Transceiver Transceiver unique MAC address since this will be useful if there is a need
for network problem-solving in the future.
Note: Make sure you have selected the proper radio model from the selections on the LEFT side of the
Hardware Configuration box. Failure to do so will result in an improper set of menu options and displays.
The Static IP Addresses are available to point your instance of OpenHPSDR/PowerSDR/OpenHPSDR to a
particular Apache Transceiver. There may be several Transceivers on your LAN and the Static IP address is a
convenience for pointing this software to a particular unit – where each unit has it's own IP address.

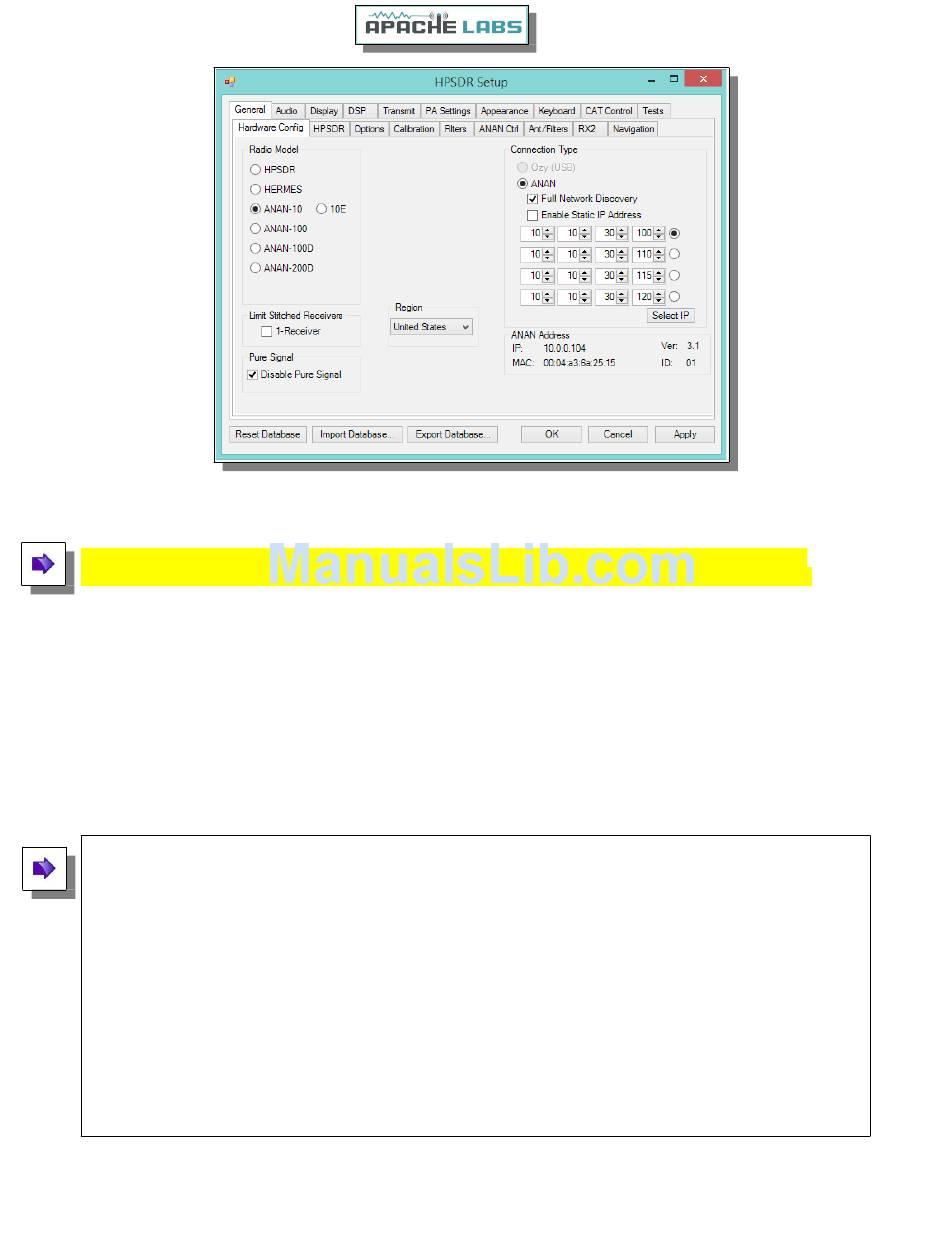

Setup ---> General tab ---> Hardware Config tab, the Radio Model should have ANAN Transceiver selected.
Connection Type "ANAN" and
Country in which you reside.
The ANAN IP address and Firmware version number in the green box highlighted above will be set automatically
by your network router DHCP server, or if connected directly to your PC, the IP address will be assigned by the
"APIPA" process – WHICH MAY TAKE UP TO SEVERAL MINUTES TO ASSIGN AN IP ADDRESS.
If your LAN is properly configured, the ANAN Transceiver board IP ADDRESS and MAC ADDRESS should be
automatically be detected and assigned. An incorrect default value is 169.254.1XX.XXX.
OpenHPSDR/PowerSDR™ will display the currently assigned IP address and MAC address of the ANAN
Transceiver Hermes board if the LAN connection is properly connected and configured. If the ANAN
Transceiver IP ADDRESS remains 0.0.0.0 then you must determine if OpenHPSDR/PowerSDR and your PC
network connection is operating correctly. Some typical problems could be that the Ethernet connection to
your PC or LAN connector is disabled in Windows. The Ethernet connector may not be properly seated in
your PC or Router. DHCP addressing must be properly enabled on your router. The new HPSDRProgrammer
V2 utility allows you to assign a STATIC IP ADDRESS if you wish.
Please see APIPA appendix of this document for more information.
