2.5.7 Universal Serial Bus Ports

USB 2
USB 1
USB 4
USB 3

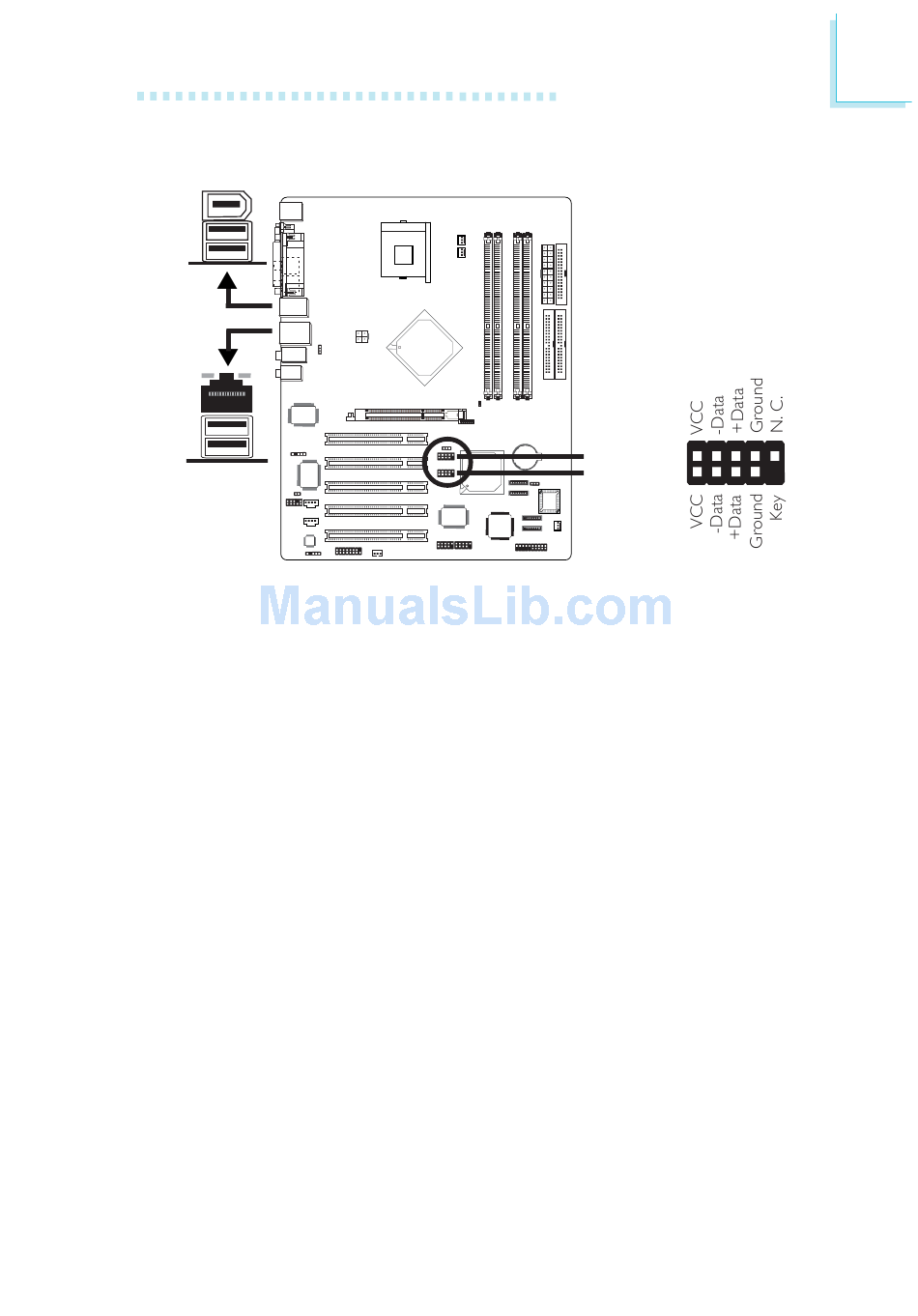

Four onboard USB 2.0/1.1 ports (Black) are at locations CN7
(USB 1-2) and CN8 (USB 3-4) of the system board.
J10 (USB 5-6) and J11 (USB 7-8) connectors allow you to con-
nect 4 additional USB 2.0/1.1 ports. The USB por ts may be
mounted on a card-edge bracket. Install the card-edge bracket to
the system chassis then insert the connector that is attached to
the USB port cables to J10 and/or J11.
BIOS Setting
Configure the onboard USB in the Integrated Peripherals
submenu ("Onboard Device" section) of the BIOS.
If you are using a USB 2.0 device, you must enable the USB 2.0
function in the same submenu mentioned above. Refer to chap-
ter 3 for more information.
Driver Installation
You may need to install the proper drivers in your operating
system to use the USB device. Refer to your operating system's
manual or documentation for more information.
If you are using a USB 2.0 device, install the "Intel USB 2.0 Driv-
ers" . Refer to chapter 4 for more information.
Hardware Installation
USB 5-6
2
1
USB 7-8
2
10
9
