2.6.12 Power Connectors

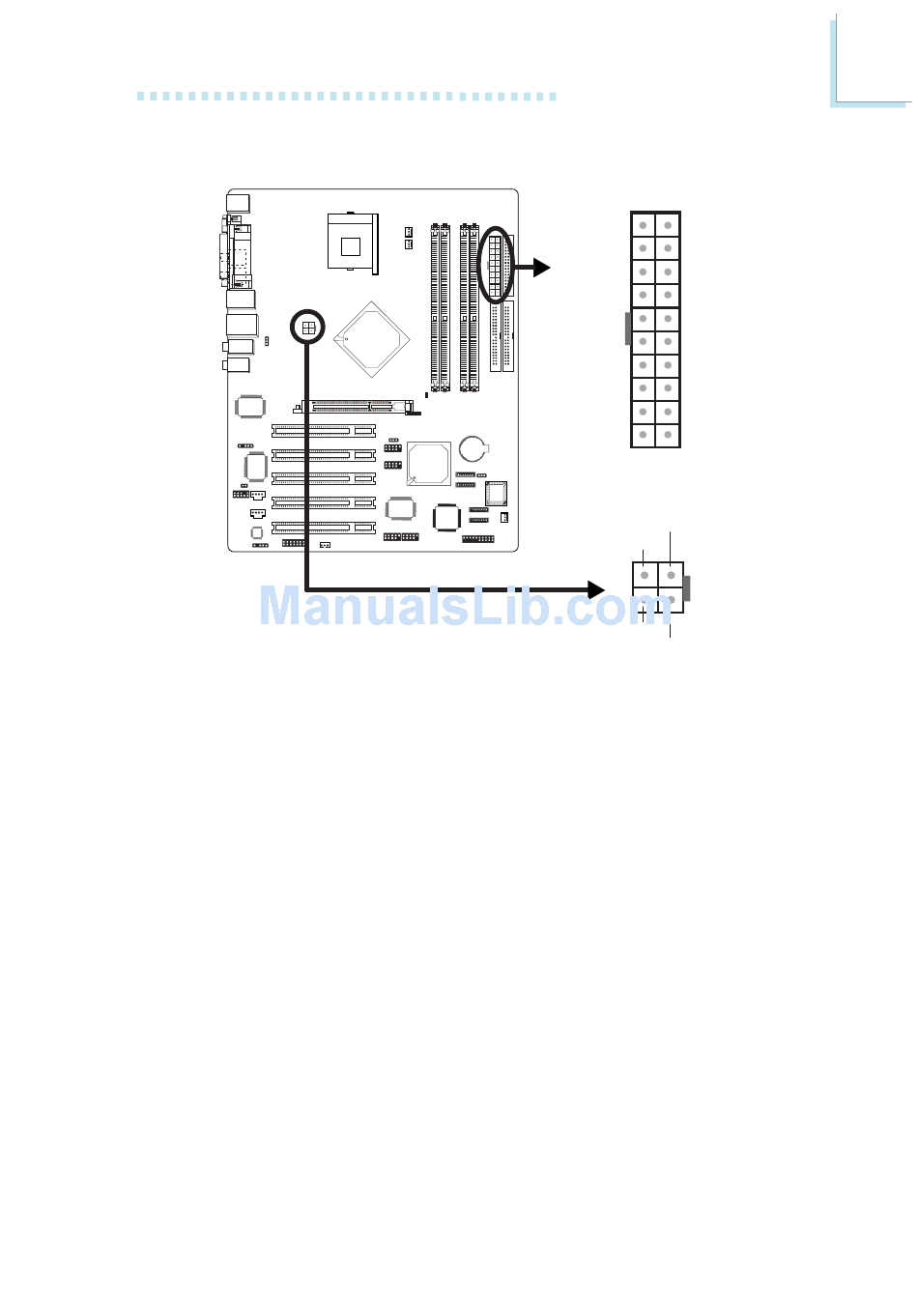

We recommend that you use a power supply that complies with
the ATX12V Power Supply Design Guide Version 1.1. An ATX12V
power supply has a standard 20-pin ATX main power connector
and a 4-pin +12V power connector that must be inserted onto
CN11 and CN10 connectors respectively.
The 4-pin +12V power connector enables the delivery of more
+12VDC current to the processor's Voltage Regulator Module
(VRM).
The system board requires a minimum of 250 Watt power sup-
ply to operate. Your system configuration (amount of memory,
add-in cards, peripherals, etc.) may exceed the minimum power
requirement. To ensure that adequate power is provided, use a
300 Watt (or greater) power supply.
Hardware Installation
11 1
3.3V 3.3V
-12V 3.3V
Ground Ground
PS-ON +5V
Ground Ground
Ground +5V
Ground
Ground
-5V PW-OK
+5V 5VSB
+5V +12V
20 10
+12V
Ground
1 3
2 4
Ground
+12V
2
