DFI INFINITY 865PE User Manual page 37

2
Hardware Installation
2.5.5 IEEE 1394
1394_1
10
2
9
1
1394_2 1394_3

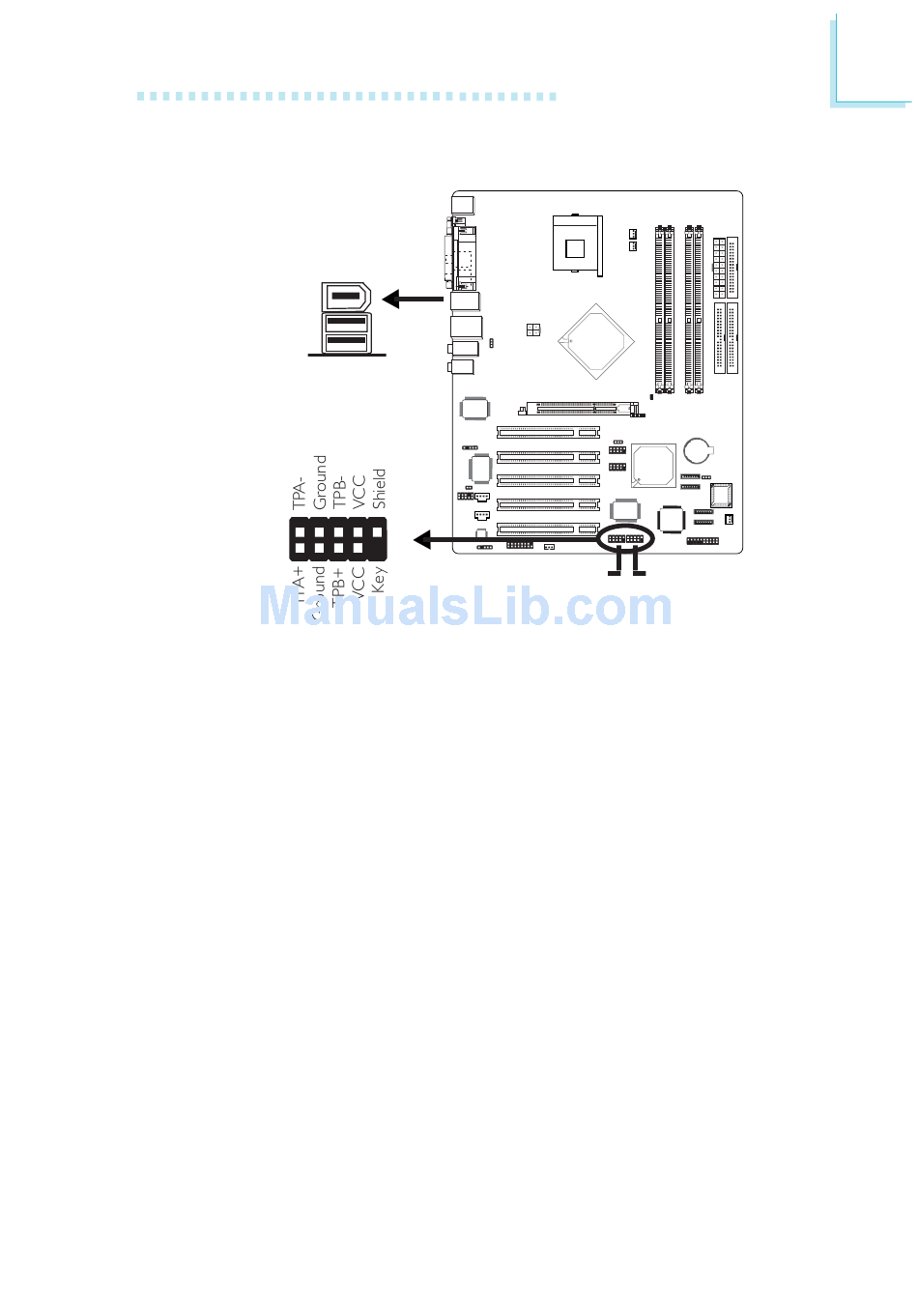

The system board is equipped with an onboard IEEE 1394 port
at location CN7 of the system board.
It is also equipped with two IEEE 1394 connectors at locations J9
(1394_2) and J12 (1394_3) for connecting additional 1394 de-
vices. The 1394 ports may be mounted on a card-edge bracket.
Install the card-edge bracket to the system chassis then connect
one of the cable connectors to a 1394 connector on the system
board. Make sure pin 1 of the cable connector is aligned with pin
1 of the J9 or J12.
BIOS Setting
Enable or disable the onboard IEEE 1394 in the Integrated Pe-
ripherals submenu ("Onboard Device" section) of the BIOS. Re-
fer to chapter 3 for more information.
37
