Hardware Installation
Warning:
.
.
.
.
.
.
.
.
Electrostatic discharge (ESD) can damage your system board, proces-
sor, disk drives, add-in boards, and other components. Perform the
upgrade instruction procedures described at an ESD workstation only.
If such a station is not available, you can provide some ESD protection
by wearing an antistatic wrist strap and attaching it to a metal part
of the system chassis. If a wrist strap is unavailable, establish and
maintain contact with the system chassis throughout any procedures
requiring ESD protection.

2.2 System Memory

The system board supports DDR SDRAM DIMM. Double Data
Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles
the data rate through reading and writing at both the rising and
falling edge of each clock. This effectively doubles the speed of
operation therefore doubling the speed of data transfer.
The four DDR DIMM sockets on the system board are divided into
2 channels:
18
Channel A - DDR 1 and DDR 2
Channel B - DDR 3 and DDR 4

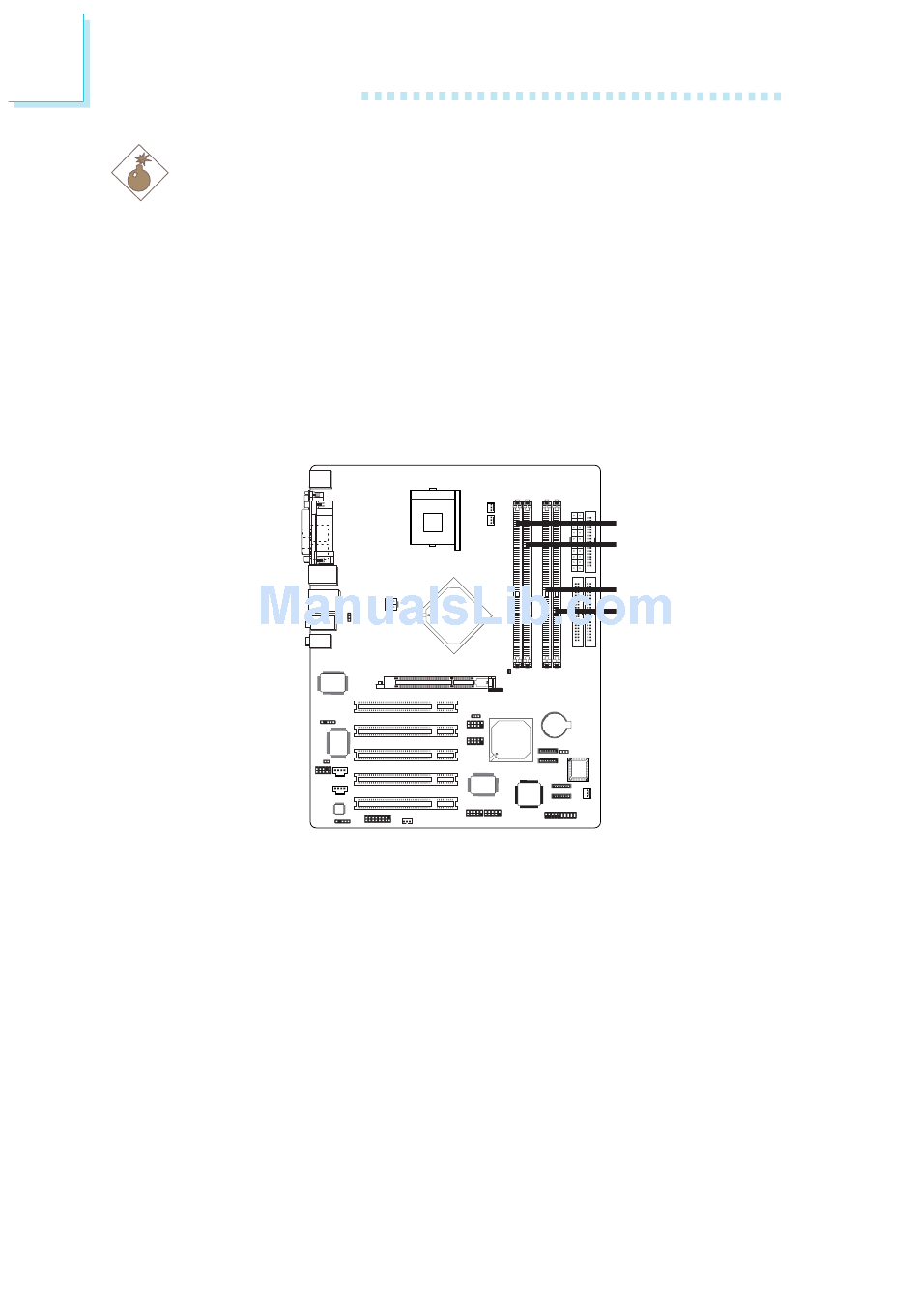

DDR 1
DDR 2
DDR 3
DDR 4
