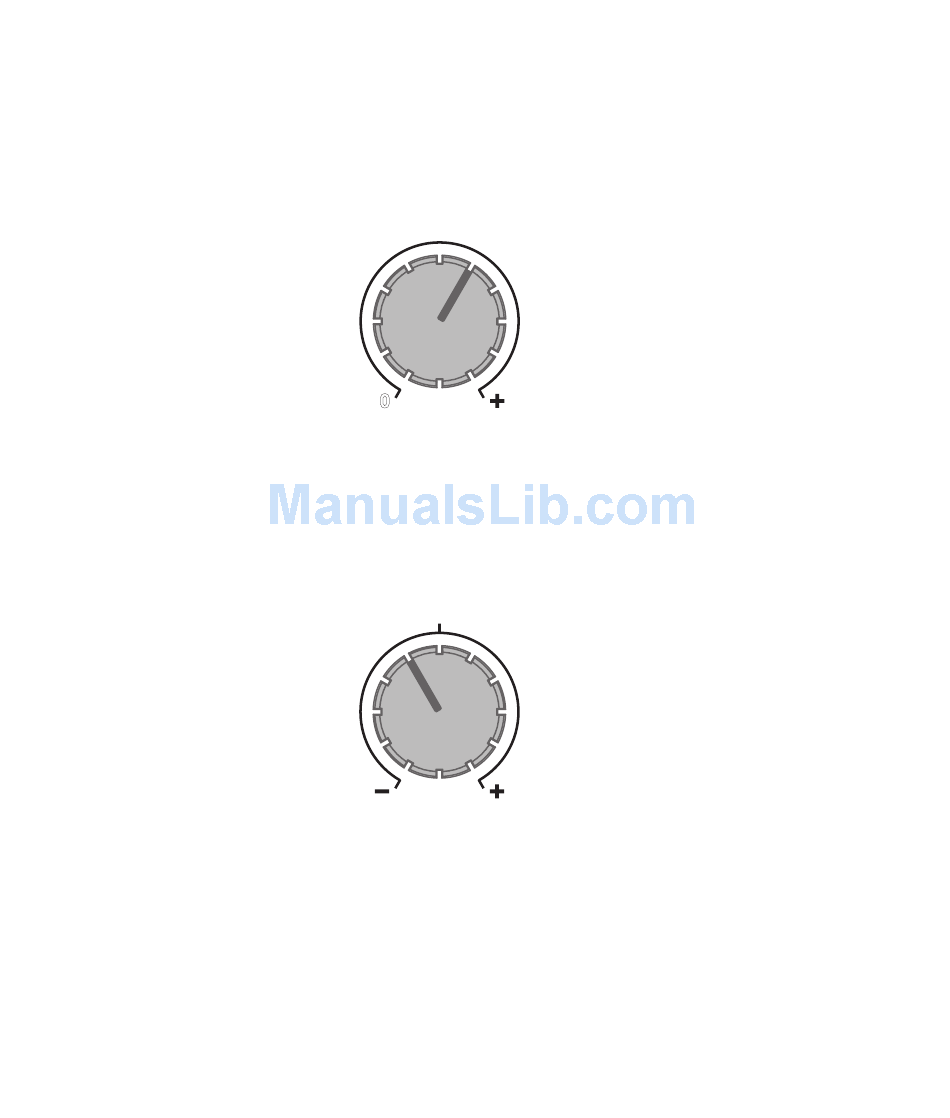

DISTORTION MIX
This adjusts the overall level of the distorted signal. Along with the
CLEAN MIX knob, it can be used to balance the levels of clean vs. distor-
tion. Also, the overall output level can be increased by turning up both
clean and distortion mix levels.
DISTORTION MIX
0
TONE
The TONE knob along with the TONE SHAPE control will cut or boost the
Treble, Mid, or Bass frequencies depending on which mode is currently
selected. All three bands can be set to the default flat (no cut and no
boost) by pressing and holding the TONE SHAPE button.
CUT BOOST
TONE
Note: Since the Soundblox 2 Multiwave Bass preset values can differ from
the physical knob positions, it can be useful to determine the positions of
the preset knob values. To do this, start with the pedal in bypass and set
all of the knobs to the full counter-clockwise position. Next, enable the
preset and slowly turn each knob up one at a time until the preset indica-
tor LED begins to blink rapidly. When this happens, the current position of
the knob matches the saved value.
Controls: Knobs | 11
