CONNECTIONS
GUITAR IN: Connect your bass or other instrument here using a standard
MONO ¼" cable.
GUITAR OUT: Connect this to your amp, pedal, or other audio device.
MULTI-FUNCTION IN (optional): The multi-function input is a flexible
control input for use with external controllers. It can accept digital or
analog signals which allows the Soundblox 2 Multiwave Bass to interface
with the following accessories:
SA110/SA115 Hot Hand Wireless Adapter
•
SA111 Hot Hand Wired Sensor
•
SA161 Source Audio Dual Expression Pedal
•
Source Audio Soundblox 2 MIDI Adapter
•
MULTI-FUNCTION OUT (optional): Use a Source Audio daisy-chain cable
to connect this jack to the sensor input of another Soundblox pedal.
9V DC: Connect the included 9 Volt DC power supply here. Use of a non-
Source Audio power supply may cause damage. Please be very cautious
when using a 3rd party power supply.
8 | Connections

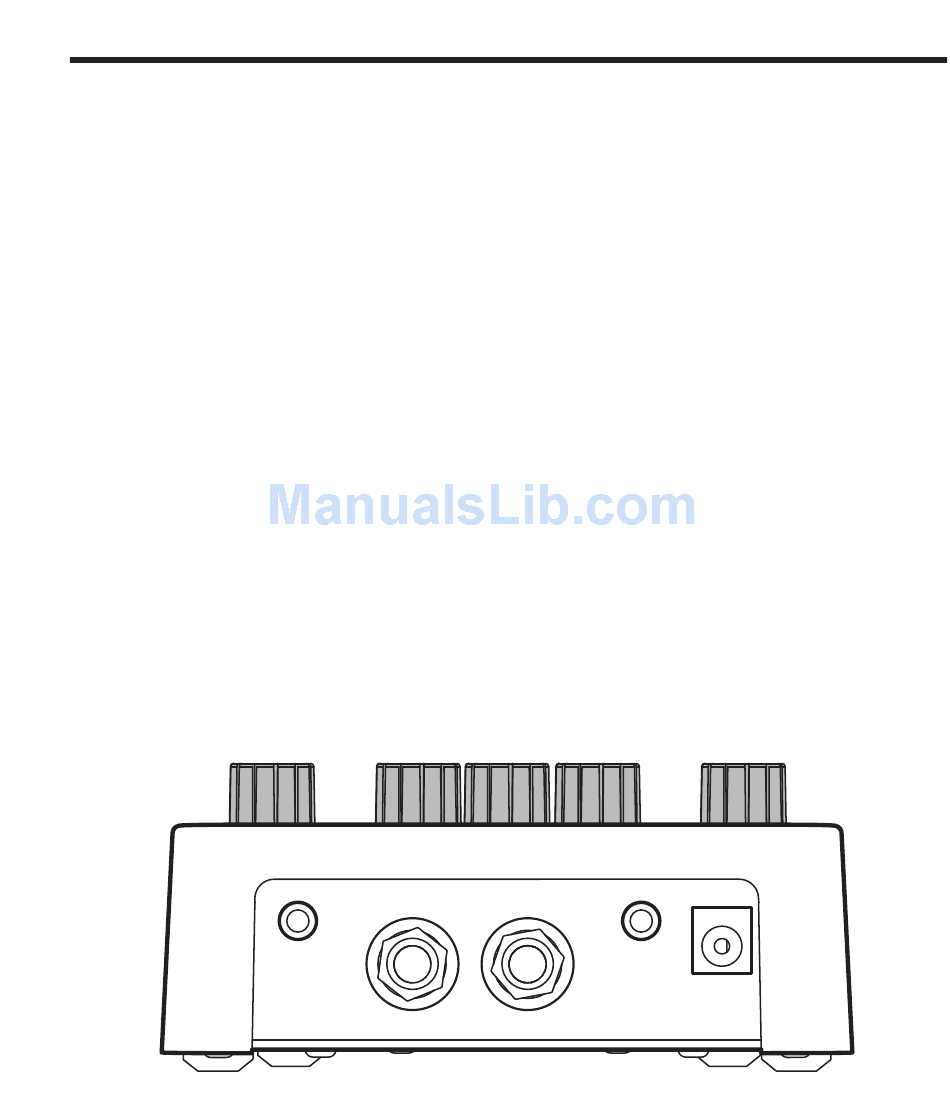

GUITAR IN
MULTI-
FUNCTION
IN
GUITAR OUT
MULTI-
FUNCTION
OUT
9V DC
