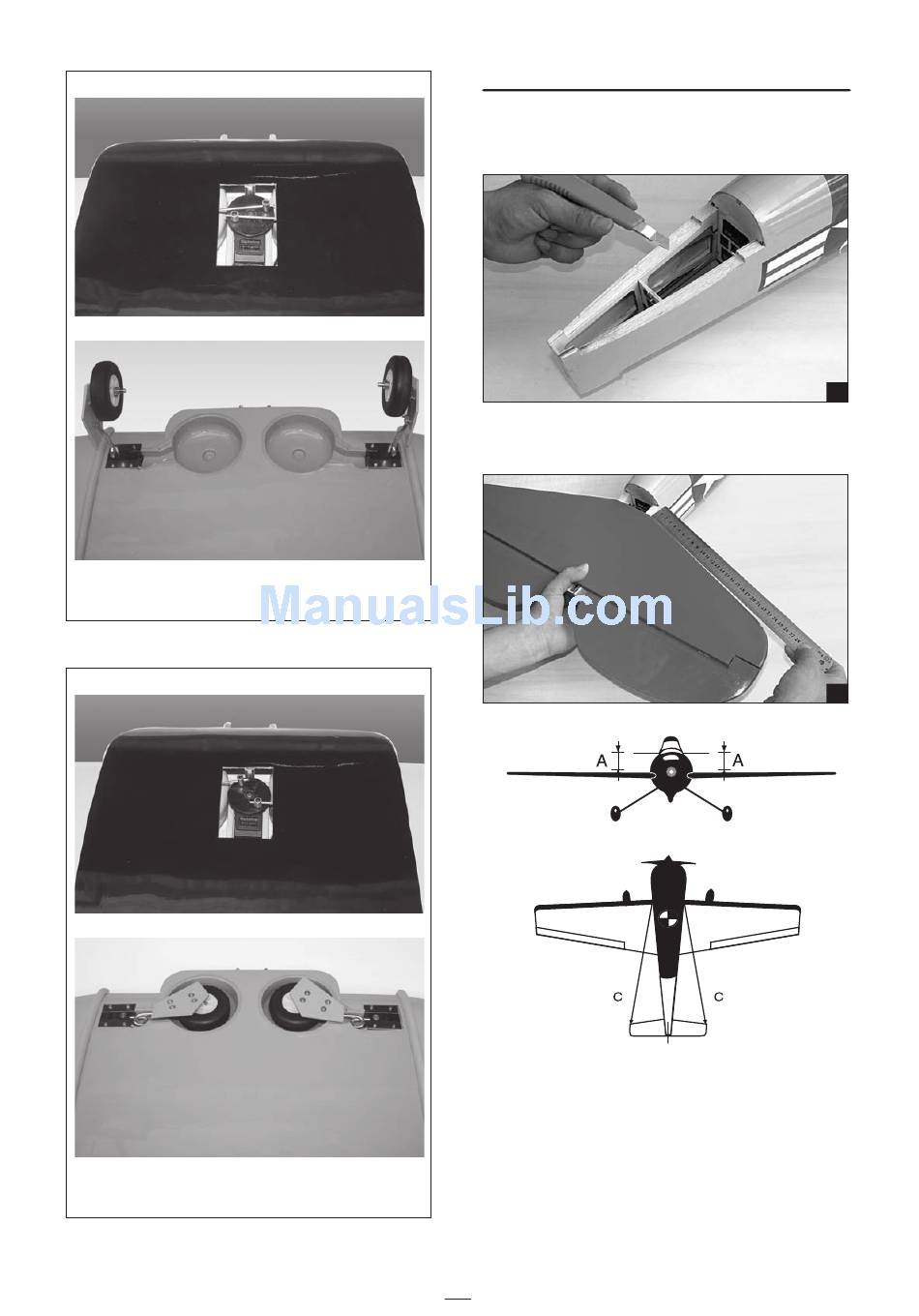

Retract and the gear is opened.
Retract and the gear is closed.

INSTALLING THE HORIZONTAL STABILIZER

1. Using a modeling knife, cut away the covering
from the fuselage for the stabilizer and remove it.
2. Place the horizontal stabilizer to the fuselage.
3. Check the fit of the horizontal stabilizer in its
slot. Make sure the horizontal stabilizer is
square and centered to the fuselage by taking
measurements, but don't glue anything yet.
4. With the horizontal stabilizer correctly aligned,
mark the shape of the fuselage onto the bottom
of the tail plane using a water soluble/
non-permanent felt-tip pen.
