Eurotech Titan User Manual page 91

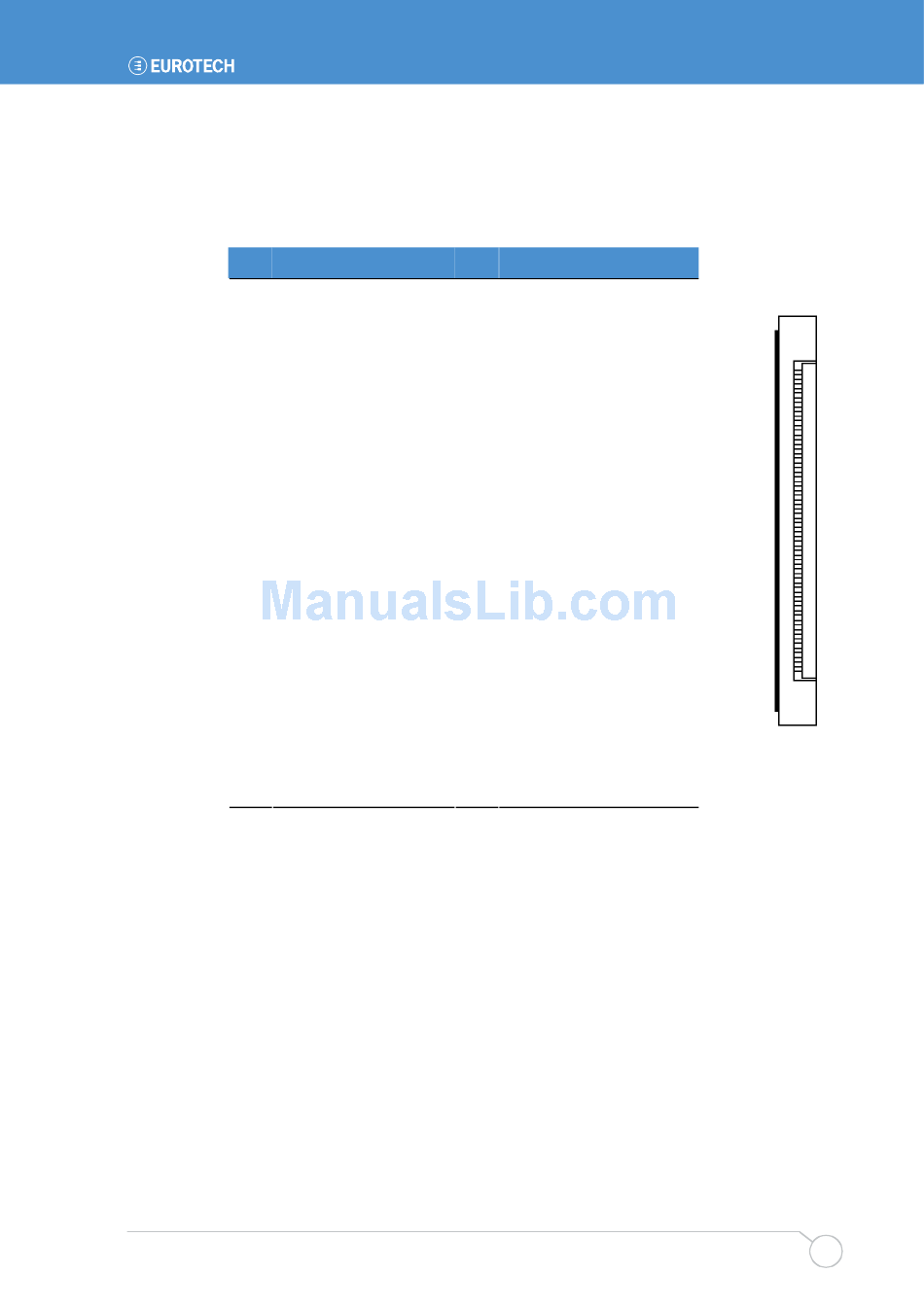

J3 – Direct connection to a NEC NL3224BC35-20 5.5inch 320x240 TFT display
Connector: Oupiin 2345-33TD2/SN
Mating cable: Eunsung 0.5x33x190xAx0.035x0.3x5x5x10x10
Pin Signal name
1 GND
2 PCLK
3 LCLK (HSYNC)
4 FCLK (VSYNC)
5 GND
6 GND
7 FPD 11
8 FPD 12
9 FPD 13
10 FPD 14
11 FPD 15
12 GND
13 FPD 5
14 FPD 6
15 FPD 7
16 FPD 8
17 FPD 9
Issue D
Appendix E - ZEUS-FPIF details
Pin Signal name
18 FPD 10
19 GND
20 GND
21 FPD 0
22 FPD 1
23 FPD 2
24 FPD 3
25 FPD 4
26 GND
27 LBIAS
28 LCDSAFE
29 LCDSAFE
30 GND
31 GND
32 GND
33 GND
1
33
