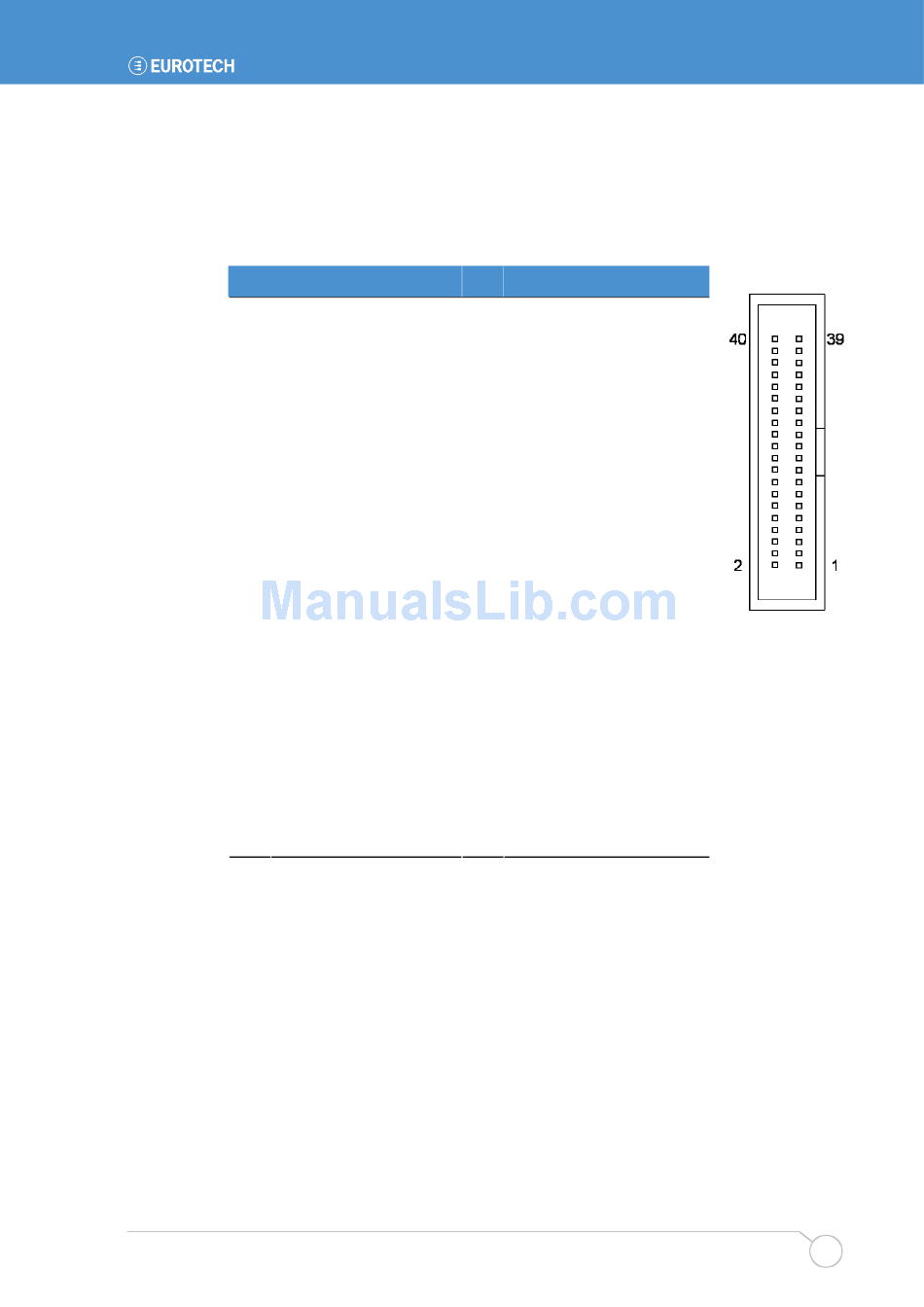

J1 – TITAN LCD cable connector
Connector: Oupiin 3215-40CSB/SN, 40-way, 1.27mm (0.05") x 2.54mm (0.1") straight-
boxed header
Mating connector: Oupiin 1203-40GB/SN (available from Eurotech on request)
Pin Signal name
1 BLKEN#
3 GPIO 16/PWM0
5 NEGBIAS
7 GND
9 FPD1
11 FPD3
13 FPD5
15 GND
17 FPD7
19 FPD9
21 FPD11
23 GND
25 FPD13
27 FPD15
29 NC
31 GND
33 BIAS / DE
35 FCLK / VSYNC
37 LCLK / HSYNC
39 PCLK / CLOCK
Issue D
Appendix E - ZEUS-FPIF details
Pin Signal name
2 BLKSAFE
4 LCDSAFE
6 POSBIAS
8 GND
10 FPD0
12 FPD2
14 FPD4
16 GND
18 FPD6
20 FPD8
22 FPD10
24 GND
26 FPD12
28 FPD14
30 NC
32 GND
34 GND
36 GND
38 GND
40 GND
