Eurotech Titan User Manual page 75

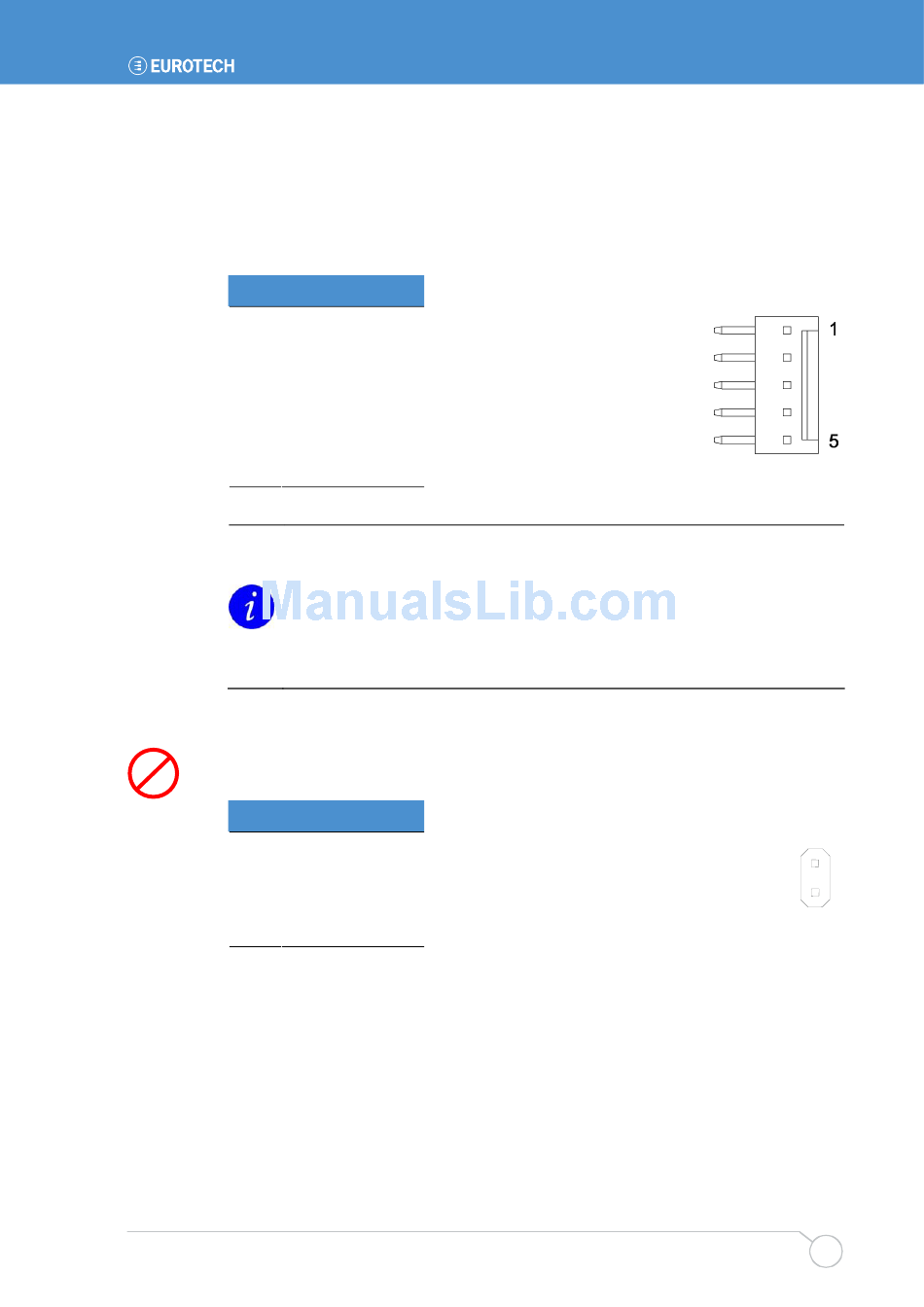

J15 – Power connector
Connector: Molex 22-05-7058, 5-way, 2.54mm (0.1") Pitch KK
friction lock 7395 series connector
Mating connector: Molex 22-01-2055, 5-way, 2.54mm (0.1") Pitch KK
housing 2695 series connector
Pin Signal name
1 VCC (+5V)
2 GND
3 VBAT_E
4 +12V
5 /Reset
VBAT_E provides the facility to fit an external battery for the backup supply of the
external 256KByte static RAM and RTC, and internal 256KByte static RAM and
RTC.
A +12V connection is defined, but is not required for the TITAN under normal
operation. It can be used to supply +12V to the PC/104 stack if required.
A momentary switch (push to make) may be connected across /Reset and GND.
Do NOT connect the switch across /Reset and VCC or +12V.
JP1 – Battery disconnect
Connector: Oupiin 2011-1x2GSB/SN, 2-way, 2.54mm (0.1") single row through-hole
TL
header.
Pin Signal name
Battery backup
1
switch input
2 Battery + terminal
Issue D
Connectors, LEDs and jumpers
®
header - right angle
®
crimp terminal
2
1
