System Overview

4. System Overview
The main components of the HomeLogiX™ HLX-40 wireless panel are:
 HomeLogiX™ HLX-40 Wireless Panel
 The LCD Display
 The Keypad
 Sound Indicators
 LED Indicators
4.1 HomeLogiX™ HLX-40 Wireless Panel

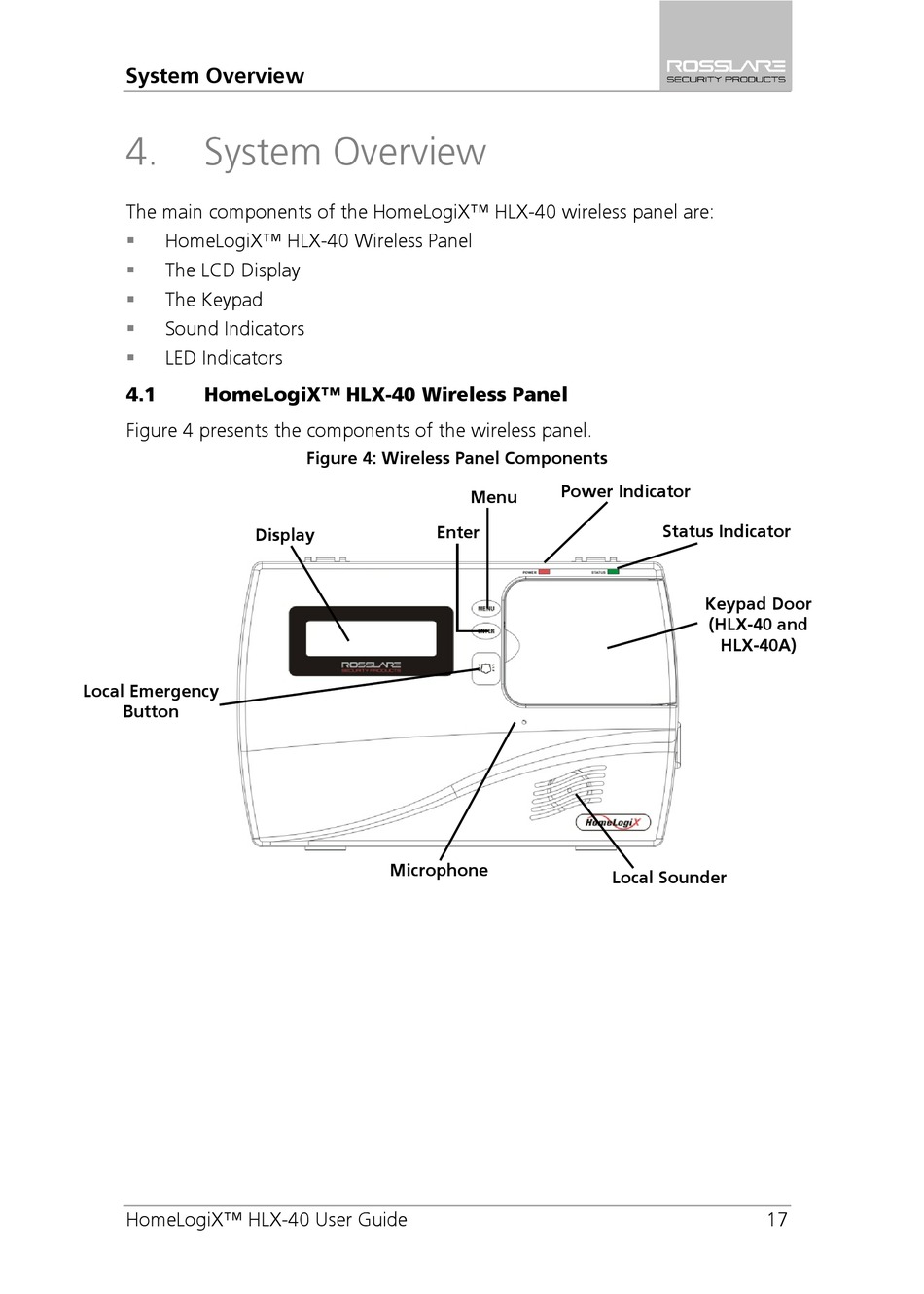

Figure 4 presents the components of the wireless panel.
Display
Local Emergency
Button
HomeLogiX™ HLX-40 User Guide

Figure 4: Wireless Panel Components

Menu
Enter
Microphone
Power Indicator
Status Indicator
Keypad Door
(HLX-40 and
HLX-40A)
Local Sounder
