2.2.9 Confirm that the Speaker is Operational and Linked to the Network

After connecting the speaker to the 802.3af compliant Ethernet hub, the LEDs on the speaker face
confirm that the speaker is operational and linked to the network.
2.2.10 Status LED
After supplying power to the speaker:
1. The green power/status LED and the yellow network LED comes on immediately.
Note
2.2.11 Link LED
●
●
Operations Guide
If the board is set to use DHCP and there is not a DHCP server available on the network, it
will try five times with a three second delay between tries and eventually fall back to the
programmed static IP address (by default 10.10.10.10). This process will take approximately
80 seconds.
The Link LED is illuminated when the network link to the speaker is established.
The Link LED blinks to indicate network traffic.

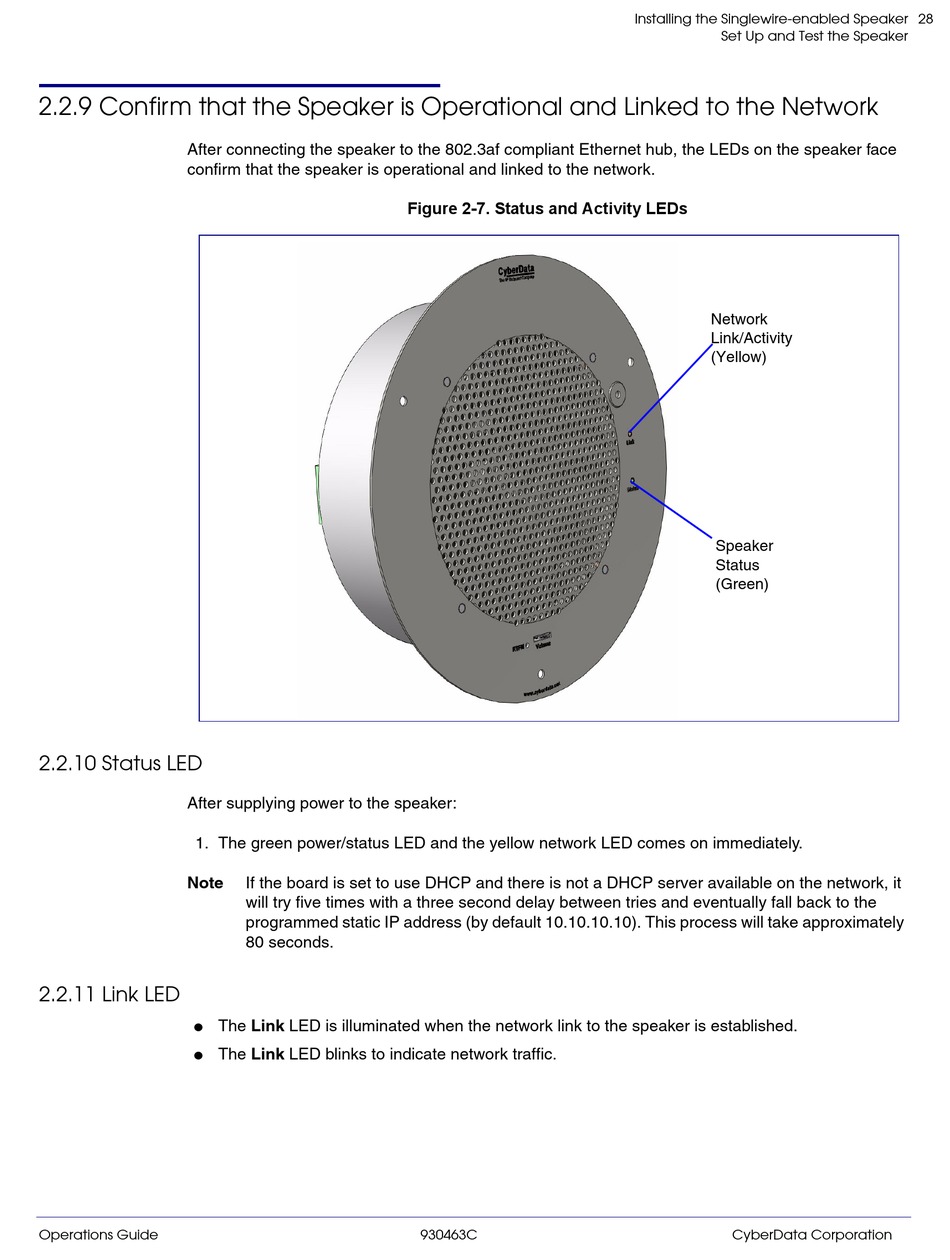

Figure 2-7. Status and Activity LEDs
930463C
Installing the Singlewire-enabled Speaker
Set Up and Test the Speaker
Network 
Link/Activity
(Yellow)
Speaker
Status
(Green)
