2.2.4 Running the Singlewire-enabled Speaker with Auxiliary Power
In Figure
Network connection or from an external source.
Operations Guide
2-3, the power for the Singlewire-enabled Speaker can either come from an 802.3af

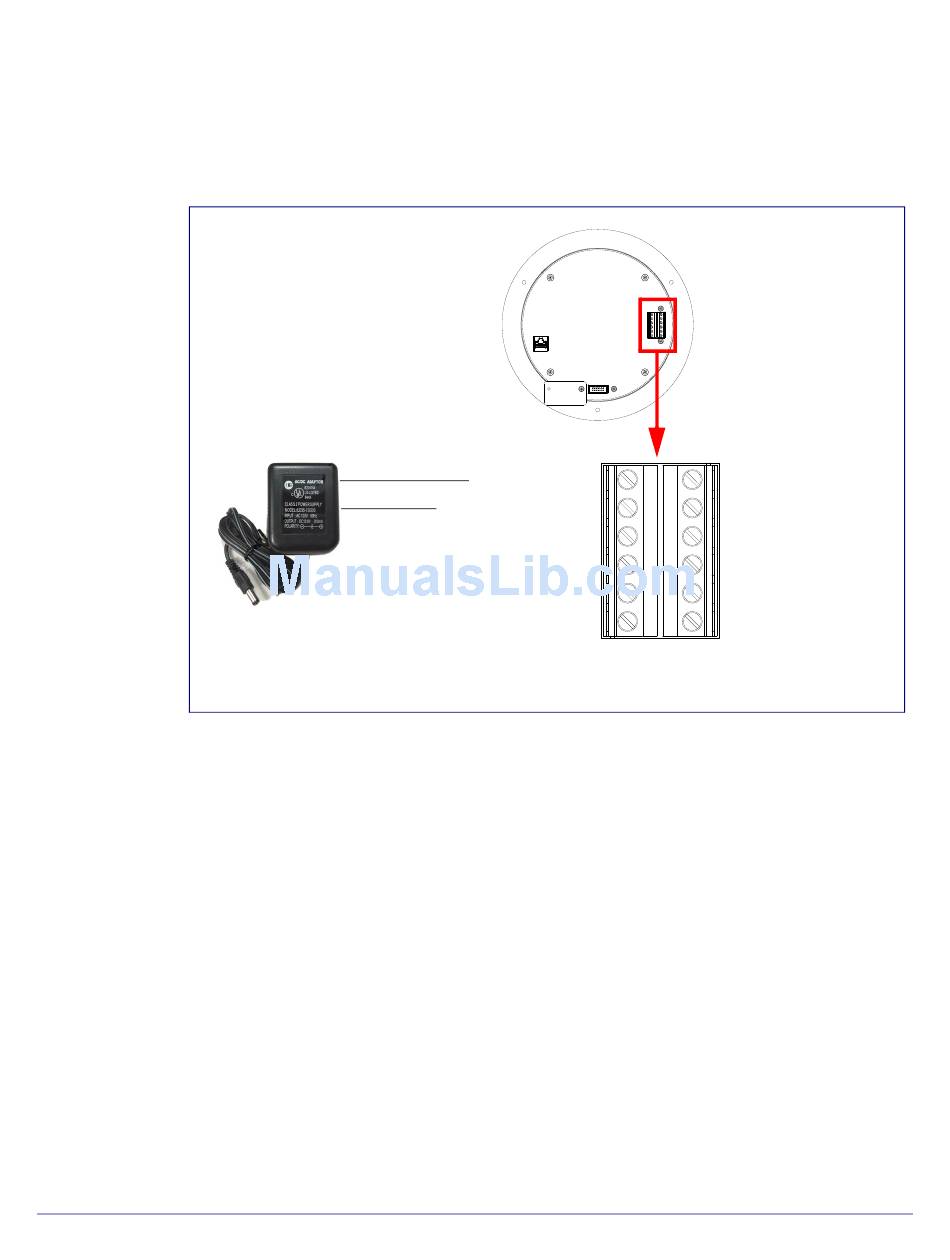

Figure 2-3. Running the V2 Speaker with Auxiliary Power
12-14 VDC
GND
AC adaptor
12-14 VDC @ 3 Amps
Speaker
AUX POWER (+)
(+12VDC @ 1A)
AUX POWER (-)
RELAY COM
RELAY NO
BUTTON LED (+)
BTN SENSE
930463C
Installing the Singlewire-enabled Speaker
Set Up and Test the Speaker
AUX SPEAKER (-)
AUX SPEAKER (+)
BTN SENSE GND
LINE OUT (-)
LINE OUT (+)
BUTTON LED (-)
J9
J10
