Select EXTRON CMS
The MX family of products also supports RS-232 control of Extron switchers. Extron has a
varied line of switchers and matrices with multiple inputs and outputs. See the SCHEDULER
SETUP INI section to set your specific I/O count. Most Extron switchers use the same protocol,
making this interface very flexible.
To use, ensure you have the proper com port set (the port on the MX that is physically attached
to the Extron Switcher).

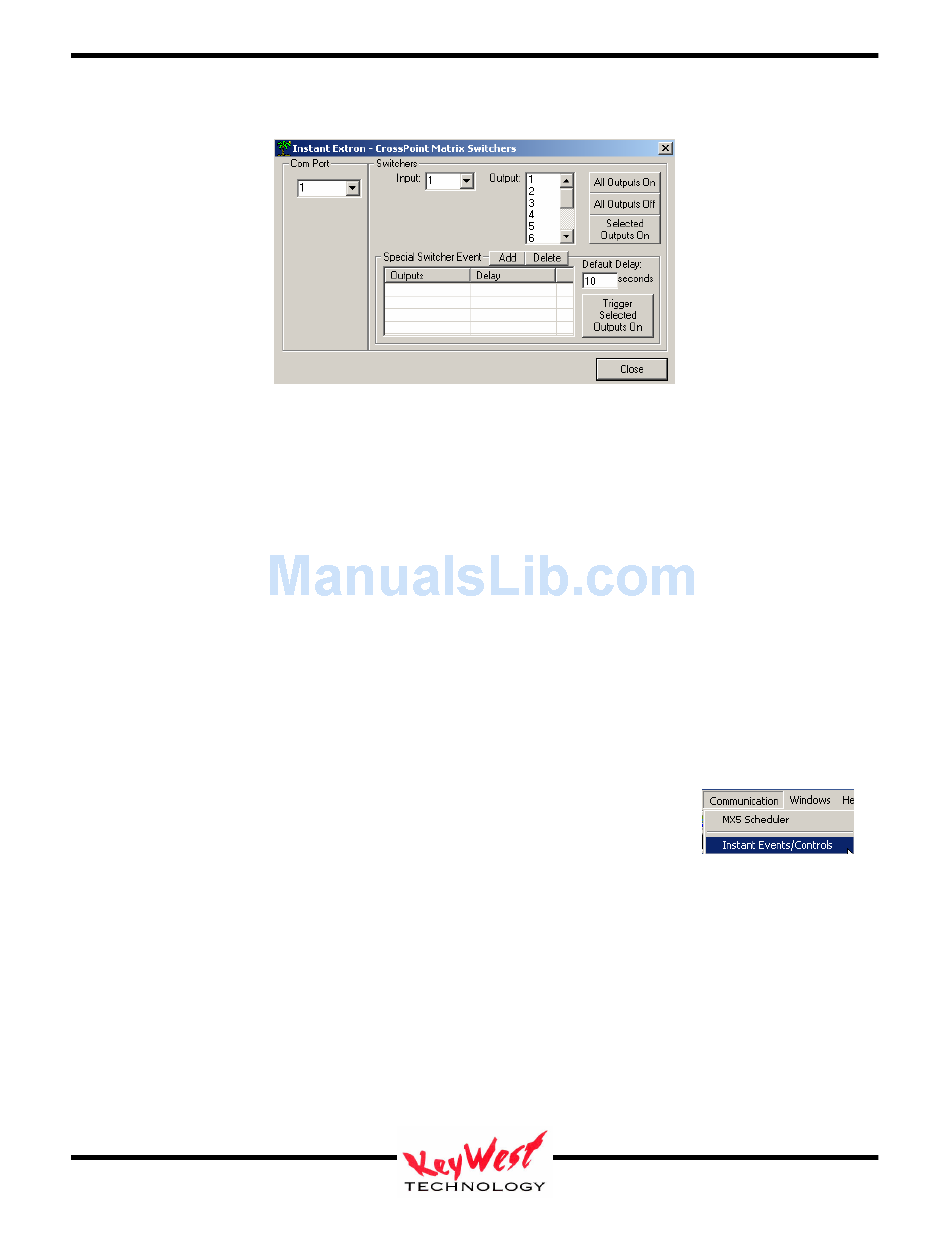

Choose your input number and output number for this specific event with the drop down boxes.
The SPECIAL SWITCHER EVENT section is special purpose and not normally used.
Click OK to trigger the event.
INSTANT CONTROLS
To access the INSTANT COMMAND menus and functions click
COMMUNICATIONS and select INSTANT EVENTS/CONTROLS
