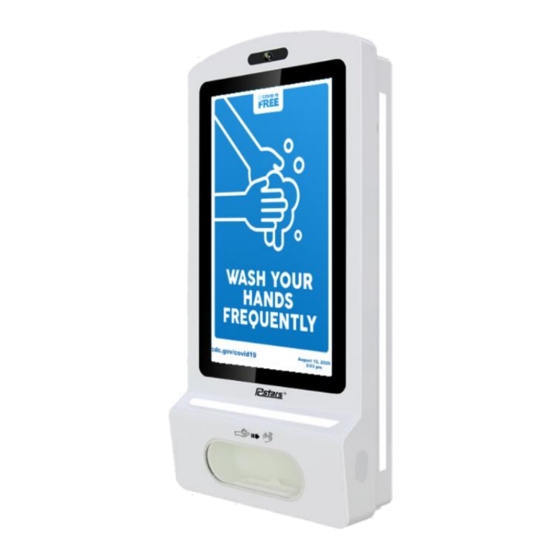

- Page 1 Installation Guide BRZ-22HS | Version 3.2...
-
Page 2: Table Of Contents
Network Connections ......................13 Static IP Address ............................13 Wireless Connection ..........................15 Resources Keywest Technology Support Department Questions or issues can be submitted to the Keywest Technology Technical Support department via e-mail or through the helpdesk ticketing system. Contact information: • E-mail: tech@keywesttechnology.com... -
Page 3: Kiosk Hardware
If the equipment you received did not include the parts shown, please notify the Keywest Technology Support department. Wall Mounting Kiosk Assembly Attach the wall bracket to the back of the device. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019... -
Page 4: Floor Standing Kiosk
**NanoShield Antibacterial Protector Film (DO NOT REMOVE) If the equipment you received did not include the accessories listed above, please notify the Keywest Technology Support department. Floor Standing Kiosk Assembly Attach the frame to the fuselage of the device using the floor mount screws. -
Page 5: Hand Sanitizer Auto-Dispenser Sensor
When a hand enters the dispenser area, the border light turns green for up to 3 seconds and a sensor triggers the dispenser to release hand sanitizer. The border light returns to blue after the hand sanitizer is dispensed. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019... -
Page 6: Sanitizer Level Light
Sanitizer Level Light The light bar across the front of the device indicates when the level of sanitizer is low by turning red. When the sanitizer is refilled, the light bar returns to green. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019... -
Page 7: Refill Sanitizer
Add hand sanitizer liquid or gel. Dispersal of the hand santizer can be adjusted via a control located at the bottom of the front wall of the case. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019... -
Page 8: Breeze Software
Internet to communicate with the Breeze server. If the network connection between the server and players is interrupted or absent, the players are not able to receive updates from the server, such as changes in content, playlist, schedules and more. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019... -
Page 9: Breeze Player
To stop the Breeze Player software, you will need to physically connect a mouse and keyboard to the player device. A USB port is available on the front of the inside of the case. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019... - Page 10 Android Launcher from restarting the Breeze Player software. The Android Launcher window offers four buttons along the bottom of the screen to alter the hardware device settings: Date & time, Ethernet, Wi-Fi or Settings. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019...
- Page 11 It is very important to remember to restart the Breeze Player after it has been stopped. Failure to restart the Breeze Player will result in a digital sign that continues to display the Android Launcher window. Select the PLAY button to restart the Breeze Player software. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019...
-
Page 12: Players Tool
Breeze Software Players Tool New Keywest Technology players are pre-registered and sent a schedule with a demo playlist prior to shipping. Playback of the demo schedule begins as soon as a player is provided with power and connected to a screen. -
Page 13: Network Connections
IP address for each player. Assign a Static IP Address 1. Stop the Breeze Player. 2. Select the Ethernet button in the Android Launcher window. 3. In the Ethernet menu, select Ethernet Ip mode. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019... - Page 14 6. When the network information is complete in the Ethernet window, select the CONNECT button. 7. Click Escape on the keyboard to exit the Settings menu. Select the PLAY button In the Android Launcher window to restart the Breeze Player software. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019...
-
Page 15: Wireless Connection
2. Select the Wi-Fi button in the Android Launcher window. 3. Enable Wi-Fi, if it is not already enabled. 4. The detectable wireless networks are listed in the Wi-Fi menu. Select the wireless network to connect to the Breeze Player. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019... - Page 16 Connected appears below the name of the selected wireless network. 7. Click Escape on the keyboard to exit the Settings menu. Select the PLAY button In the Android Launcher window to restart the Breeze Player software. Copyright 2020 Keywest Technology // KeywestTechnology.com // +1.800.331.2019...
